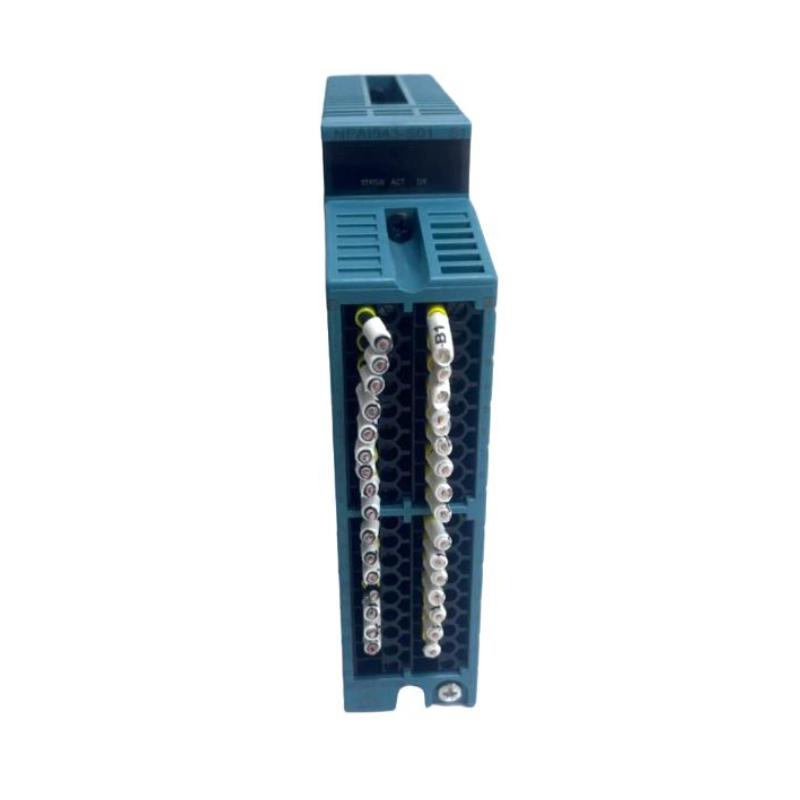

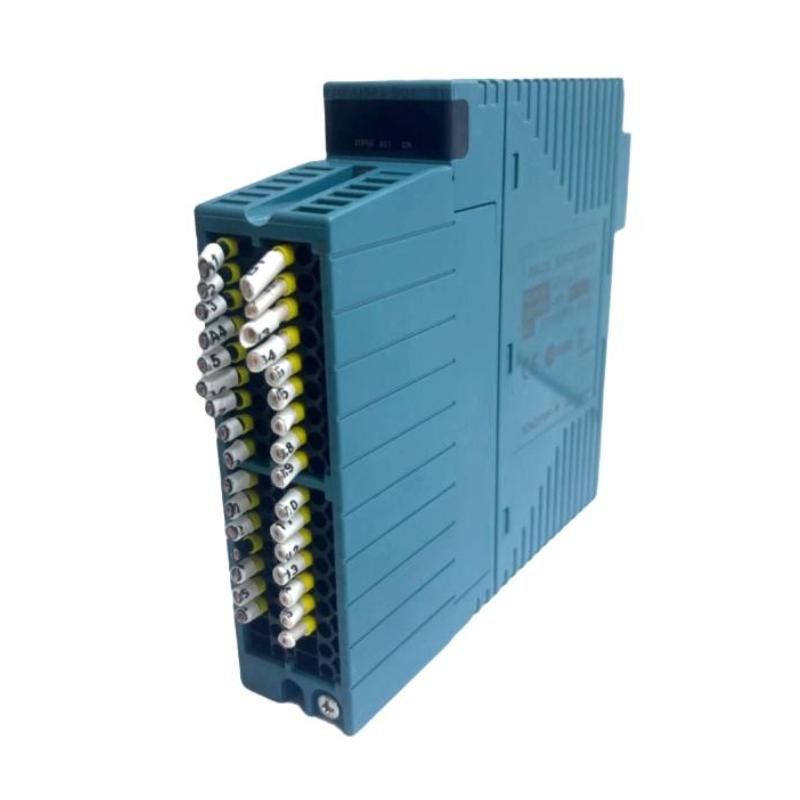

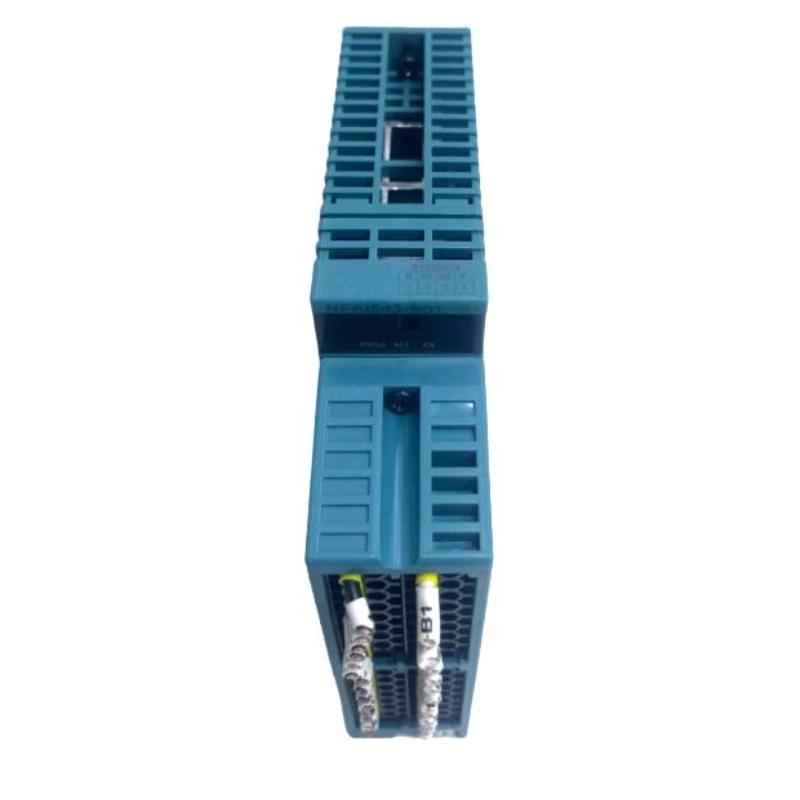

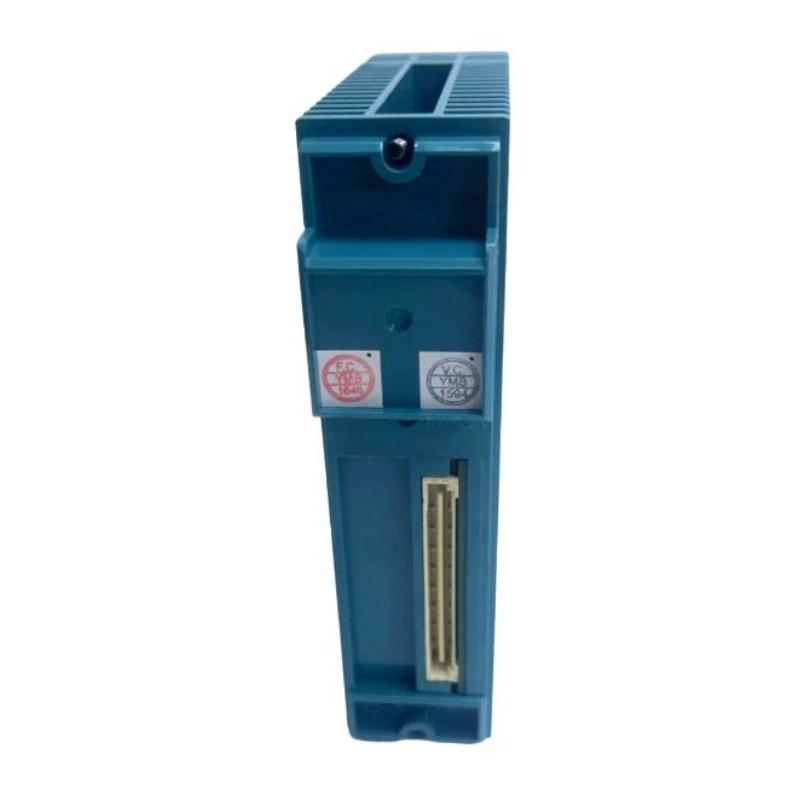

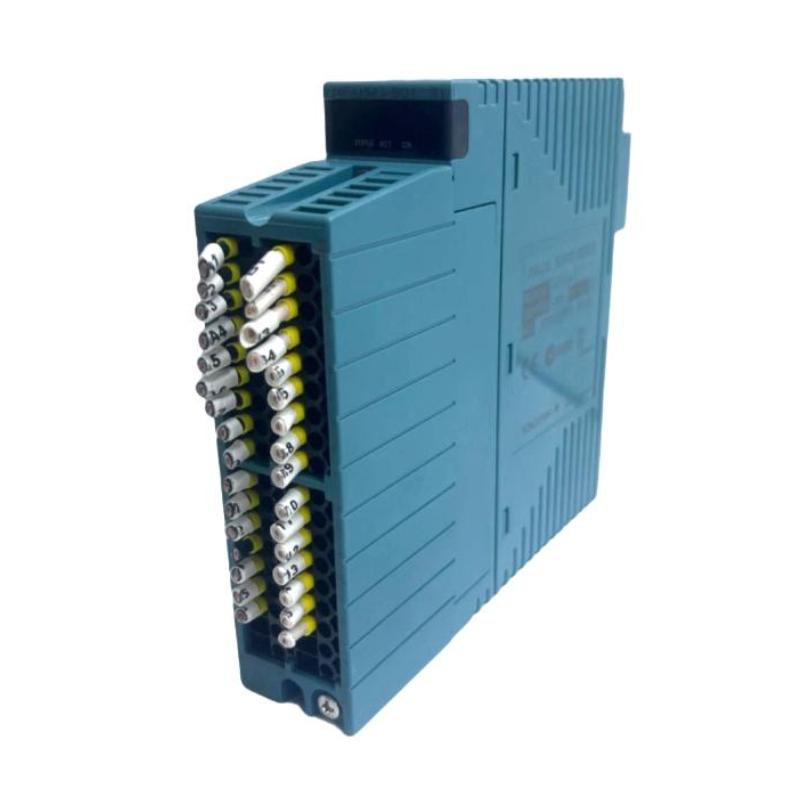

Yokogawa NFAI543-S50 S1 Analog Output Module

Overview

The Yokogawa NFAI543-S50 S1 is an analog output module designed for distributed control system (DCS) applications. It provides precise and stable analog control signals for field devices such as valves, actuators, and drives, ensuring reliable process control in industrial automation environments.

General Information

Part Number: NFAI543-S50 S1

Manufacturer: Yokogawa

Brand: Yokogawa

Country of Origin: Japan

Series: NF Series I/O Modules

Type: Analog Output Module

Mounting: Rack-mounted installation

Application: Process control output, actuator control, and industrial automation signal generation

Power Specifications

Input Voltage: 5 V DC (system backplane supply)

Power Consumption: Low-power analog output module

Protection Features: Electrical isolation and output signal stabilization design

Status Indicators: LED indicators for channel status and module health

Communication & Interface

Interface Type: DCS backplane interface

Output Type: Analog signal output for process control

Function: Converts digital control signals into analog outputs for field devices

Diagnostics: Channel monitoring and fault detection

Connection Type: Backplane and terminal block interface

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −20 to +70 °C

Relative Humidity: 5% to 95% non-condensing

Protection Rating: Industrial control cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 130 × 107.5 × 32.8 mm

Weight: 0.4 kg

Reliable analog output performance for precise and stable industrial automation control.
