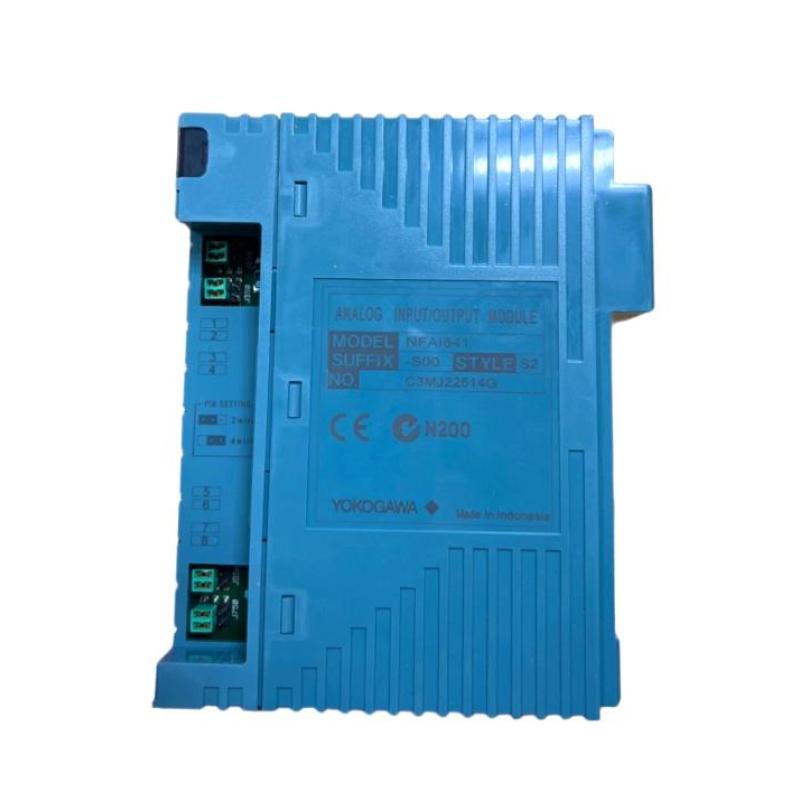

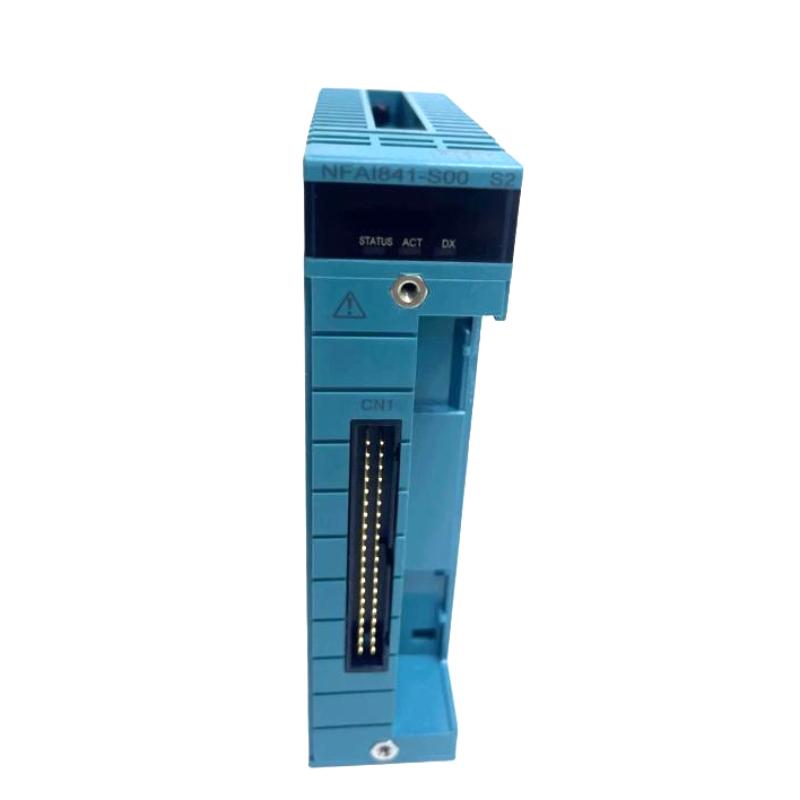

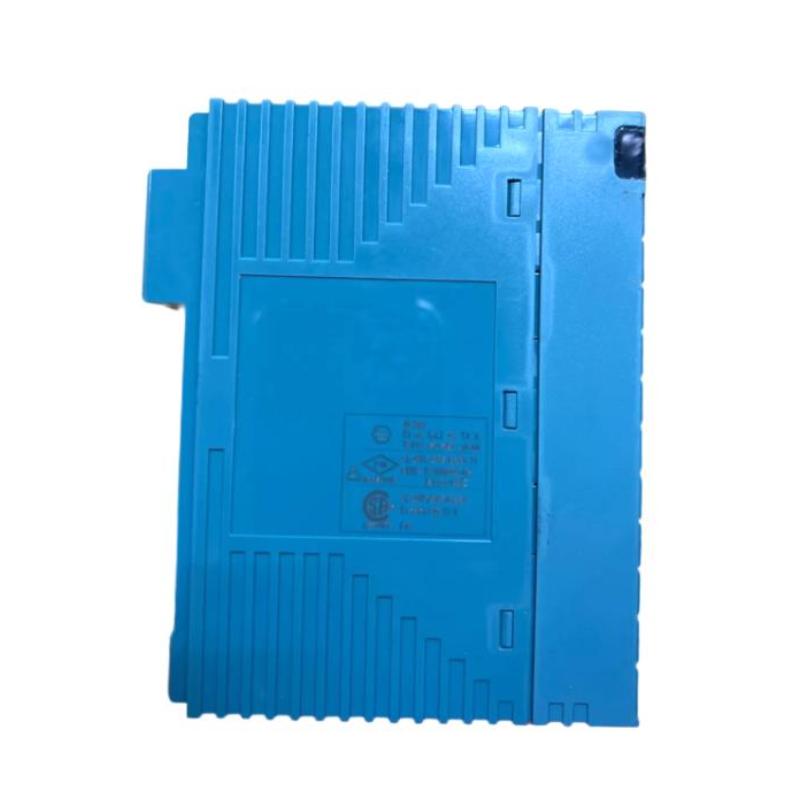

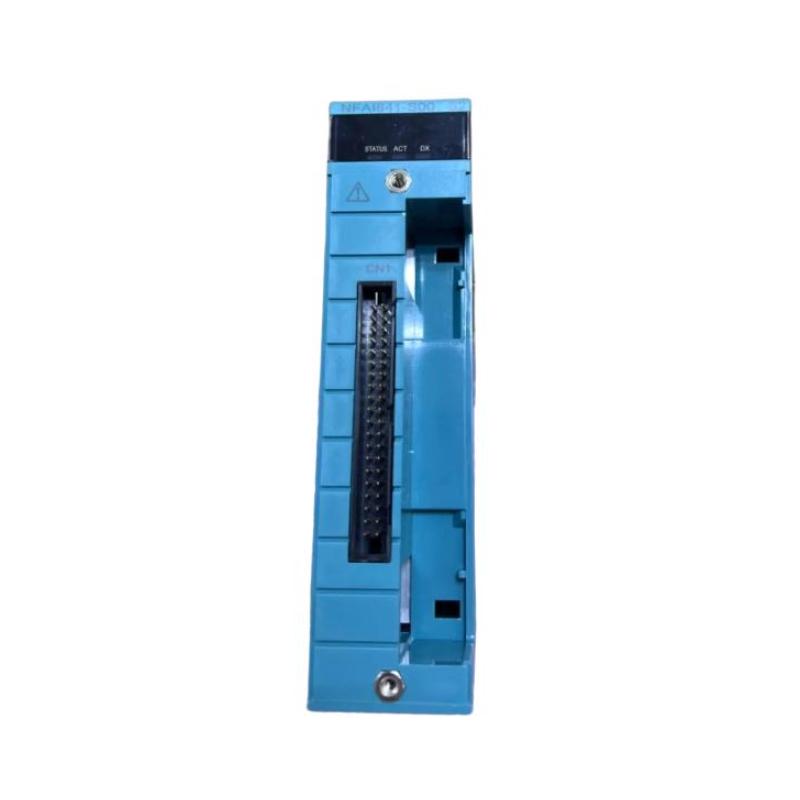

Yokogawa NFAI841-S00 S2 Analog Input/Output Module (Isolated)

Overview

The Yokogawa NFAI841-S00 S2 is an isolated analog input/output module designed for precise signal handling in industrial automation and process control systems. It provides stable acquisition and output of analog signals, ensuring accurate measurement, control, and reliable system integration in demanding industrial environments.

General Information

Part Number: NFAI841-S00 S2

Manufacturer: Yokogawa Electric Corporation

Brand: Yokogawa

Country of Origin: Japan

Series: NFAI Series Analog I/O Modules

Type: Isolated Analog Input/Output Module

Installation: Rack-mounted control system module

Function: Analog signal processing for process control and automation systems

Power Specifications

Supply Voltage: Powered via system backplane (module-dependent)

Power Consumption: Low-power industrial electronic module

Input Type: Backplane-powered control system interface

Protection: Electrical isolation, surge protection, and noise immunity design

Indicators: LED status indicators for module and channel status

Communication & Interface

Input/Output Channels: Multi-channel analog input and output (system configuration dependent)

Signal Types: Standard industrial analog signals (e.g., 0–10 V, 4–20 mA)

Isolation: Galvanic isolation between system bus and field signals

System Integration: Compatible with Yokogawa distributed control systems (DCS)

Diagnostics: Channel-level diagnostics, fault detection, and signal monitoring

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +70 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: Industrial rack-mounted module (internal system installation)

Vibration Resistance: Suitable for continuous industrial operation environments

Dimensions & Weight

Dimensions (H × W × D): 32.8 × 107.5 × 130 mm

Weight: 0.3 kg

Reliable isolated analog processing for precise and stable industrial control performance.
