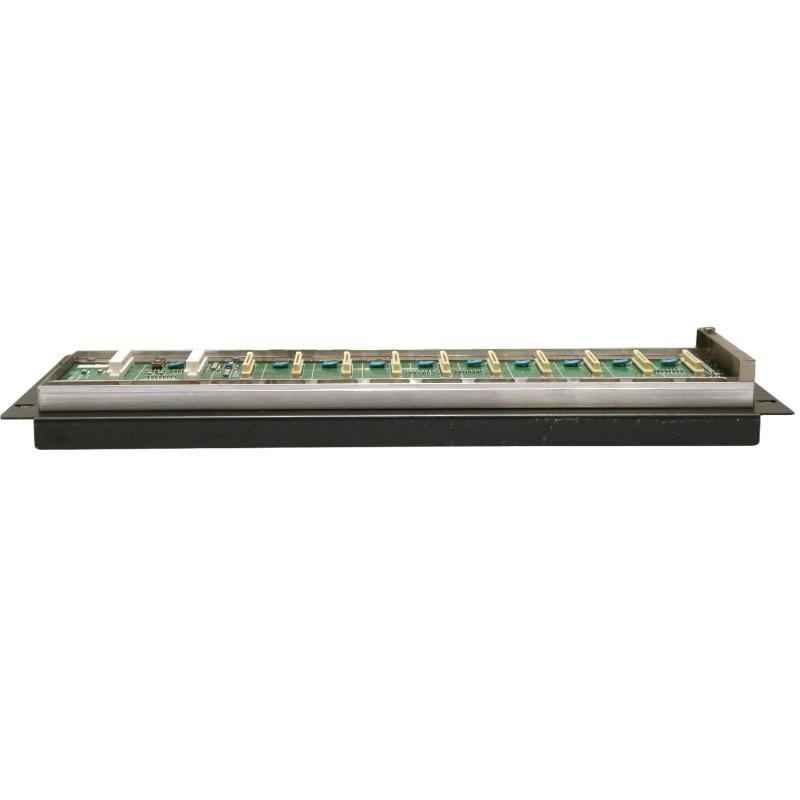

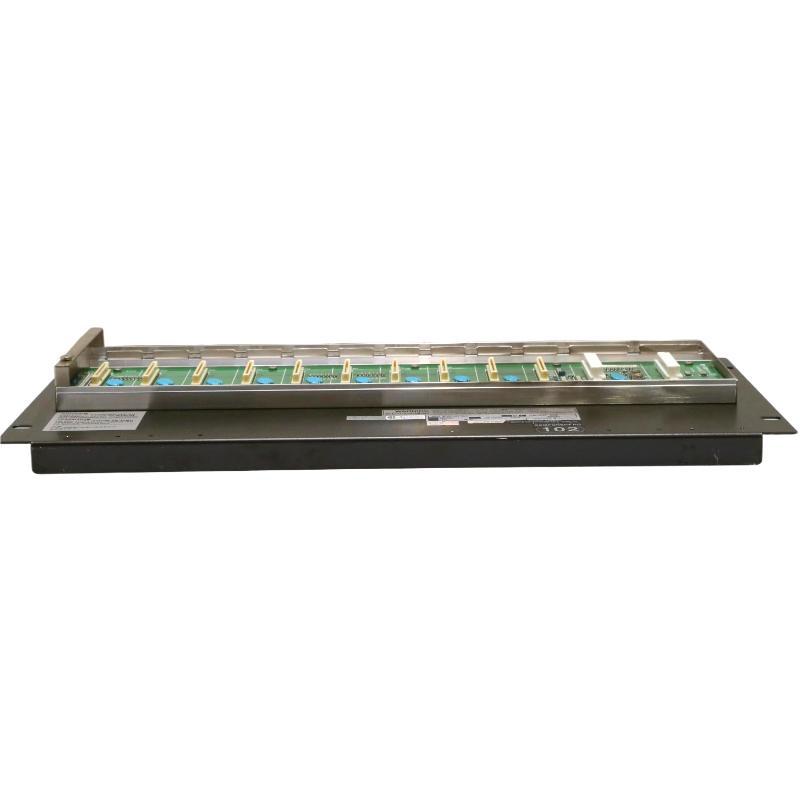

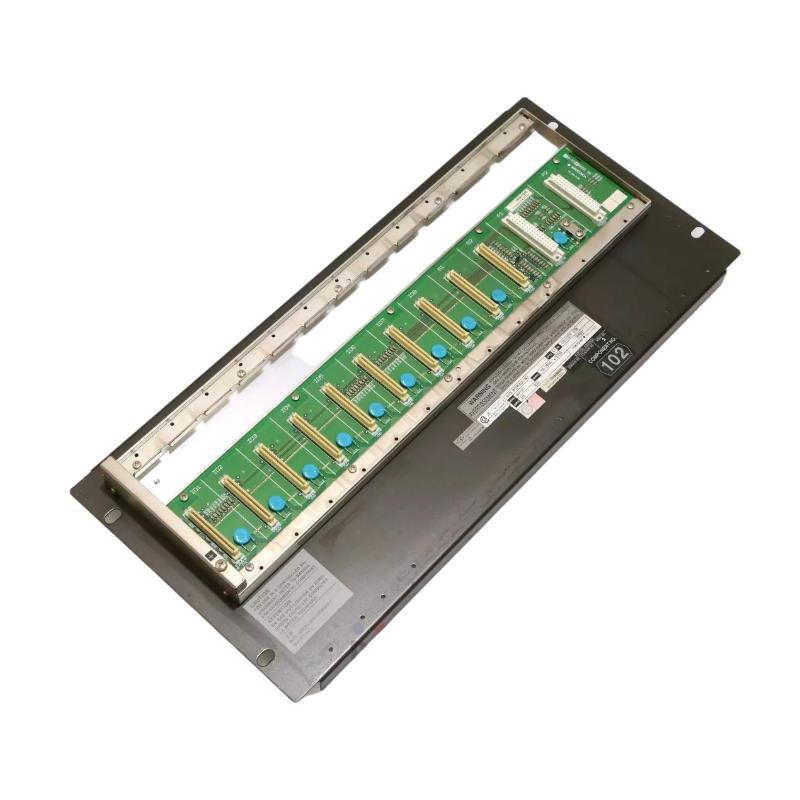

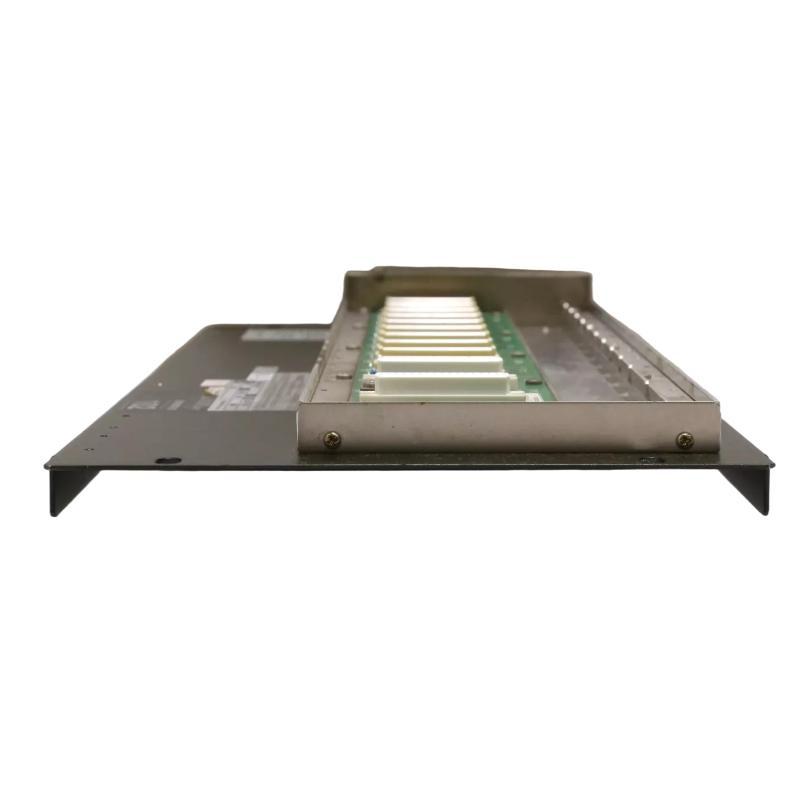

Yokogawa ANR10D-423 S1 ER Bus Unit

Overview

The Yokogawa ANR10D-423 S1 ER Bus Unit is designed for high-reliability industrial process automation systems requiring stable, deterministic communication. It functions as a key ER bus component, enabling seamless data exchange between distributed field modules and central control systems within large-scale automation architectures, with enhanced operational stability and system resilience.

General Information

Part Number: ANR10D-423 S1

Brand: Yokogawa

Country of Origin: Japan

Series: ANR ER Bus Series

Type: ER Bus Unit (S1 Version)

Mounting: Rack-mounted / cabinet installation

Application: Process automation, distributed control systems, industrial communication networks

Power Specifications

Supply Voltage: 24 V DC nominal

Operating Power: Supplied via system backplane or dedicated power module

Field Power Requirement: External 24 V DC for bus operation

Protection: Overvoltage and surge protection integrated

Status Indication: LED indicators for power, communication, and system status

Communication & Interface

Network Interface: ER bus communication system (industrial fieldbus architecture)

Control Integration: Yokogawa distributed control system compatibility

Data Transfer: High-speed deterministic communication between modules and controller

Diagnostics: Bus health monitoring, fault detection, redundancy status supervision

Wiring Interface: Industrial backplane/bus connectors for secure system integration

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: -20 to +70 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial process control environment rated

Protection Class: Industrial cabinet installation rated

Dimensions & Weight

Dimensions: 482.6 × 221.5 × 205 mm

Weight: 10 kg

Enhanced S1 Architecture — Built for Reliable and Scalable Industrial Control!
