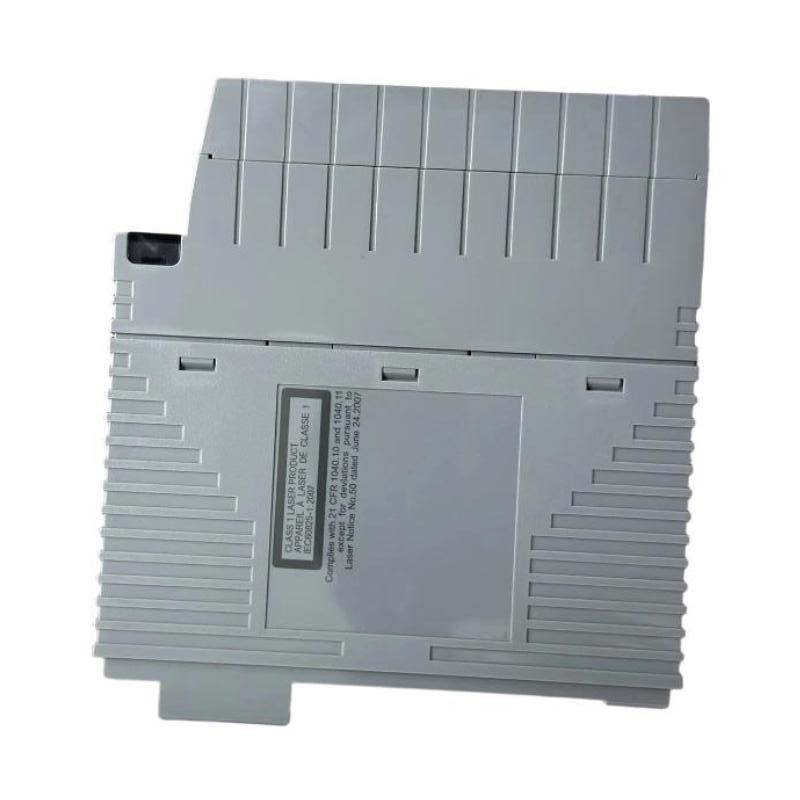

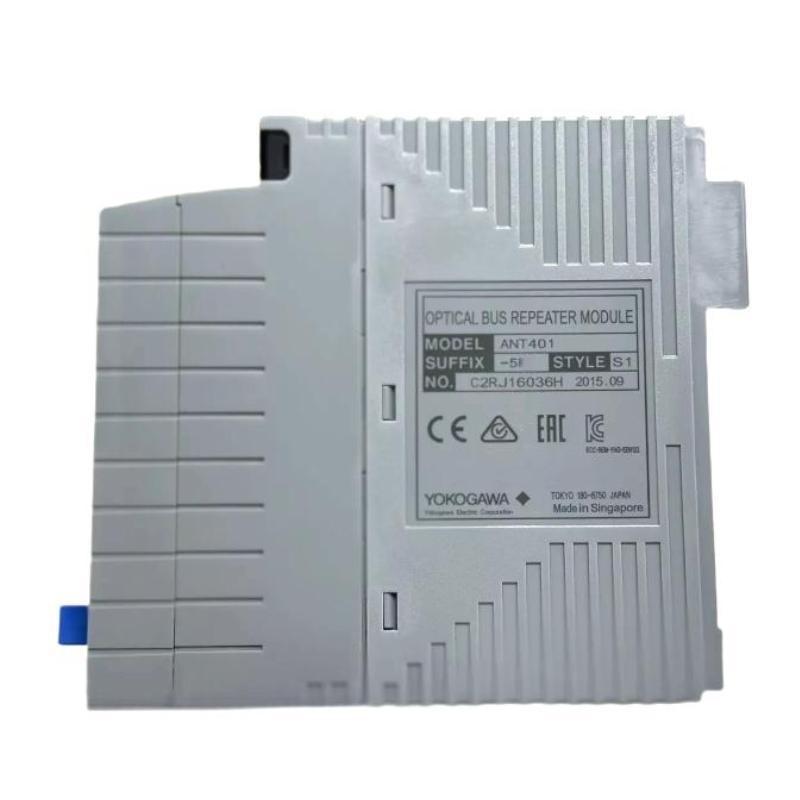

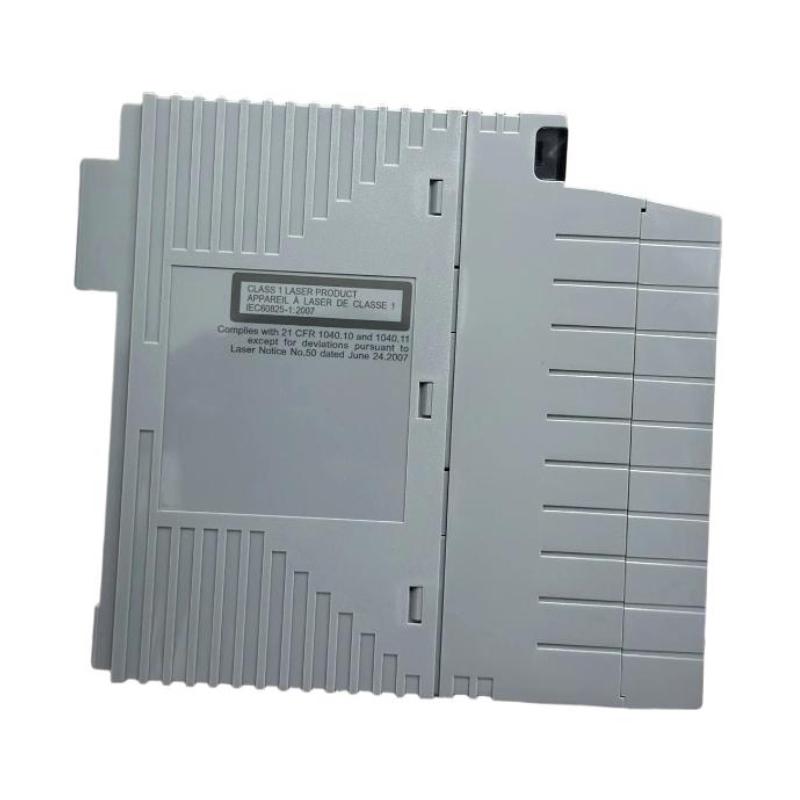

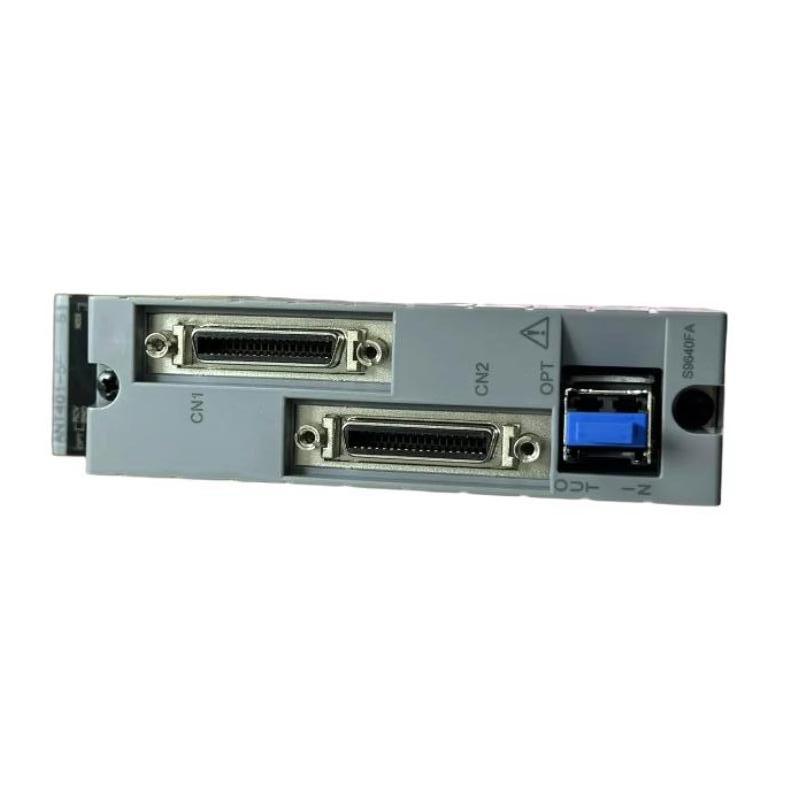

Yokogawa ANT401-5E/CU1T Fiber-Optic Bus Repeater Master Module

Overview

The Yokogawa ANT401-5E/CU1T is a fiber-optic bus repeater master module designed to extend and stabilize communication in distributed control systems. It regenerates optical signals to maintain high data integrity over long distances, ensuring reliable performance in industrial automation and process control environments.

General Information

Part Number: ANT401-5E/CU1T

Brand: Yokogawa

Country of Origin: Japan

Series: ESB / Fiber-Optic Bus System

Type: Fiber-Optic Bus Repeater Master Module (CU1T variant)

Mounting: Rack or control cabinet installation

Function: Signal regeneration and communication extension for ESB networks

Technology: Fiber-optic transmission with high noise immunity and stable data performance

Power Specifications

Supply Voltage: 24 V DC (typical system supply)

Power Consumption: Low power consumption, typically under 5 W

Input: Powered via system backplane or external DC supply

Protection: Electrical isolation and surge protection

Indicators: LED status indicators for power, link, and communication

Communication & Interface

Bus Type: ESB fiber-optic communication system

Transmission Medium: Fiber-optic cable

System Role: Master repeater for extending communication distance and stabilizing network segments

Signal Processing: Optical signal regeneration and retransmission

Diagnostics: Link monitoring and fault detection functions

Redundancy: Supports scalable multi-segment network architectures

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Industrial control cabinet environments

Protection Rating: IP20 (installed inside enclosure)

Dimensions & Weight

Dimensions (H × W × D): 142.5 × 130 × 32.8 mm

Weight: 0.3 kg

Reliable fiber-optic network expansion for stable and high-performance industrial automation systems – ready for fast global supply!
