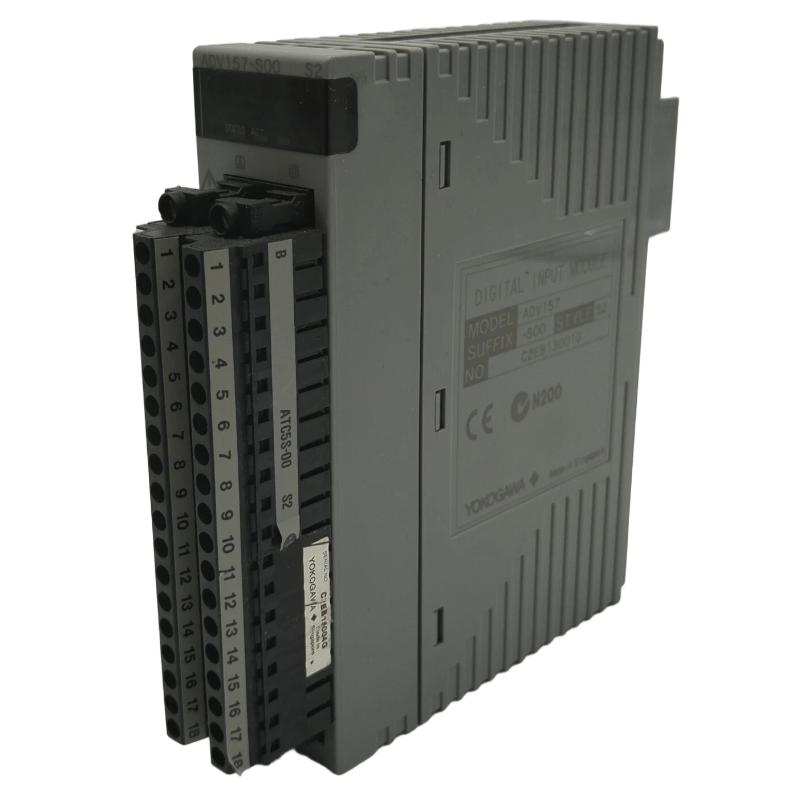

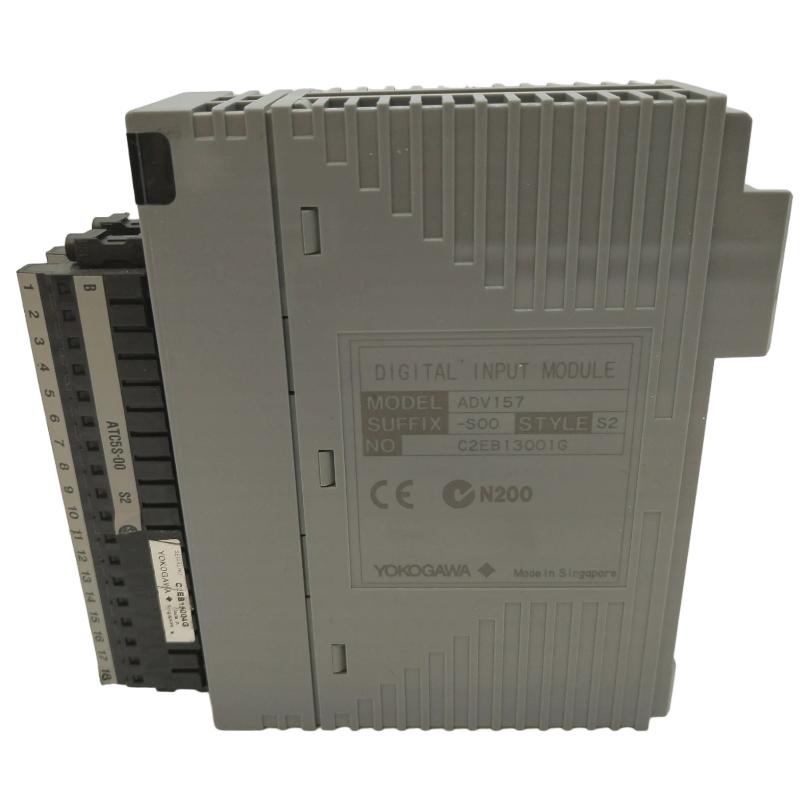

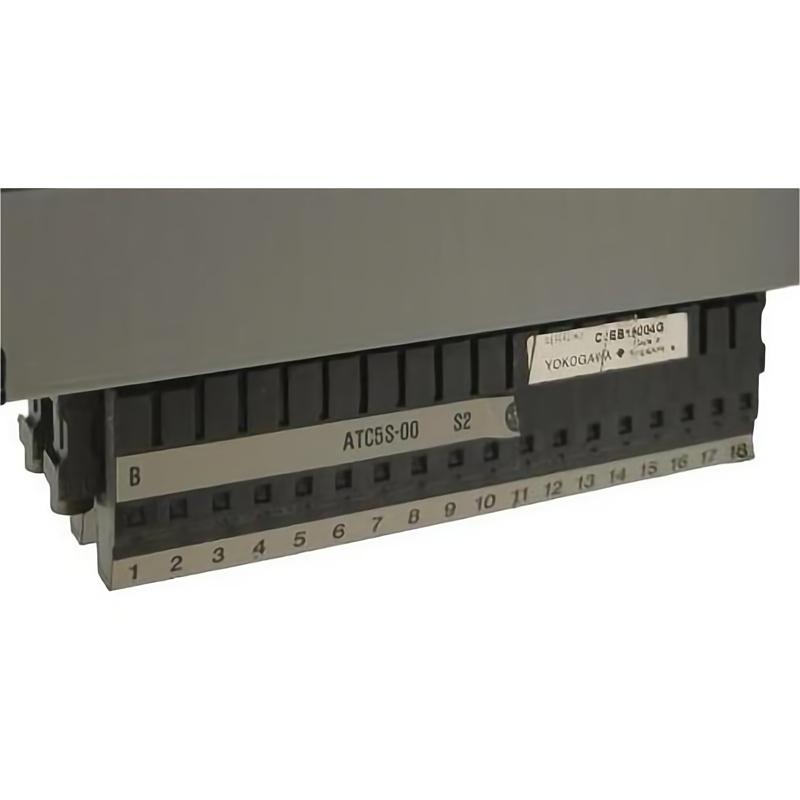

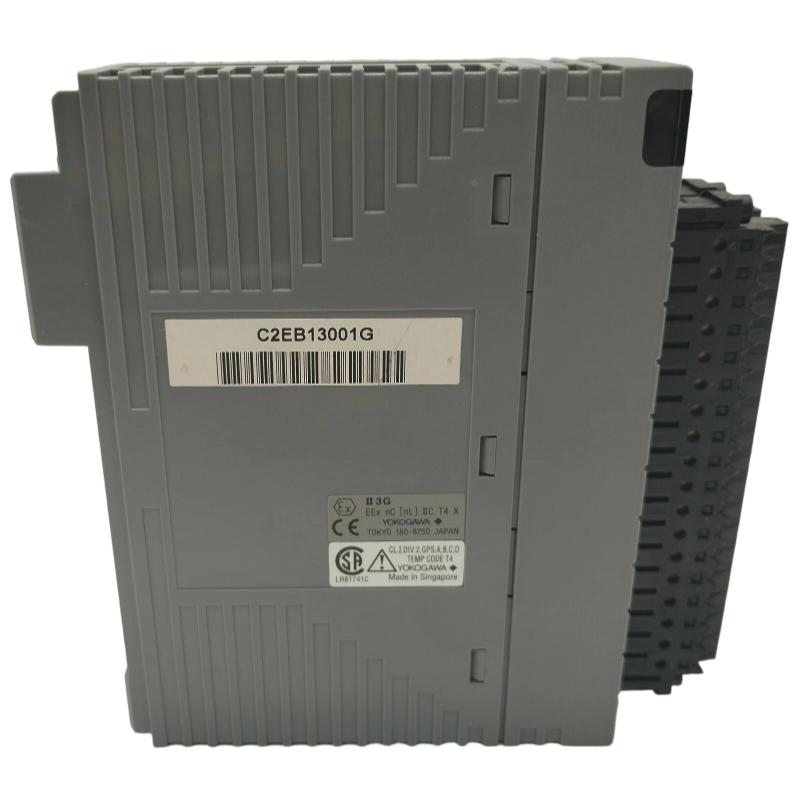

Yokogawa ATC5S-00 Pressure-Clamp Terminal Block
| Release time | Jul 6, 2026 |
|---|---|
| Brand | Yokogawa Electric |
| Product Numbe | ATC5S-00 |
| Country Of Origin | Japan |
| Dimensions | 249 x 318 x 1016 mm |
| Weight | 0.3 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
Yokogawa ATC5S-00 Pressure-Clamp Terminal Block is a pressure-clamp type terminal block system designed for secure electrical connection and signal distribution in industrial control panels. It is widely applied in automation and process control environments where stable wiring, vibration resistance, and long-term connection reliability are required.
General Information
Part Number: ATC5S-00
Manufacturer: Yokogawa Electric
Brand: Yokogawa
Country of Origin: Japan
Series: ATC Terminal Block Series
Type: Pressure-Clamp Terminal Block Assembly
Mounting: DIN rail / panel installation
Function: Industrial signal and power wiring distribution
Power Specifications
Rated Voltage: 300–600 V AC/DC (application dependent)
Rated Current: Typically up to 20–24 A per terminal
Connection Type: Spring pressure-clamp mechanism
Insulation Strength: High dielectric withstand capability
Protection: Vibration-resistant clamping design
Safety Features: Secure contact retention under mechanical stress
Communication & Interface
Wiring Interface: Direct field wiring termination for control systems
System Compatibility: PLC I/O systems, DCS cabinets, instrumentation panels
Signal Handling: Supports analog and digital signal wiring distribution
Diagnostics: Passive component (no electronic diagnostics)
Integration Role: Interface between field wiring and control hardware
Environmental
Operating Temperature: -20 to +70 °C
Storage Temperature: -40 to +85 °C
Humidity: 5% to 95% non-condensing
Vibration Resistance: Suitable for heavy industrial environments
Protection Rating: IP20 (panel-mounted use)
Pollution Degree: 2
Dimensions & Weight
Dimensions: 249 × 318 × 1016 mm
Weight: 0.3 kg
High-reliability terminal system designed for stable wiring integrity and long-term industrial performance.
