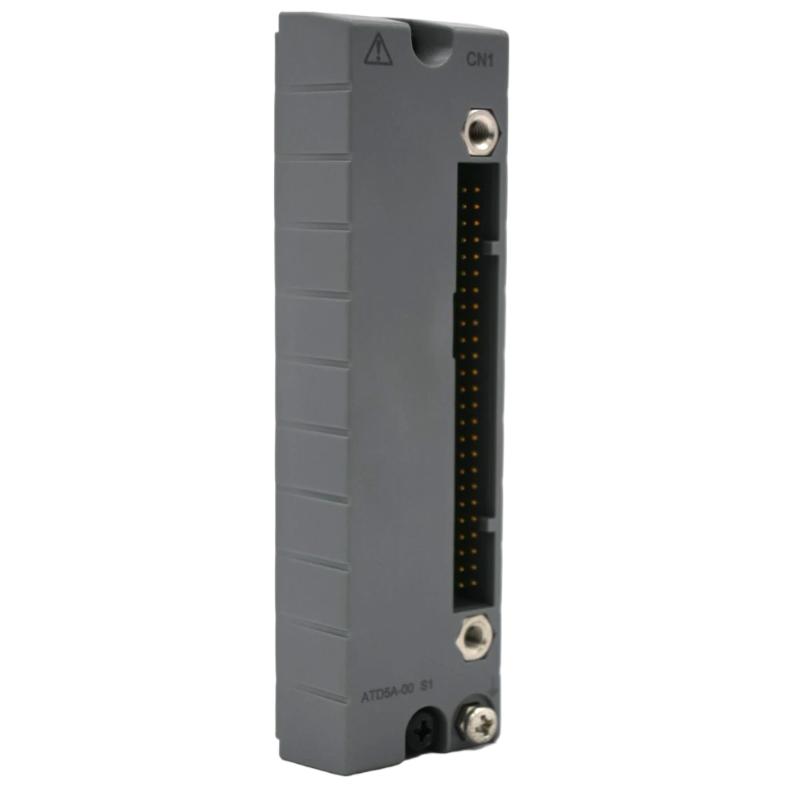

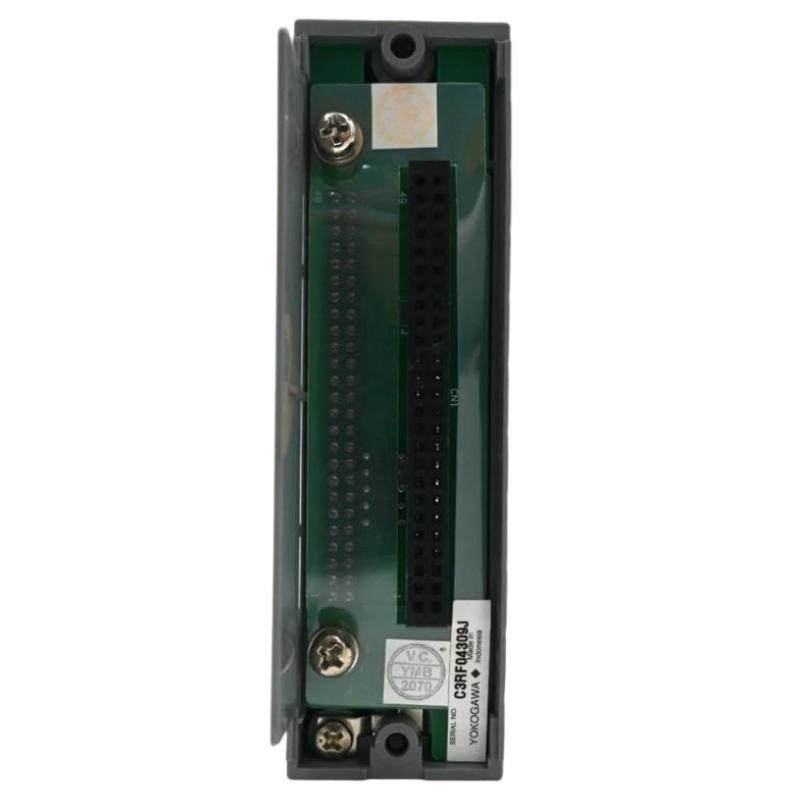

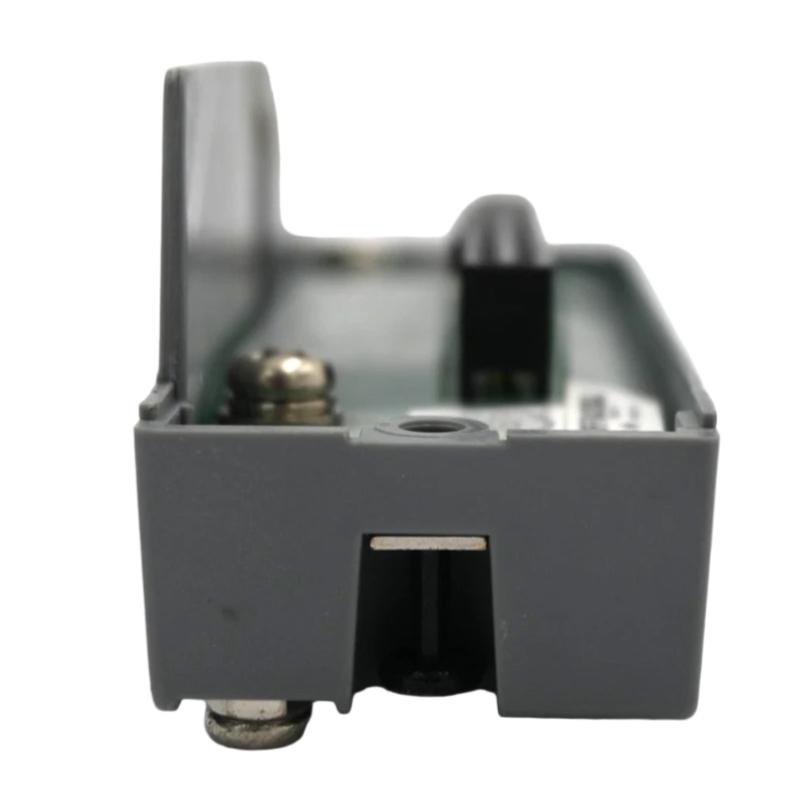

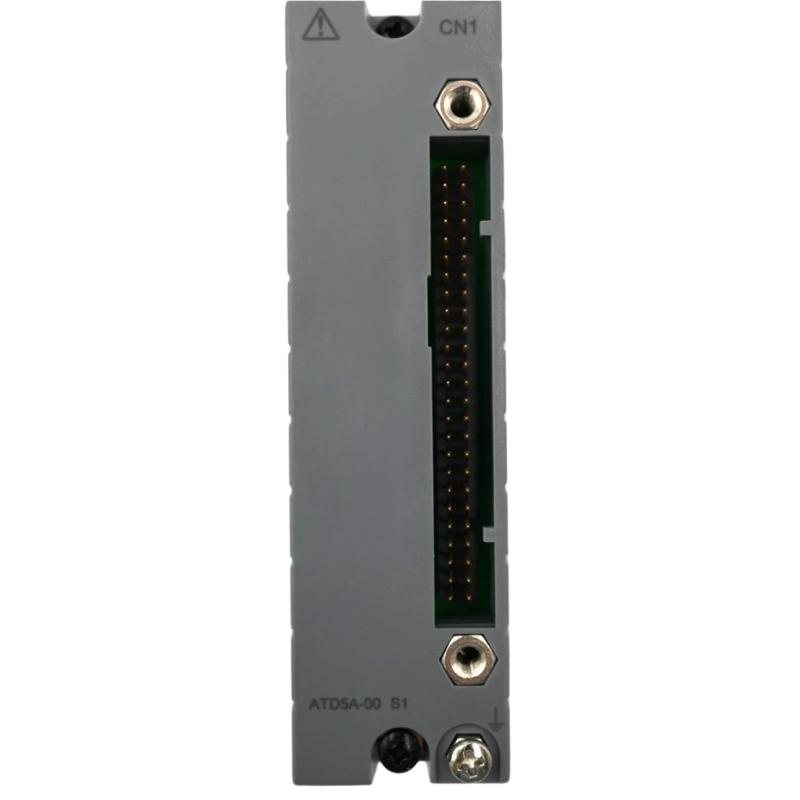

Yokogawa ATD5A-00 S1 Pressure-Clamp Terminal Blocks
| Release time | Jul 6, 2026 |
|---|---|
| Brand | Yokogawa Electric |
| Product Numbe | ATD5A-00 S1 |
| Country Of Origin | Japan |
| Dimensions | 114 x 32.6 x 38.8 mm |
| Weight | 0.1 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
Yokogawa ATD5A-00 S1 Pressure-Clamp Terminal Blocks is a pressure-clamp terminal block designed for secure and stable electrical connections in industrial control systems. It is widely used in automation and process control panels to ensure reliable wiring distribution, vibration resistance, and long-term connection stability.
General Information
Part Number: ATD5A-00 S1
Manufacturer: Yokogawa Electric
Brand: Yokogawa
Country of Origin: Japan
Series: ATD Terminal Block Series
Type: Pressure-Clamp Terminal Block
Mounting: DIN rail / panel installation
Function: Electrical signal and power wiring distribution
Power Specifications
Rated Voltage: 300–600 V AC/DC (application dependent)
Rated Current: Typically up to 20–24 A per terminal
Connection Type: Spring pressure-clamp mechanism
Insulation Strength: High dielectric withstand capability
Protection: Secure vibration-resistant clamping system
Safety Features: Stable contact retention under industrial stress
Communication & Interface
Wiring Interface: Direct field wiring termination for control systems
System Compatibility: PLC I/O systems, DCS cabinets, instrumentation panels
Signal Support: Analog and digital wiring distribution
Diagnostics: Passive component (no electronic diagnostics)
Integration Role: Interface between field devices and control hardware
Environmental
Operating Temperature: -20 to +70 °C
Storage Temperature: -40 to +85 °C
Humidity: 5% to 95% non-condensing
Vibration Resistance: Suitable for industrial cabinet environments
Protection Rating: IP20 (panel mounted use)
Pollution Degree: 2
Dimensions & Weight
Dimensions: 114 × 32.6 × 38.8 mm
Weight: 0.1 kg
High-reliability terminal solution designed for stable wiring performance and long-term industrial durability.
