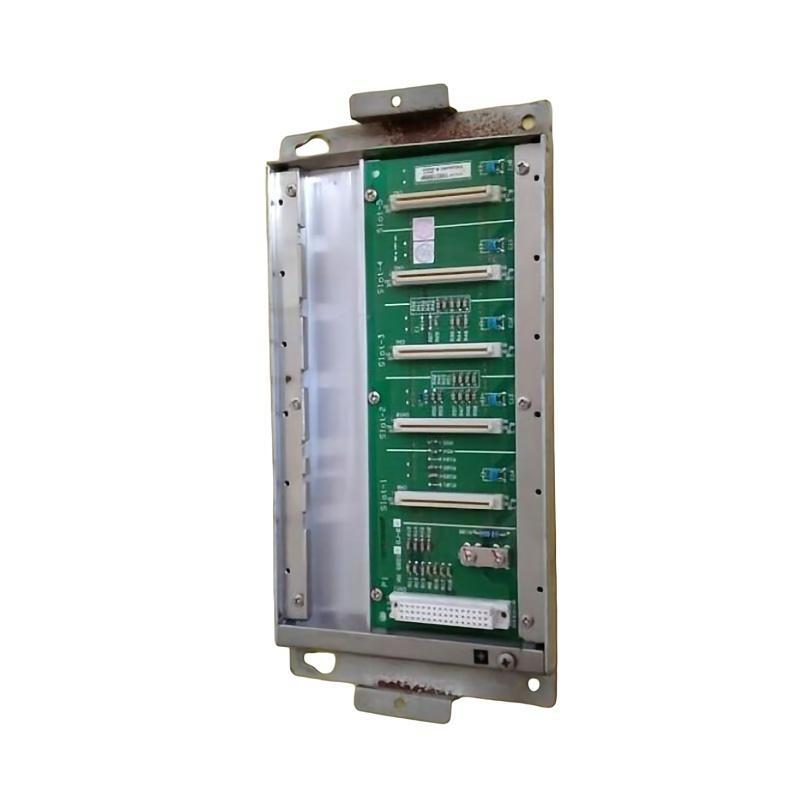

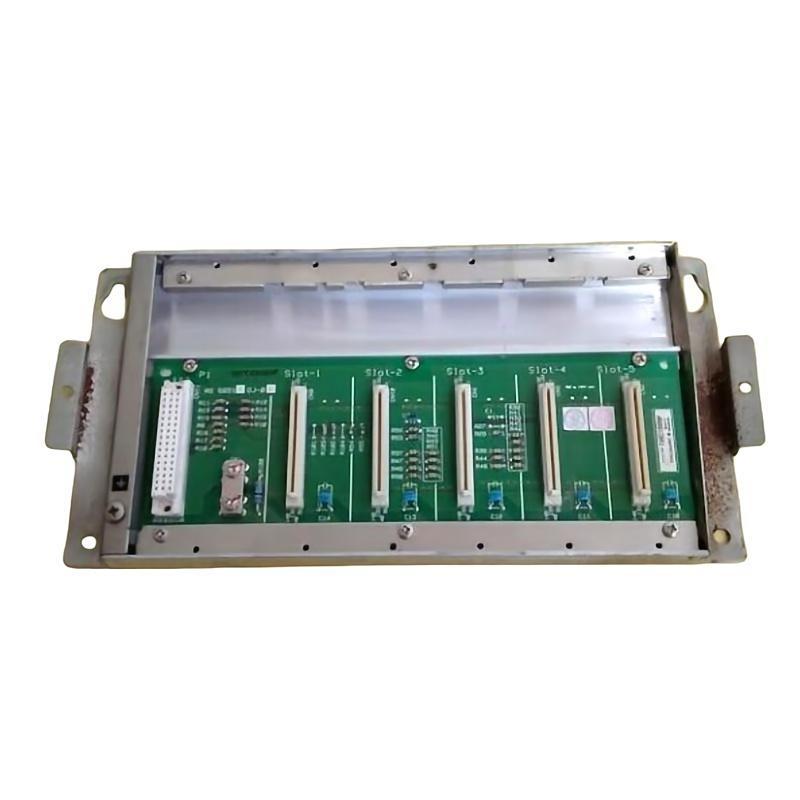

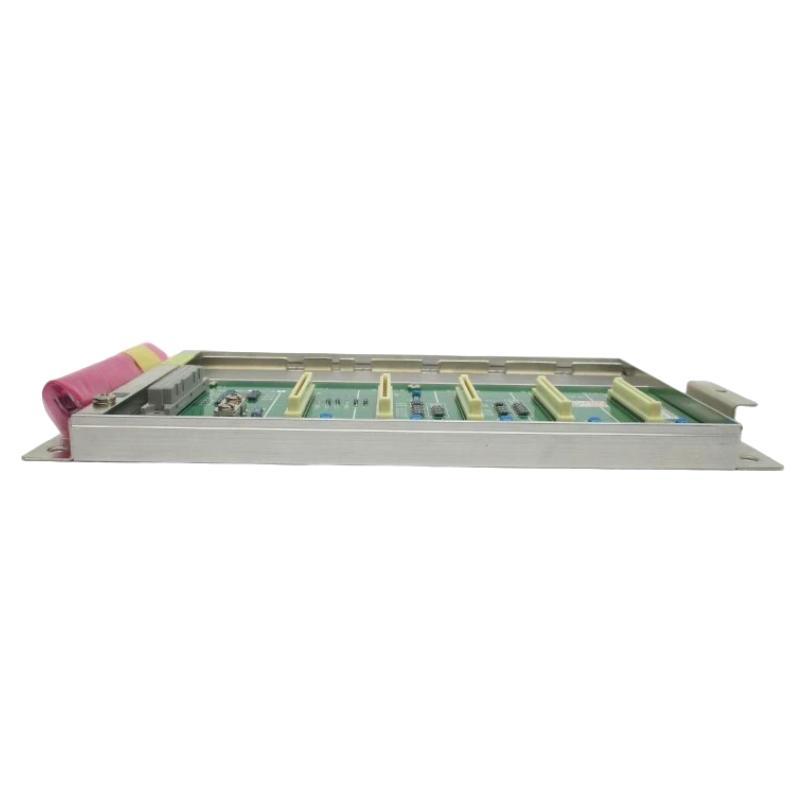

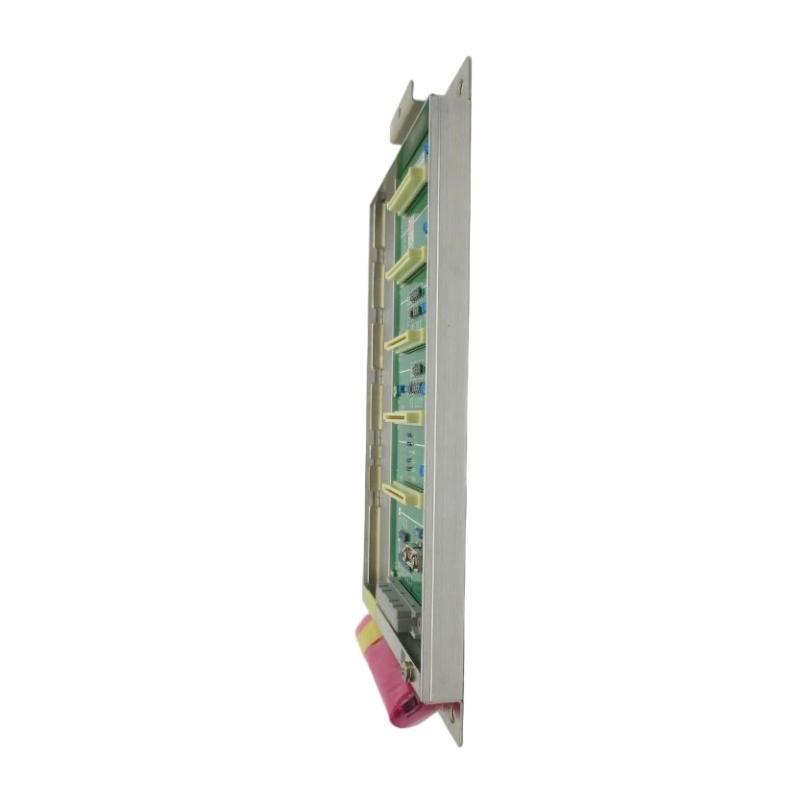

Yokogawa NFBU050-S15 Basic Module (Short)

Overview
Yokogawa NFBU050-S15 Basic Module (Short) is a basic backplane module used in Yokogawa NF series I/O systems to provide structural support, power distribution, and internal signal routing for connected I/O modules. It serves as a core platform for building scalable and reliable industrial automation configurations.

General Information
Part Number: NFBU050-S15
Manufacturer: Yokogawa Electric
Brand: Yokogawa
Country of Origin: Japan
Series: NF Series Basic Module
Type: System Backplane / Base Module
Mounting: Rack or control cabinet installation
Function: I/O system backbone for module mounting and signal distribution

Power Specifications
Supply Voltage: 24 V DC (system backplane supply)
Power Distribution: Provides regulated power to connected I/O modules
Power Capacity: Designed for modular system load handling
Protection: Electrical isolation between system segments
Reliability: Stable power and signal continuity for multi-module operation

Communication & Interface
System Interface: NF series backplane communication bus
Module Compatibility: Supports NF series input/output modules
Signal Routing: High-speed internal data and control signal distribution
Diagnostics: System-level status monitoring via connected modules
Integration Role: Core structural and electrical backbone of NF I/O architecture

Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: -20 to +75 °C
Humidity: 5% to 95% non-condensing
Vibration Resistance: Industrial cabinet installation compliant
Protection Rating: Panel/rack mounting environment
Pollution Degree: 2

Dimensions & Weight
Dimensions: 283 × 131 × 24.2 mm
Weight: 0.58 kg

Reliable system backbone module engineered for stable expansion and consistent performance in industrial automation environments.
