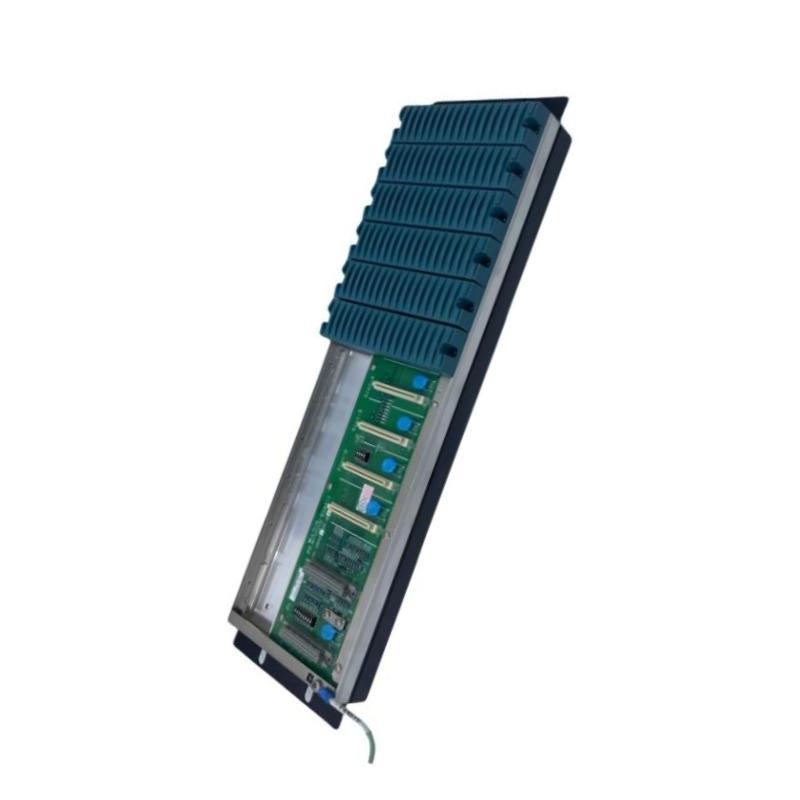

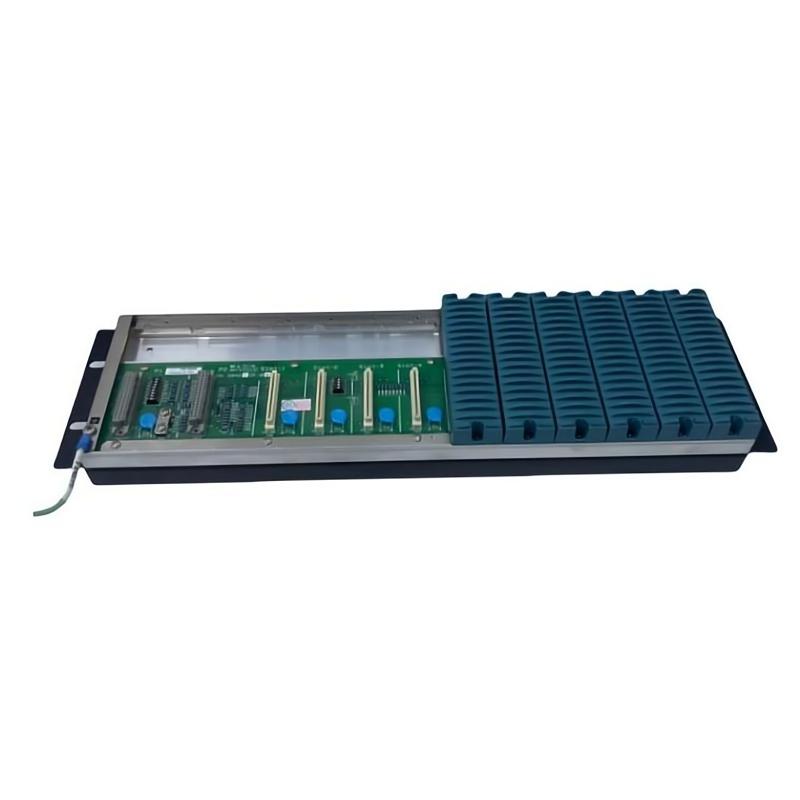

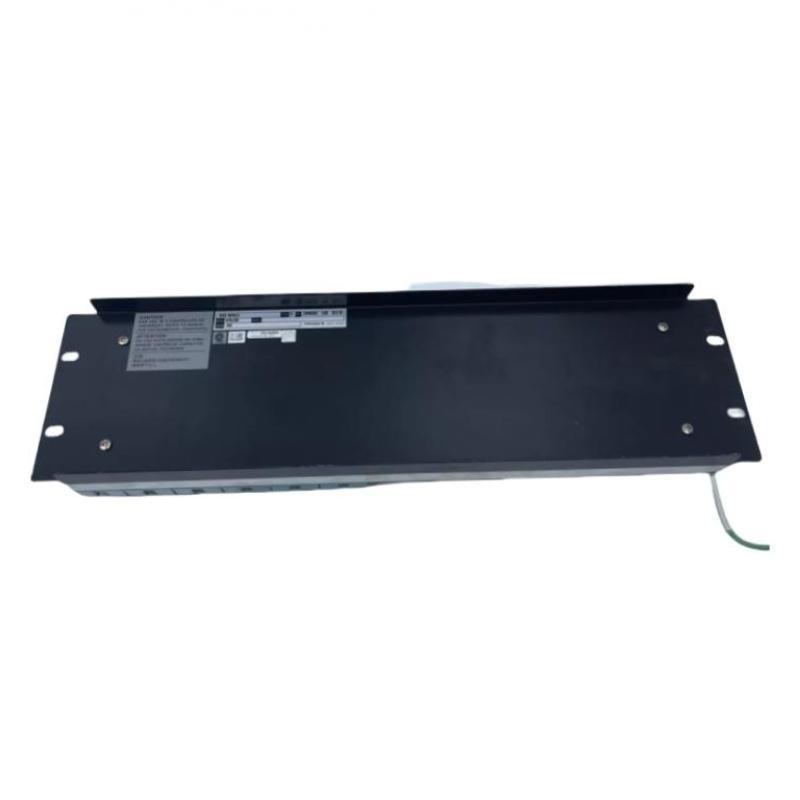

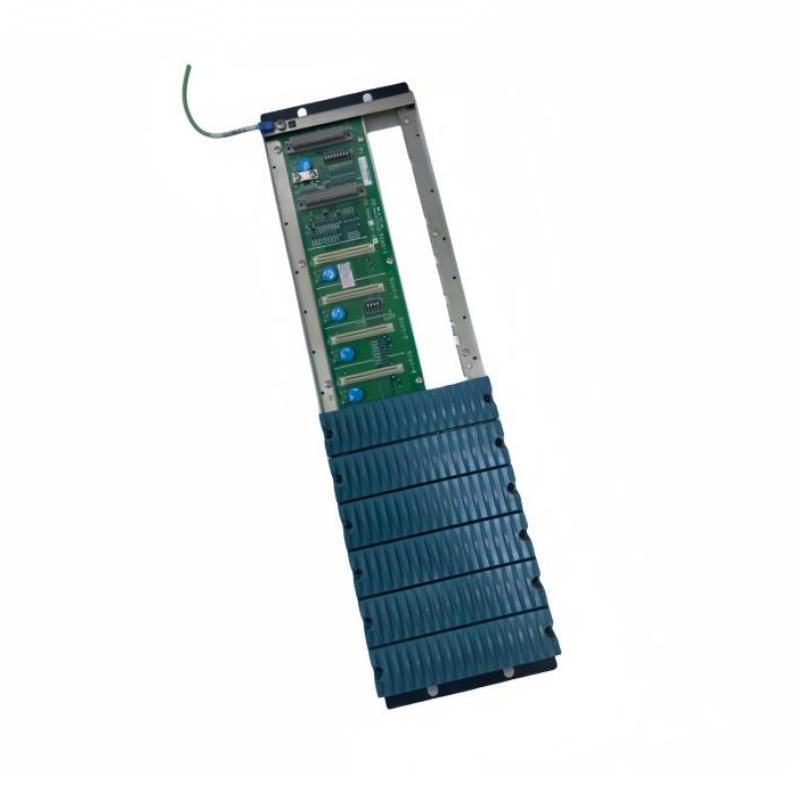

Yokogawa NFBU200-015 Basic Modules

Overview
Yokogawa NFBU200-015 Basic Module is a basic backplane module designed for Yokogawa NF series I/O systems. It provides mechanical mounting, power distribution, and internal signal routing for multiple I/O modules, forming the core infrastructure of a scalable industrial automation system.

General Information
Part Number: NFBU200-015
Manufacturer: Yokogawa Electric
Brand: Yokogawa
Country of Origin: Japan
Series: NF Series Basic Module
Type: System Backplane / Base Module
Mounting: Rack or control cabinet installation
Function: I/O system backbone for module expansion and integration

Power Specifications
Supply Voltage: 24 V DC (system backplane supply)
Power Distribution: Provides regulated power to connected I/O modules
Power Capacity: Designed for higher-capacity multi-module configurations
Protection: Electrical isolation and system-level protection design
Reliability: Stable long-term operation for continuous industrial use

Communication & Interface
System Interface: NF series backplane communication bus
Module Compatibility: Supports NF series input/output modules
Signal Routing: High-speed internal data and control signal distribution
Diagnostics: System status monitoring via connected modules
Integration Role: Central backbone for NF I/O system expansion

Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: -20 to +75 °C
Humidity: 5% to 95% non-condensing
Vibration Resistance: Industrial control cabinet compliant
Protection Rating: Panel/rack installation environment
Pollution Degree: 2

Dimensions & Weight
Dimensions: 440 × 131 × 42.3 mm
Weight: 1 kg

Heavy-duty system backbone designed for stable expansion, high reliability, and long-term industrial automation performance.
