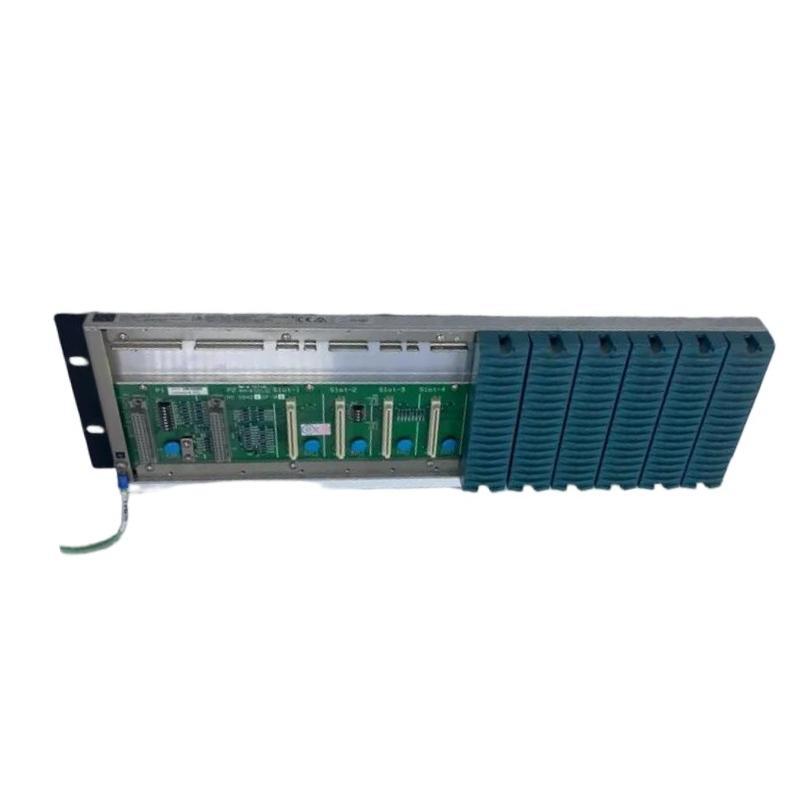

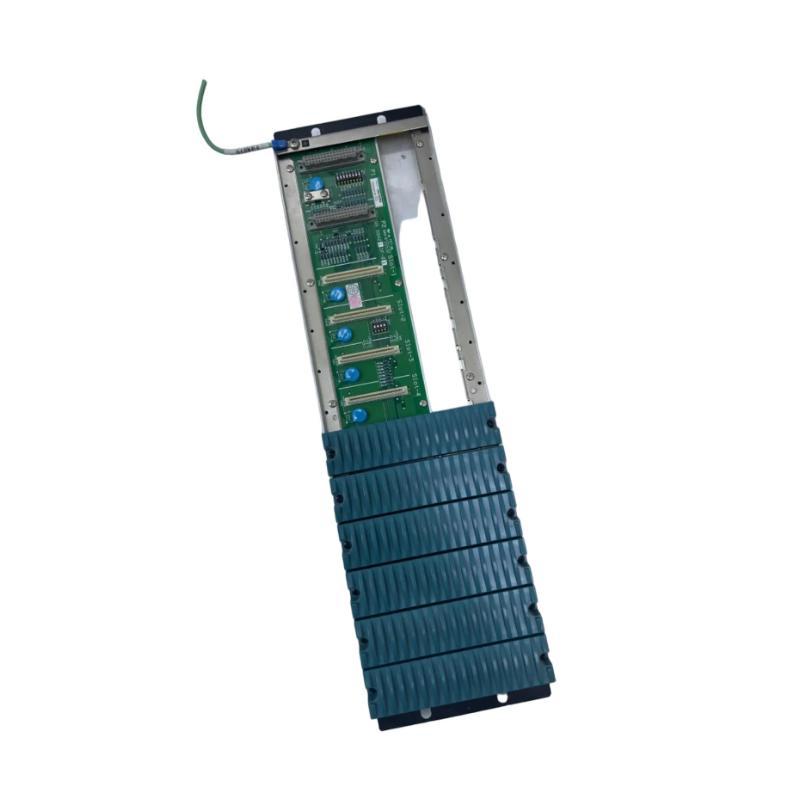

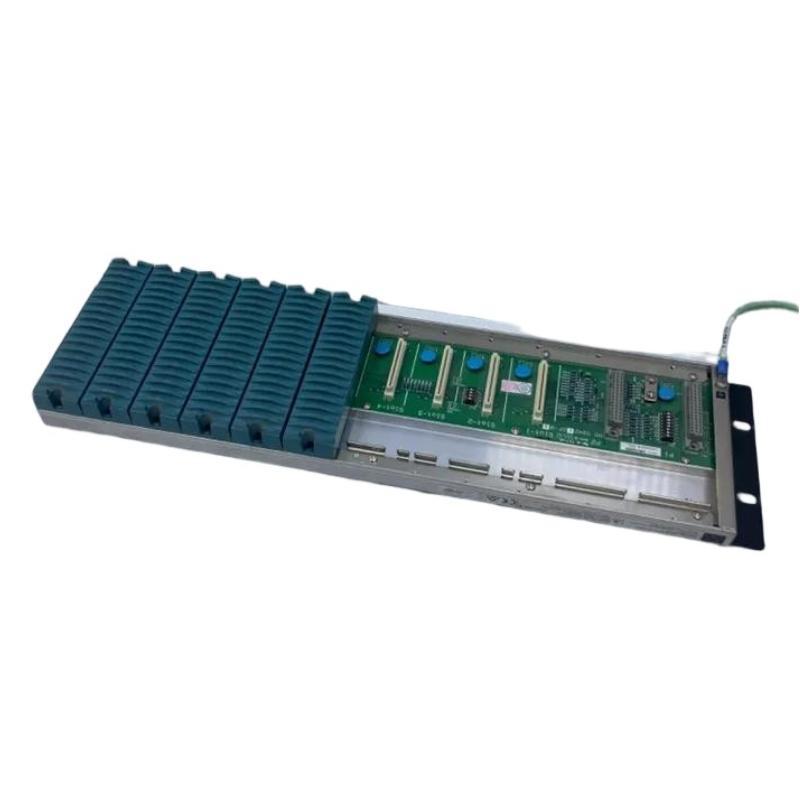

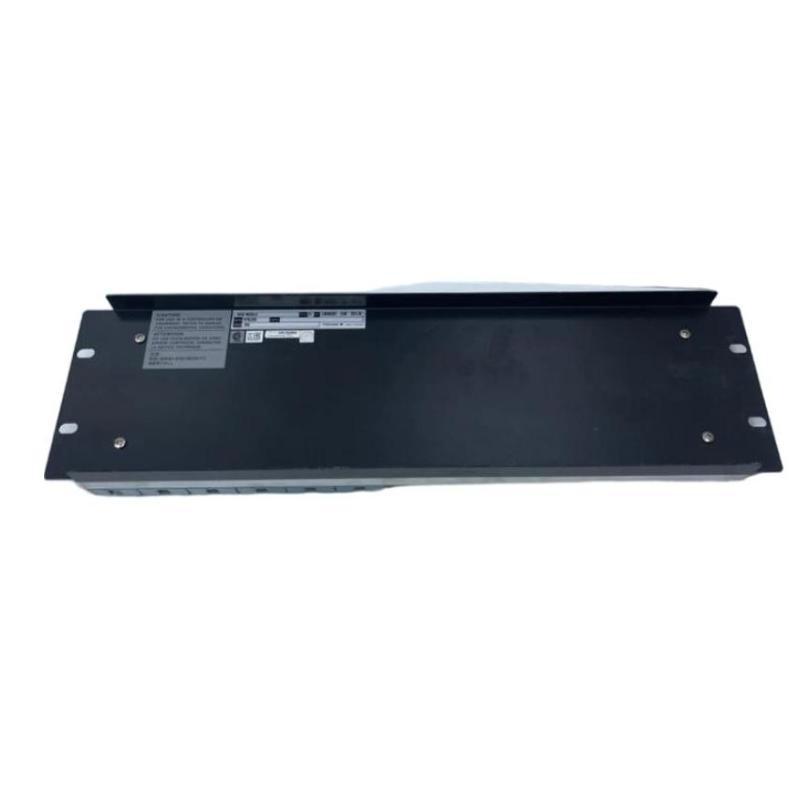

Yokogawa NFBU200-S05 Basic Modules

Overview
Yokogawa NFBU200-S05 Basic Module is a core NF series base module designed to provide system backbone support for distributed I/O and control architectures. It enables stable mounting, power distribution, and internal signal routing for connected modules in industrial automation and process control systems.

General Information
Part Number: NFBU200-S05
Manufacturer: Yokogawa Electric
Brand: Yokogawa
Country of Origin: Japan
Series: NF Series Basic Module
Type: System Backplane / Base Module
Mounting: Rack or control cabinet installation
Function: Structural and electrical backbone for NF system expansion

Power Specifications
Supply Voltage: 24 V DC (system backplane supply)
Power Distribution: Provides regulated power to connected I/O modules
Power Capacity: Supports multi-module system expansion
Protection: Electrical isolation and system-level protection design
Reliability: Stable operation for continuous industrial environments

Communication & Interface
System Interface: NF series backplane communication bus
Module Compatibility: Supports NF input/output and control modules
Signal Routing: Internal high-speed data and control signal distribution
Diagnostics: System status monitoring via connected modules
Integration Role: Central backbone structure for NF automation architecture

Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: -20 to +75 °C
Humidity: 5% to 95% non-condensing
Vibration Resistance: Industrial control cabinet rated
Protection Rating: Panel/rack installation environment
Pollution Degree: 2

Dimensions & Weight
Dimensions: 482 × 132.5 × 40.5 mm
Weight: 1.9 kg

Robust system backbone module engineered for scalable expansion and reliable industrial automation performance.
