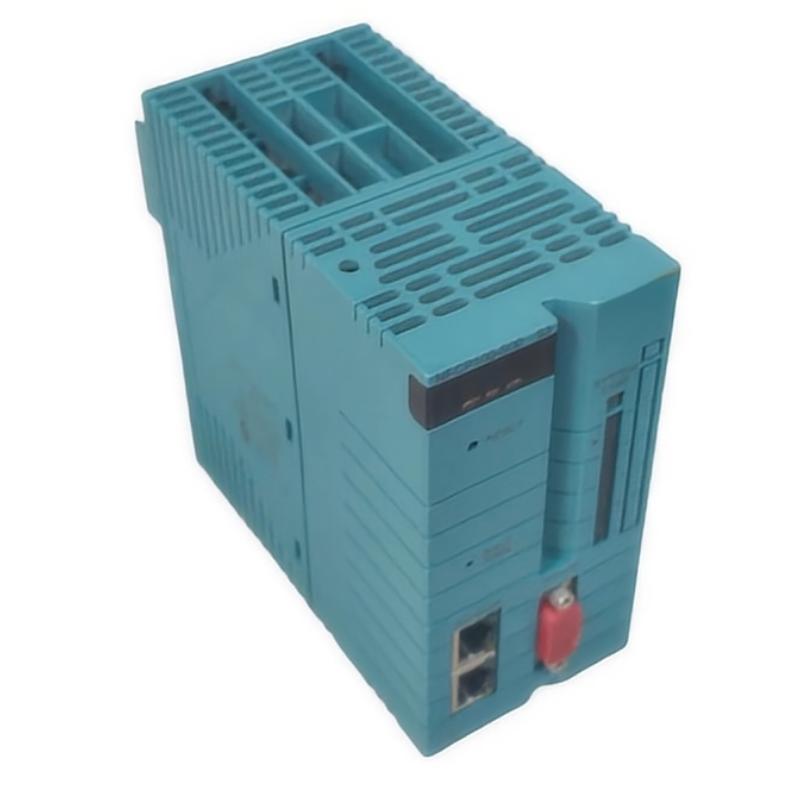

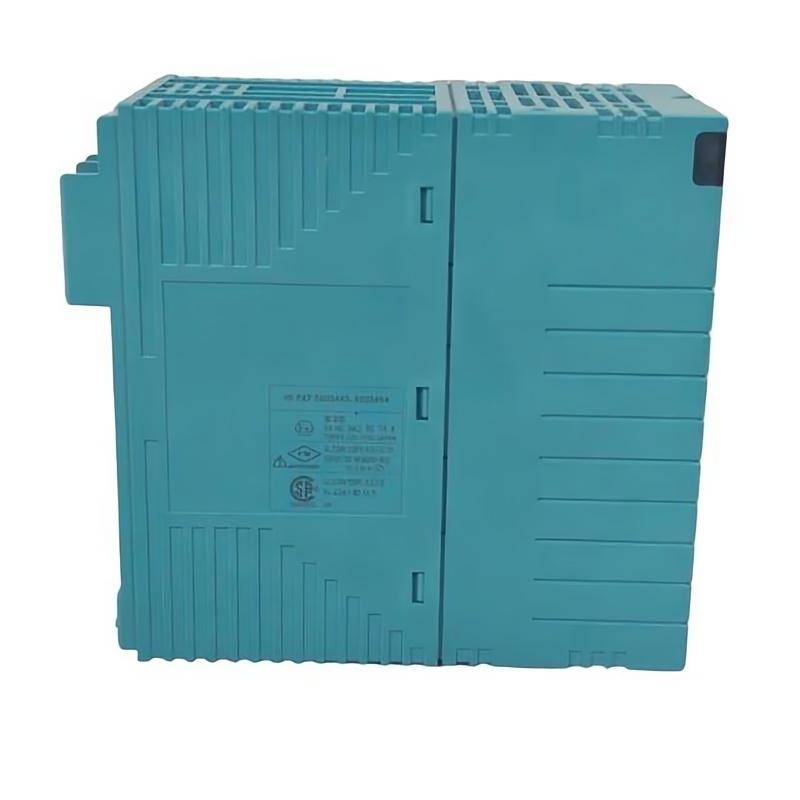

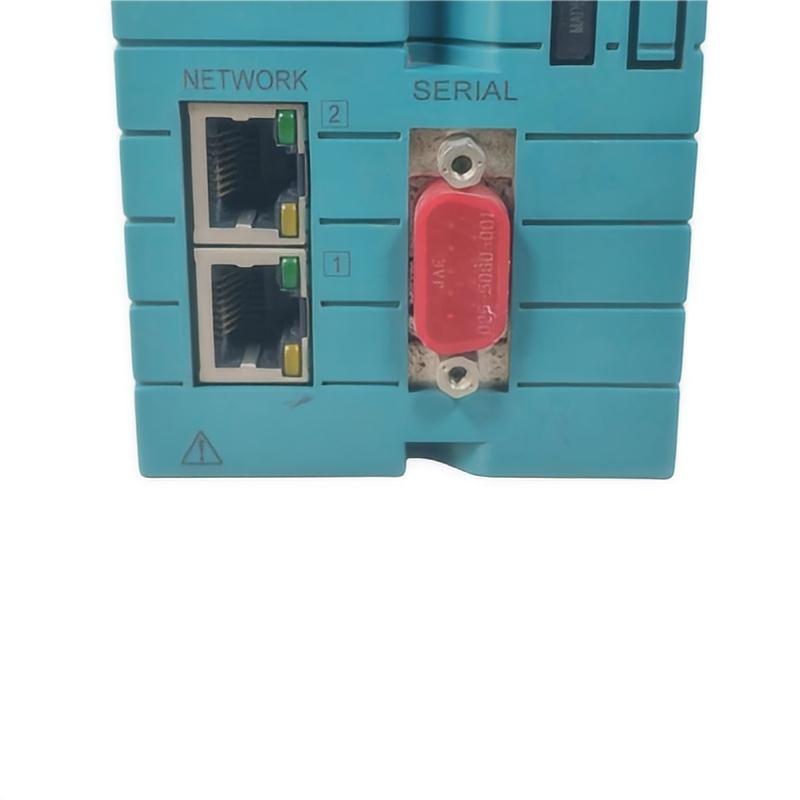

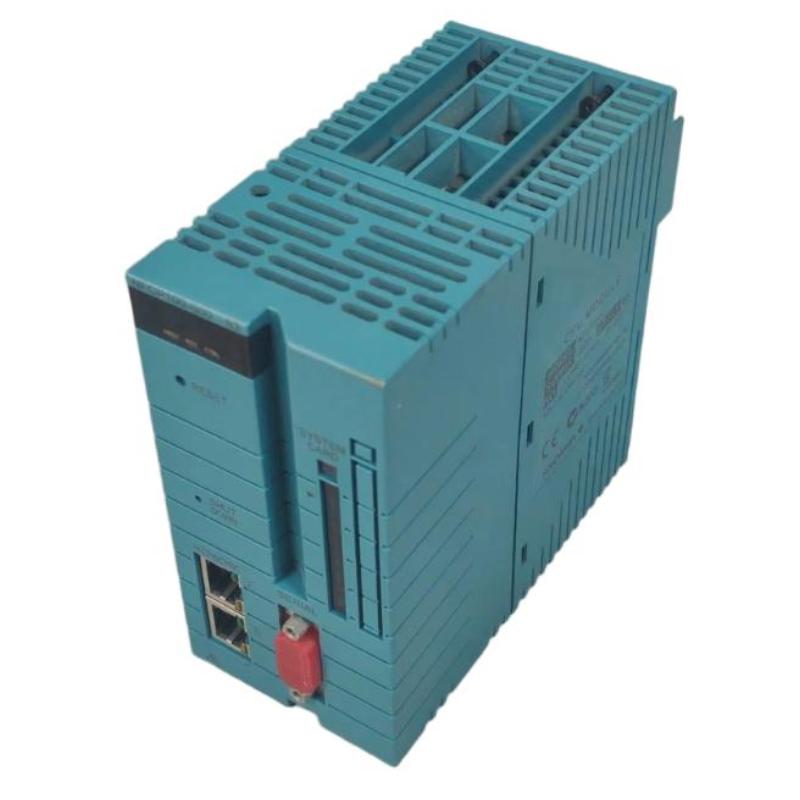

Yokogawa NFCP0501-S00 CPU Module

Overview
Yokogawa NFCP0501-S00 CPU Module is a central processing unit module designed for Yokogawa NF series control systems. It handles system logic execution, I/O coordination, and communication management, serving as the core processing component in distributed industrial automation and process control architectures.

General Information
Part Number: NFCP0501-S00
Manufacturer: Yokogawa Electric
Brand: Yokogawa
Country of Origin: Japan
Series: NF Series CPU Module
Type: Controller / CPU Module
Mounting: Rack or control cabinet installation
Function: System control, logic processing, and I/O coordination

Power Specifications
Supply Voltage: 24 V DC (system backplane supply)
Power Consumption: Higher than standard I/O modules due to processing load
Power Distribution: Coordinates power and operation across NF system modules
Protection: Electrical isolation and system-level fault protection
Reliability: Designed for continuous 24/7 industrial operation

Communication & Interface
System Interface: NF series backplane communication bus
External Communication: Industrial control network interfaces (system dependent)
Module Compatibility: NF series I/O and expansion modules
Data Processing: Real-time control logic execution and sequencing
Diagnostics: System-wide monitoring, fault detection, and status reporting
Integration Role: Central CPU for NF distributed control architecture

Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: -20 to +75 °C
Humidity: 5% to 95% non-condensing
Vibration Resistance: Industrial control cabinet compliant
Protection Rating: Panel/rack installation environment
Pollution Degree: 2

Dimensions & Weight
Dimensions: 149.3 × 65.8 × 130 mm
Weight: 0.9 kg

High-performance CPU module designed for stable control execution and reliable industrial automation system coordination.
