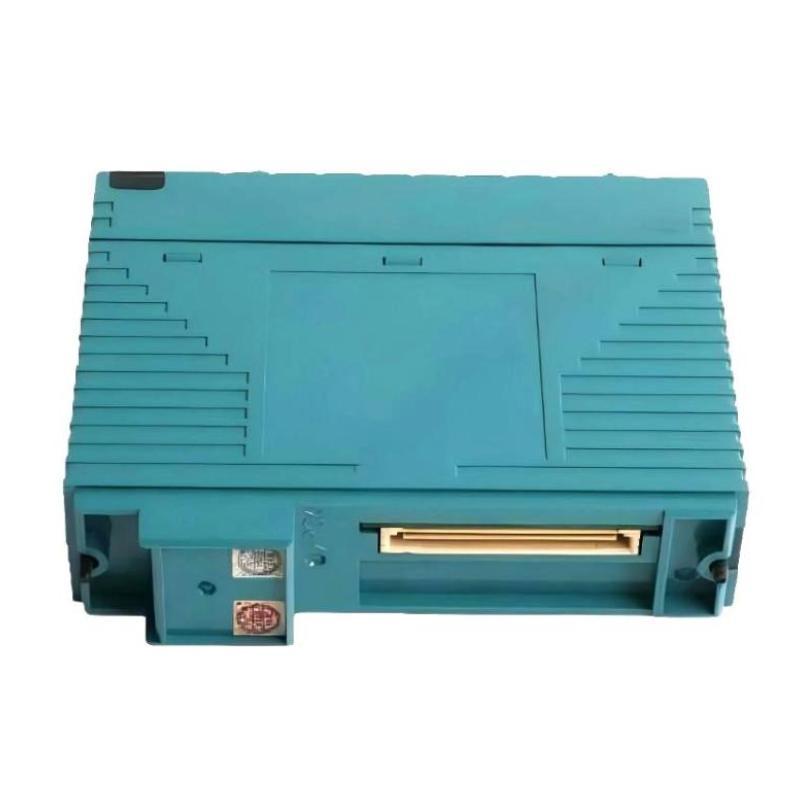

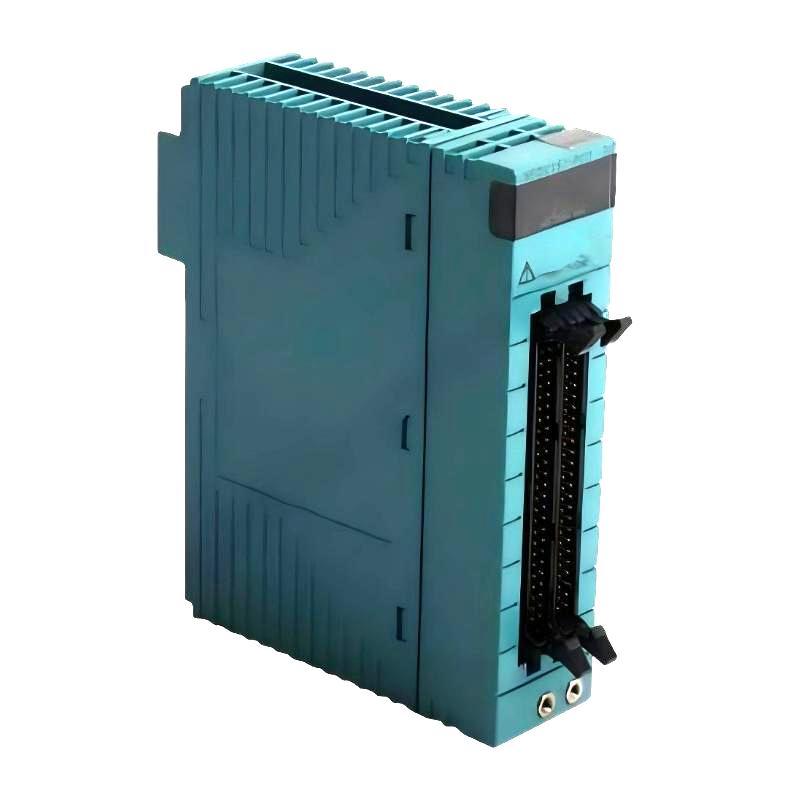

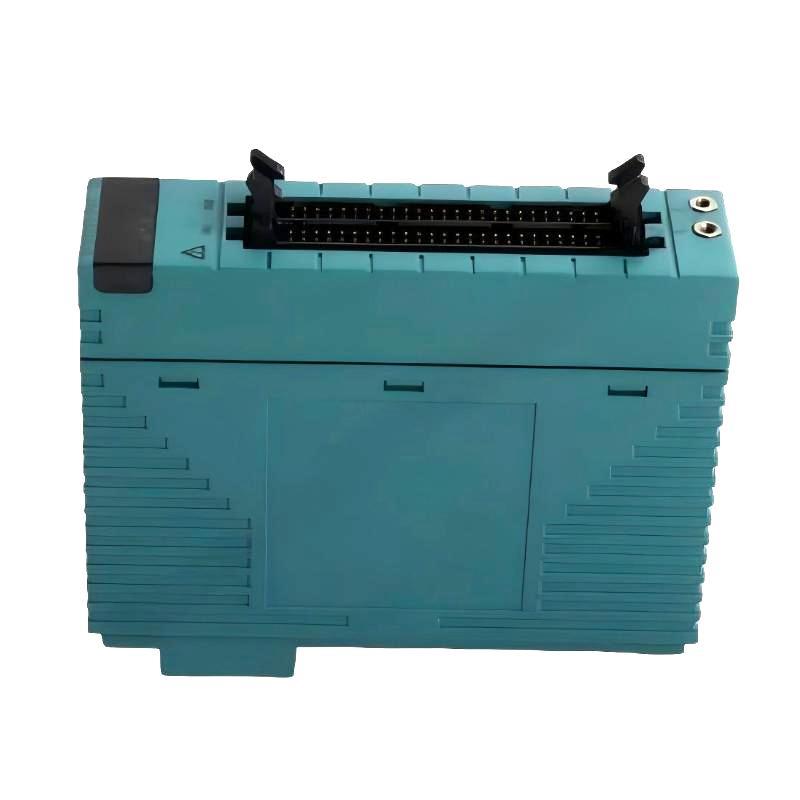

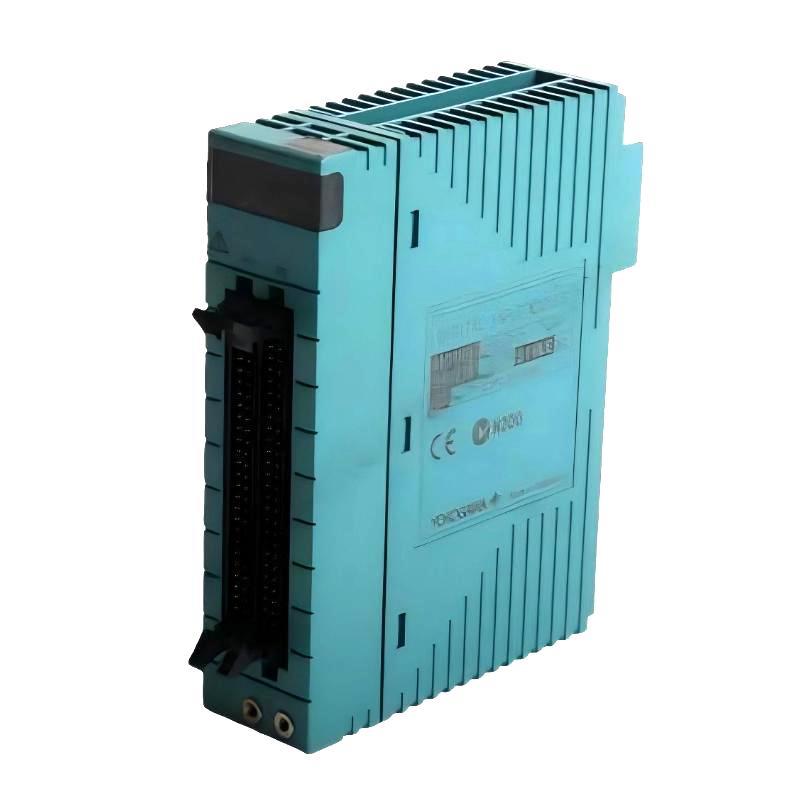

Yokogawa NFDV561-P50 Digital Output Module

Overview

The Yokogawa NFDV561-P50 Digital Output Module is an industrial I/O module designed to provide reliable digital signal output control in Yokogawa CENTUM distributed control systems. It enables communication between the control system and field devices, supporting accurate switching and control operations in process automation applications.

The module provides stable signal handling, diagnostic functions, and dependable operation for industrial control environments.

General Information

Part Number: NFDV561-P50

Brand: Yokogawa

Country of Origin: Japan

Series: NFDV Digital I/O Series

Type: Digital Output Module

Application: Process control system output interface

Mounting: Control system rack installation

Compatible Systems: Yokogawa CENTUM automation systems

Function: Provides digital output signals for field device control

Technology: Distributed I/O signal processing

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power consumption design

Output Type: Digital switching output

Output Channels: 32 channels

Protection Features: Output monitoring and fault detection

Status Indicators: LED indicators for module and channel status

Communication & Interface

Communication Interface: Control system I/O bus

Signal Type: Digital output signals

Channel Configuration: Independent channel configuration and monitoring

Diagnostics: Module status monitoring, output fault detection, and alarm reporting

Connection Method: System backplane and field wiring terminals

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −20 to +70 °C

Humidity: 10 to 90% RH, non-condensing

Installation Environment: Industrial control cabinet environment

Protection Rating: Suitable for standard automation system enclosures

Cooling Method: Natural air cooling

Dimensions & Weight

Dimensions (L × W × H): 32.8 × 119.9 × 130 mm

Weight: 0.3 kg

In Stock Now – Reliable Control Components for Industrial Applications!
