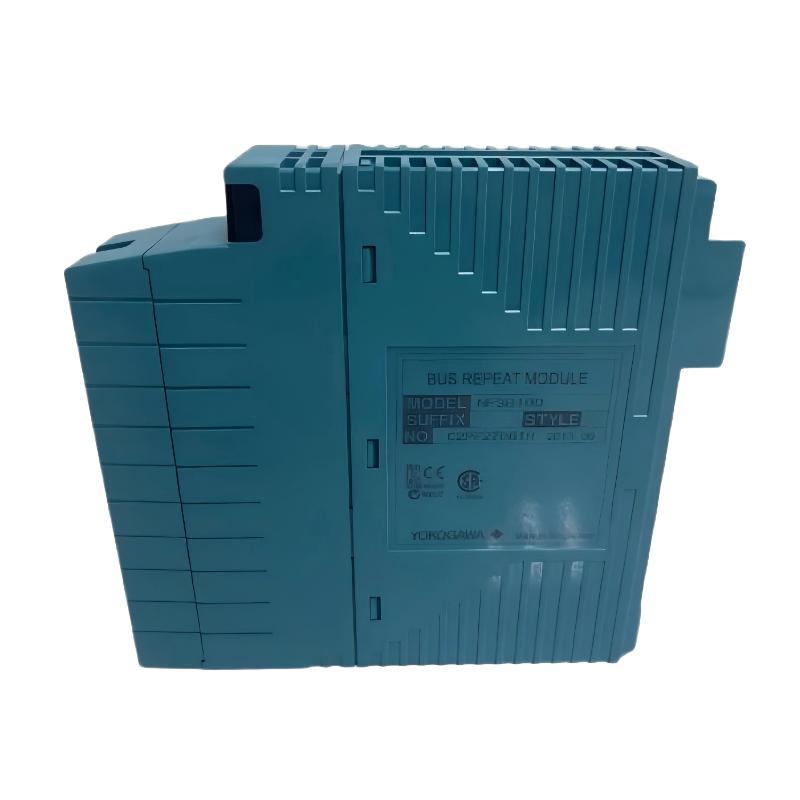

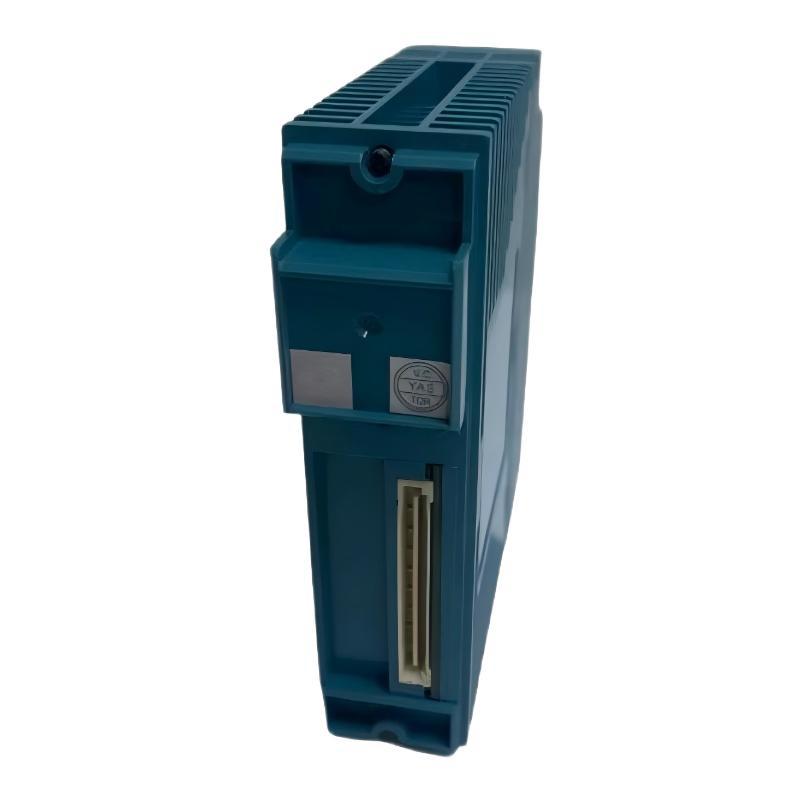

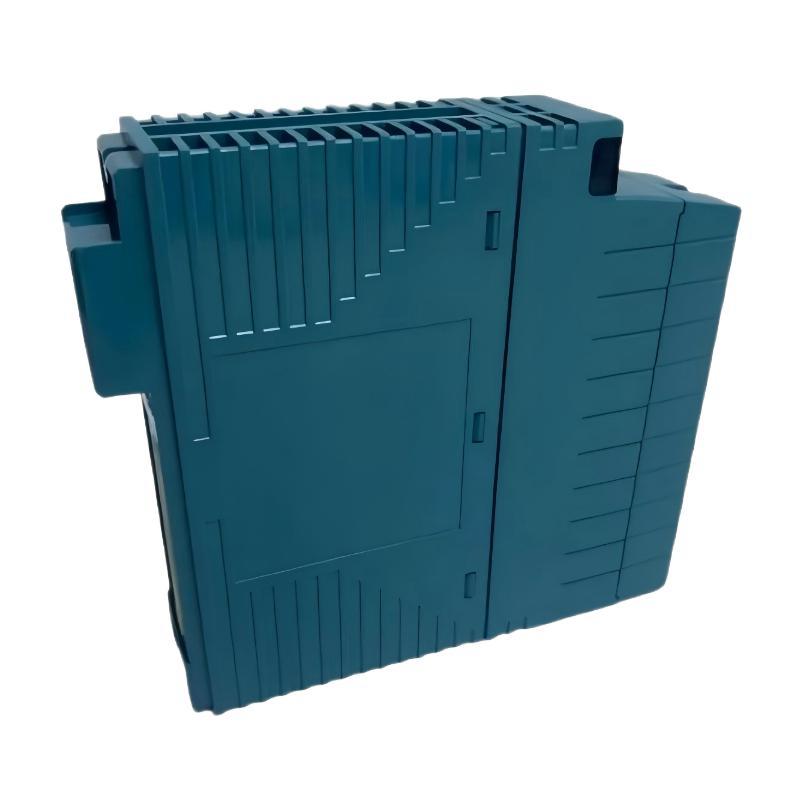

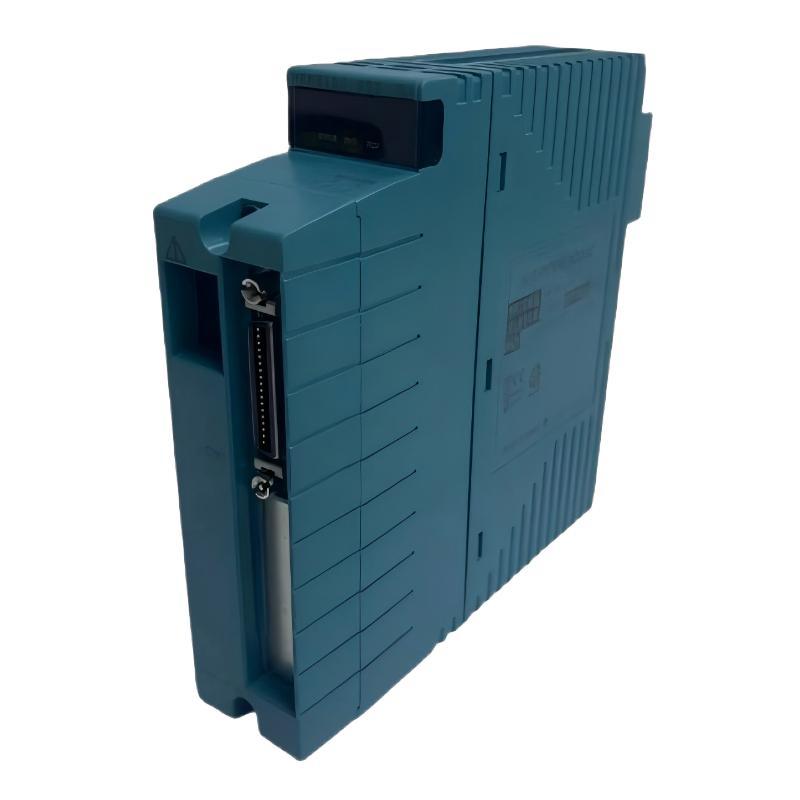

Yokogawa NFSB100 Bus Repeater Module

Overview

The Yokogawa NFSB100 Bus Repeater Module is an industrial communication module designed to extend and stabilize fieldbus communication networks within Yokogawa control systems. It improves signal transmission distance and network reliability by regenerating communication signals between connected field devices and control equipment.

The module supports efficient field communication expansion and helps maintain stable data exchange in distributed control applications.

General Information

Part Number: NFSB100

Brand: Yokogawa

Country of Origin: Japan

Series: NFSB Communication Series

Type: Bus Repeater Module

Application: Fieldbus network extension and signal regeneration

Mounting: Control system rack installation

Compatible Systems: Yokogawa distributed control systems

Function: Extends communication distance and improves bus signal quality

Technology: Industrial fieldbus signal repeater technology

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power consumption design

Power Input: Supplied through system backplane

Protection Features: Power monitoring and communication fault protection

Status Indicators: LED indicators for power, communication, and module status

Communication & Interface

Communication Interface: Fieldbus communication interface

Network Function: Signal regeneration and bus extension

Data Transfer: Digital communication signal transmission

Connection Method: System backplane and fieldbus connectors

Diagnostics: Communication status monitoring, error detection, and alarm indication

Network Support: Distributed field device communication

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −20 to +70 °C

Humidity: 10 to 90% RH, non-condensing

Installation Environment: Industrial control cabinet environment

Protection Rating: Suitable for standard automation system enclosures

Cooling Method: Natural air cooling

Dimensions & Weight

Dimensions (L × W × H): 130 × 142.5 × 32.8 mm

Weight: 0.3 kg

New Stock Available – Stable Network Performance for Industrial Control Systems!
