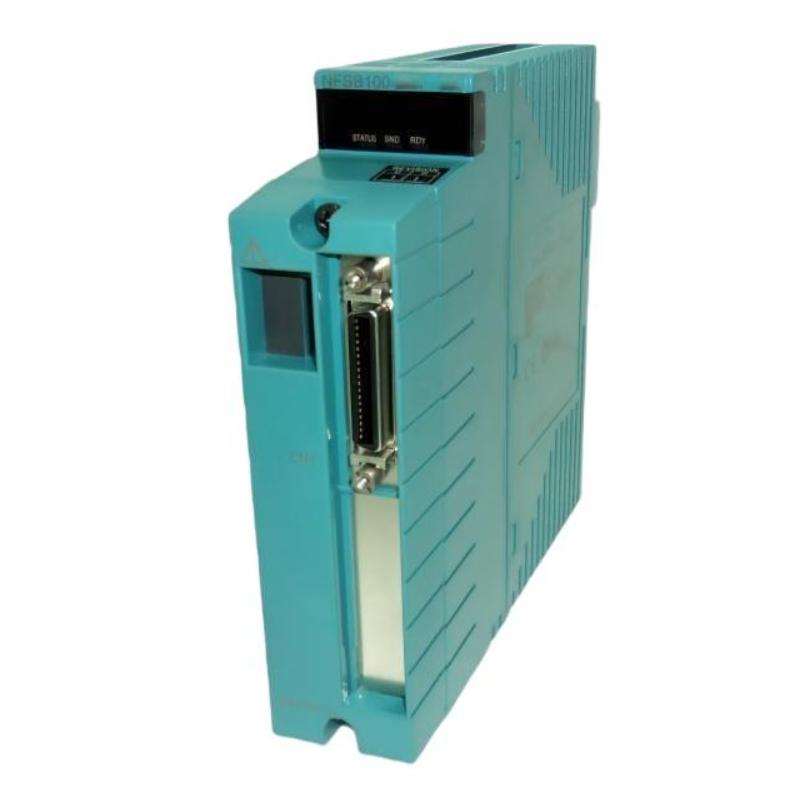

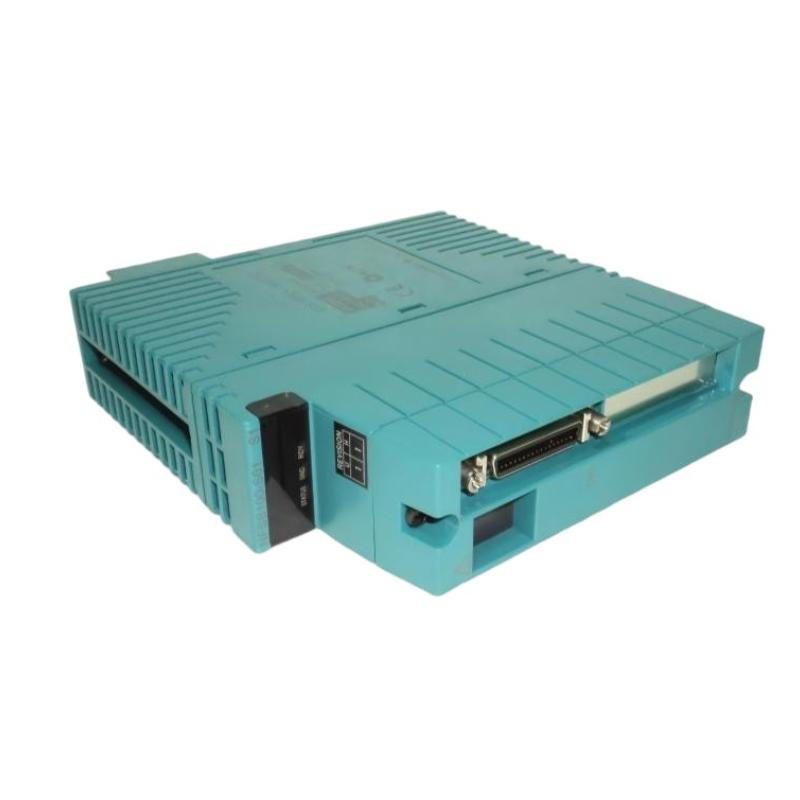

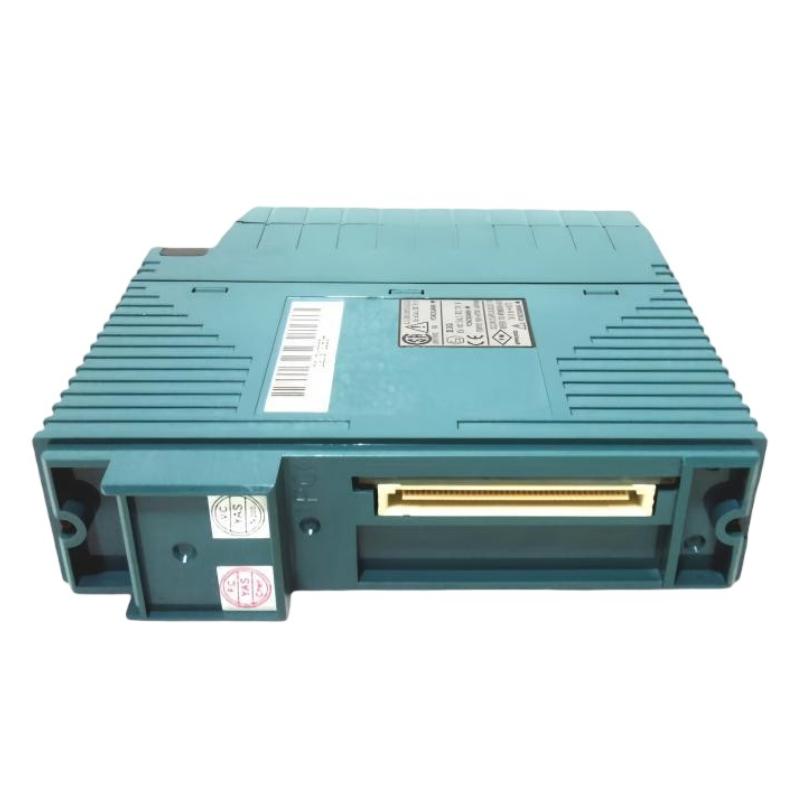

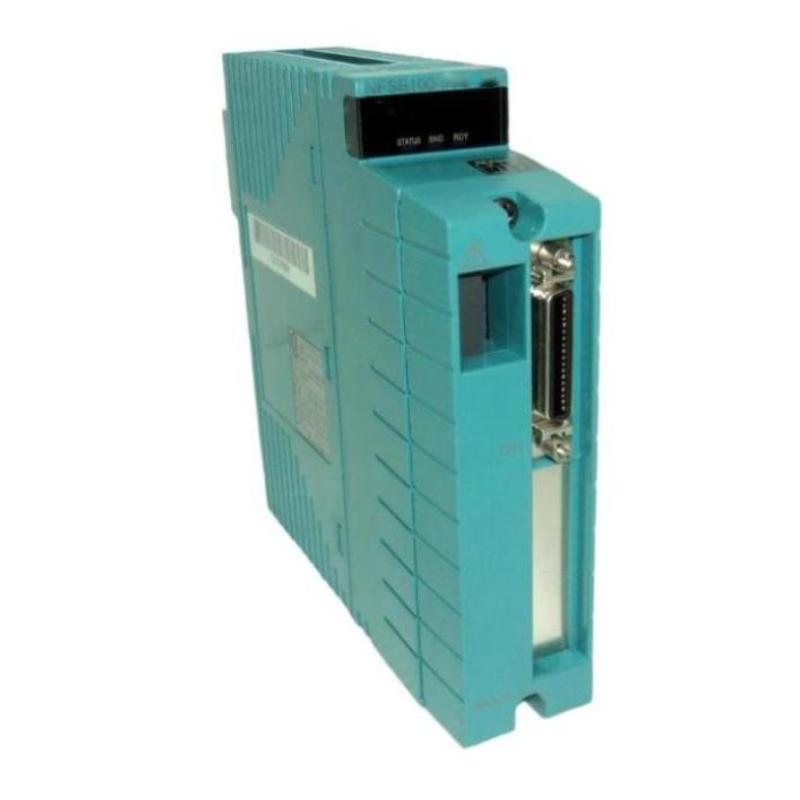

Yokogawa NFSB100-S01 Bus Repeater Module

Overview

The Yokogawa NFSB100-S01 Bus Repeater Module is an industrial communication module designed to extend and stabilize bus communication networks within Yokogawa control systems. It regenerates communication signals to improve transmission reliability and support expanded system configurations.

The module provides stable signal processing, efficient network extension, and reliable communication performance for distributed control applications.

General Information

Part Number: NFSB100-S01

Brand: Yokogawa

Country of Origin: Japan

Series: NFSB Communication Series

Type: Bus Repeater Module

Application: Industrial bus communication extension

Mounting: Control system rack installation

Compatible Systems: Yokogawa distributed control systems

Function: Regenerates and extends bus communication signals

Technology: Industrial fieldbus repeater technology

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power consumption design

Power Input: Supplied through system backplane

Protection Features: Power monitoring and communication fault protection

Status Indicators: LED indicators for power and communication status

Communication & Interface

Communication Interface: Bus communication interface

Network Function: Signal regeneration and communication distance extension

Data Transfer: Digital communication signal transmission

Connection Method: System bus connector interface

Diagnostics: Communication status monitoring, fault detection, and alarm indication

Network Support: Distributed control system module communication

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −20 to +70 °C

Humidity: 10 to 90% RH, non-condensing

Installation Environment: Industrial control cabinet environment

Protection Rating: Suitable for standard automation system enclosures

Cooling Method: Natural air cooling

Dimensions & Weight

Dimensions (L × W × H): 32 × 127 × 127 mm

Weight: 0.2 kg
