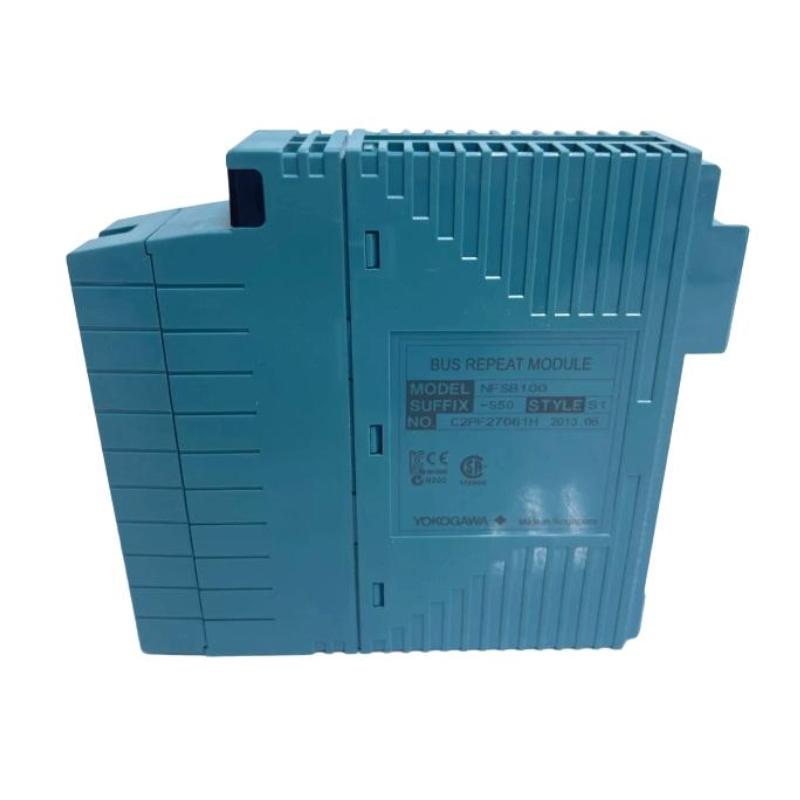

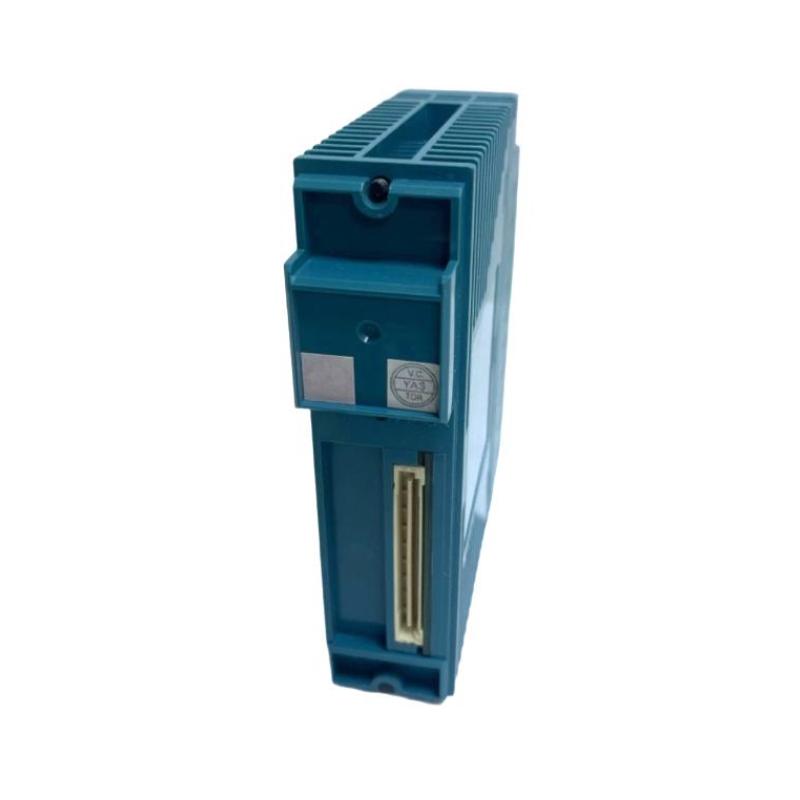

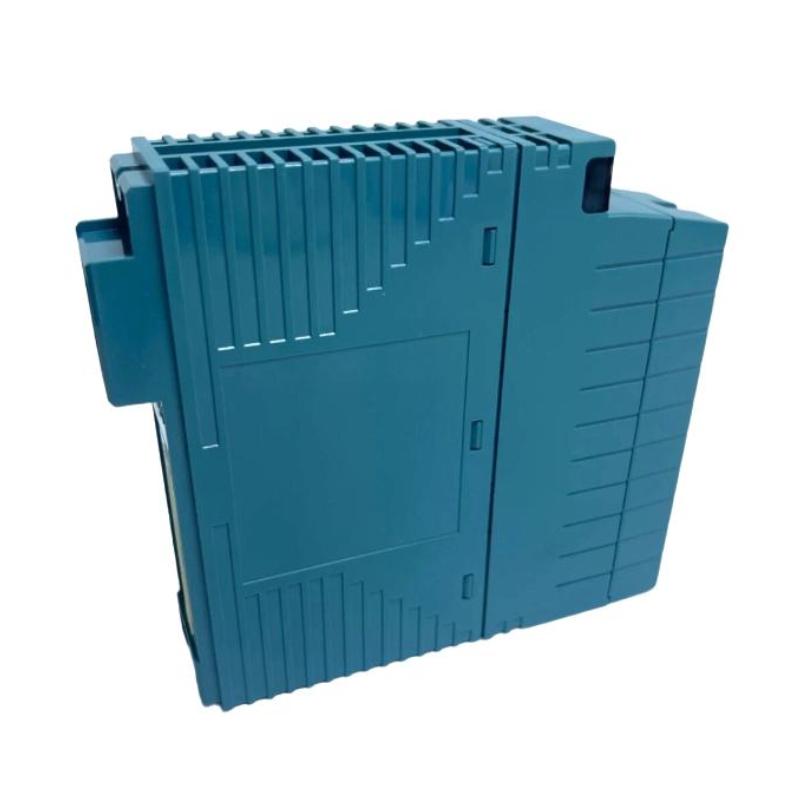

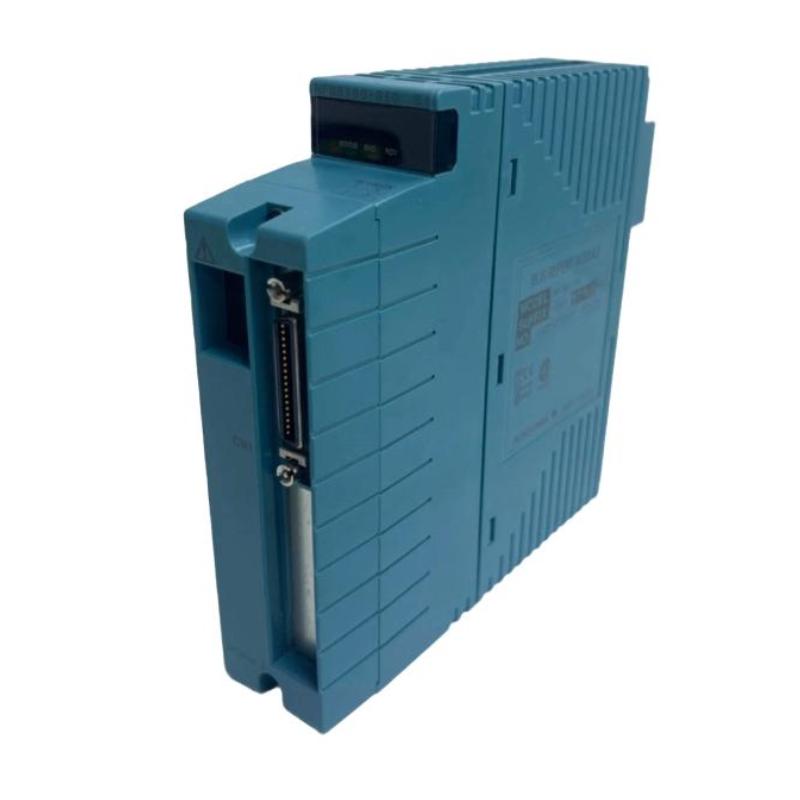

Yokogawa NFSB100-S50/SBT01 Bus Repeater Module

Overview

The Yokogawa NFSB100-S50/SBT01 Bus Repeater Module is an industrial communication module designed to extend and stabilize fieldbus networks in control systems. It improves signal transmission reliability and supports long-distance communication between control stations and field devices in industrial automation environments.

General Information

Part Number: NFSB100-S50/SBT01

Brand: Yokogawa

Country of Origin: Japan

Series: NFSB100

Type: Bus Repeater Module

Application: Industrial communication networks, fieldbus expansion, and control system integration

Function: Signal regeneration, communication extension, and network stability improvement

Installation: Rack or control cabinet mounting within automation systems

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Approx. 5 W

Power Input: Supplied through system power connection

Protection Features: Overvoltage and electrical noise protection

Status Indicators: LED indicators for power and communication status

Communication & Interface

Communication Interface: Fieldbus communication interface

Network Support: Supports Yokogawa control system communication networks

Repeater Function: Regenerates and extends communication signals between network segments

Diagnostics: Communication monitoring, link status indication, and fault detection

Connection Type: Industrial bus connection terminals

Environmental

Operating Temperature: -20 to +70 °C

Storage Temperature: -30 to +70 °C

Humidity: 10% to 90% RH, non-condensing

Protection Rating: IP20

Installation Environment: Industrial control cabinets and automation systems

Dimensions & Weight

Dimensions (H × W × D): 130 × 142.5 × 32.8 mm

Weight: 0.3 kg

New In Stock!
