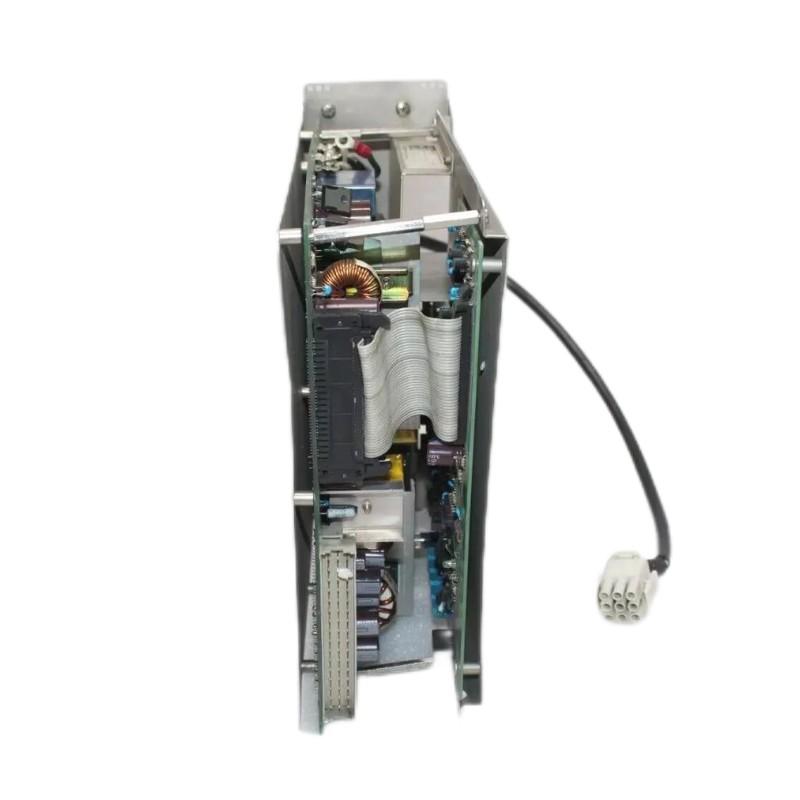

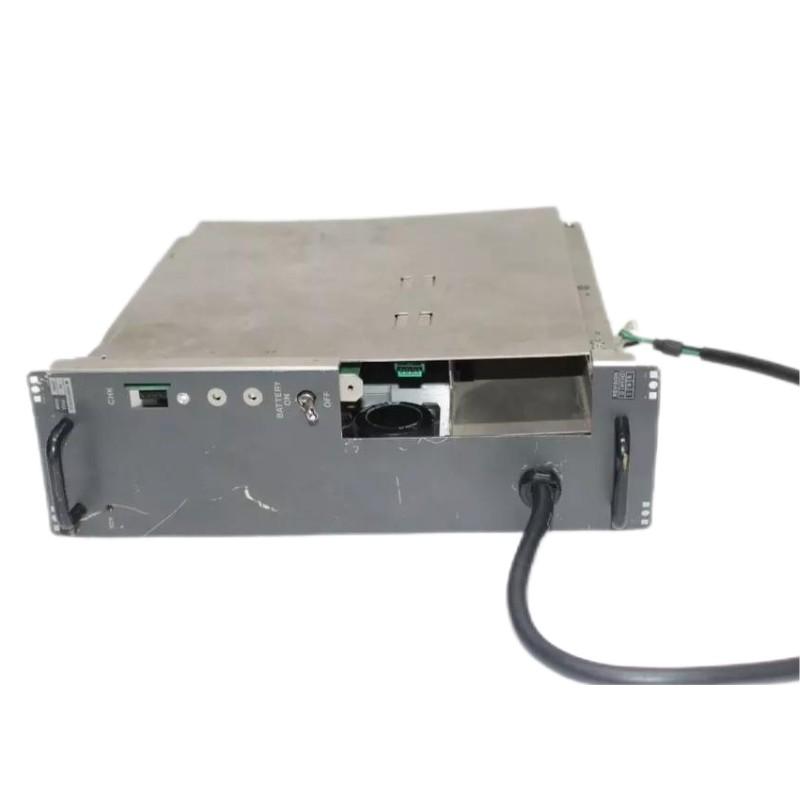

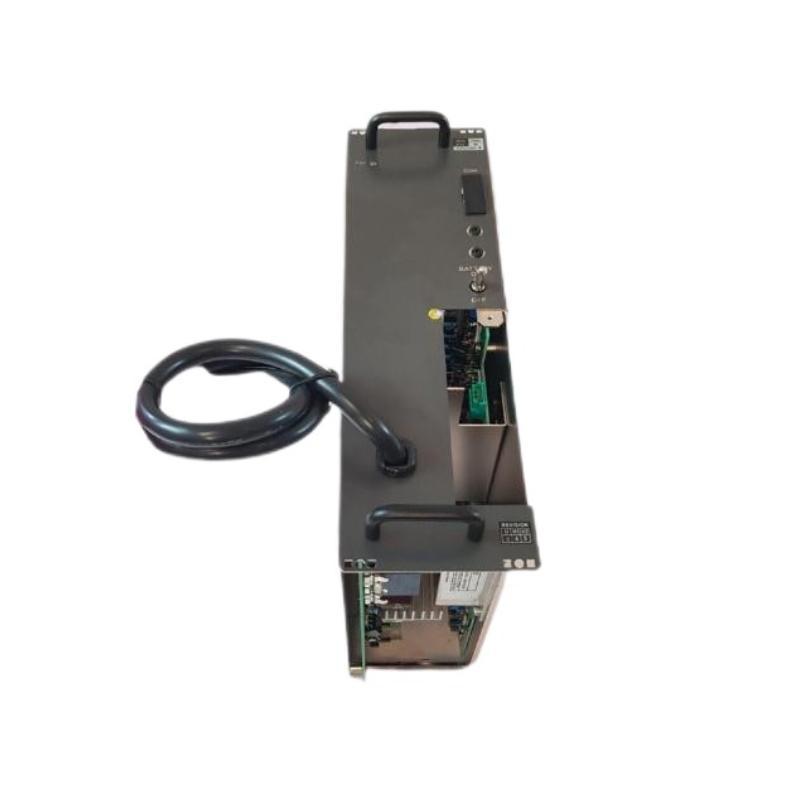

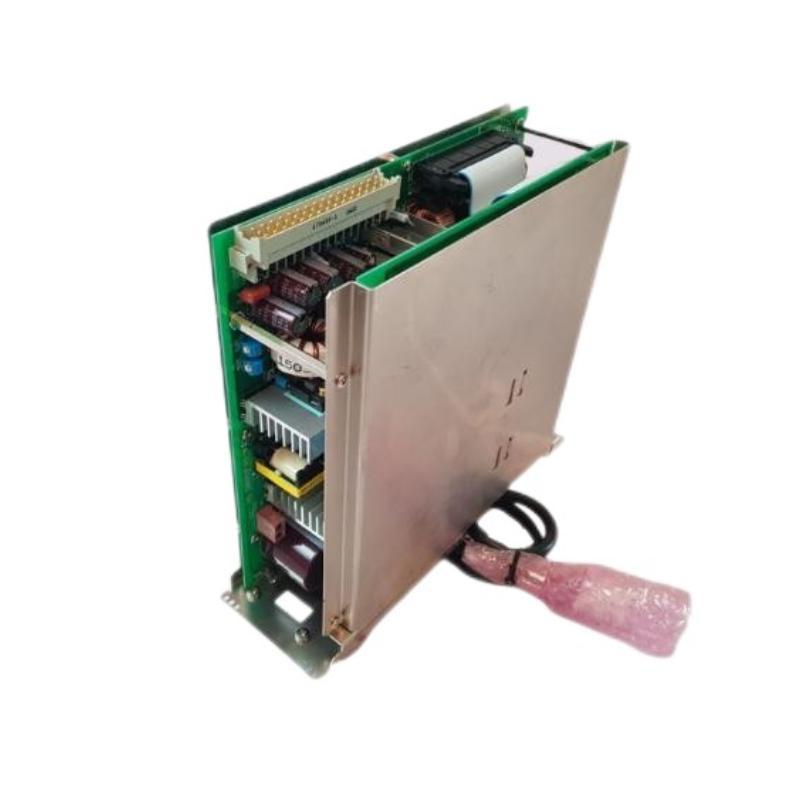

Yokogawa PW302-S4 Power Supply Module

Overview

The Yokogawa PW302-S4 Power Supply Module is a high-reliability power unit designed to provide stable electrical power for industrial control systems. It supports continuous operation of Yokogawa automation platforms by delivering consistent power output and improving system availability in demanding process environments.

General Information

Part Number: PW302-S4

Brand: Yokogawa

Country of Origin: Japan

Series: PW300

Type: Power Supply Module

Application: Industrial control systems, distributed control systems, and automation equipment

Function: System power conversion, voltage regulation, and reliable power distribution

Installation: Rack or control cabinet mounting within Yokogawa control systems

Power Specifications

Input Voltage: 100 to 240 V AC

Output Voltage: 24 V DC

Output Power: High-capacity system power supply

Power Consumption: Designed for efficient industrial operation

Protection Features: Overvoltage, overcurrent, and short-circuit protection

Status Indicators: LED indicators for power and module status monitoring

Communication & Interface

Interface Type: System power interface

System Connection: Provides power supply connection for Yokogawa control modules

Monitoring Function: Supports power status monitoring and system diagnostics

Connection Type: Backplane and power distribution interface

Diagnostics: Module status indication and fault monitoring

Environmental

Operating Temperature: -20 to +70 °C

Storage Temperature: -30 to +70 °C

Humidity: 10% to 90% RH, non-condensing

Protection Rating: IP20

Installation Environment: Industrial control cabinets and automation systems

Dimensions & Weight

Dimensions (H × W × D): 280 × 100 × 280 mm

Weight: 3.26 kg
