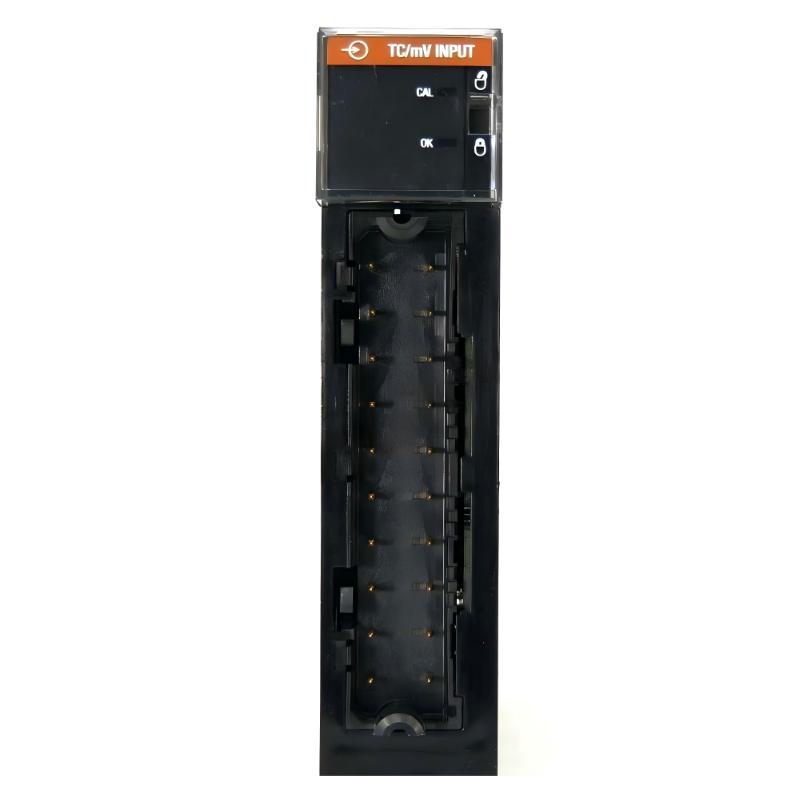

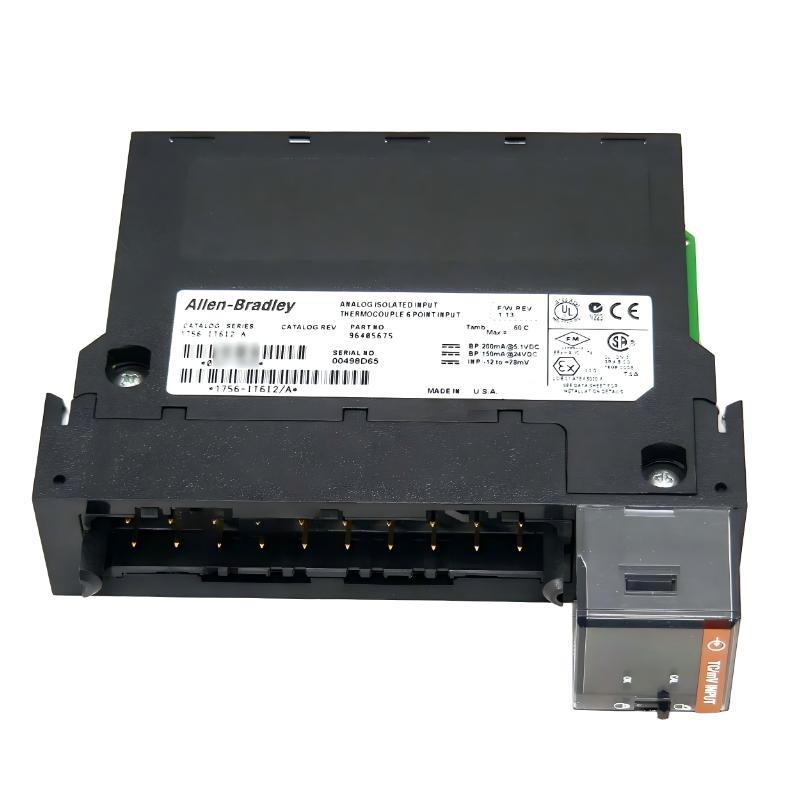

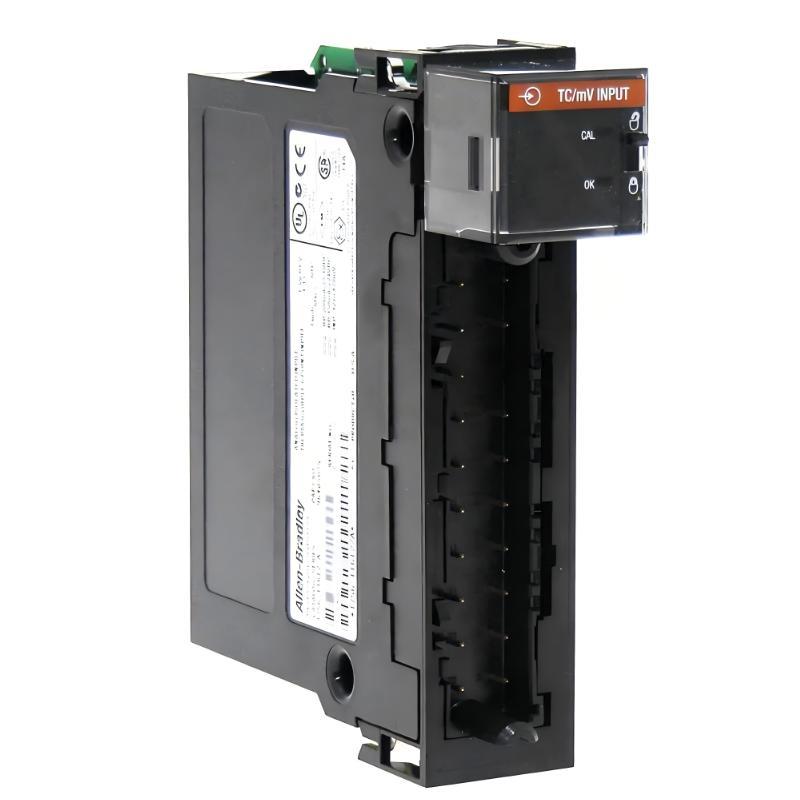

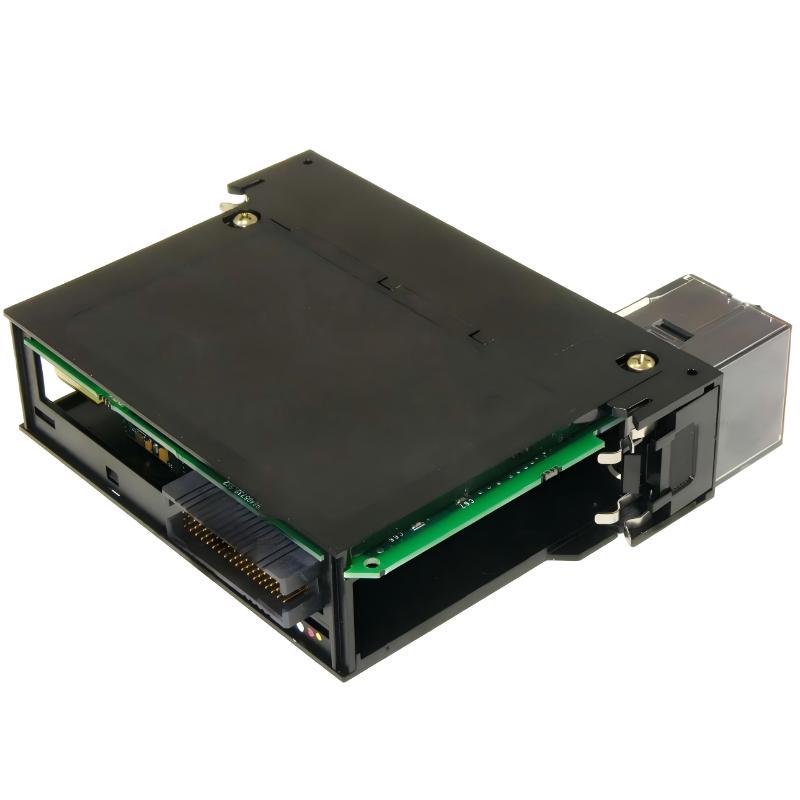

Allen Bradley 1756-IT6I2 ControlLogix Enhanced Isolated Thermocouple Input Module

Overview

The Allen Bradley 1756-IT6I2 is a ControlLogix enhanced isolated thermocouple input module designed for precise temperature measurement in industrial automation systems. It provides high-speed, isolated acquisition from multiple thermocouple types, offering improved signal accuracy and noise immunity. This module is ideal for process control and manufacturing applications where enhanced temperature monitoring is required.

General Information

Part Number: 1756-IT6I2

Manufacturer: Allen Bradley

Brand: Allen-Bradley

Country of Origin: United States

Series: ControlLogix

Type: Enhanced Isolated Thermocouple Input Module

Module Category: Analog Input Module (Temperature)

Number of Channels: 6 Inputs

Supported Sensor Types: Thermocouple (multiple standard types)

Channel Isolation: Individually Isolated Inputs

Mounting: ControlLogix Chassis Installation

Terminal Block Compatibility: 1756-TBCH, 1756-TBS6H

Power Specifications

Input Type: Thermocouple Millivolt Signal

Backplane Current Draw (5.1 V DC): Approx. 250 mA

Backplane Current Draw (24 V DC): Approx. 2 mA

Power Dissipation: Approx. 4 W

Isolation Voltage: 250 V Continuous

Power Source: ControlLogix Backplane

Status Indicators: Channel Status and Module Health LEDs

Communication & Interface

Input Channels: 6

Channel Isolation: Individually Isolated Inputs

Connection Method: Removable Terminal Block

Data Interface: ControlLogix Backplane Communication

Diagnostics: Open-circuit, underrange, and overrange detection

System Compatibility: ControlLogix Controllers and I/O Chassis

Signal Processing: High-precision thermocouple conversion with digital filtering

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Shock Resistance: Industrial Grade

Vibration Resistance: Suitable for Industrial Environments

Protection Rating: Open-Type Equipment for Enclosed Cabinets

Dimensions & Weight

Dimensions (H × W × D): 144.57 × 22 × 105.42 mm

Weight: 0.272 kg
