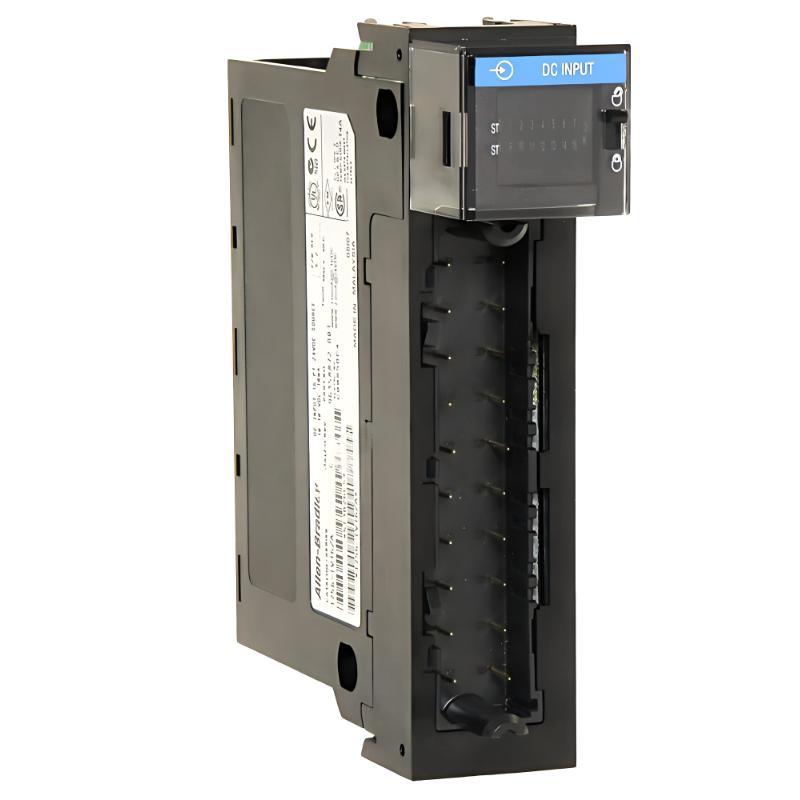

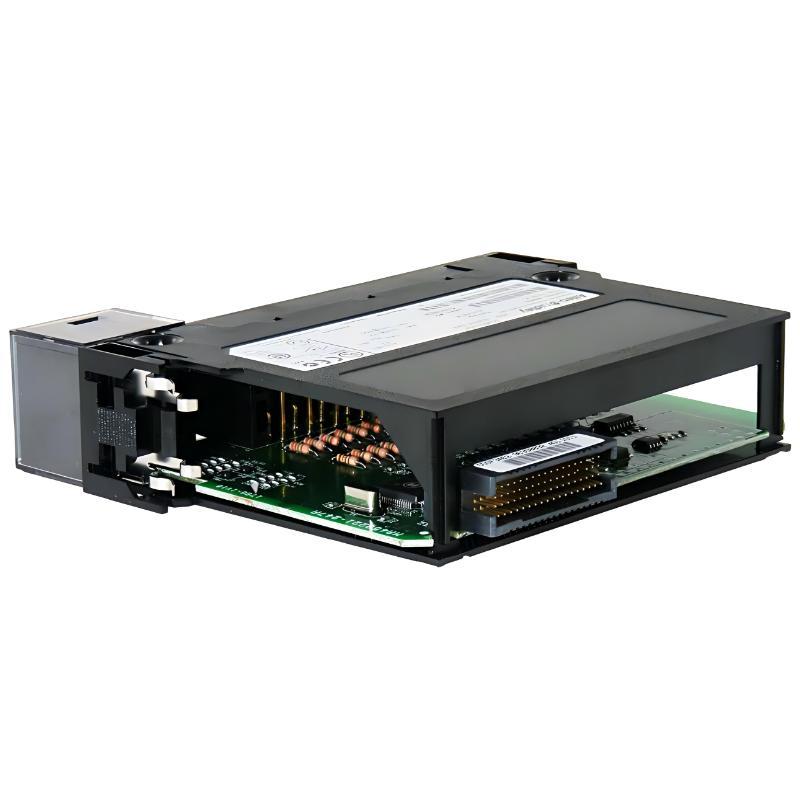

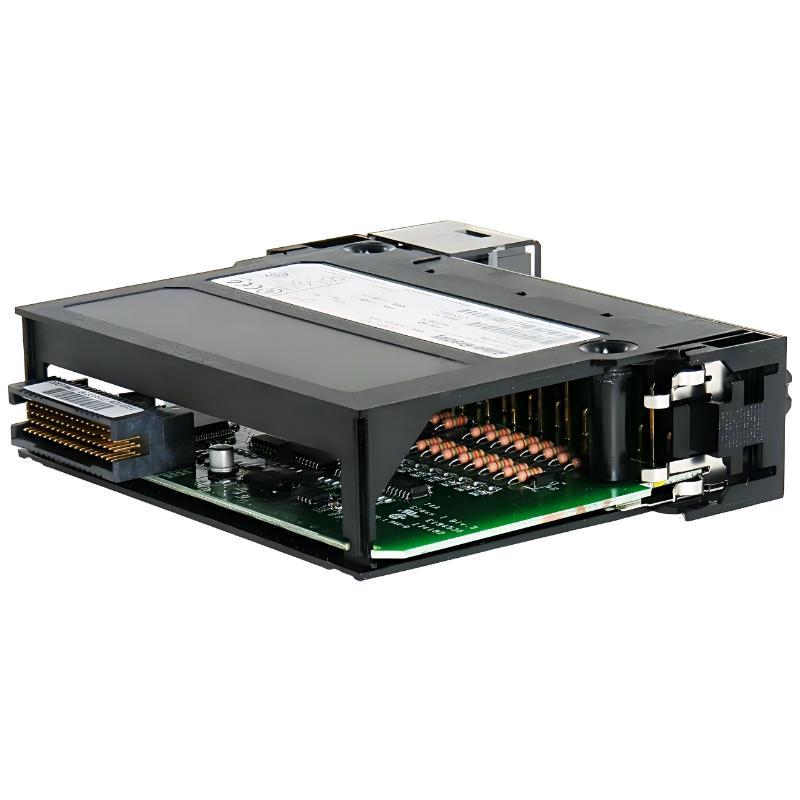

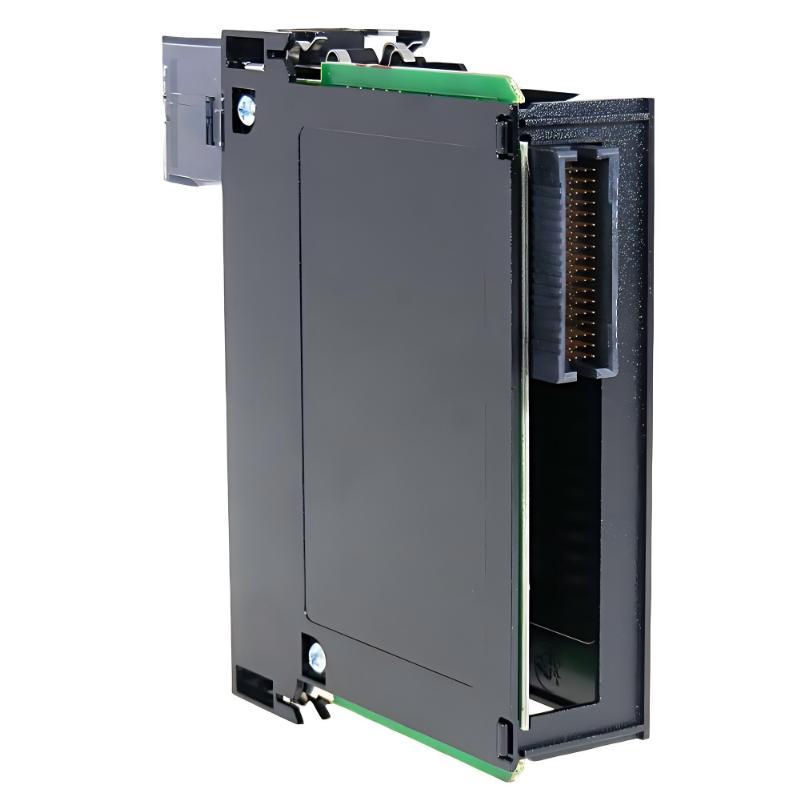

Allen Bradley 1756-IV16 ControlLogix Numeric Input Module

Overview

The Allen Bradley 1756-IV16 is a ControlLogix numeric input module designed for high-speed and accurate digital data acquisition in industrial automation systems. It provides 16 input channels capable of handling numeric signals, enabling precise monitoring and control of process or machine data. This module is suitable for applications requiring reliable numeric input processing within the ControlLogix platform.

General Information

Part Number: 1756-IV16

Manufacturer: Allen Bradley

Brand: Allen-Bradley

Country of Origin: United States

Series: ControlLogix

Type: Numeric Input Module

Module Category: Digital Input Module

Number of Channels: 16 Inputs

Signal Type: Numeric / Discrete Digital Signals

Mounting: ControlLogix Chassis Installation

Terminal Block Compatibility: 1756-TBCH, 1756-TBS6H

Power Specifications

Input Voltage: 5–24 V DC

Backplane Current Draw (5.1 V DC): Approx. 120 mA

Backplane Current Draw (24 V DC): Approx. 2 mA

Power Dissipation: Approx. 1.5 W

Isolation Voltage: 250 V Continuous

Power Source: ControlLogix Backplane

Status Indicators: Channel Status and Module Health LEDs

Communication & Interface

Input Channels: 16

Channel Isolation: Individual channel processing

Connection Method: Removable Terminal Block

Data Interface: ControlLogix Backplane Communication

Diagnostics: Input signal validation and fault detection

System Compatibility: ControlLogix Controllers and I/O Chassis

Signal Processing: High-speed numeric data acquisition

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Shock Resistance: Industrial Grade

Vibration Resistance: Suitable for Industrial Environments

Protection Rating: Open-Type Equipment for Enclosed Cabinets

Dimensions & Weight

Dimensions (H × W × D): 144.57 × 22 × 105.42 mm

Weight: 0.18 kg
