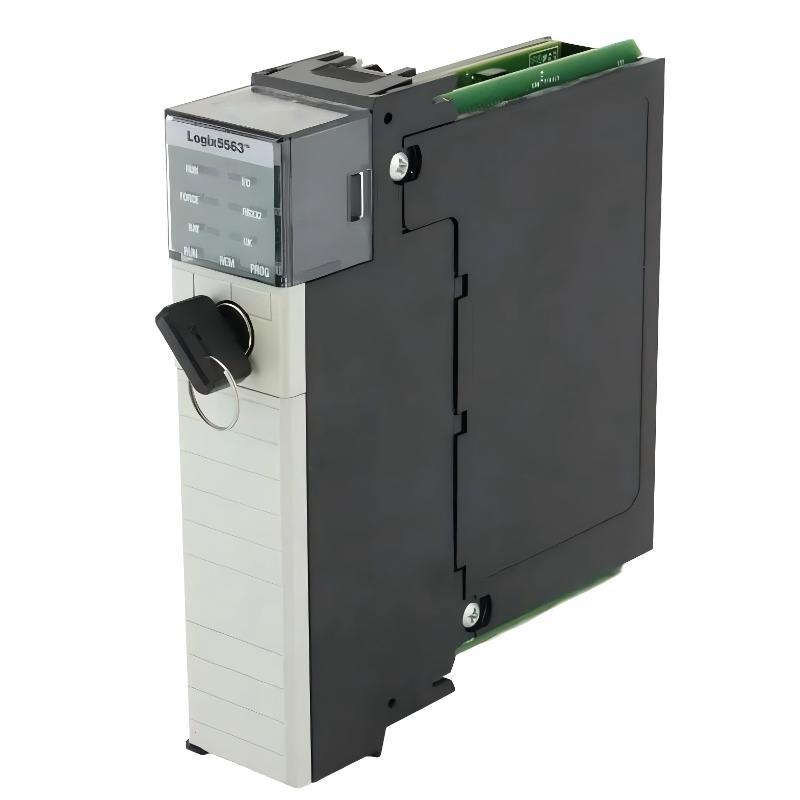

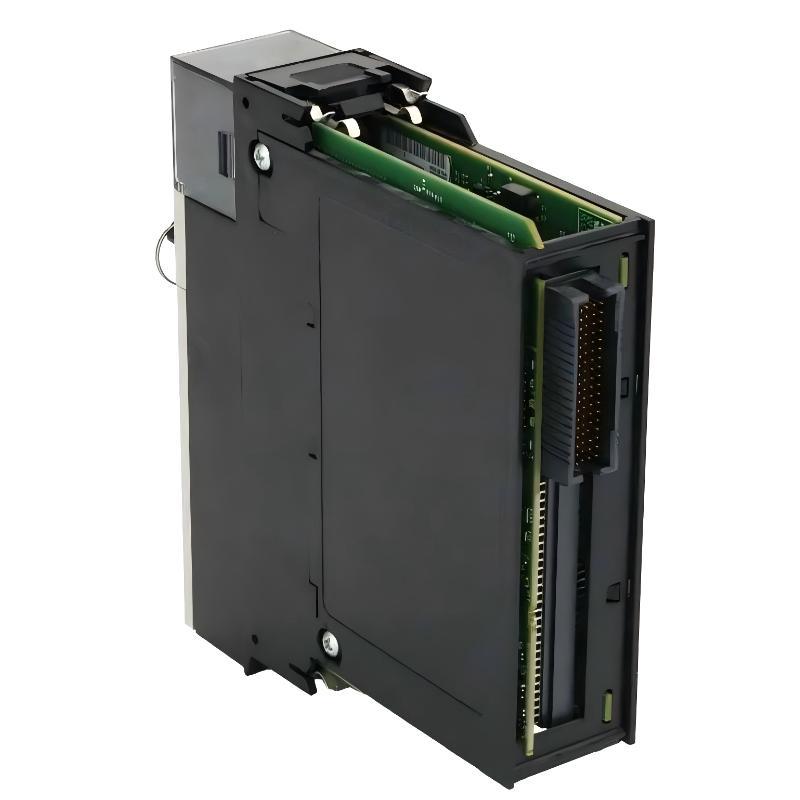

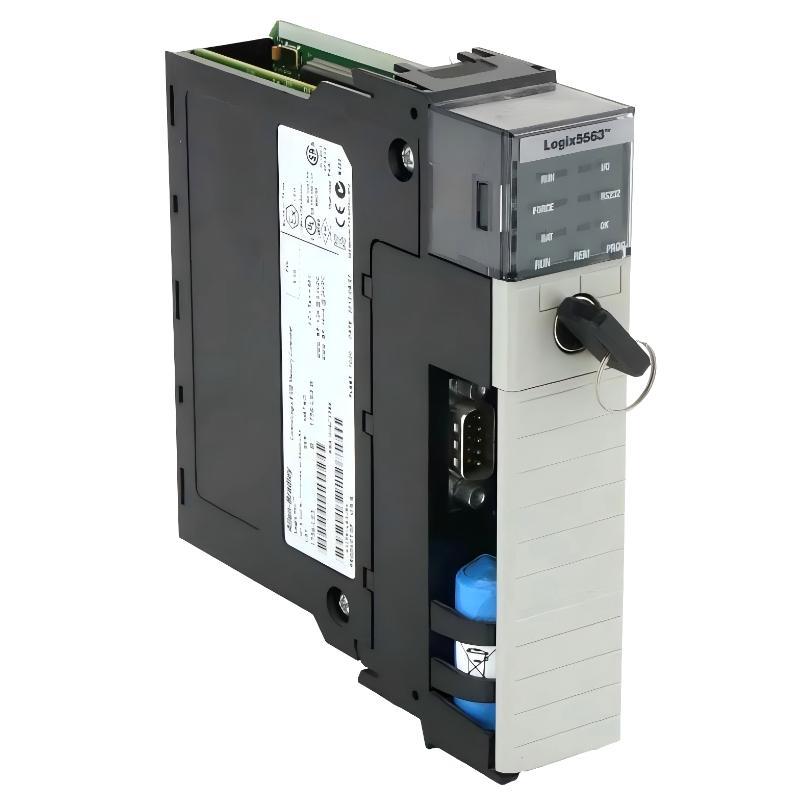

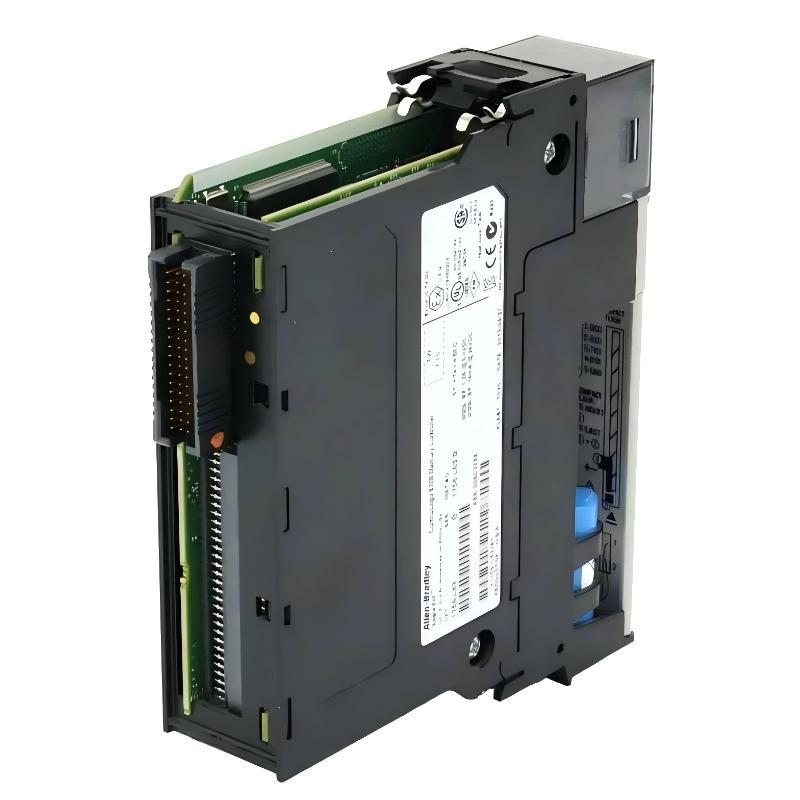

Allen Bradley 1756-L63 ControlLogix Logix5563 Processor

Overview

The 1756-L63 ControlLogix Logix5563 Processor is a powerful programmable automation controller designed for demanding industrial applications. As a member of the ControlLogix family, it provides high-speed processing, large memory capacity, and flexible system integration. The processor is well suited for manufacturing, material handling, process automation, and complex machine control environments.

General Information

Part Number: 1756-L63

Manufacturer: Allen Bradley / Rockwell Automation

Brand / Country of Origin: Allen Bradley / USA

Series: ControlLogix Logix5563

Type: Programmable Automation Controller (PAC)

Mounting: Installed in a ControlLogix chassis

Technology: Logix control architecture with advanced processing capabilities

Application: Industrial automation, machine control, and process management

Power Specifications

Supply Voltage: Powered through the ControlLogix backplane

Power Consumption: Approx. 5.8 W

Isolation: Backplane isolation design

Protection Features: Electronic fault monitoring and diagnostic protection

Status Indicators: LED indicators for module status, communication, and fault conditions

Memory: Integrated user memory for programs, data, and system operations

Communication & Interface

Backplane Interface: ControlLogix high-speed backplane communication

Network Support: Compatible with EtherNet/IP, ControlNet, DeviceNet, DH+, and other communication modules

Programming Software: Studio 5000 Logix Designer / RSLogix 5000

Diagnostics: Real-time status monitoring and fault diagnostics

Data Exchange: Supports communication with local and distributed I/O systems

Expansion Capability: Compatible with a wide range of ControlLogix modules and networks

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Suitable for industrial operating environments

Protection Rating: IP20 (when installed in an appropriate enclosure)

Dimensions & Weight

Dimensions (L × W × H): 145.2 × 34.6 × 139.6 mm

Weight: 0.45 kg
