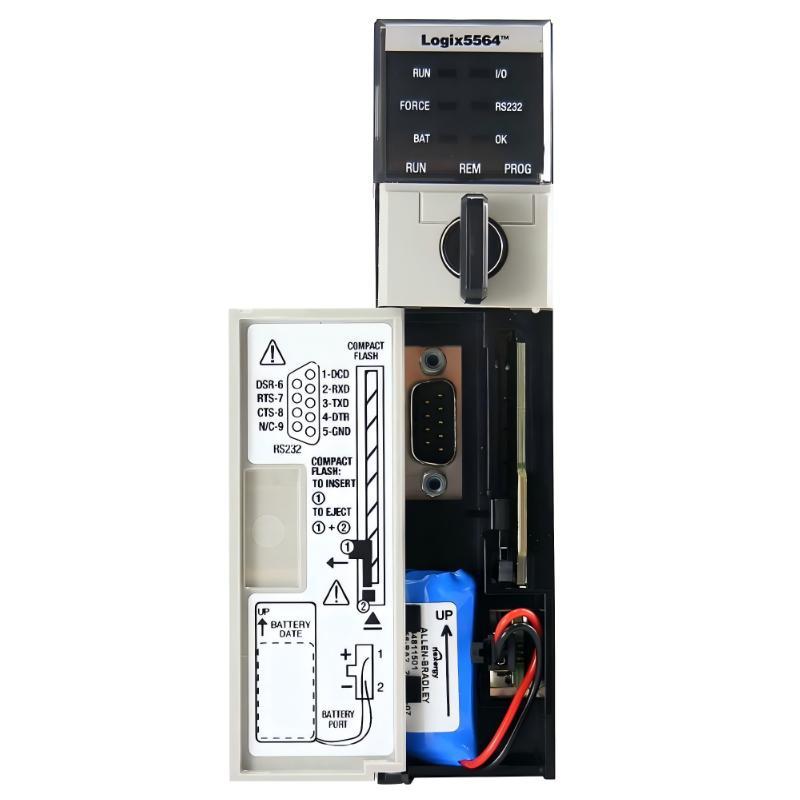

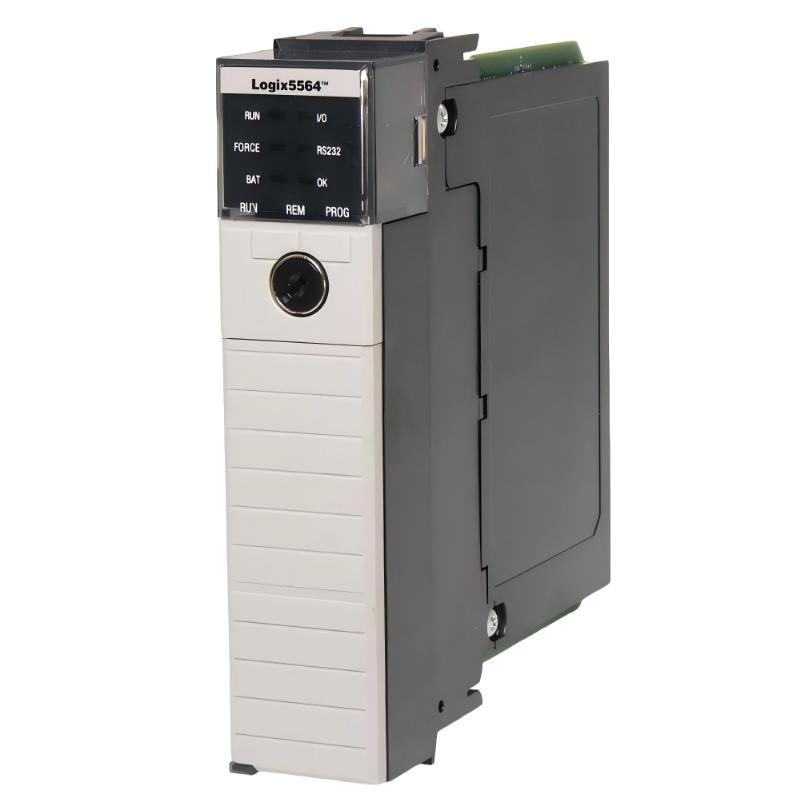

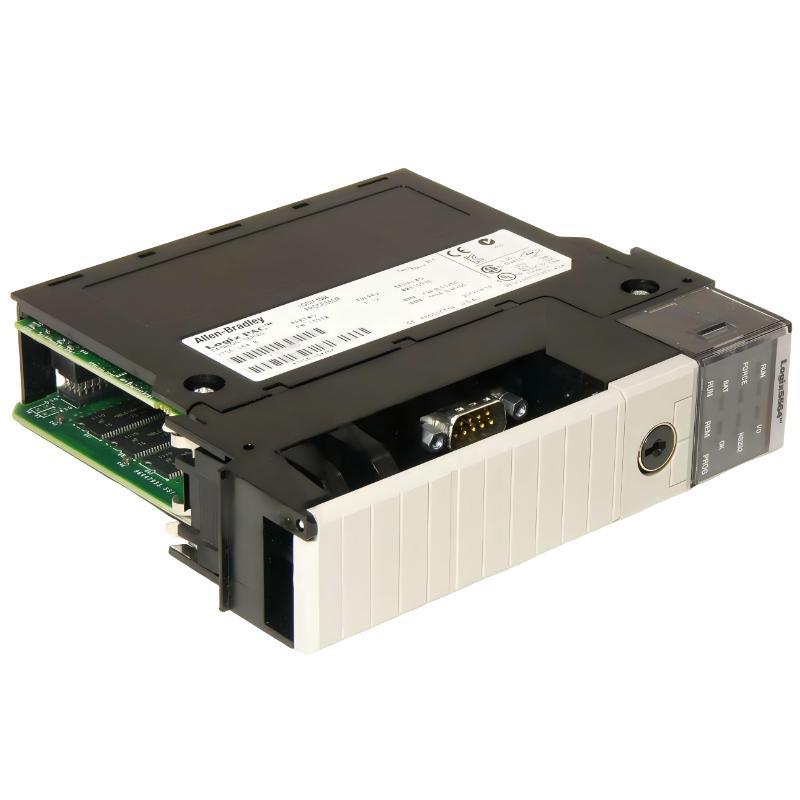

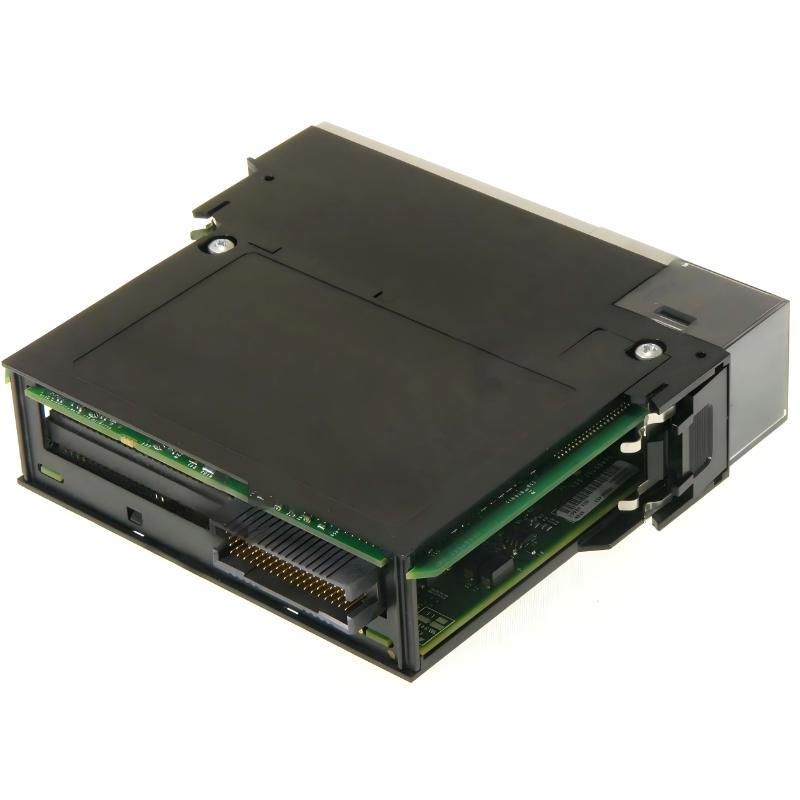

Allen Bradley 1756-L64 ControlLogix Logix5564 Processor

Overview

The 1756-L64 ControlLogix Logix5564 Processor is a high-capacity programmable automation controller engineered for complex industrial control systems. Designed for demanding automation applications, it offers powerful processing performance, extensive memory resources, and flexible integration with ControlLogix I/O and communication modules. The processor is ideal for large-scale manufacturing, process control, and motion control environments.

General Information

Part Number: 1756-L64

Manufacturer: Allen Bradley / Rockwell Automation

Brand / Country of Origin: Allen Bradley / USA

Series: ControlLogix Logix5564

Type: Programmable Automation Controller (PAC)

Mounting: Installed in a ControlLogix chassis

Technology: Logix control architecture with advanced memory and processing capabilities

Application: Industrial automation, process control, machine automation, and system integration

Power Specifications

Supply Voltage: Powered through the ControlLogix backplane

Power Consumption: Approx. 5.8 W

Isolation: Backplane isolation architecture

Protection Features: Built-in diagnostics and fault monitoring

Status Indicators: LED indicators for module status, communication activity, and fault conditions

Memory: Large-capacity user memory for control programs and data management

Communication & Interface

Backplane Interface: ControlLogix high-speed backplane communication

Network Support: Compatible with EtherNet/IP, ControlNet, DeviceNet, DH+, and other supported communication modules

Programming Software: Studio 5000 Logix Designer / RSLogix 5000

Diagnostics: Advanced diagnostics and system status reporting

Data Exchange: Supports communication with local and distributed I/O devices

Expansion Capability: Integrates with a broad range of ControlLogix modules and network architectures

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for industrial operating conditions

Protection Rating: IP20 (when installed inside a suitable enclosure)

Dimensions & Weight

Dimensions (L × W × H): 145.2 × 34.6 × 139.6 mm

Weight: 0.544 kg
