Overview

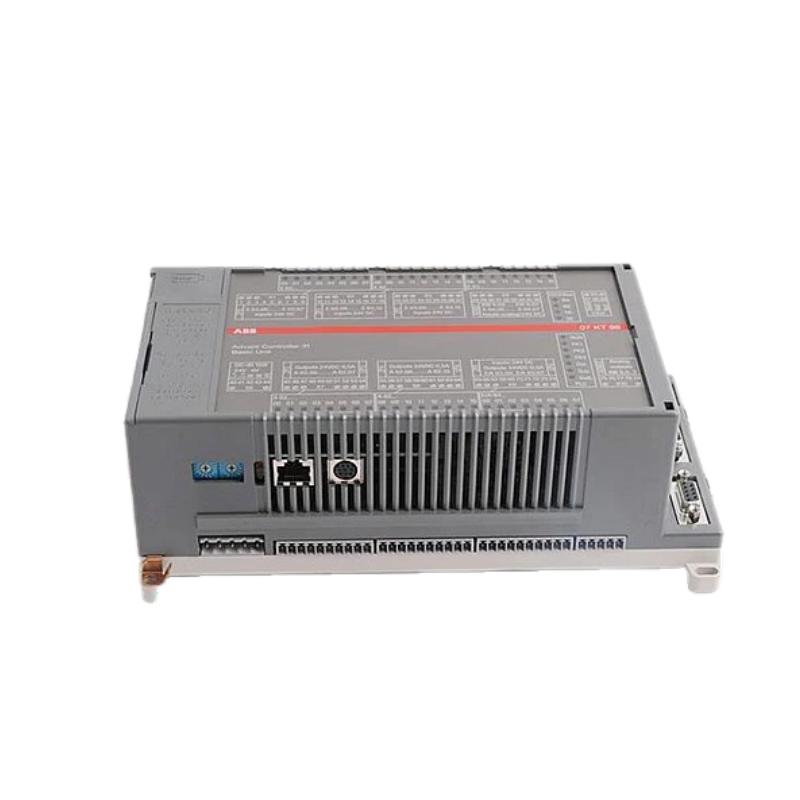

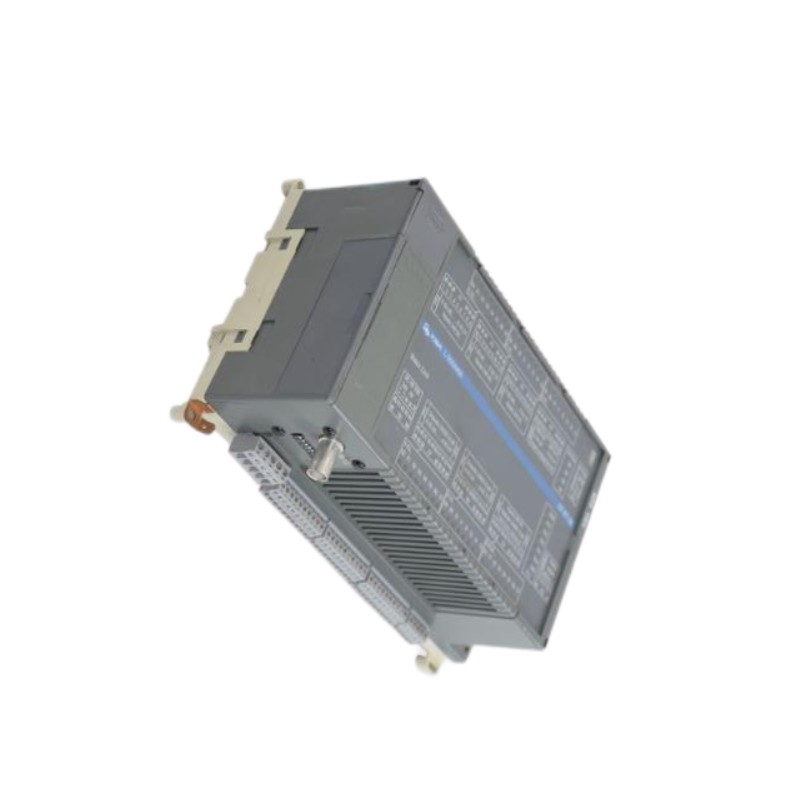

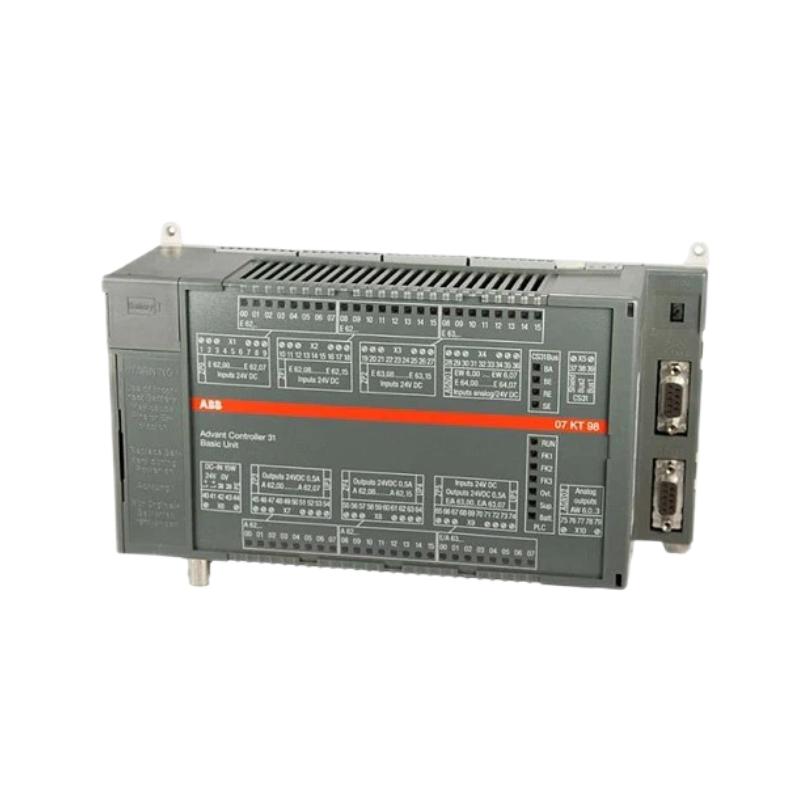

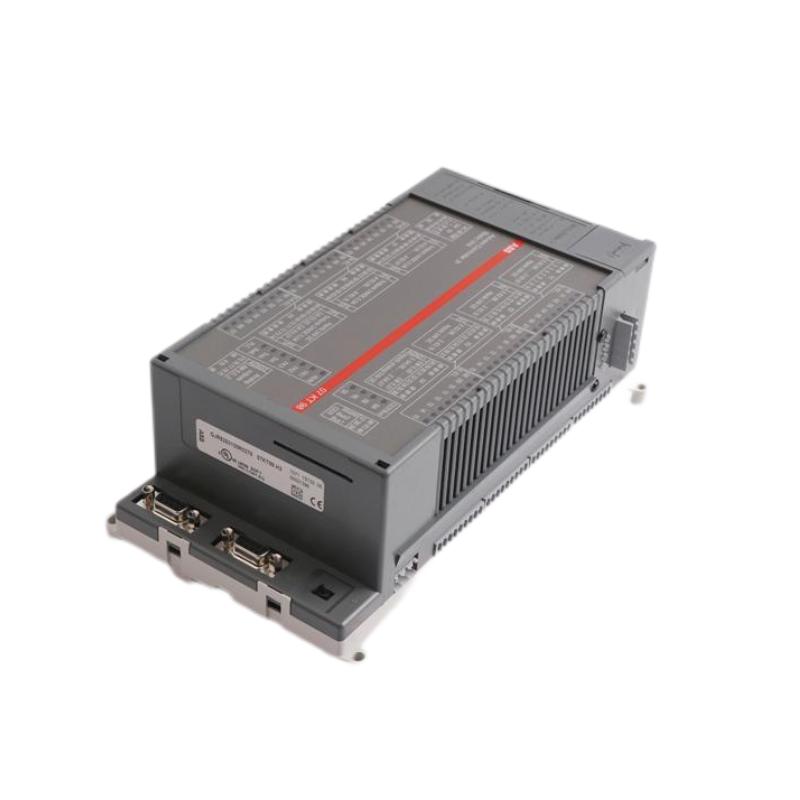

The ABB 07KT98-S (GJR5253100R2260) is a high-reliability processor module designed for the ABB Advant Controller 400 series. It functions as the central processing unit (CPU) that handles logic execution, communication management, and system coordination in industrial automation environments. Built for stable and continuous operation, it ensures efficient control and monitoring for complex process systems.
General Information
Brand: ABB
Country of Origin: Sweden
Part Number: GJR5253100R2260
Series: Advant Controller 400
Product Type: Processor Module / CPU Unit
Mounting Method: Rack-mounted within the Advant control chassis
Function: Executes control logic, communication processing, and system monitoring
Technology: High-speed microprocessor with integrated communication and diagnostic functions
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input Source: Supplied via the system backplane
Protection Features: Overvoltage, reverse polarity, and surge protection
Indicators: LEDs for power status, operation, and fault indication
Communication & Interface
Communication Ports: System bus, serial port, and local I/O bus
Supported Protocols: Advant fieldbus and internal system communication
Diagnostics: Built-in self-test and fault detection with LED indicators
Configuration: Through system configuration tools or maintenance terminal
Reset Options: Supports both software and hardware reset functions
Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for control cabinet installation)
Cooling Method: Natural air convection
Dimensions & Weight
Dimensions (L × W × H): 240 × 140 × 85 mm
Weight: Approx. 1.6 kg
