Overview

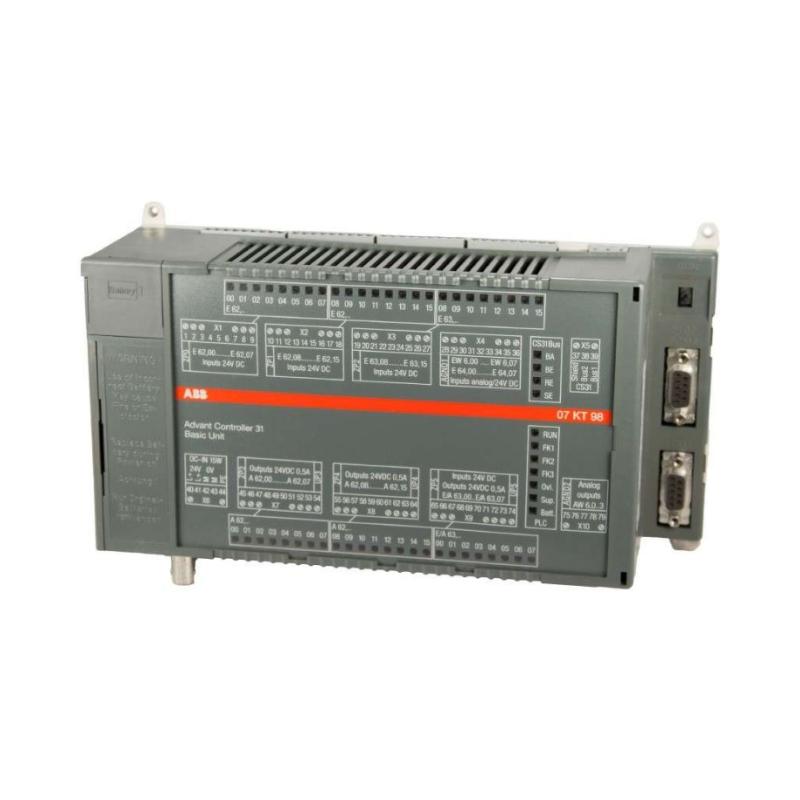

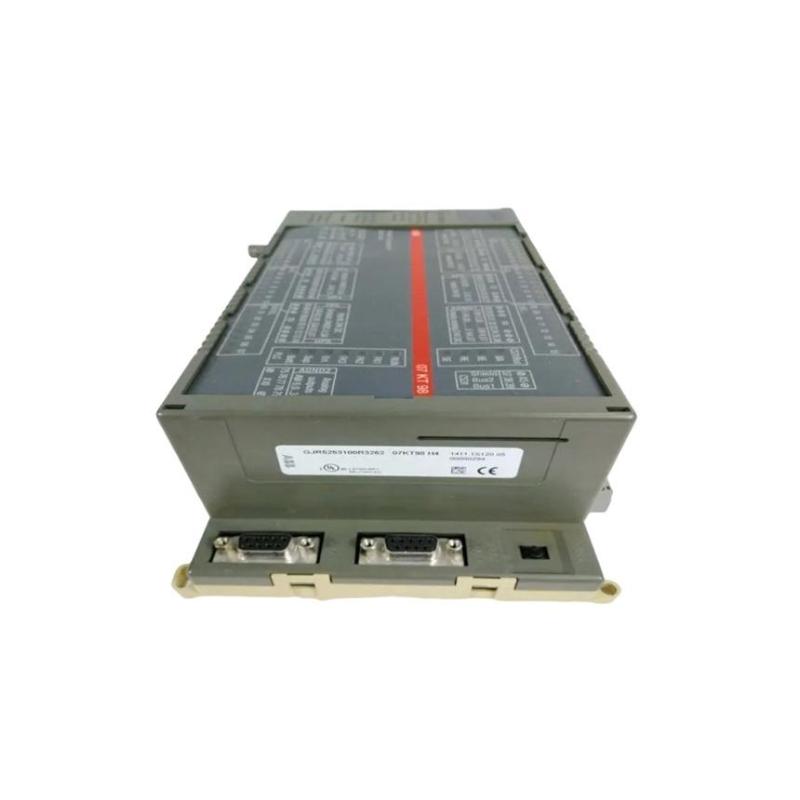

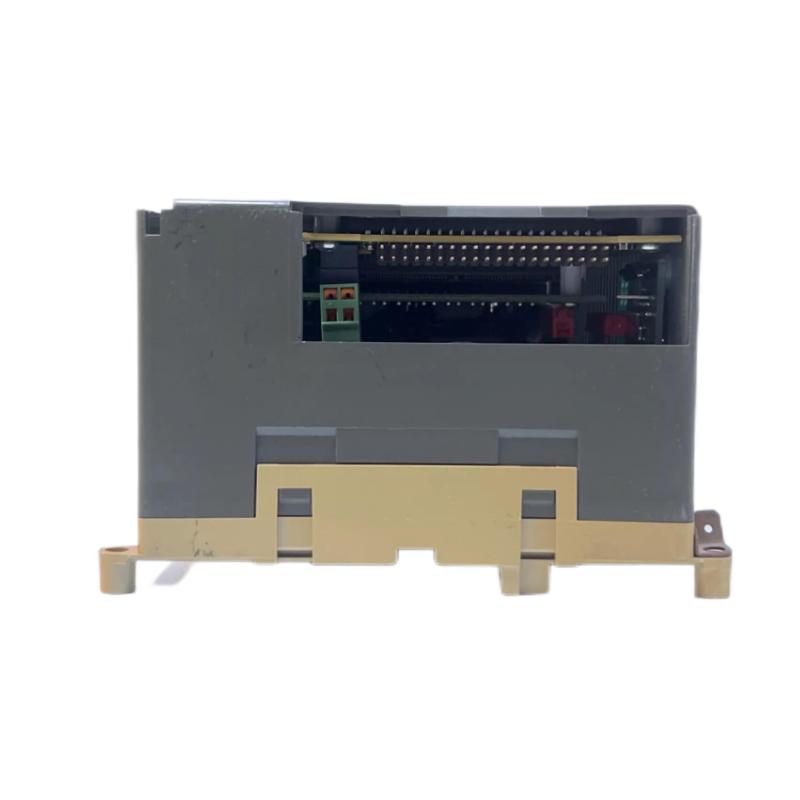

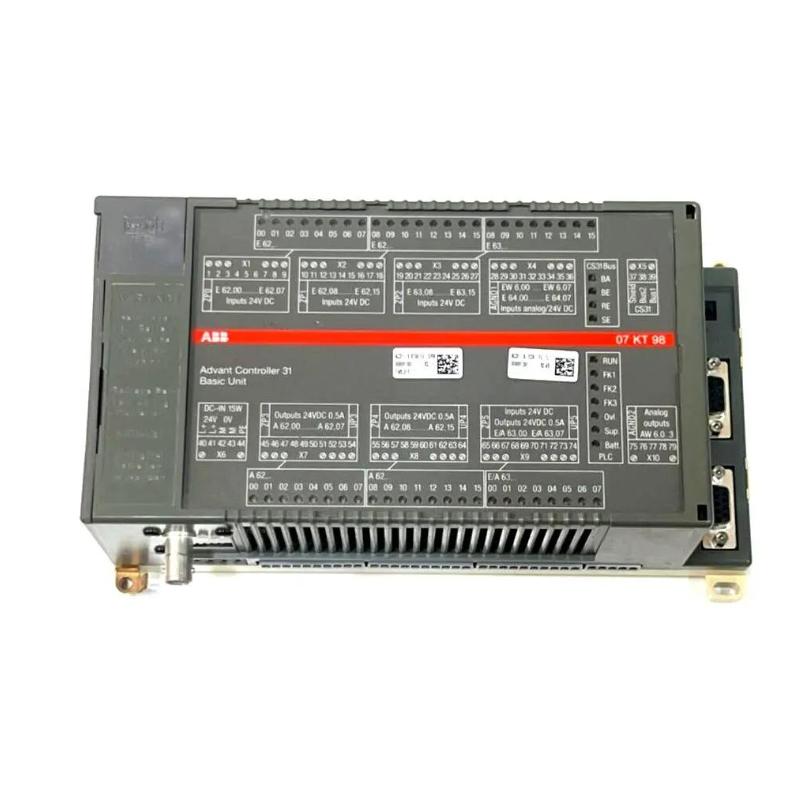

The ABB 07KT98 (GJR5253100R1260) is a high-reliability processor module designed for the ABB Advant Controller 400 system. Acting as the main CPU of the controller, it performs essential tasks such as logic execution, process communication, and system coordination. Built for industrial-grade performance, it ensures stable and efficient control operations in complex automation environments.
General Information
Brand: ABB
Country of Origin: Switzerland
Part Number: GJR5253100R1260
Series: Advant Controller 400
Product Type: Processor Module / CPU Unit
Mounting Method: Rack-mounted within the Advant control chassis
Function: Executes control algorithms, handles communication, and manages data exchange
Technology: High-speed microprocessor with integrated communication and diagnostic capabilities
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input Source: Power supplied through the system backplane
Protection Features: Overvoltage, surge, and reverse polarity protection
Indicators: LED indicators for power, operation, and fault monitoring
Communication & Interface
Communication Ports: System bus, serial interface, and I/O bus
Supported Protocols: Advant fieldbus and system communication standards
Diagnostics: Built-in self-test and fault detection with LED status display
Configuration: Managed via ABB system engineering tools or maintenance software
Reset Options: Supports both hardware and software reset
Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for use in control cabinet)
Cooling Method: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 240 × 140 × 85 mm
Weight: Approx. 1.6 kg
