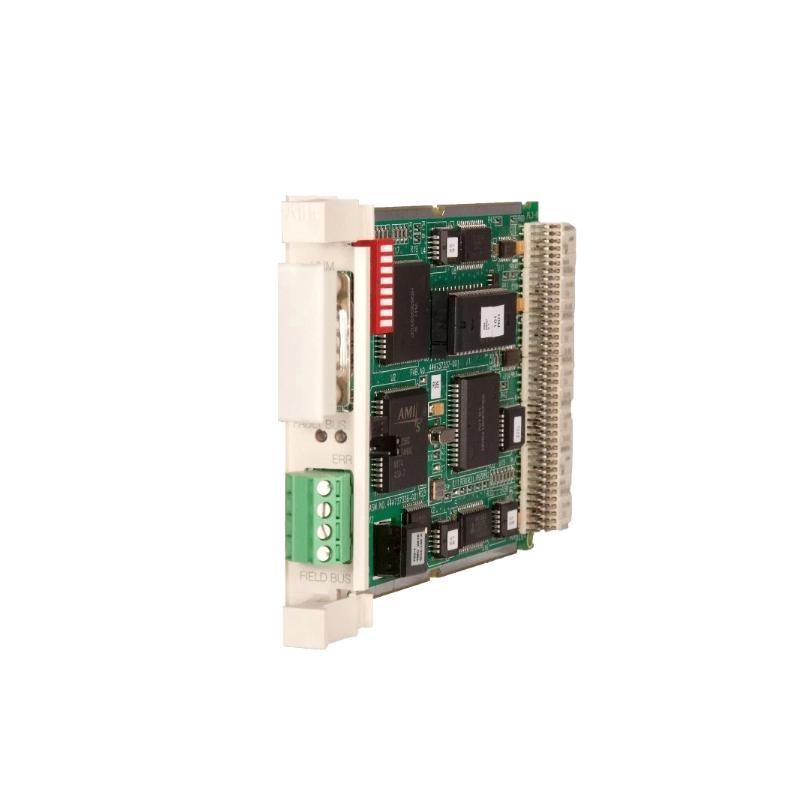

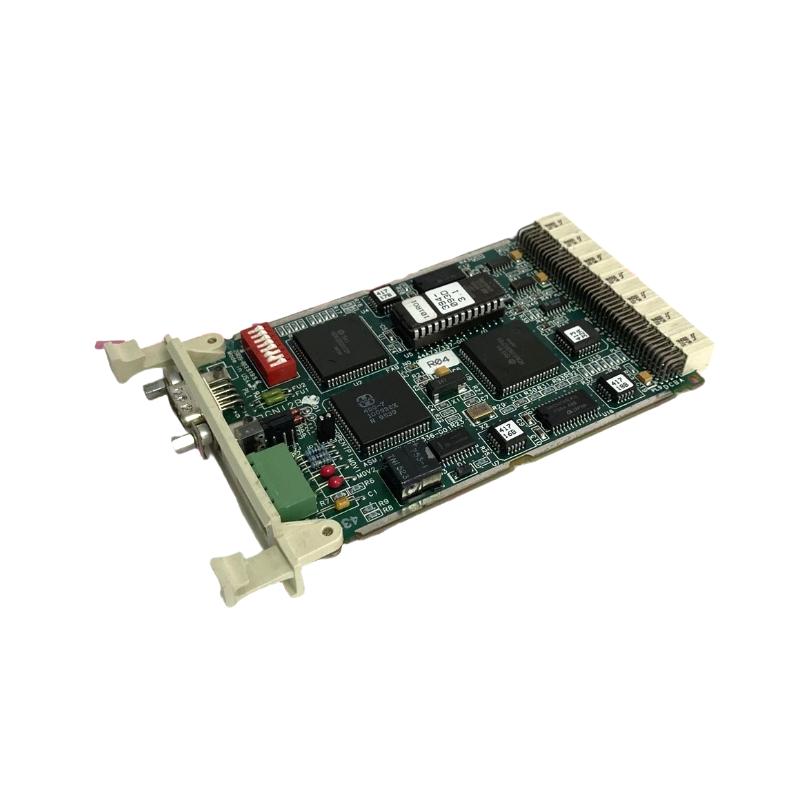

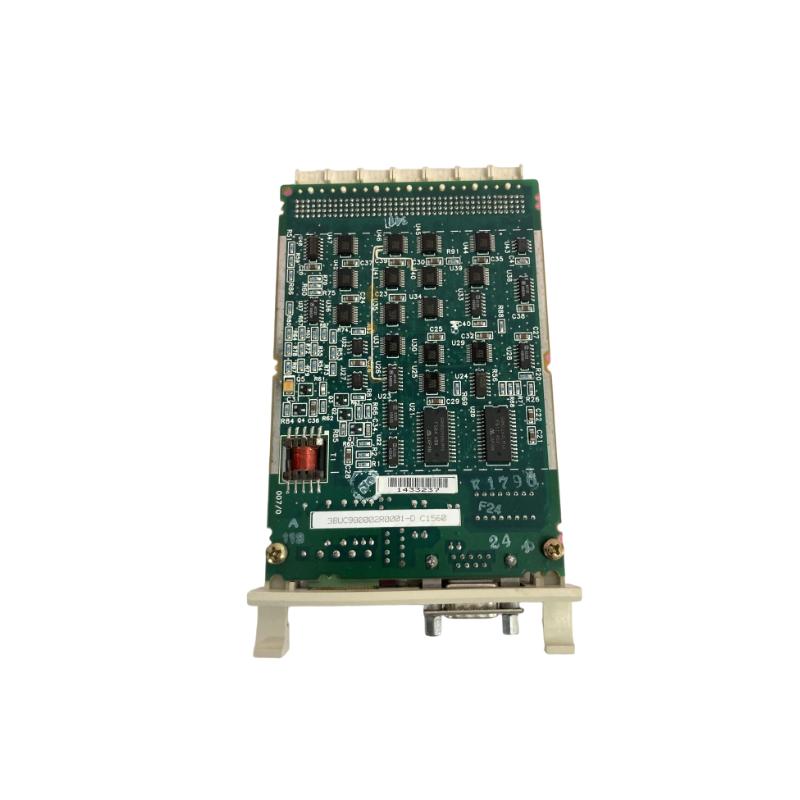

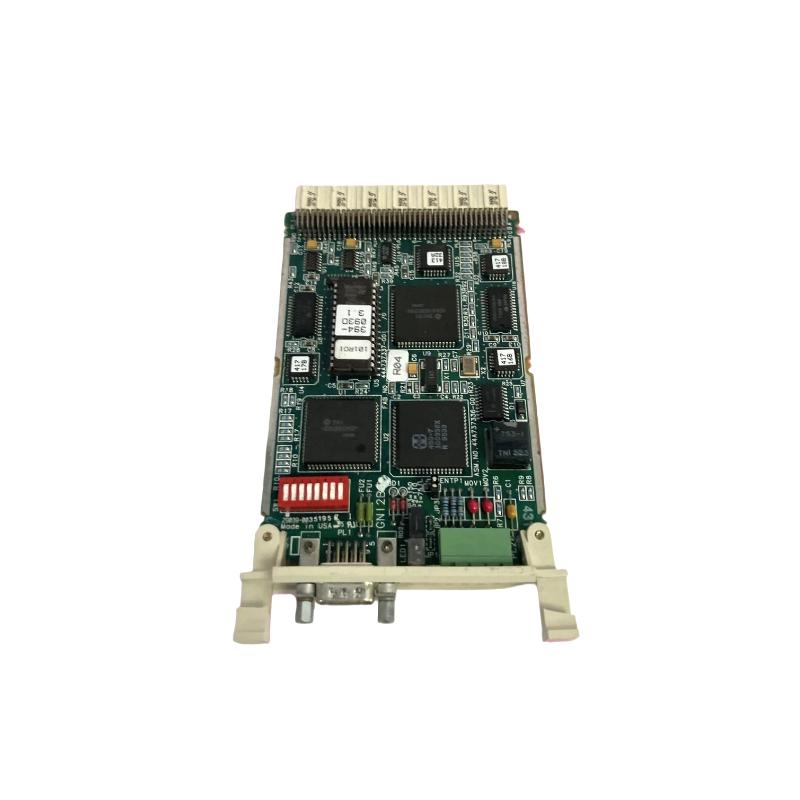

ABB CI560 3BUC98002R0001 | Communication Interface Module 30-Day Returns

Overview

The ABB CI560 3BUC98002R0001 is a high-performance communication interface module designed for use in ABB's industrial automation systems. This module is part of the CI series and provides reliable communication between the control system and field devices. It supports multiple communication protocols, ensuring seamless integration and data exchange across various network types. The CI560 module is ideal for applications requiring robust and fast communication in complex industrial environments.

General Information

Part Number: 3BUC98002R0001

Manufacturer: ABB

Series: CI (Communication Interface)

Type: Communication Interface Module

Mounting: DIN rail or rack-mounted installation

Technology: Communication interface, fieldbus integration, protocol translation

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, communication status, and system health

Communication & Interface

Communication Ports: Supports multiple communication protocols such as PROFIBUS, Modbus, and Ethernet/IP

Diagnostic Features: Signal integrity monitoring, fault detection, link supervision, real-time diagnostics

Operator Interface: LED indicators for operational status, fault reporting, troubleshooting

Protocol Support: Multi-protocol support for communication with different fieldbus networks

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 22 × 124 × 126 mm

Weight: ~ 0.1 kg
