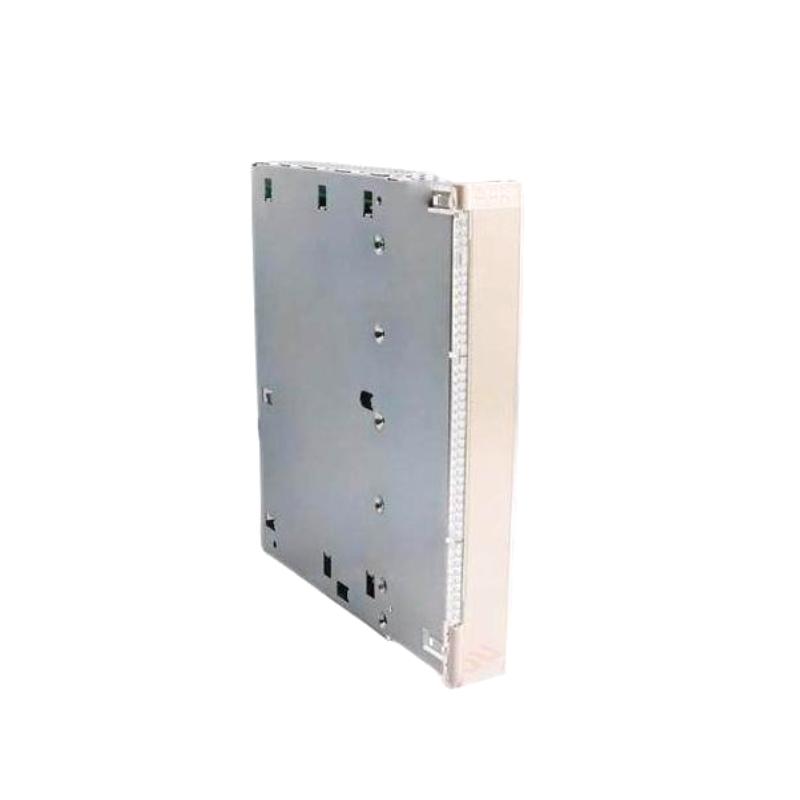

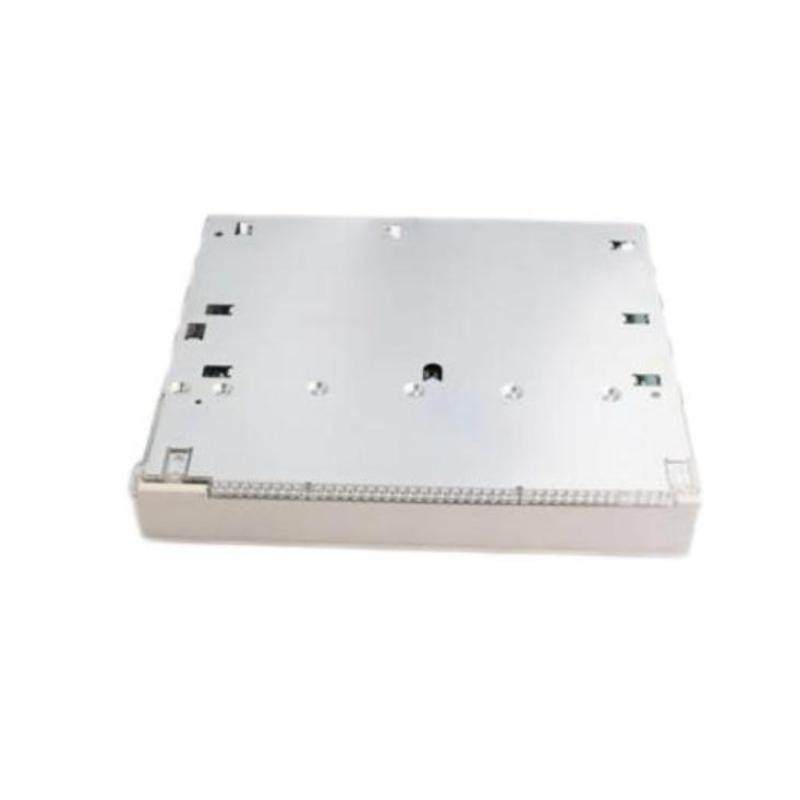

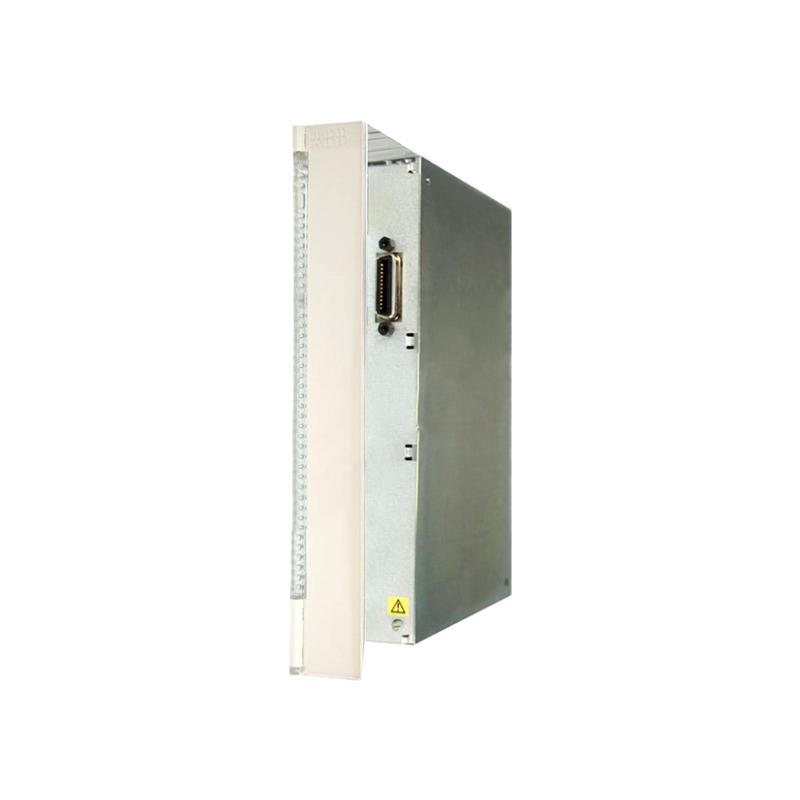

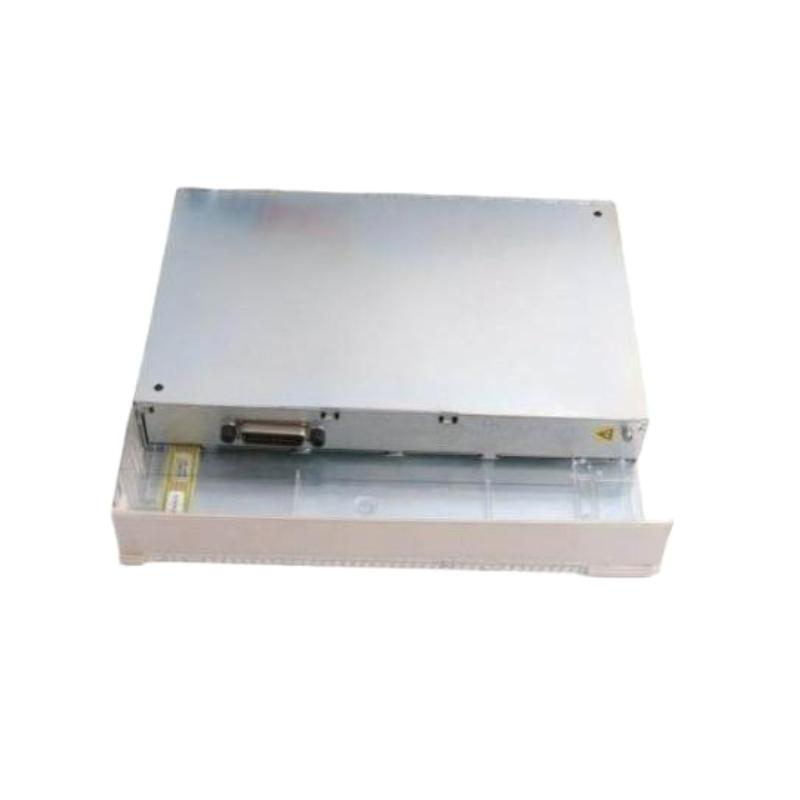

ABB CI610 3BHT300003R1 | Communication Interface Module 12-Month Warranty

Overview

The ABB CI610 3BHT300003R1 is a high-performance communication interface module designed for use in ABB’s industrial automation systems. This module provides a fast and reliable communication link between the control system and field devices. It supports various communication protocols, enabling seamless data exchange across different networks and ensuring smooth integration of field devices with the central control system.

General Information

Part Number: 3BHT300003R1

Manufacturer: ABB

Series: CI (Communication Interface)

Type: Communication Interface Module

Mounting: DIN rail or rack-mounted installation

Technology: Communication interface, fieldbus integration, protocol translation

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, communication status, and system health

Communication & Interface

Communication Ports: Supports multiple communication protocols such as PROFIBUS, Modbus, and Ethernet/IP

Diagnostic Features: Communication integrity monitoring, fault detection, status reporting, real-time diagnostics

Operator Interface: LED indicators for operational status, fault reporting, and troubleshooting

Protocol Support: Multi-protocol support for seamless integration with different fieldbus networks

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 252 × 273 × 40 mm

Weight: ~ 1.195 kg
