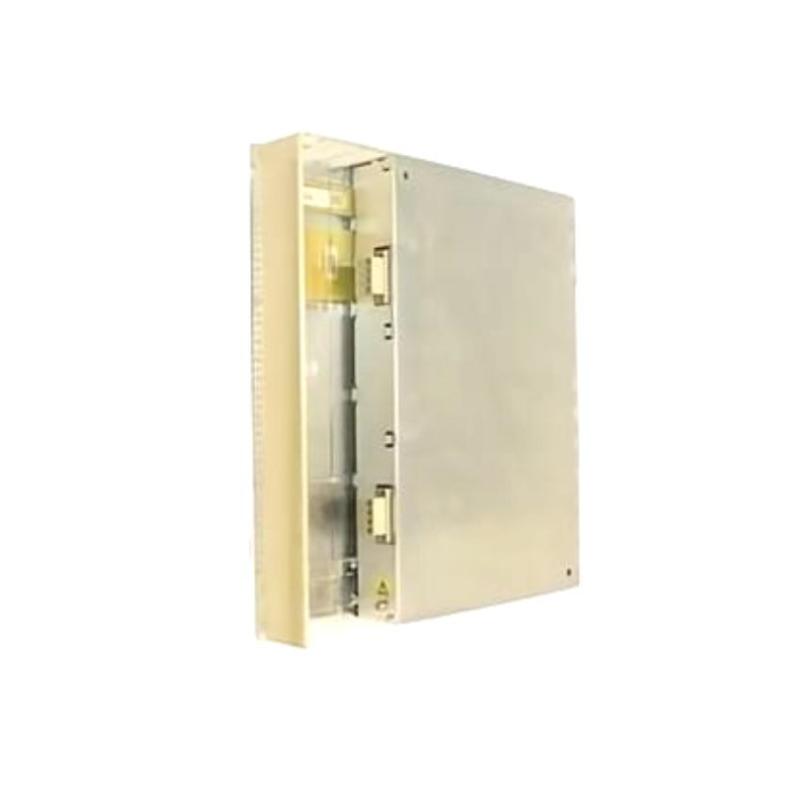

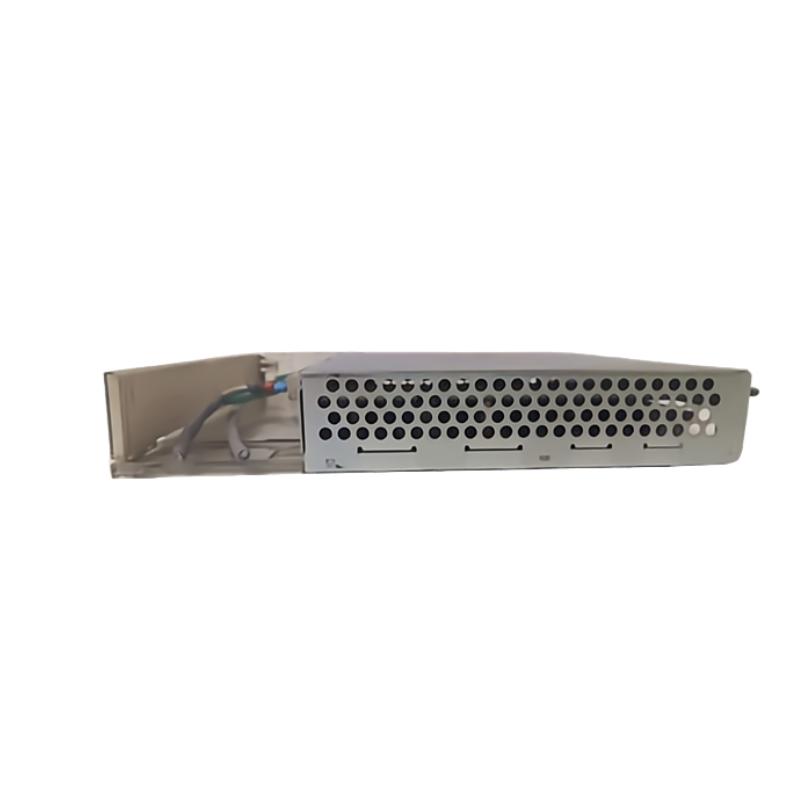

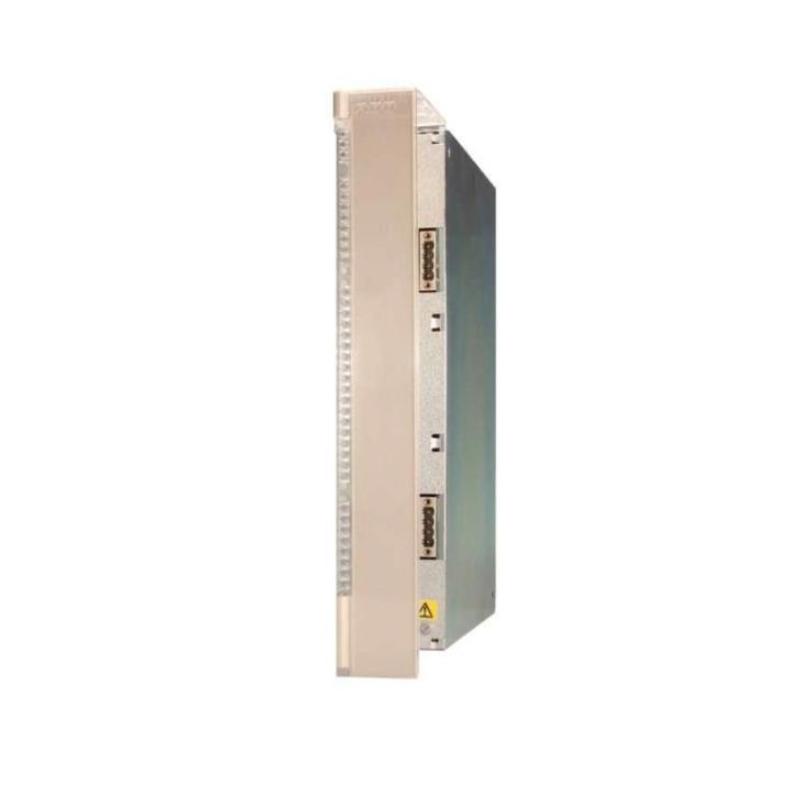

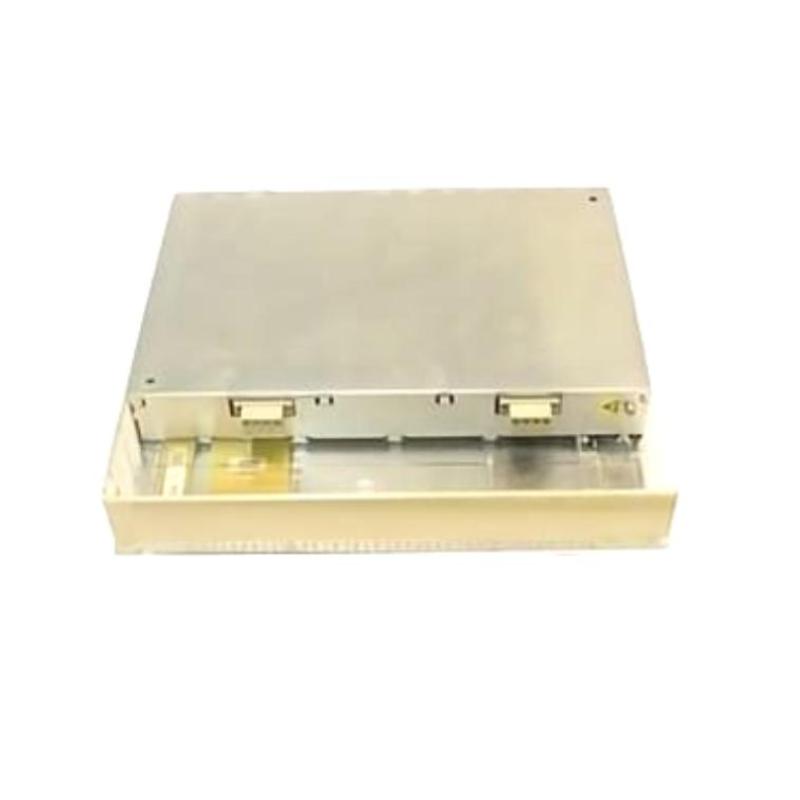

ABB CI627 3BSE009799R1 | Communication Interface Module Quality Assurance

Overview

The ABB CI627 3BSE009799R1 is a high-performance communication interface module designed for integration into ABB's industrial automation systems. This module acts as a communication bridge between the control system and field devices, enabling fast and reliable data exchange across various industrial networks. It supports a wide range of communication protocols, making it ideal for applications that require seamless integration and real-time data transmission.

General Information

Part Number: 3BSE009799R1

Manufacturer: ABB

Series: CI (Communication Interface)

Type: Communication Interface Module

Mounting: DIN rail or rack-mounted installation

Technology: Communication interface, fieldbus integration, protocol translation

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, communication status, and system health

Communication & Interface

Communication Ports: Supports multiple communication protocols such as PROFIBUS, Modbus, Ethernet/IP, and others

Diagnostic Features: Real-time diagnostics, communication integrity monitoring, fault detection

Operator Interface: LED indicators for operational status, fault reporting, and troubleshooting

Protocol Support: Multi-protocol support for seamless communication with various fieldbus networks

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 160 × 120 × 70 mm

Weight: ~ 1.4 kg
