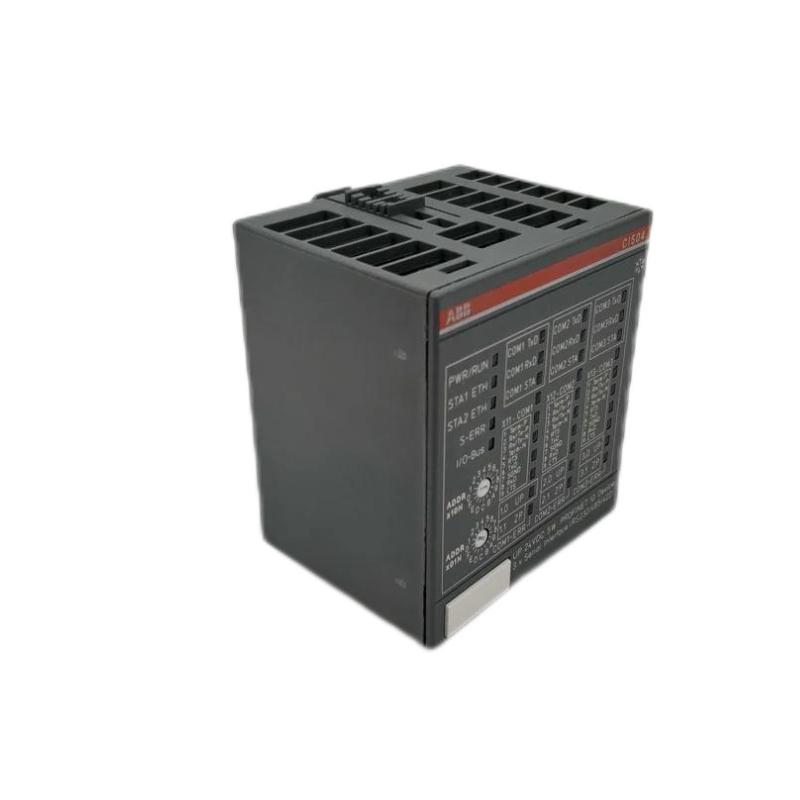

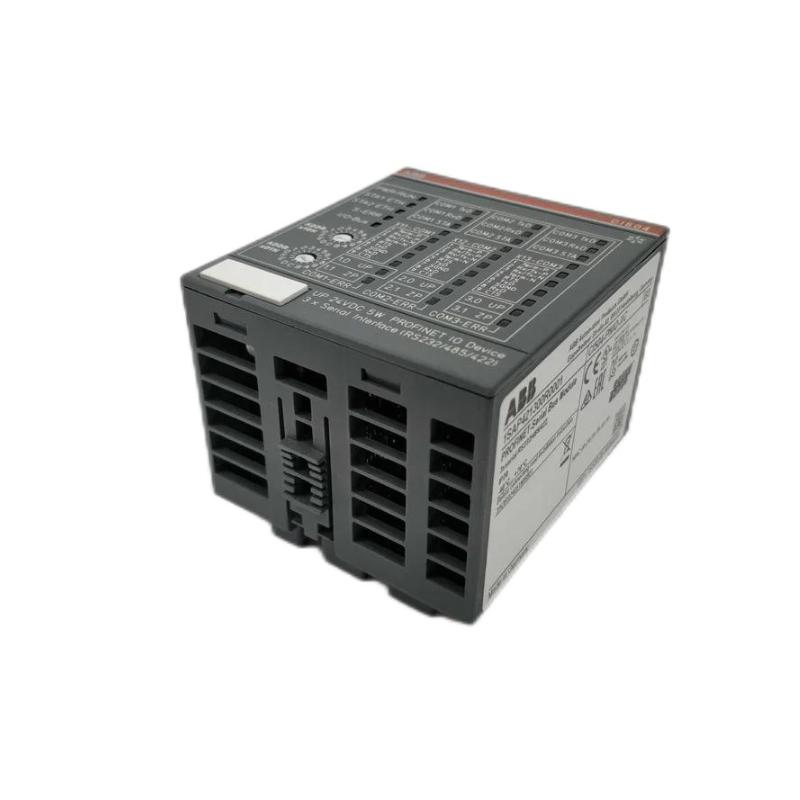

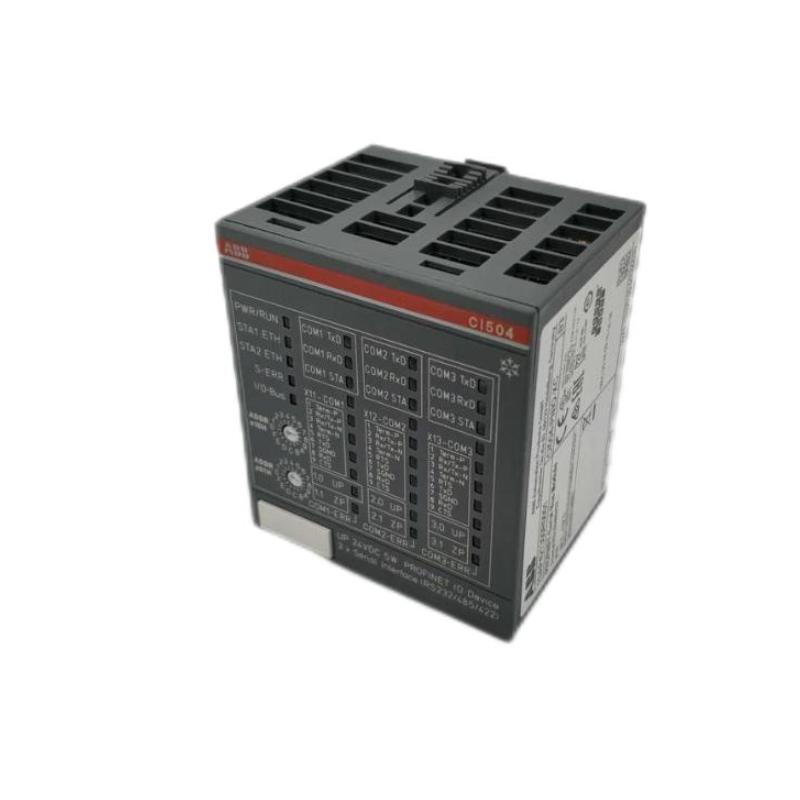

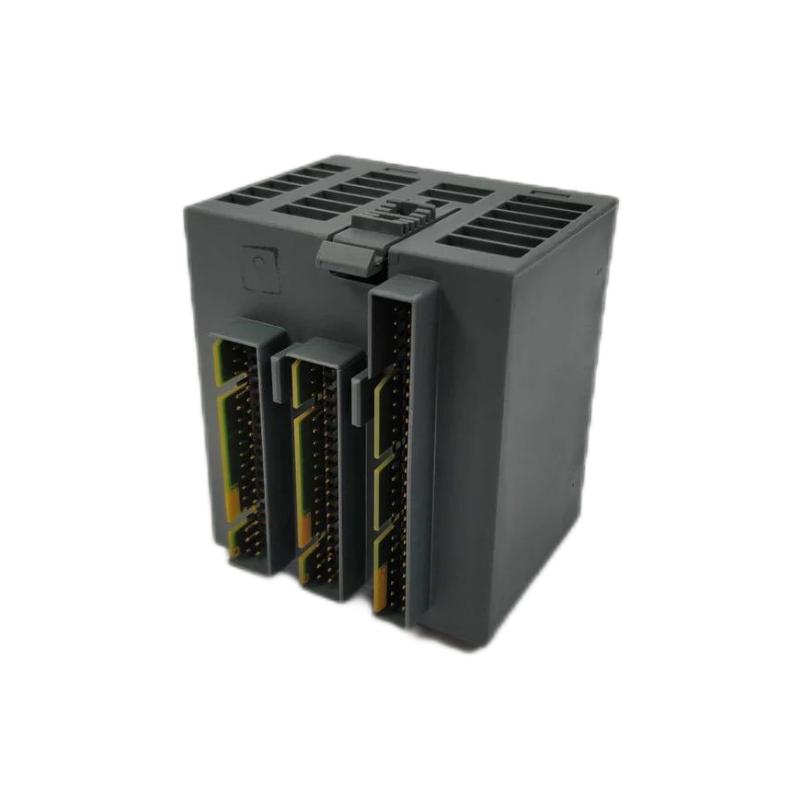

ABB CI504-PNIO 1SAP221300R0001 | PROFINET IO Interface Module 12-Month Warranty

Overview
The ABB CI504-PNIO is a PROFINET IO Interface Module designed to enable efficient communication between control systems and PROFINET-compatible devices within industrial automation networks. It ensures high-speed data transfer and seamless integration, facilitating reliable and real-time data exchange. This module plays an essential role in optimizing system performance and supporting scalable industrial automation applications.

General Information
Part Number: 1SAP221300R0001
Manufacturer: ABB
Country of Origin: Sweden
Series: CI (PROFINET IO Interface)
Type: Interface Module
Mounting: Suitable for installation in control cabinets or system racks
Technology: PROFINET IO, high-speed communication, system integration

Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 15 W
Input: Powered via system backplane
Protection: Surge and reverse-polarity protection
Indicators: LEDs for power, communication, and fault monitoring

Communication & Interface
Ethernet / Fieldbus Port: PROFINET IO interface for high-speed communication
Bus Coupler Role: Facilitates communication between control systems and PROFINET-compatible field devices
Diagnostics: Built-in diagnostic LEDs for fault detection and system status reporting
Operator Interface: LED indicators and configuration switches for easy setup and monitoring
Reset Features: Supports both soft and hardware reset functions

Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, suitable for industrial environments

Dimensions & Weight
Dimensions (L × W × H): 62× 76 × 67.5 mm
Weight: ~ 0.167 kg

Tested and verified before shipment.
