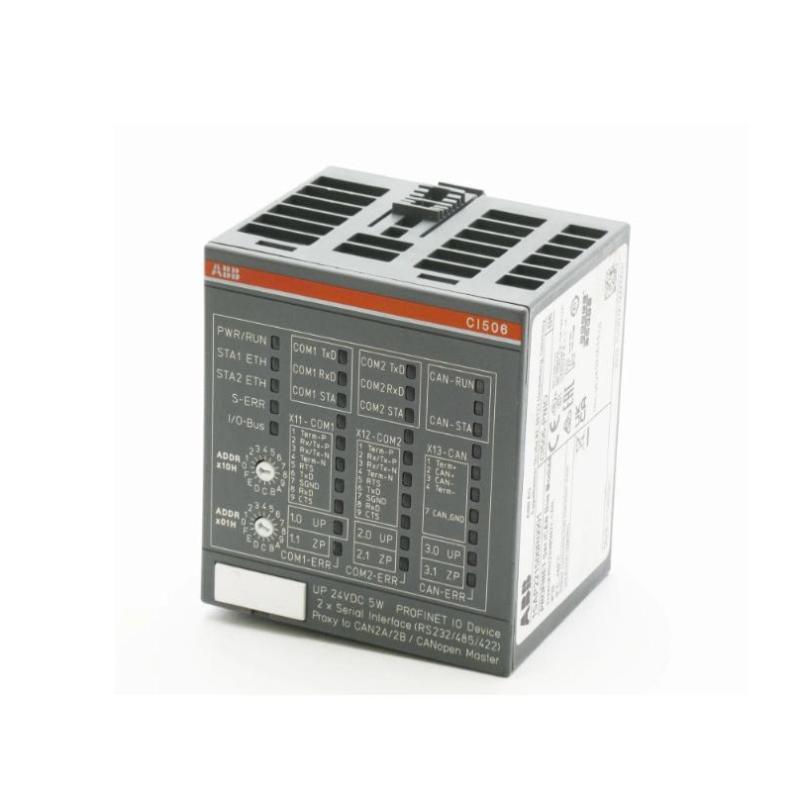

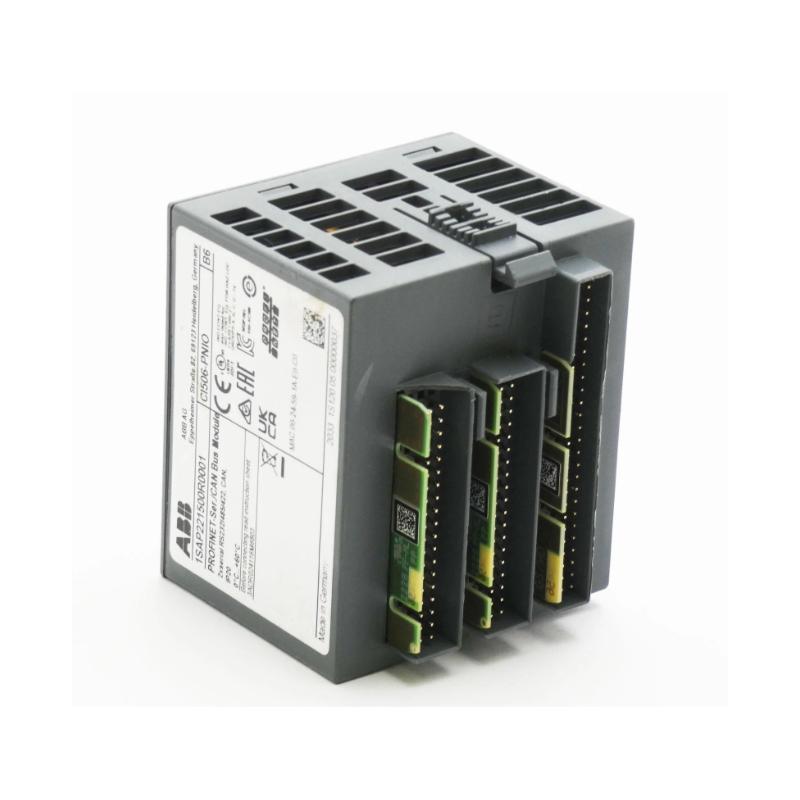

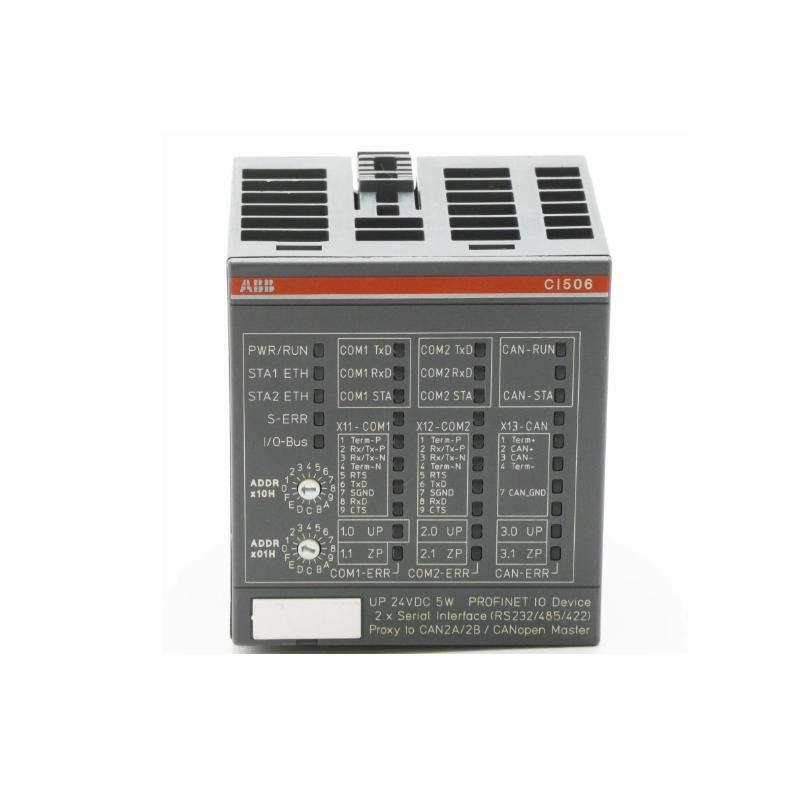

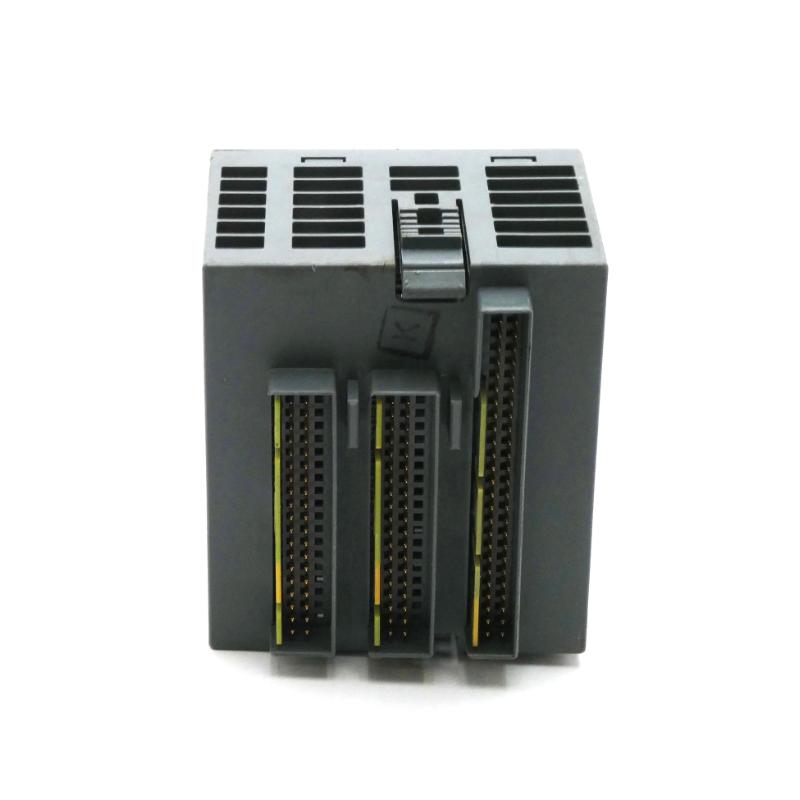

ABB CI506-PNIO 1SAP221500R0001 | PROFINET IO Interface Module Quality Assurance

Overview
The ABB CI506-PNIO is a PROFINET IO Interface Module designed to facilitate high-speed, reliable communication between control systems and PROFINET-compatible field devices. It serves as an essential component for integrating and managing data exchange in industrial automation networks, ensuring smooth and real-time communication. The module supports various industrial applications, enhancing system efficiency and supporting scalable automation solutions.

General Information
Part Number: 1SAP221500R0001
Manufacturer: ABB
Country of Origin: Sweden
Series: CI (PROFINET IO Interface)
Type: Interface Module
Mounting: Suitable for installation in control cabinets or system racks
Technology: PROFINET IO, system communication, and integration

Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 15 W
Input: Powered via system backplane
Protection: Surge and reverse-polarity protection
Indicators: LEDs for power, communication, and fault monitoring

Communication & Interface
Ethernet / Fieldbus Port: PROFINET IO interface for reliable communication
Bus Coupler Role: Facilitates data exchange between control systems and PROFINET-compatible devices
Diagnostics: Built-in diagnostics with LEDs for fault detection and system status monitoring
Operator Interface: LED indicators and configuration switches for easy setup and monitoring
Reset Features: Supports both soft and hardware reset functions

Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, suitable for industrial environments

Dimensions & Weight
Dimensions (L × W × H): 62 × 76 × 67.5 mm
Weight: ~ 0.168 kg

Tested and verified before shipment.
