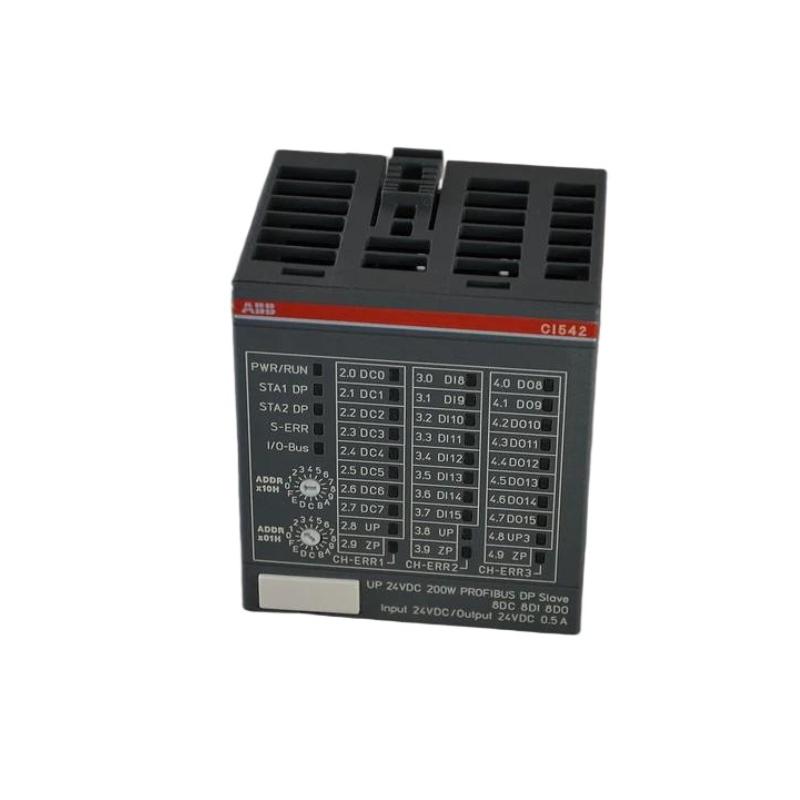

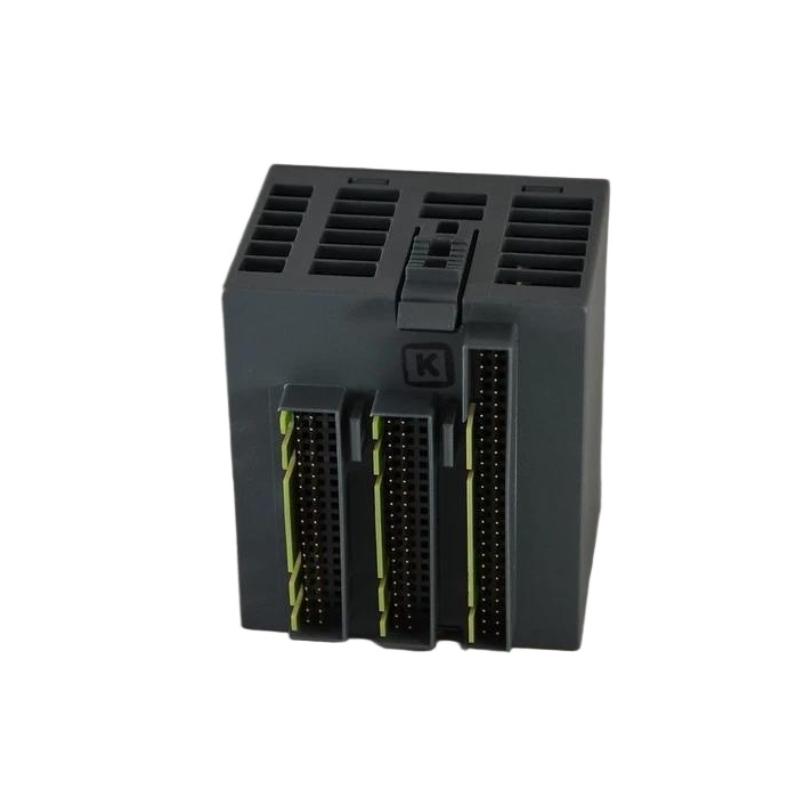

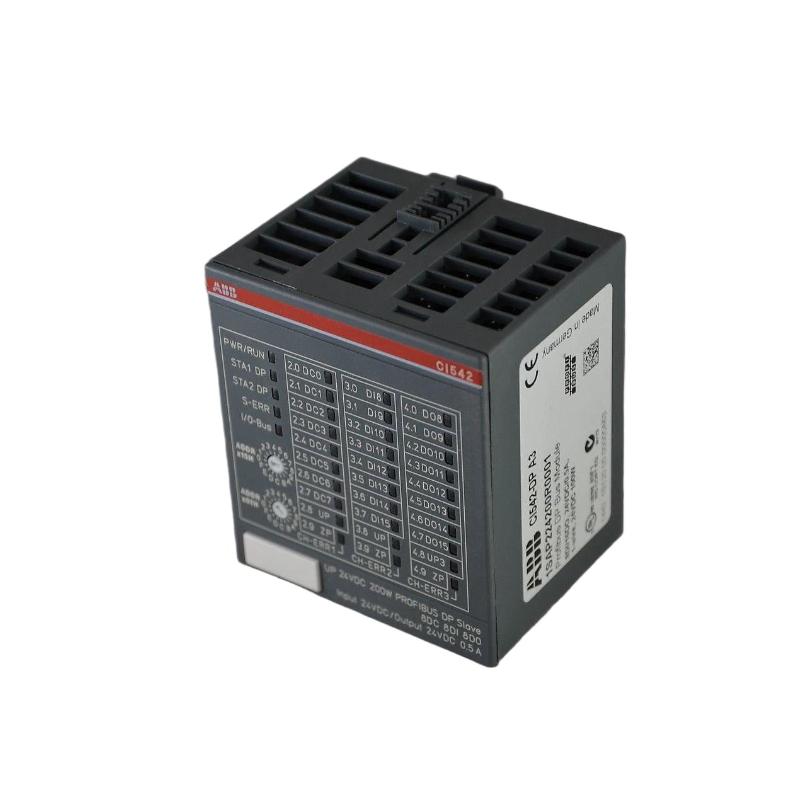

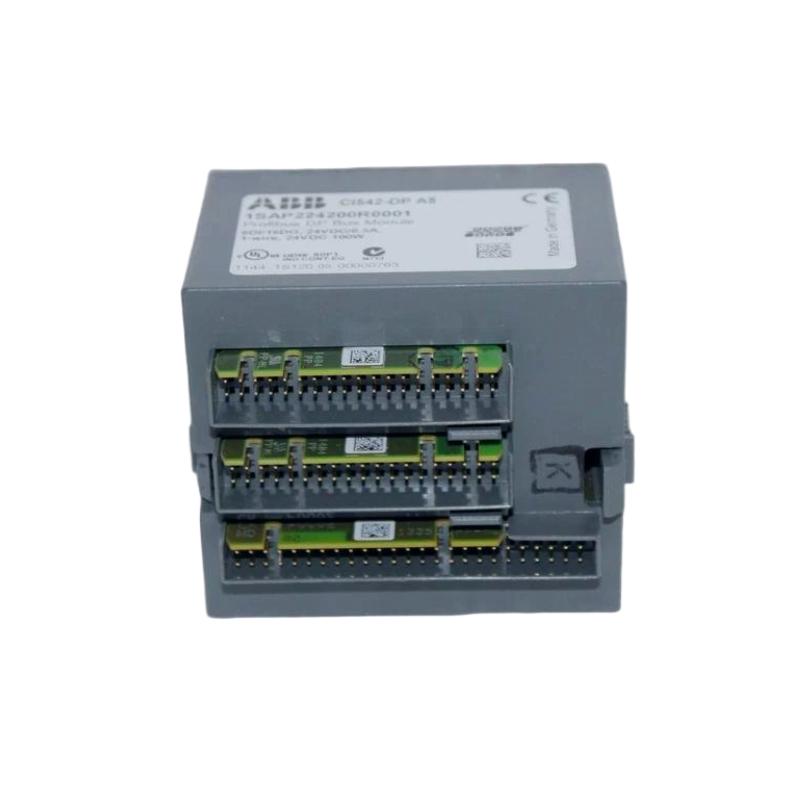

ABB CI542-DP 1SAP224200R0001 | PROFIBUS DP Communication Interface Module 12-Month Warranty

Overview
The ABB CI542-DP is a PROFIBUS DP Communication Interface Module designed to enable high-speed and reliable communication between control systems and PROFIBUS-compatible field devices. This module supports the PROFIBUS DP protocol, ensuring seamless integration within industrial automation networks. The CI542-DP enhances system performance by facilitating efficient data exchange and enabling real-time communication across a wide range of devices.

General Information
Part Number: 1SAP224200R0001
Manufacturer: ABB
Country of Origin: Sweden
Series: CI (Communication Interface)
Type: PROFIBUS DP Communication Interface Module
Mounting: Suitable for installation in control cabinets or system racks
Technology: PROFIBUS DP, industrial communication

Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 20 W
Input: Powered via system backplane
Protection: Surge and reverse-polarity protection
Indicators: LEDs for power, communication, and fault monitoring

Communication & Interface
Ethernet / Fieldbus Port: PROFIBUS DP interface for communication
Bus Coupler Role: Facilitates data exchange between control systems and PROFIBUS field devices
Diagnostics: Built-in diagnostics with LEDs for fault detection and system status reporting
Operator Interface: LED indicators and configuration switches for easy setup and monitoring
Reset Features: Supports both soft and hardware reset functions

Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, suitable for industrial environments

Dimensions & Weight
Dimensions (L × W × H): 62 × 76 × 67.5 mm
Weight: ~ 0.154 kg
