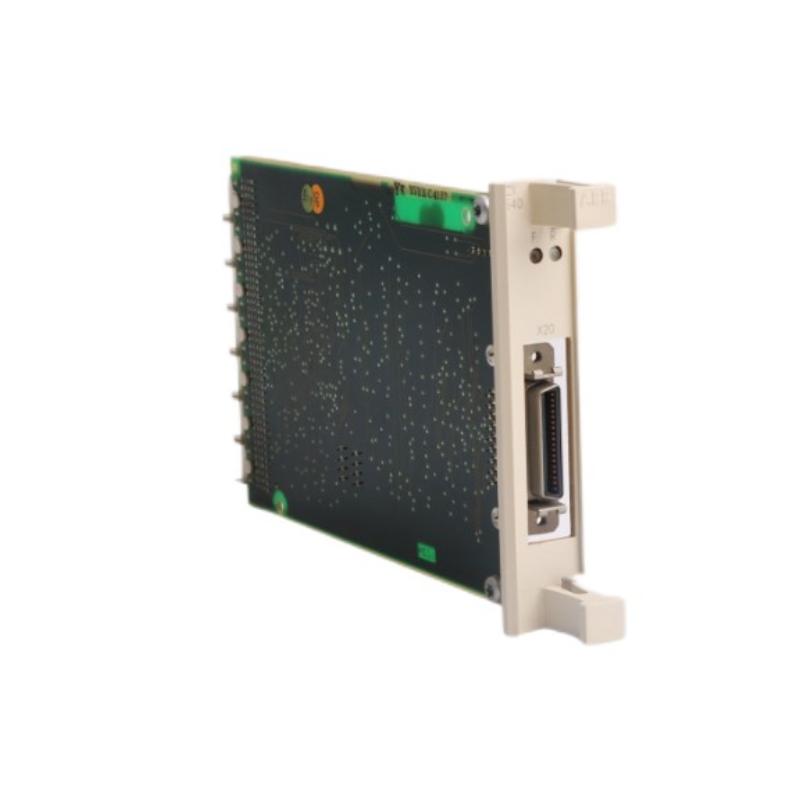

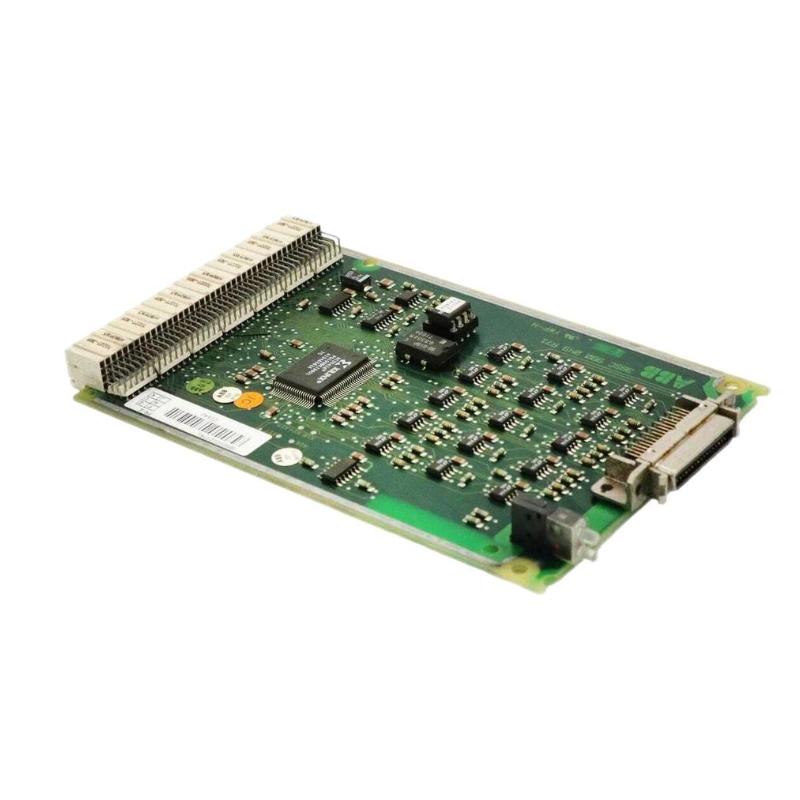

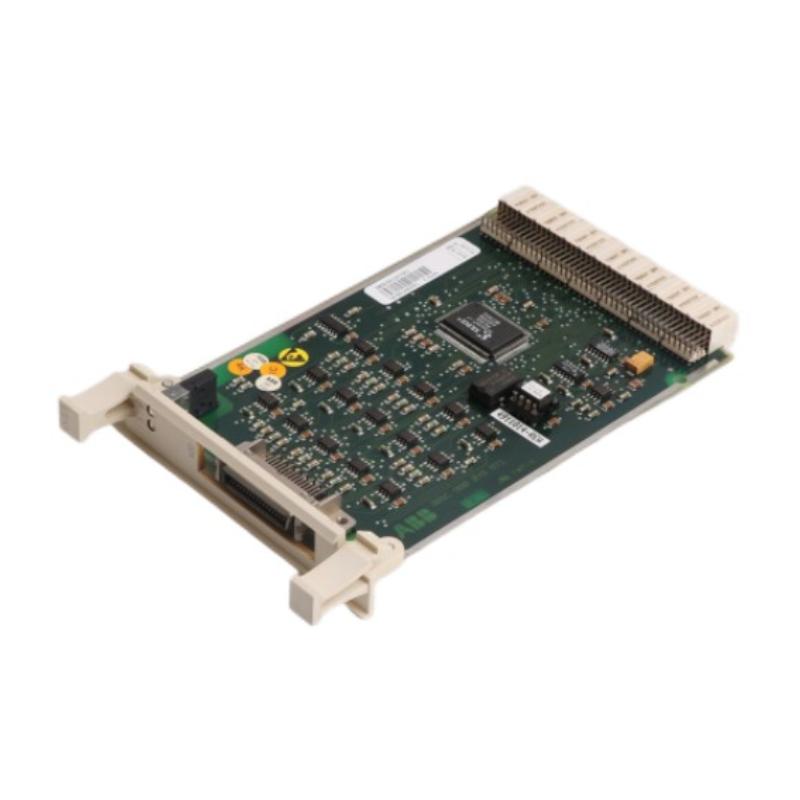

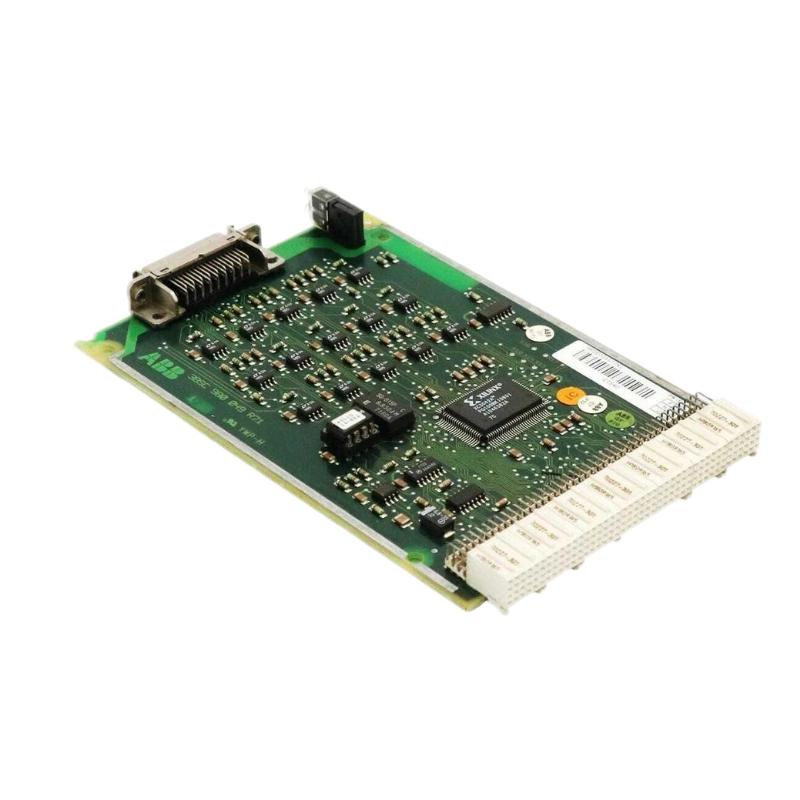

ABB CI545V01 3BUP001191R1 | Ethernet Module Quality Assurance

Overview
The ABB CI545V01 is an Ethernet Communication Interface Module designed to enable high-speed, reliable communication between control systems and field devices within industrial automation networks. The module ensures seamless data transfer and real-time communication, supporting various protocols for efficient system integration. The CI545V01 is ideal for applications that require scalable and flexible communication solutions, enhancing the overall system performance and data exchange capabilities.

General Information
Part Number: 3BUP001191R1
Manufacturer: ABB
Country of Origin: Sweden
Series: CI (Communication Interface)
Type: Ethernet Communication Interface Module
Mounting: Suitable for installation in control cabinets or system racks
Technology: Ethernet-based communication, multi-protocol support

Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 20 W
Input: Powered via system backplane
Protection: Surge and reverse-polarity protection
Indicators: LEDs for power, communication, and fault monitoring

Communication & Interface
Ethernet Port: Ethernet-based communication interface for data exchange
Bus Coupler Role: Facilitates communication between control systems and Ethernet-compatible devices
Diagnostics: Built-in diagnostics with LEDs for fault detection and system status reporting
Operator Interface: LED indicators and configuration switches for easy setup and monitoring
Reset Features: Supports both soft and hardware reset functions

Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, suitable for industrial environments

Dimensions & Weight
Dimensions (L × W × H): 260 × 30 × 120 mm
Weight: ~ 0.17 kg
