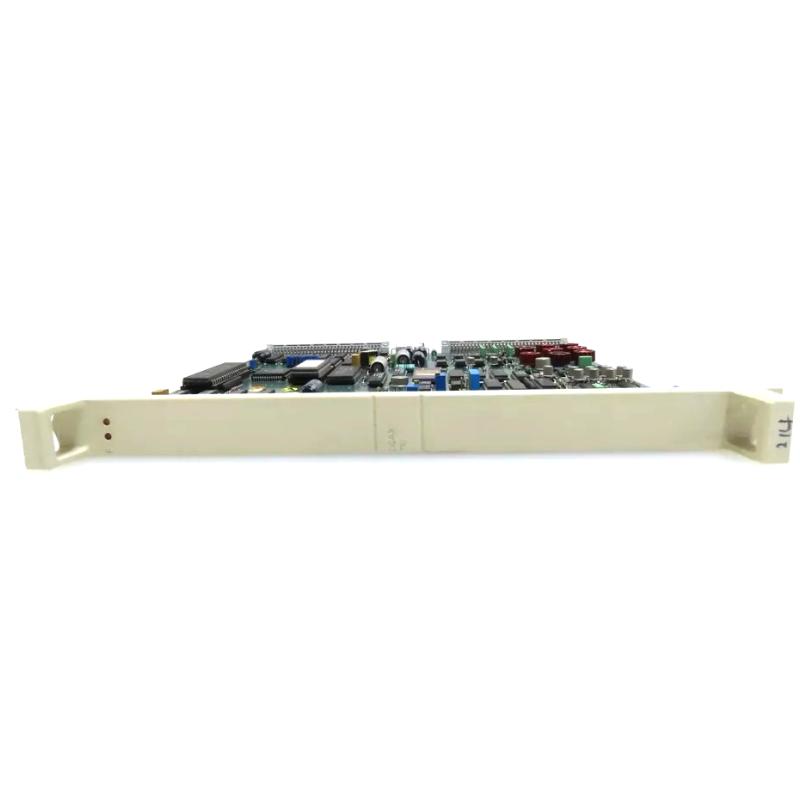

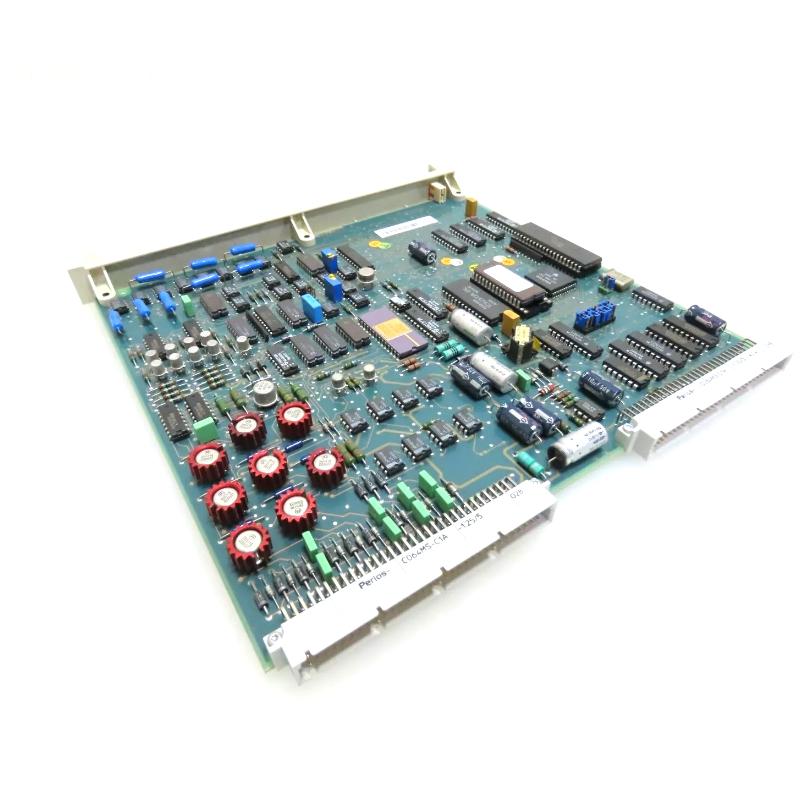

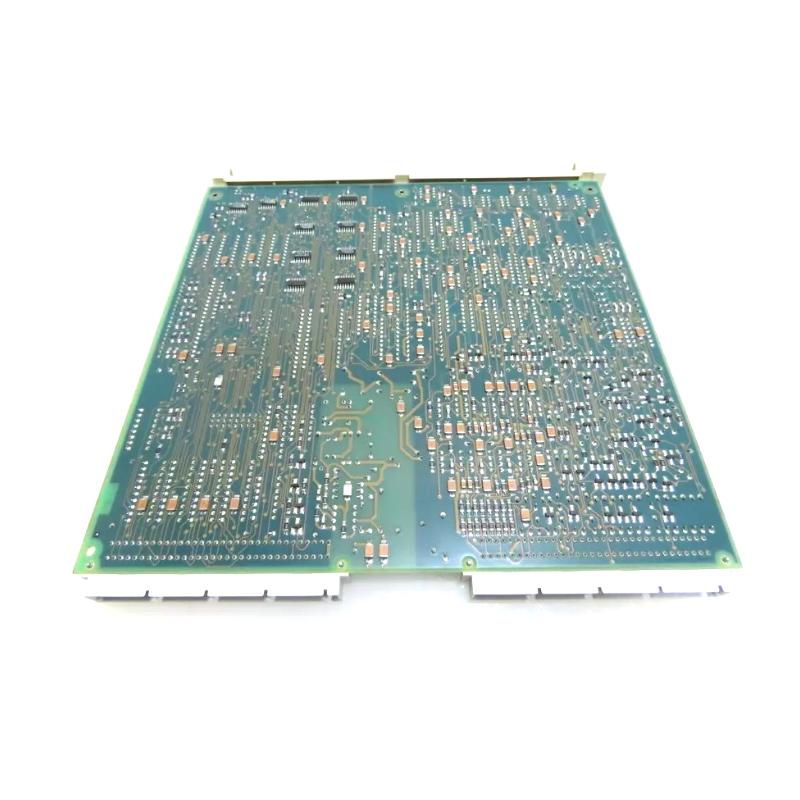

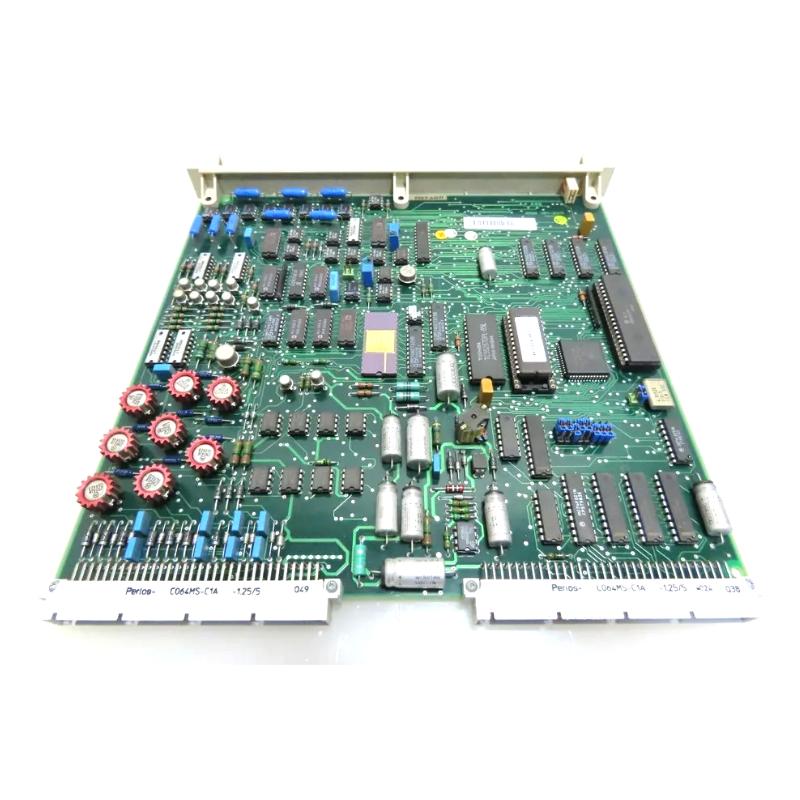

ABB DSAX 110 57120001-PC | Analog Input/Output Board Trusted supplier

Overview
The ABB DSAX 110 is an Analog Input/Output (I/O) Board designed to provide precise signal conversion and data handling in industrial control systems. It facilitates the transfer of both analog input and output signals, enabling seamless integration between controllers, sensors, and actuators. The DSAX 110 is ideal for applications requiring accurate analog control and feedback, offering reliable performance for real-time monitoring and control in a variety of industrial environments.

General Information
Part Number: 57120001-PC

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: DSAX (Analog I/O Board)

Type: Analog Input/Output Board

Mounting: Suitable for installation in control panels, automation racks, or system enclosures

Technology: High-precision analog signal processing for industrial control systems

Power Specifications
Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered from the system backplane or external DC supply

Indicators: LEDs for power, operational status, and communication

Protection: Surge and reverse-polarity protection

Communication & Interface
Interface Type: Industrial communication protocols (e.g., Modbus, Profibus)

System Role: Handles analog input and output signals for system control and feedback

Signal Handling: Supports high-precision analog signals for sensors, actuators, and other field devices

Diagnostics: Built-in diagnostics for signal monitoring, fault detection, and system health

Reset Features: Soft reset and hardware reset support

Environmental
Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial environments

Dimensions & Weight
Dimensions (L × W × H): 234 × 324 × 18 mm

Weight: ~ 0.4 kg

Authentic parts with full manufacturer warranty.
