Overview

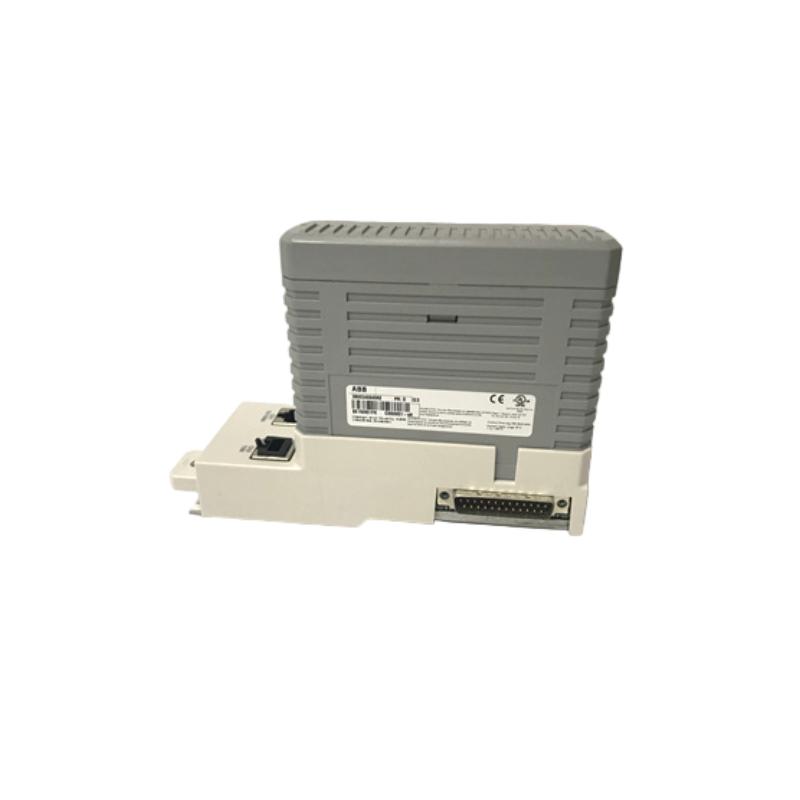

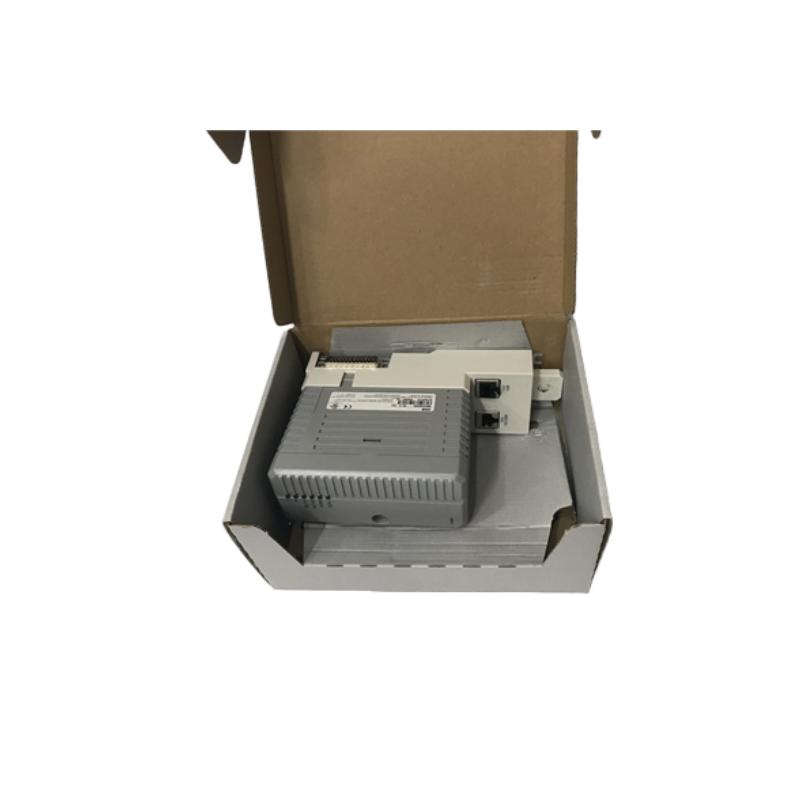

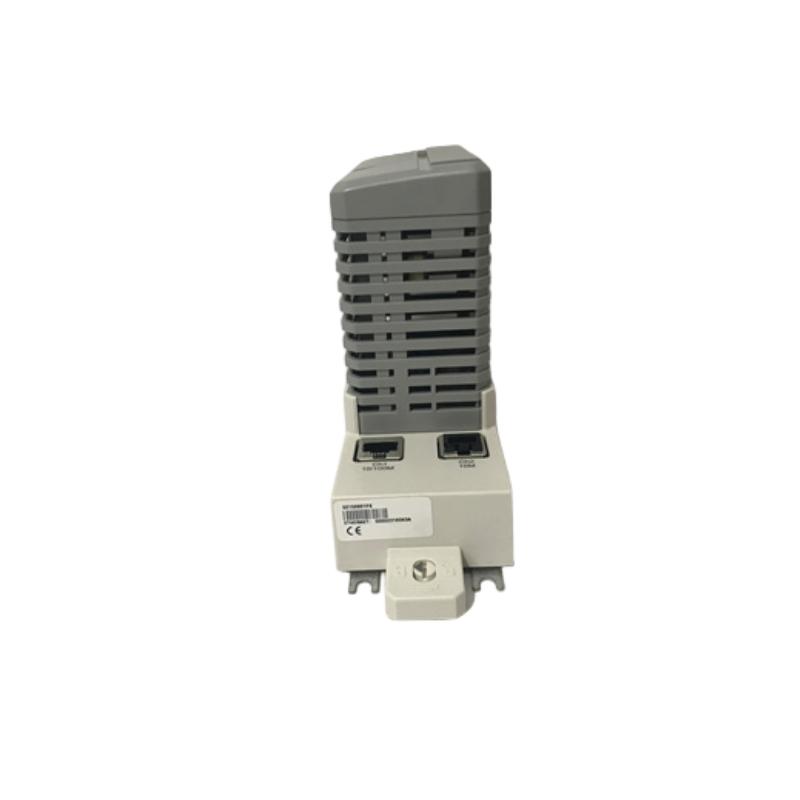

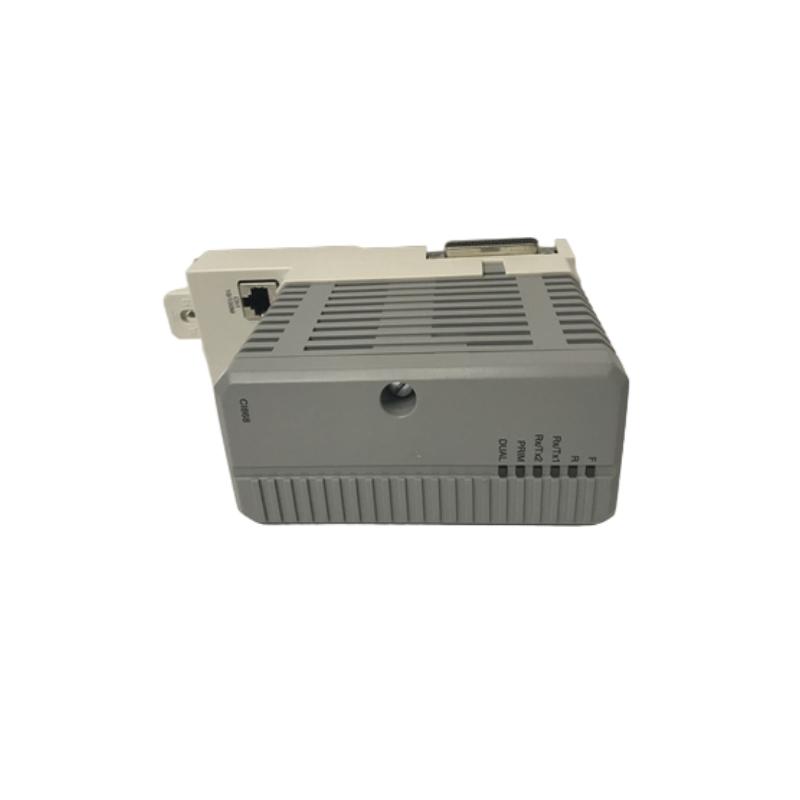

The ABB CI868K01-eA 3BSE048845R2 is an enhanced communication interface module developed for ABB’s AC 800M control systems. It ensures efficient and reliable Ethernet-based communication between controllers and field networks, offering improved performance, diagnostic capabilities, and robust industrial data exchange.
General Information
Brand: ABB
Country of Origin: Sweden
Model: CI868K01-eA
Part Number: 3BSE048845R2
Product Type: Communication Interface Module
System Compatibility: AC 800M Series Controllers
Mounting Method: Rack or backplane installation
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 3 W
Power Input: From system backplane
Protection: Overvoltage and reverse polarity protection
Communication & Interface
Interface Type: Ethernet / Modbus TCP
Data Rate: Up to 100 Mbps
Connection Type: Dual RJ45 ports
Diagnostics: LED indicators for power, communication, and status monitoring
Configuration: Integrated with ABB Control Builder M engineering tools
Environmental
Operating Temperature: 0°C to +55°C
Storage Temperature: -25°C to +70°C
Relative Humidity: 5–95% non-condensing
Protection Rating: IP20 (when installed in a protected cabinet)
Dimensions & Weight
Dimensions: 125 × 35 × 120 mm
Weight: 0.25 kg
