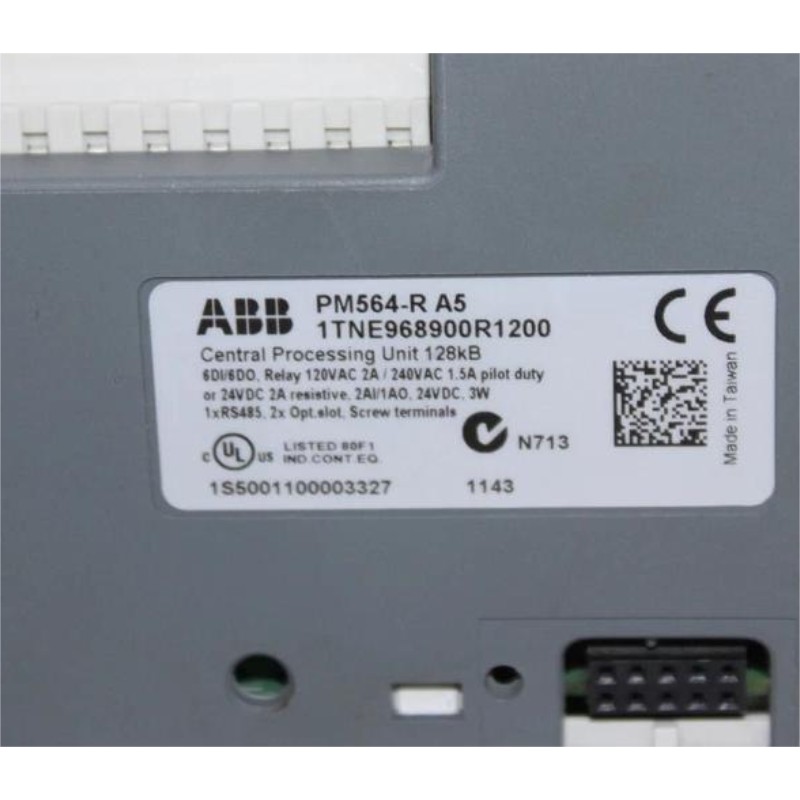

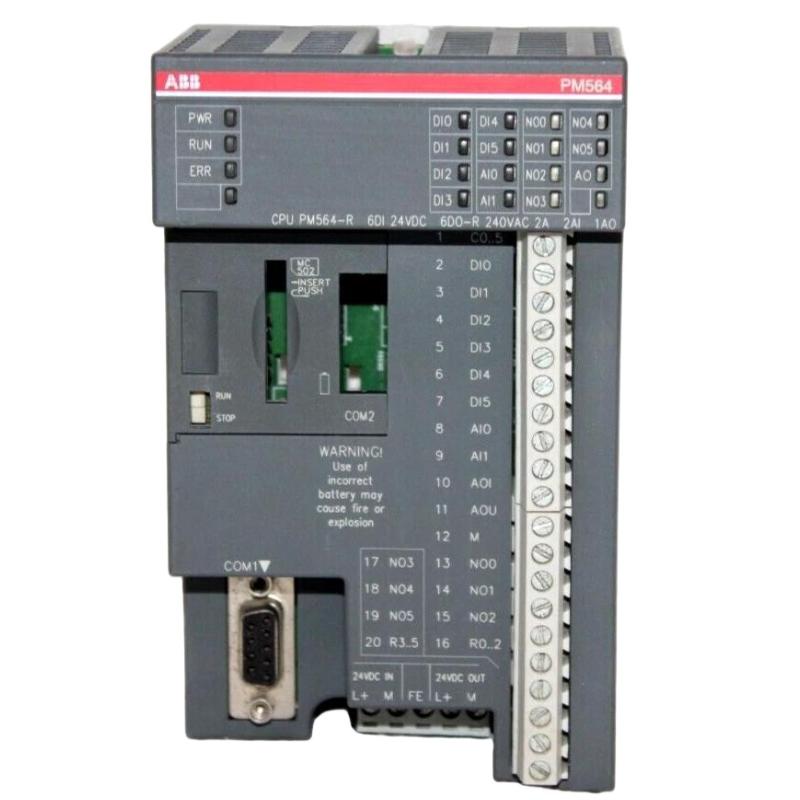

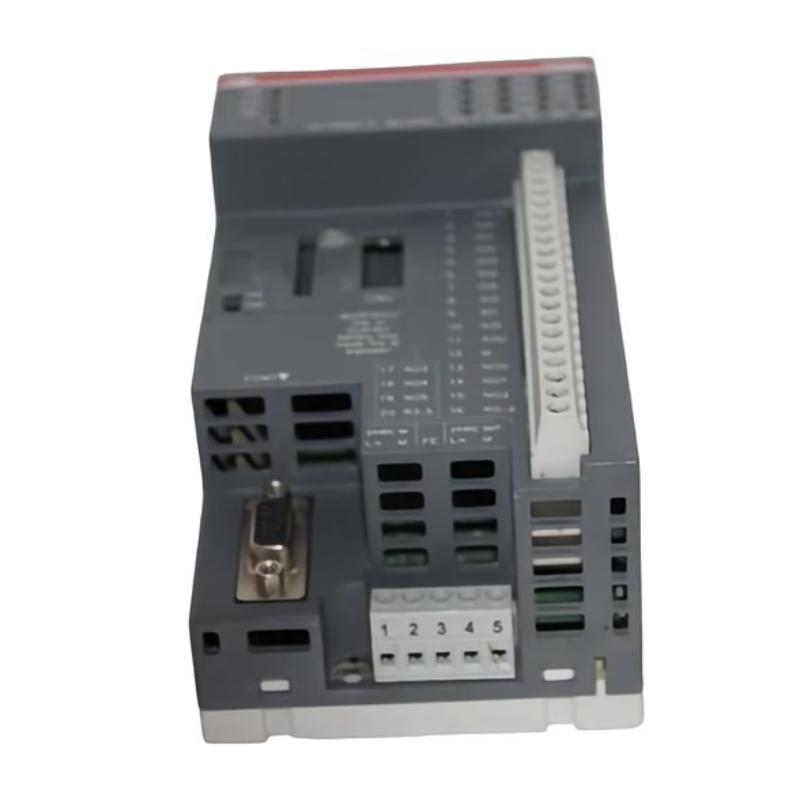

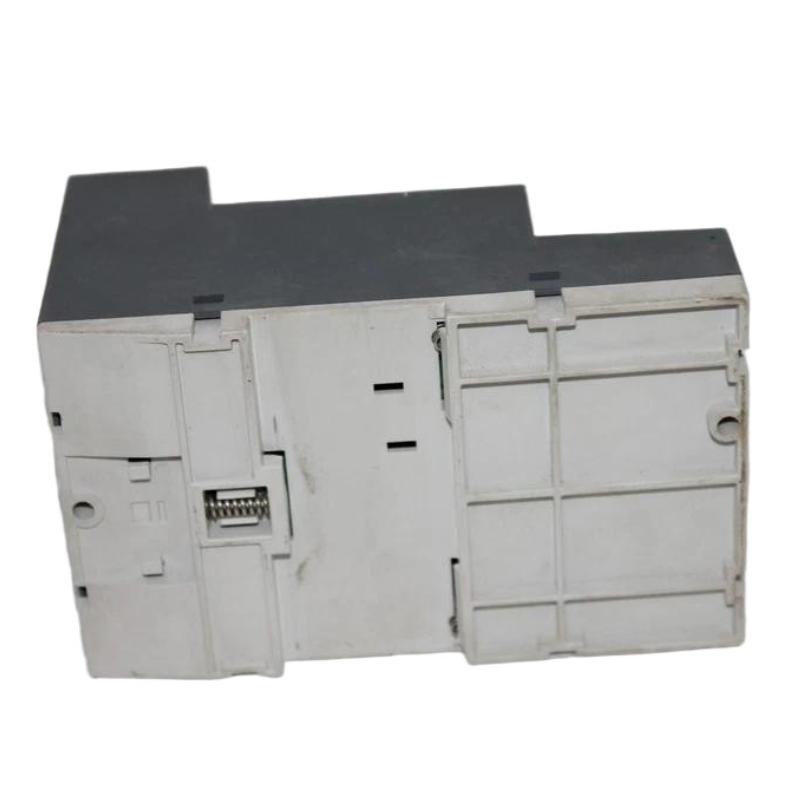

ABB PM564-R 1TNE968900R1200 Central Processing Unit

Overview

The ABB PM564-R is a high-performance central processing unit (CPU) designed for ABB’s Advant and AC500 automation systems. It delivers reliable real-time control, advanced processing capabilities, and supports a wide range of industrial automation applications. The CPU is engineered for efficiency, robustness, and seamless integration with field devices and control modules.

General Information

Part Number: 1TNE968900R1200

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PM (Process Module)

Type: Central Processing Unit

Mounting: Rack or card-based installation within control cabinets

Technology: Industrial-grade microprocessor, real-time control, deterministic execution, integrated diagnostic functions

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 25 W

Input: Powered via backplane connection

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power, CPU status, fault, and activity

Communication & Interface

Ethernet / Fieldbus Ports: Supports PROFIBUS, Modbus TCP/IP, and proprietary bus systems

Bus Coupler Role: Interfaces control bus to field devices and I/O modules

Diagnostics: CPU and bus supervision, fault logging, network monitoring

Operator Interface: LED indicators and onboard configuration switches

Reset Features: Supports both soft and hardware reset

I/O & Channels: Integrated digital and analog I/O channels, expandable via connected modules

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (suitable for industrial cabinet mounting)

Shock & Vibration: IEC 60068 compliant

Dimensions & Weight

Dimensions (L × W × H): 74 × 135 × 82 mm

Weight: 0.23 kg
