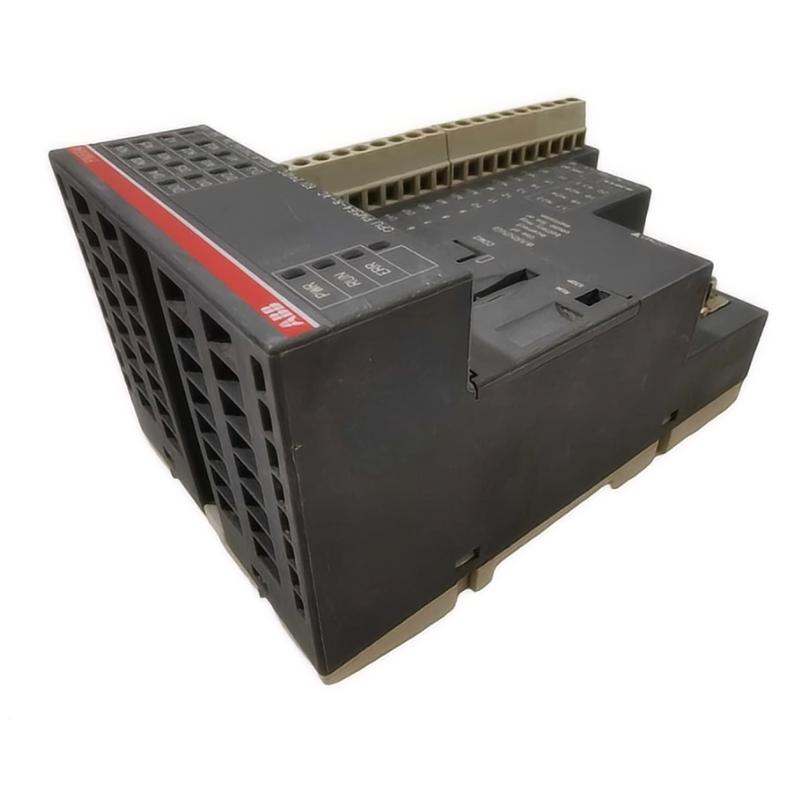

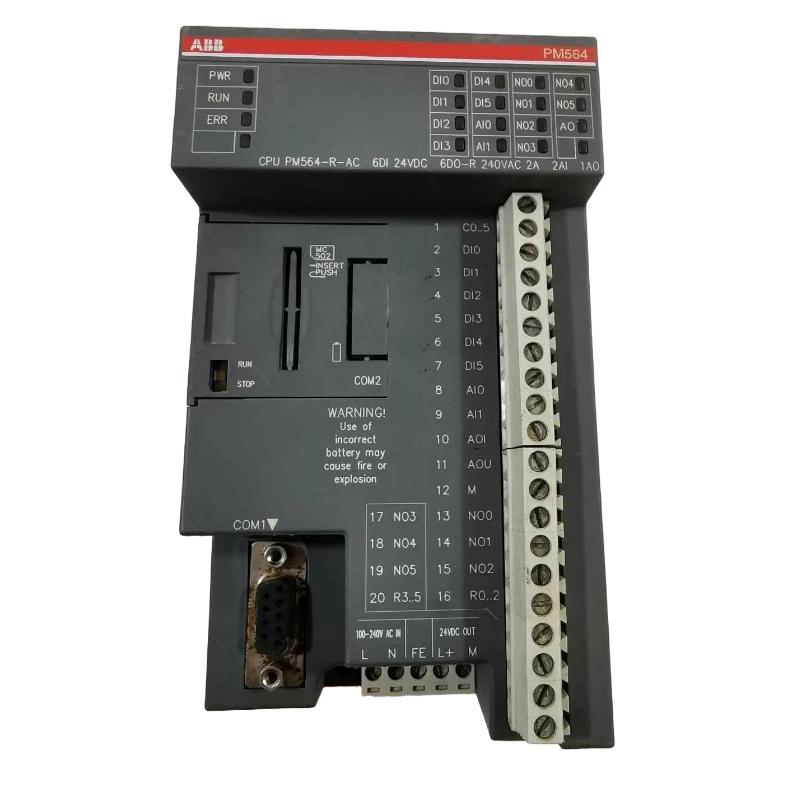

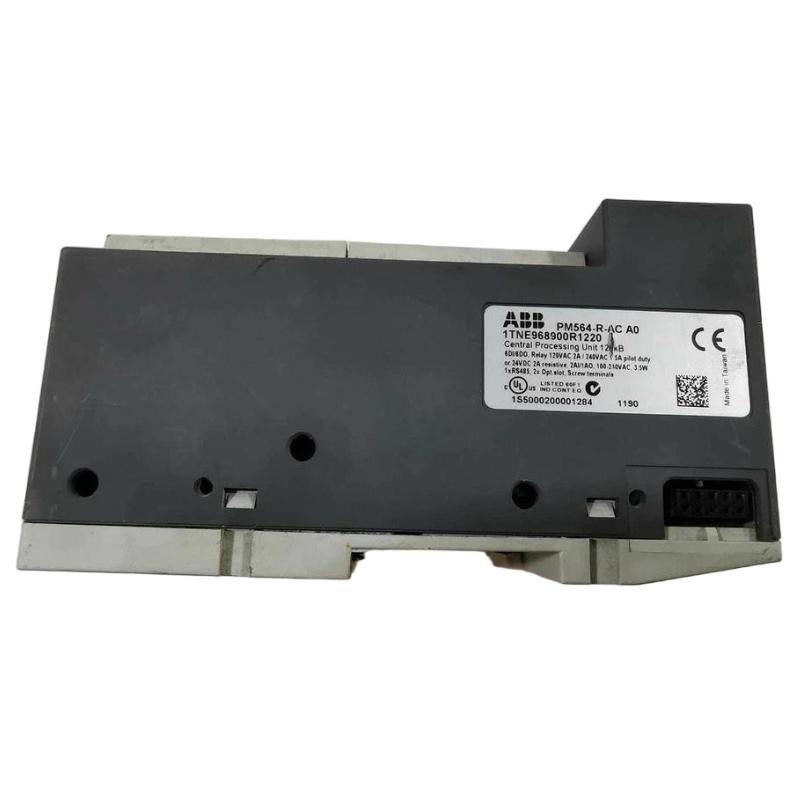

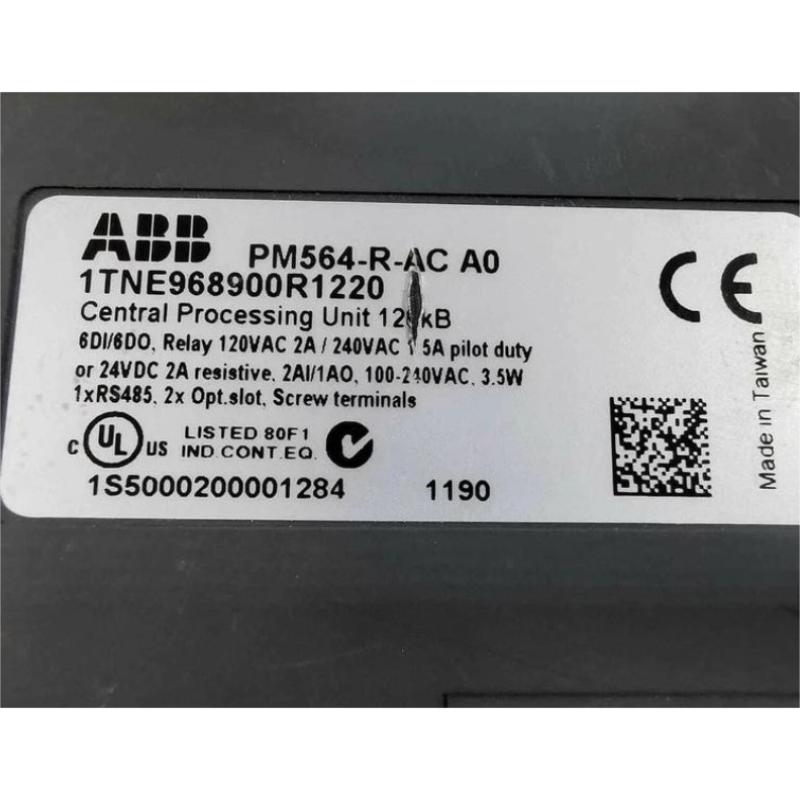

ABB PM564-R-AC 1TNE968900R1220 Programmable Logic Controller

Overview

The ABB PM564-R-AC is a versatile programmable logic controller (PLC) designed for advanced industrial automation applications. It provides high-speed processing, real-time control, and seamless integration with ABB’s AC500 and Advant systems. This PLC ensures reliable operation under demanding industrial conditions and supports complex automation tasks.

General Information

Part Number: 1TNE968900R1220

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PM (Process Module)

Type: Programmable Logic Controller (PLC)

Mounting: Rack or card-based installation within control cabinets

Technology: Industrial-grade microprocessor, real-time deterministic execution, integrated diagnostic functions

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 25 W

Input: Powered via backplane connection

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power, CPU status, fault, and activity

Communication & Interface

Ethernet / Fieldbus Ports: Supports PROFIBUS, Modbus TCP/IP, and proprietary ABB bus systems

Bus Coupler Role: Connects controller bus to field devices and I/O modules

Diagnostics: CPU and network supervision, fault logging, status reporting

Operator Interface: LED indicators and onboard configuration switches

Reset Features: Supports both soft and hardware reset

I/O & Channels: Integrated digital and analog I/O channels, expandable via connected modules

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (suitable for industrial cabinet mounting)

Shock & Vibration: IEC 60068 compliant

Dimensions & Weight

Dimensions (L × W × H): 74 × 135 × 82 mm

Weight: 0.23 kg
