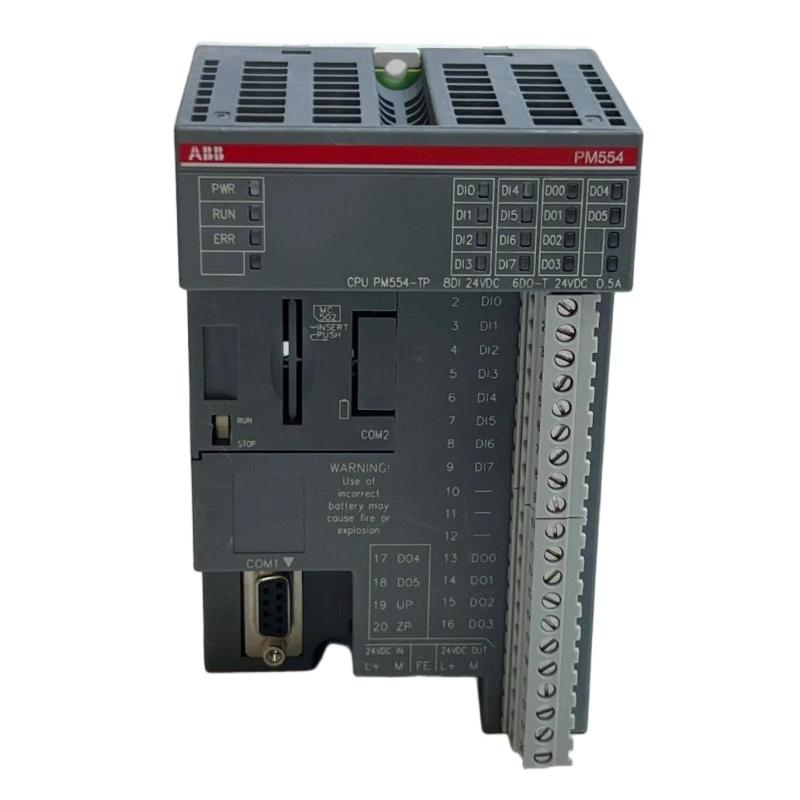

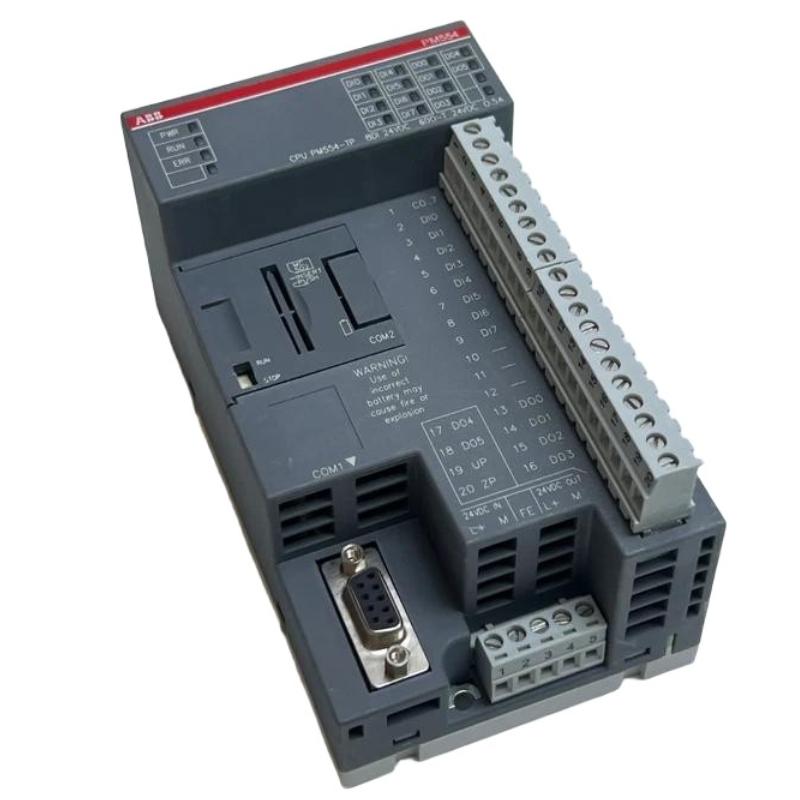

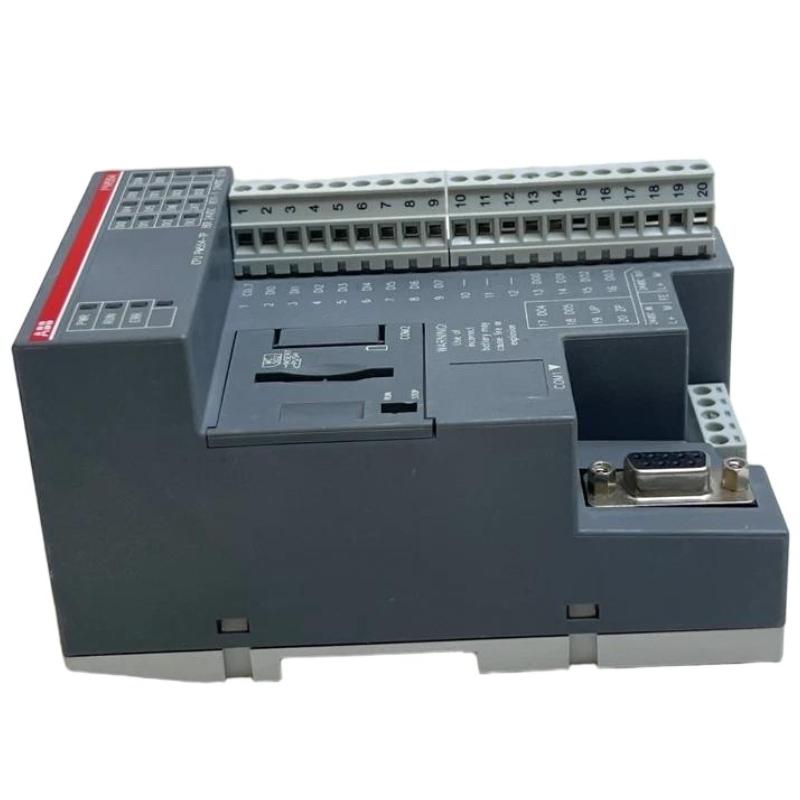

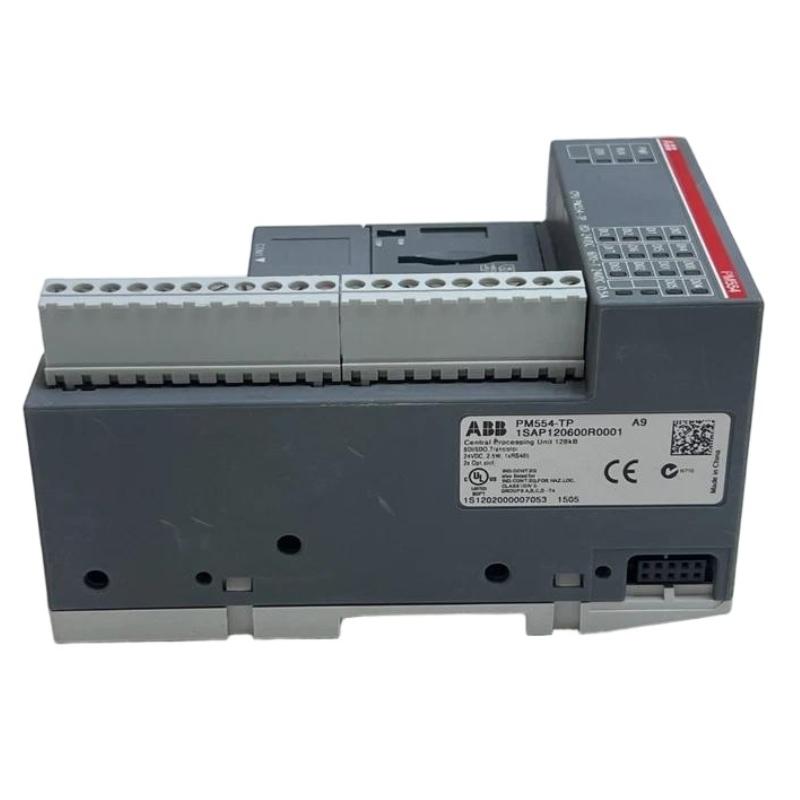

ABB PM554-TP 1SAP120600R0001 CPU Processor Unit

Overview

The ABB PM554-TP is a high-performance CPU processor unit designed for industrial automation systems. It delivers fast, reliable processing and real-time control, making it ideal for complex automation tasks. The unit is engineered for durability and seamless integration with ABB’s control modules and field devices.

General Information

Part Number: 1SAP120600R0001

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PM (Process Module)

Type: CPU Processor Unit

Mounting: Rack or card-based installation within control cabinets

Technology: Industrial-grade microprocessor, real-time deterministic execution, integrated diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 30 W

Input: Powered via backplane connection

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power, CPU status, fault, and activity

Communication & Interface

Ethernet / Fieldbus Ports: Supports PROFIBUS, Modbus TCP/IP, and ABB proprietary bus systems

Bus Coupler Role: Interfaces controller bus to field devices and I/O modules

Diagnostics: CPU and network supervision, fault logging, status reporting

Operator Interface: LED indicators and onboard configuration switches

Reset Features: Supports both soft and hardware reset

I/O & Channels: Integrated digital and analog I/O channels, expandable via connected modules

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (suitable for industrial cabinet mounting)

Shock & Vibration: IEC 60068 compliant

Dimensions & Weight

Dimensions (L × W × H): 74 × 135 × 82 mm

Weight: 0.3 kg

Reliable Performance, Ready for Immediate Deployment!
