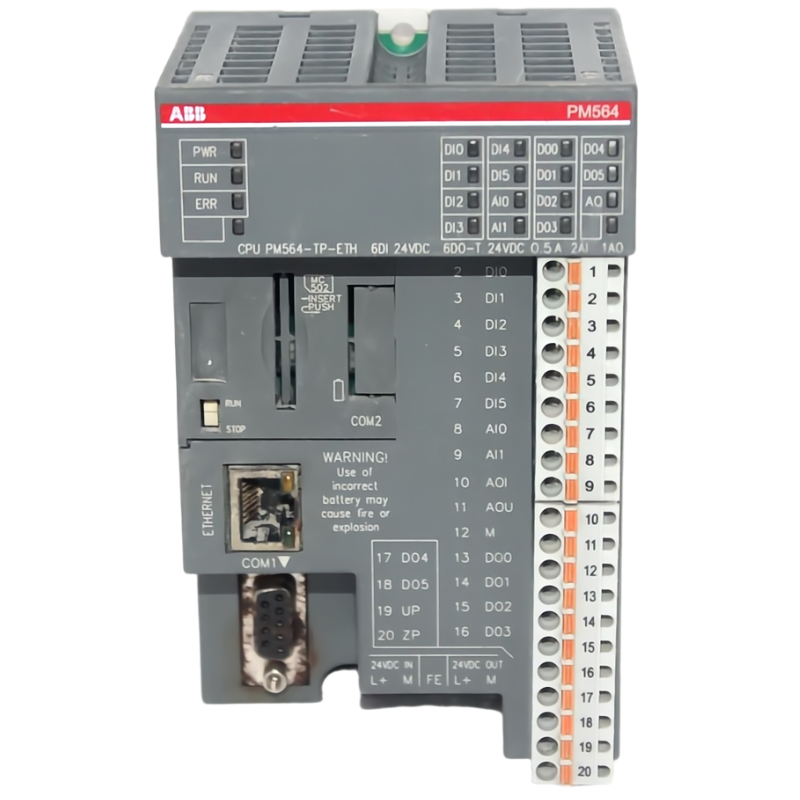

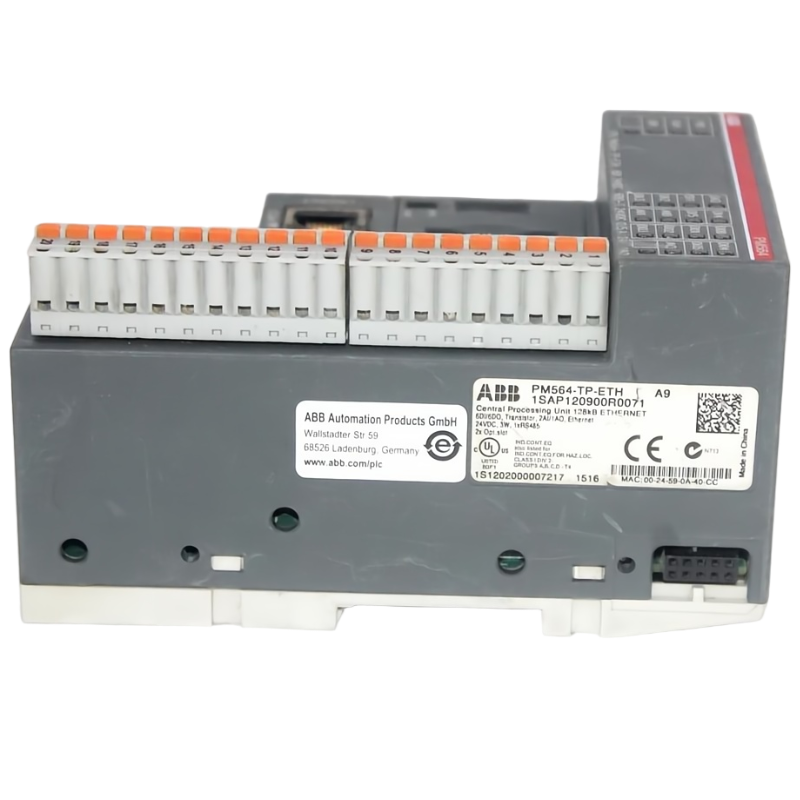

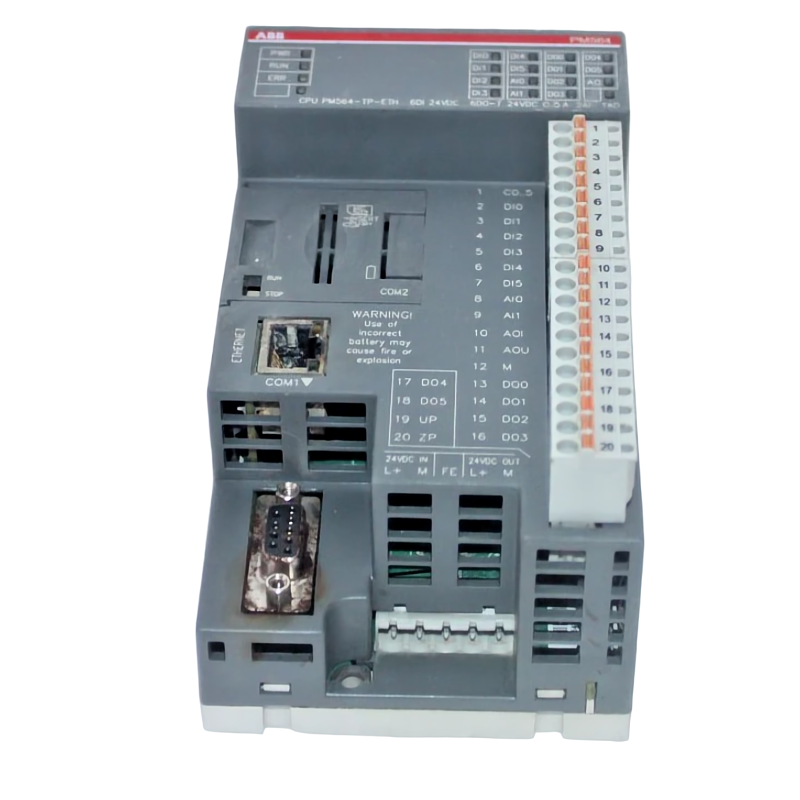

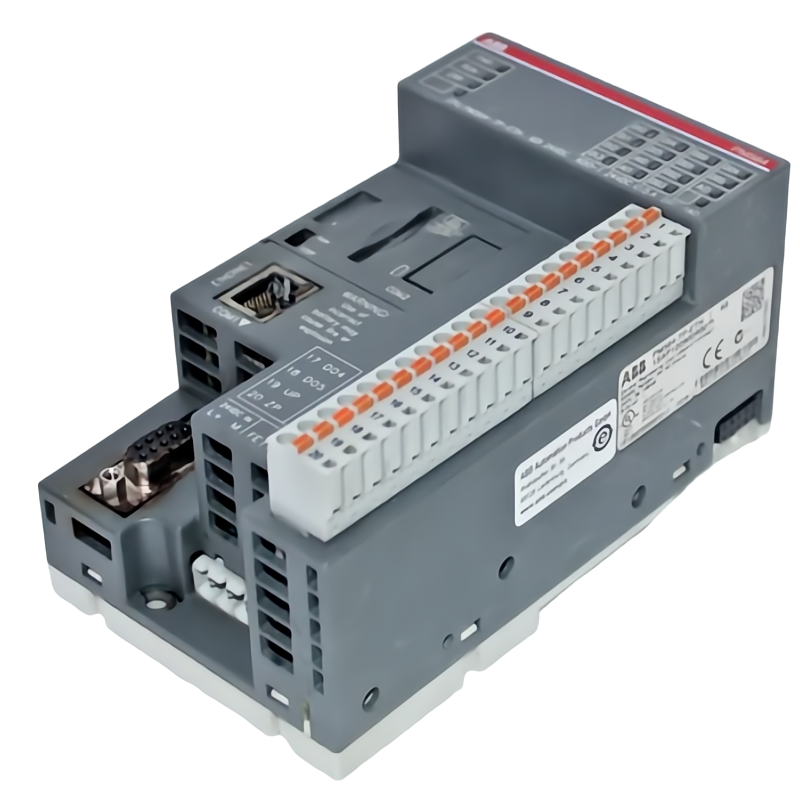

ABB PM564-TP-ETH 1SAP120900R0071 CPU Programmable Logic Controller

Overview

The ABB PM564-TP-ETH is a high-performance CPU programmable logic controller (PLC) with integrated Ethernet capabilities. It delivers fast, reliable processing and real-time control for advanced industrial automation systems. Designed for seamless integration with ABB’s AC500 and PM series modules, it supports complex automation tasks with efficiency and robustness.

General Information

Part Number: 1SAP120900R0071

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PM (Process Module)

Type: CPU Programmable Logic Controller

Mounting: Rack or card-based installation within control cabinets

Technology: Industrial-grade microprocessor, deterministic real-time execution, Ethernet-enabled communication, integrated diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 28 W

Input: Powered via backplane connection

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power, CPU status, fault, activity, and network link

Communication & Interface

Ethernet / Fieldbus Ports: Integrated Ethernet port, supports PROFIBUS, Modbus TCP/IP, and ABB proprietary bus systems

Bus Coupler Role: Connects the controller bus to field devices and I/O modules

Diagnostics: CPU and network supervision, fault logging, status monitoring

Operator Interface: LED indicators and onboard configuration switches

Reset Features: Supports both soft and hardware reset

I/O & Channels: Integrated digital and analog I/O channels, expandable via connected modules

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (suitable for industrial cabinet mounting)

Shock & Vibration: IEC 60068 compliant

Dimensions & Weight

Dimensions (L × W × H): 74 × 135 × 82 mm

Weight: 0.29 kg

High-Speed Ethernet Control, Ready to Optimize Your System!
