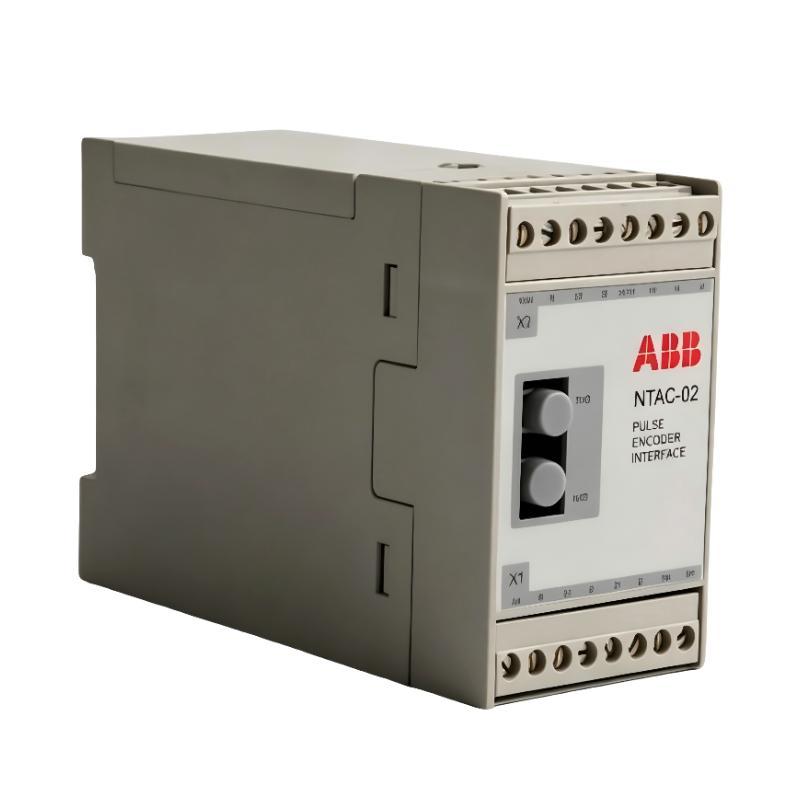

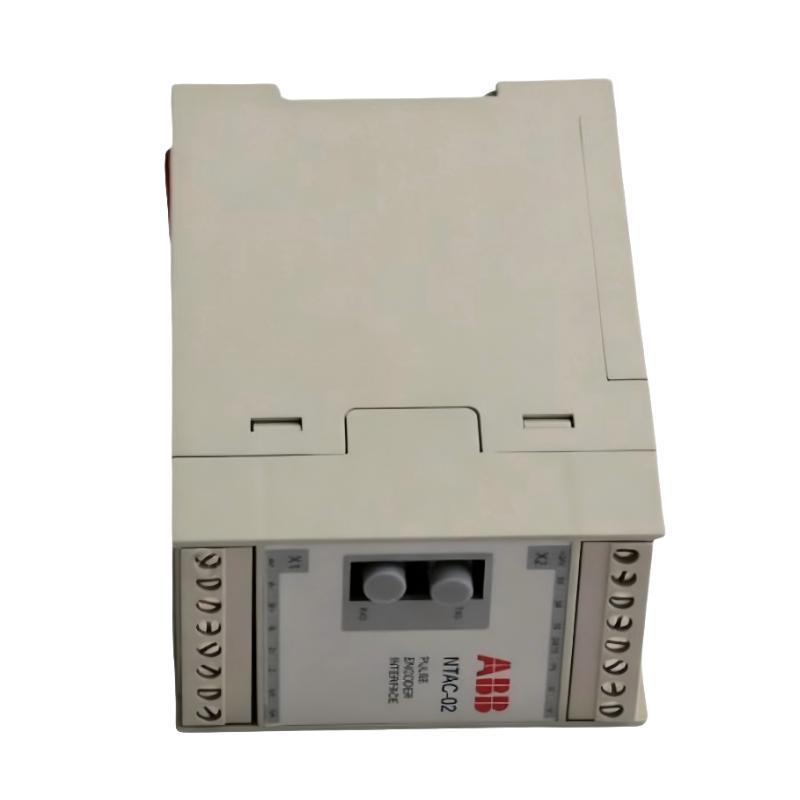

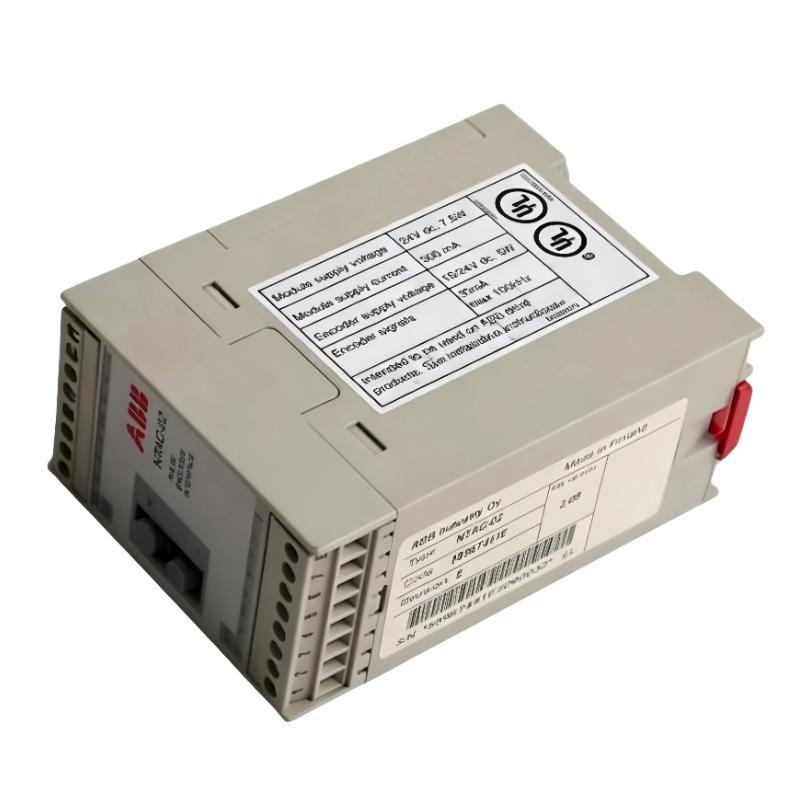

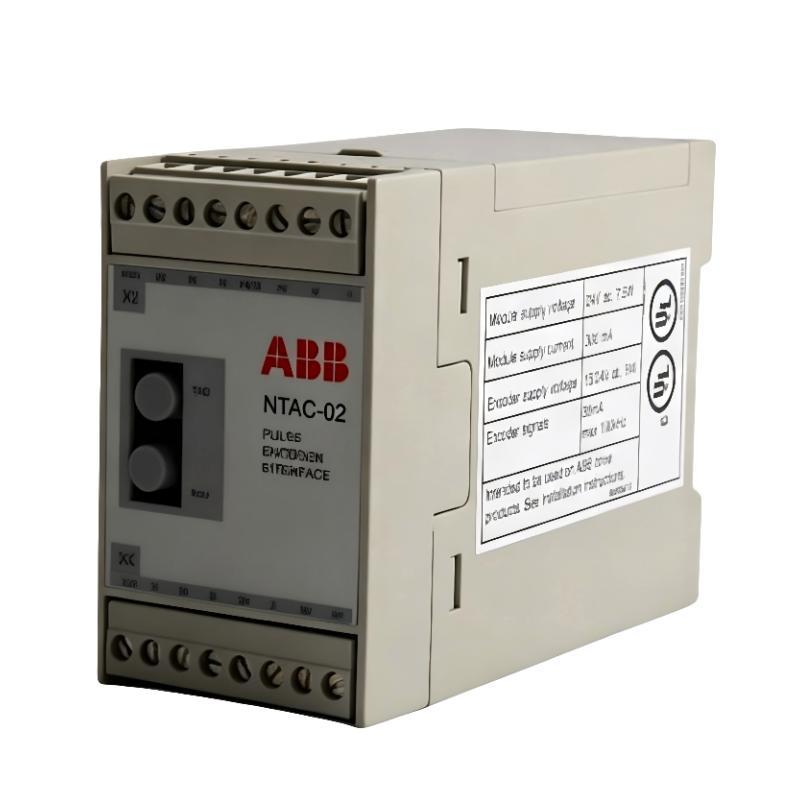

ABB NTAC-02 3AFE58976008 Pulse Encoder Interface

Overview

The ABB NTAC-02 3AFE58976008 Pulse Encoder Interface is an industrial signal processing module designed for accurate encoder feedback handling in drive and automation systems. It converts and processes pulse signals from rotary encoders, enabling precise speed, position, and motion control in industrial applications. The module is widely used in motor control systems where high-resolution feedback is required.

General Information

Part Number: 3AFE58976008

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Type: Pulse Encoder Interface Module

Application: Industrial automation, motor control, speed feedback, and motion systems

Installation: Mounted in ABB drive systems or control cabinets

Technology: Encoder signal processing and pulse interface conversion

Power Specifications

Supply Voltage: System-dependent DC supply via drive/control system

Power Consumption: Low-power industrial module (<10 W typical)

Input Type: Pulse signals from incremental encoders

Protection: Electrical isolation, overvoltage protection, and signal conditioning

Status Indicators: LED indicators for power, signal status, and fault detection

Communication & Interface

Interface Type: Encoder input interface

Signal Type: Pulse / incremental encoder signals (A, B, Z channels)

Function: Converts encoder pulses into usable control feedback signals

Diagnostics: Built-in signal monitoring and fault detection

System Compatibility: Designed for ABB drive and motion control systems

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: Up to 95% RH, non-condensing

Durability: Industrial-grade design for continuous operation

Protection Rating: Suitable for installation in industrial control cabinets (IP20 equivalent)

Dimensions & Weight

Dimensions (L × W × H): 150 × 60 × 120 mm

Weight: 0.8 kg
