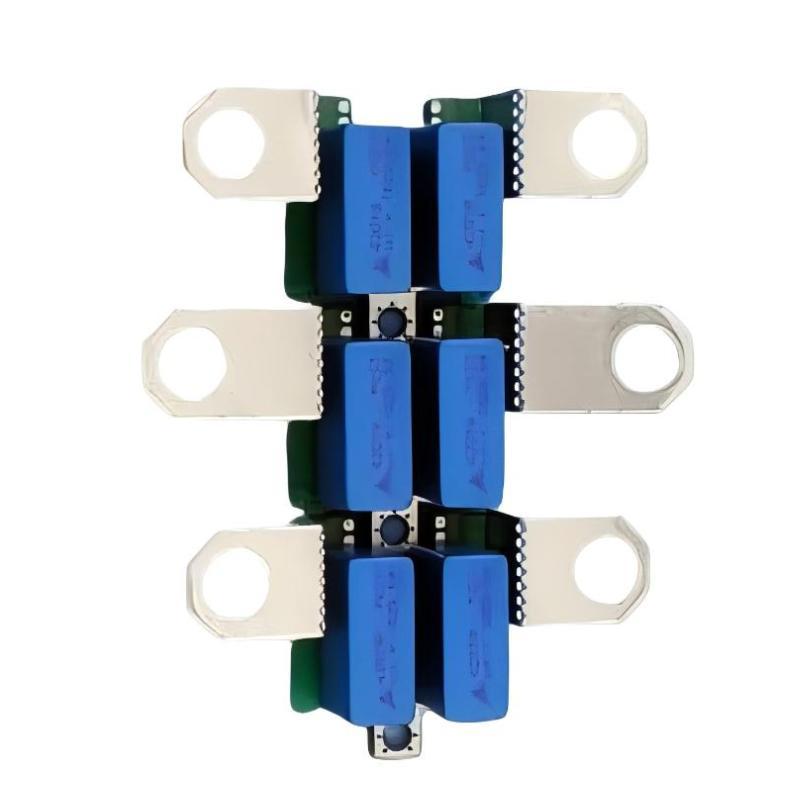

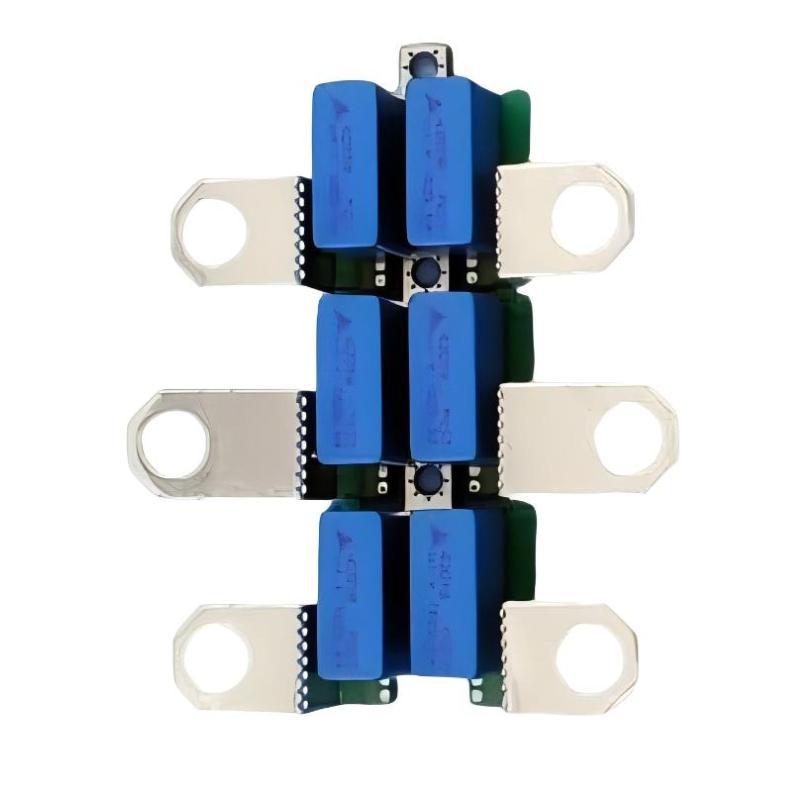

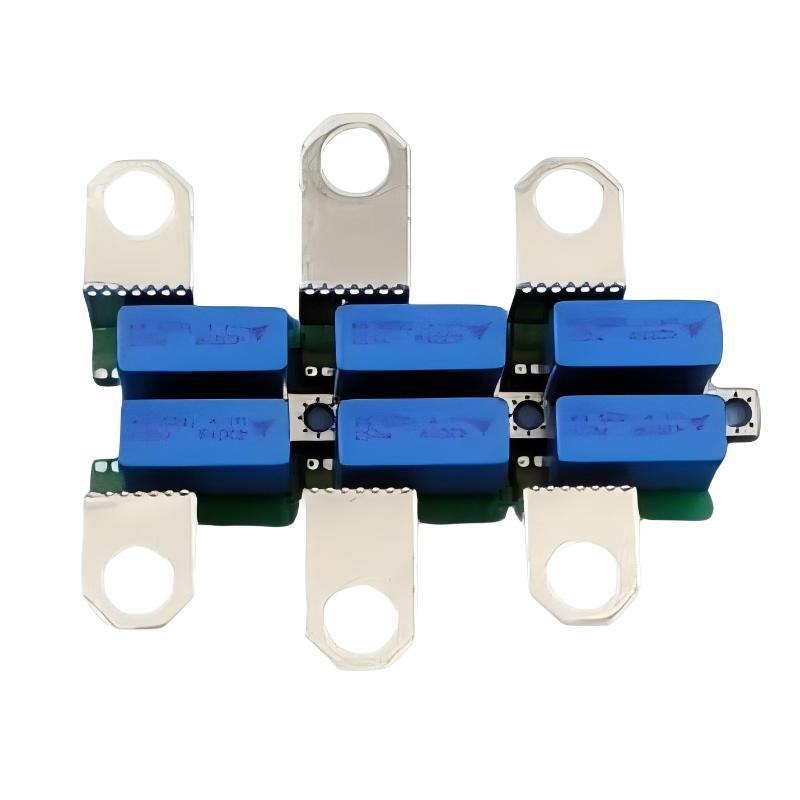

ABB DSSC-01C 64705563 Thyristor/Diode Module

Overview

The ABB DSSC-01C 64705563 is a high-performance thyristor/diode module designed for industrial power control applications. It provides reliable rectification, switching, and load regulation in power electronics systems. The module is ideal for use in drives, converters, and other industrial automation equipment requiring robust and precise power management.

General Information

Part Number: 64705563

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Type: Thyristor/Diode Module

Application: Industrial automation, power control, drives, and converters

Installation: Mounted in power electronics cabinets or industrial control panels

Technology: High-reliability thyristor and diode components for efficient power handling

Power Specifications

Rated Voltage: System-dependent, suitable for industrial DC and AC applications

Current Rating: High-current thyristor/diode switching capability

Power Handling: Designed for heavy-duty industrial load regulation

Protection: Overvoltage, overcurrent, and thermal protection incorporated

Indicators: None (module relies on system monitoring)

Communication & Interface

Interface Type: Power electronics module interface

Function: Provides rectification, switching, and load control in industrial systems

Signal Support: Handles AC/DC load switching and thyristor-controlled rectification

Diagnostics: Compatible with system-level fault detection and monitoring

Compatibility: Designed for ABB industrial drives and power control systems

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: Up to 95% RH, non-condensing

Durability: Industrial-grade construction for continuous operation

Protection Rating: IP20 equivalent for installation within control cabinets

Dimensions & Weight

Dimensions (L × W × H): 105 × 22 × 83 mm

Weight: 0.26 kg
