Overview

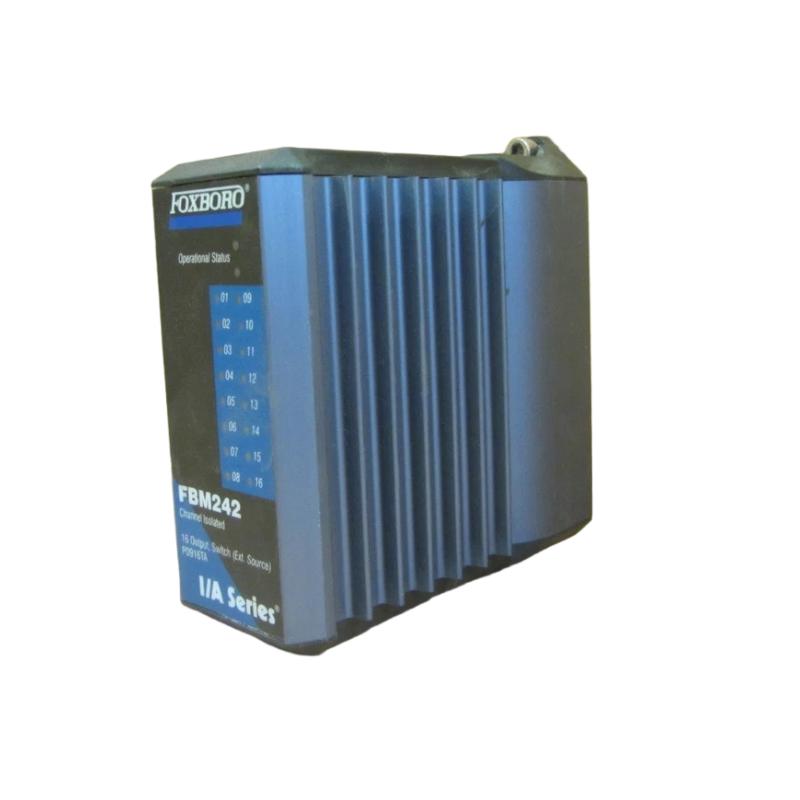

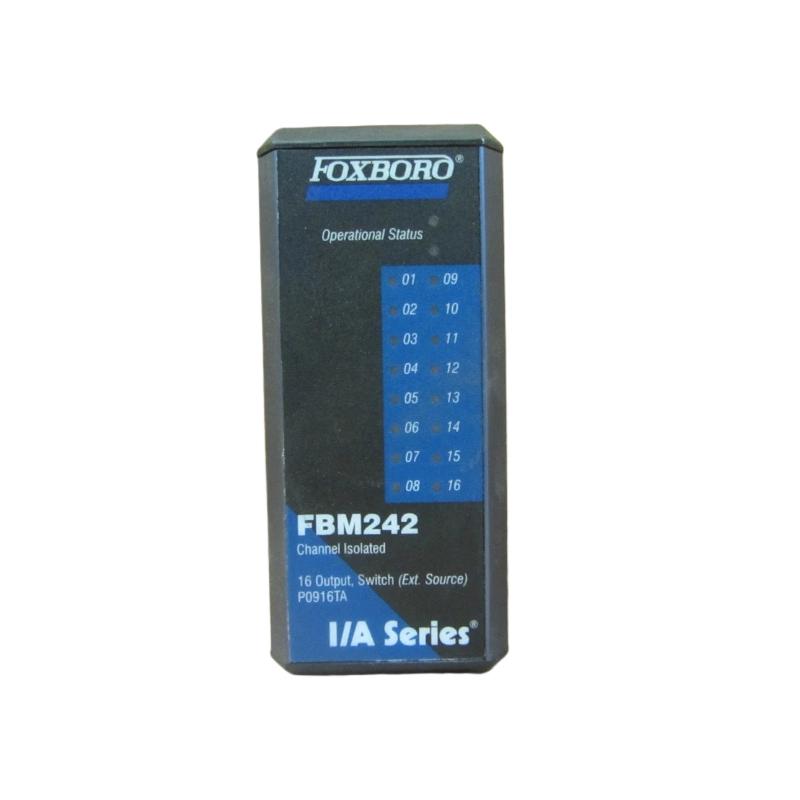

The Foxboro P0916TA is a channel-isolated 16-output module designed for Foxboro I/A Series systems. It provides reliable digital output capability for driving relays, solenoids, indicators, and other discrete field devices. Each channel is independently isolated to ensure high noise immunity and robust operation in demanding industrial environments.
General Information
Part Number: P0916TA
Manufacturer: Foxboro (Schneider Electric)
Series: FBM / 200 Series
Type: 16-Channel Digital Output Module

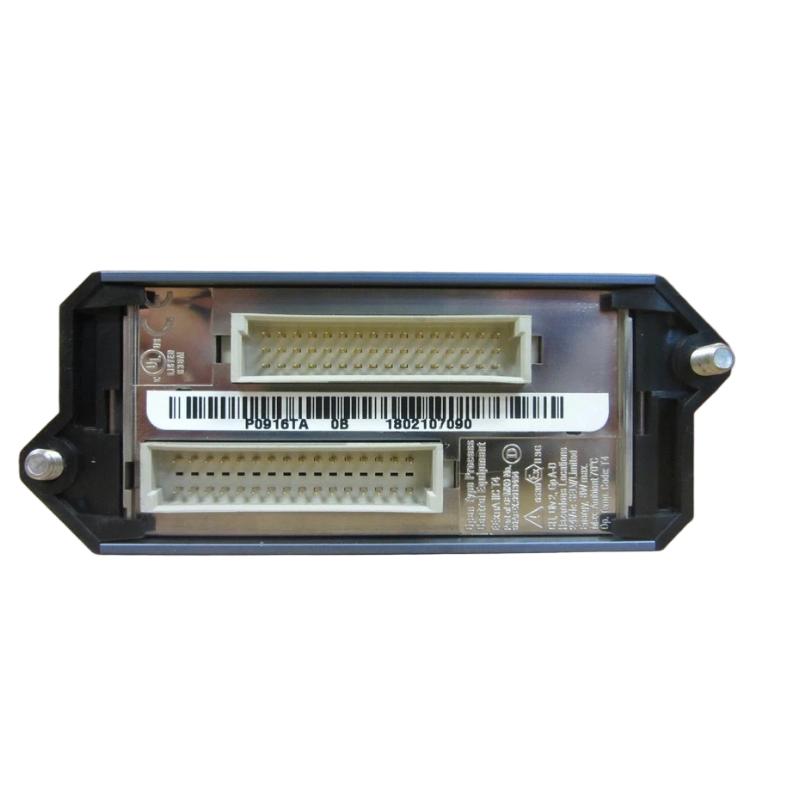

Mounting: Fits standard Foxboro I/O baseplates
Technology: Individually isolated digital outputs with onboard diagnostics
Power Specifications
Supply Voltage: 24 V DC (via system backplane)
Power Consumption: ≤ 10 W
Power Source: Backplane-powered
Protection: Channel isolation, surge suppression, short-circuit protection

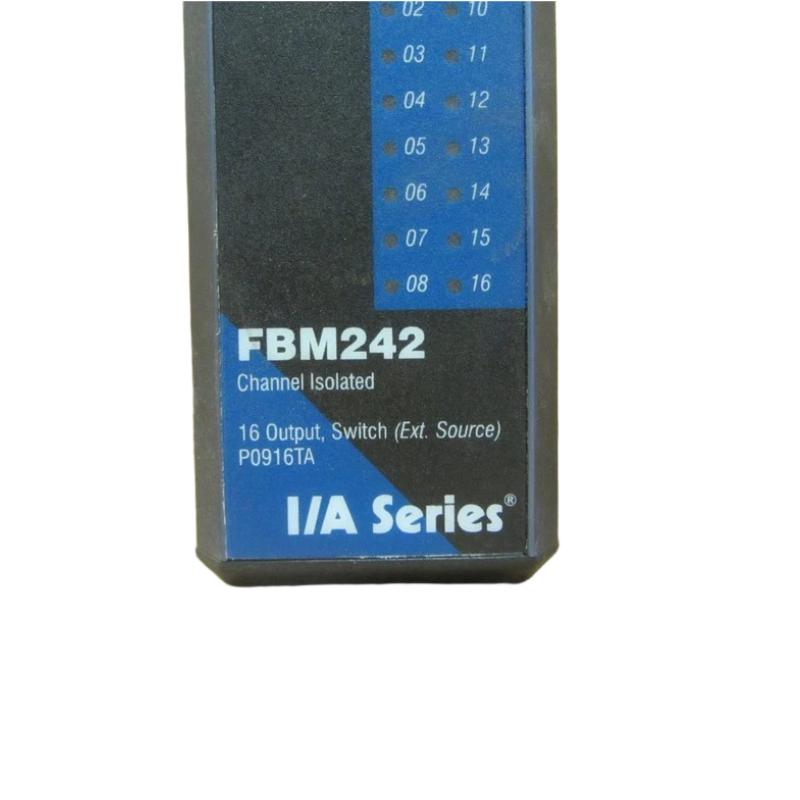

Indicators: LEDs showing output status and module health
Communication & Interface
Output Type: Discrete digital output
Channel Isolation: Each channel isolated to prevent cross-interference
Output Function: Drives external loads such as relays, coils, or indicators
Diagnostics: Output verification, fault detection, self-diagnostic checks
Configuration: Set through Foxboro configuration software tools
Reset Options: Software reset supported through controller interface
I/O & Channels
Channel Count: 16 isolated digital output channels
Output Signal: Logic-level or load-driving output (voltage/current depends on variant)
Use Case: Controlling on/off field devices
External Load Capability: Supports typical industrial discrete loads
Environmental
Operating Temperature: −20 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for protected industrial control cabinet installation
Dimensions & Weight
Dimensions (L × W × H): 130 × 32 × 120 mm
Weight: ~ 0.34 kg
