Overview

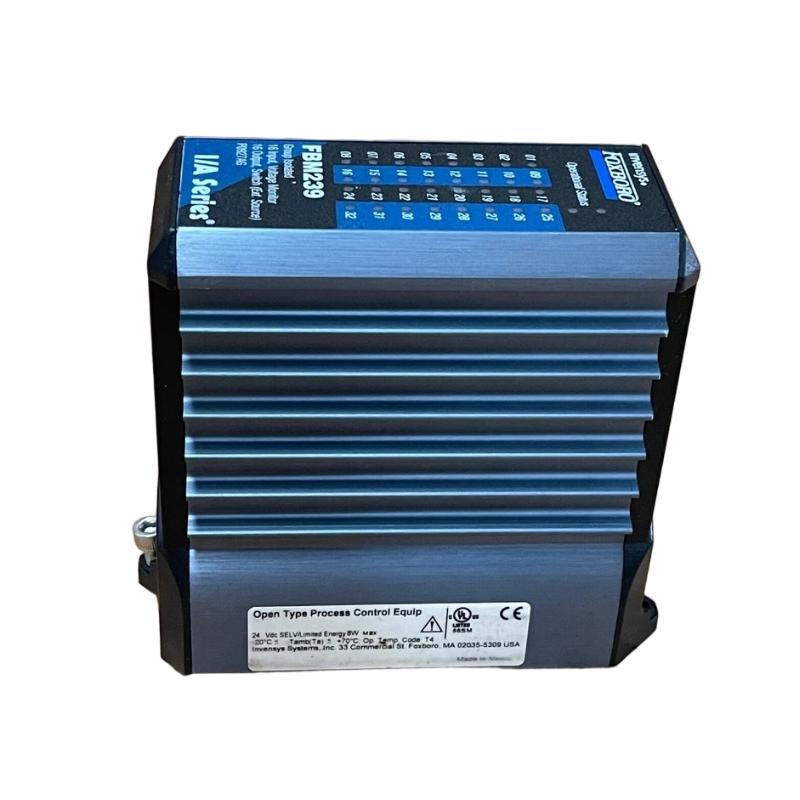

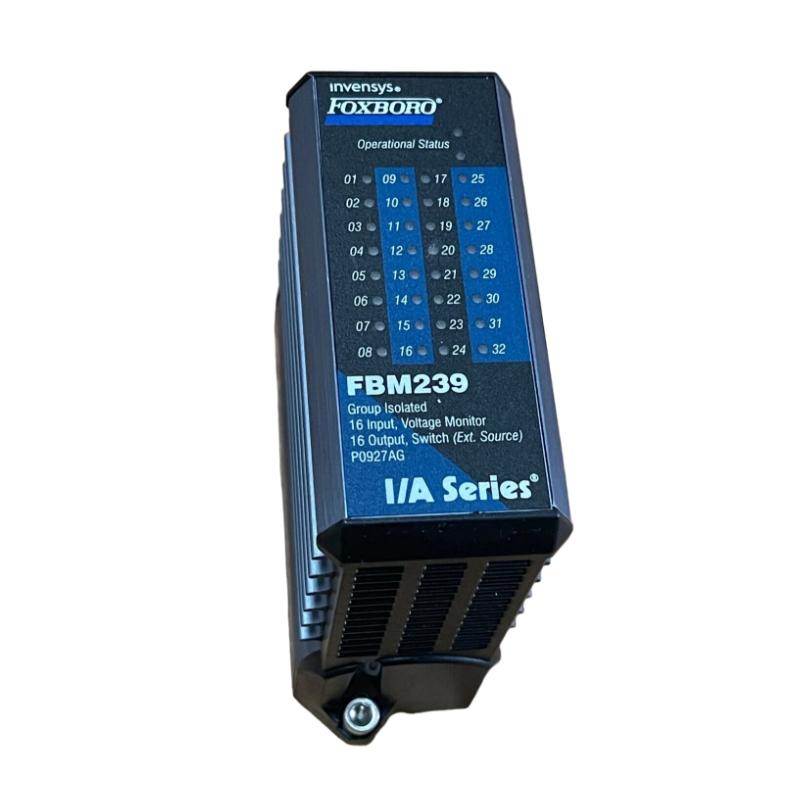

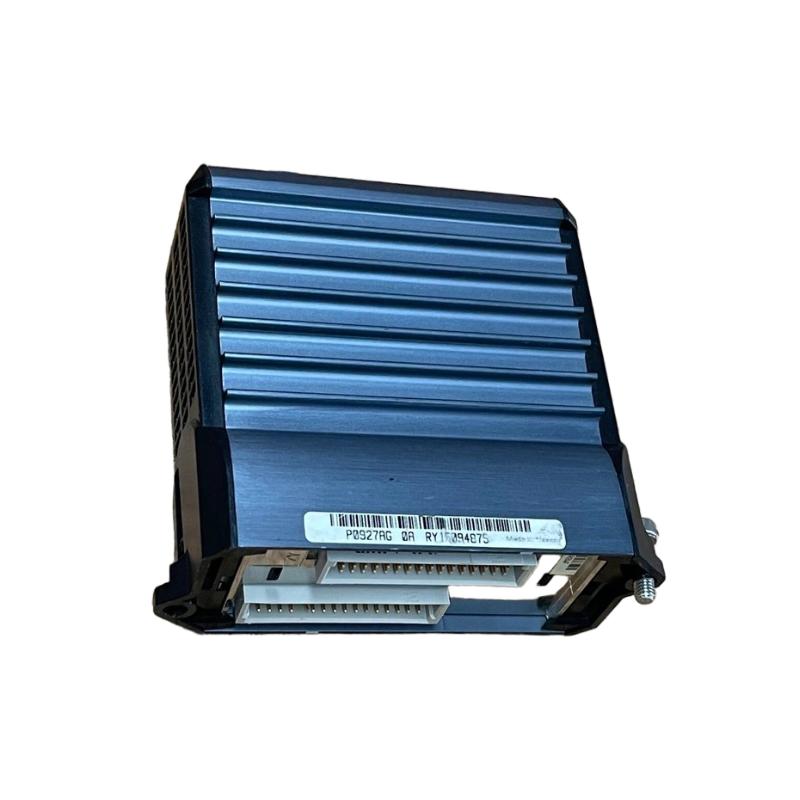

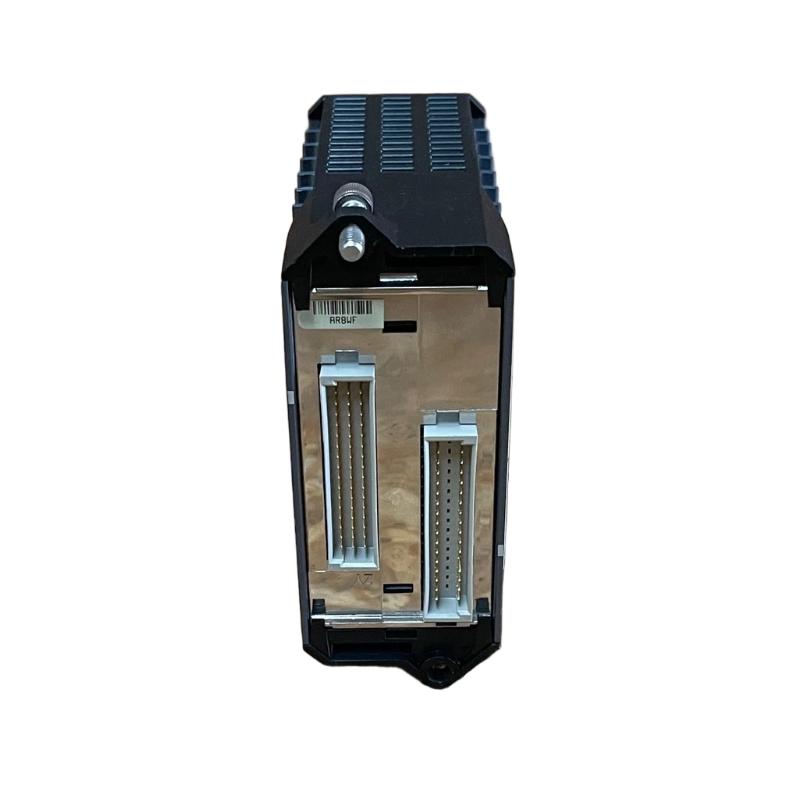

The Foxboro P0927AG is a discrete I/O module designed for use in Foxboro I/A Series and FBM Series systems. It provides reliable digital signal interfacing for on/off devices, enabling accurate acquisition or control of discrete field equipment in industrial automation environments.
General Information
Part Number: P0927AG
Manufacturer: Foxboro (Schneider Electric)
Series: FBM / 200 Series
Type: Discrete Input/Output Module
Mounting: Installs onto standard Foxboro I/O baseplates
Technology: Isolated digital circuitry with built-in diagnostics
Power Specifications
Supply Voltage: 24 V DC (via system backplane)
Power Consumption: ≤ 6–8 W (module dependent)
Power Source: Backplane-fed
Protection: Surge suppression, channel isolation, over-current protection
Indicators: LEDs for power, channel activity, and module fault
Communication & Interface
Signal Type: Discrete digital signals (input or output depending on variant)
Supported Devices: Contact closures, relays, logic-level devices
Signal Processing: Debounce filtering, isolation, status validation
Diagnostics: Channel fault detection, abnormal state alerts, self-monitoring
Configuration: Managed through Foxboro configuration tools
Reset Options: Supports controller-initiated software reset
I/O & Channels
Channel Type: Digital I/O (module variant defines input or output)
Channel Count: Typically 8–16 digital channels
Output/Reporting: Digitized logic state values communicated to controller
External Load Support: Supported for output versions (relay/coil driving)
Environmental
Operating Temperature: −20 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for installation inside industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): 130 × 32 × 120 mm
Weight: ~ 0.25 kg
