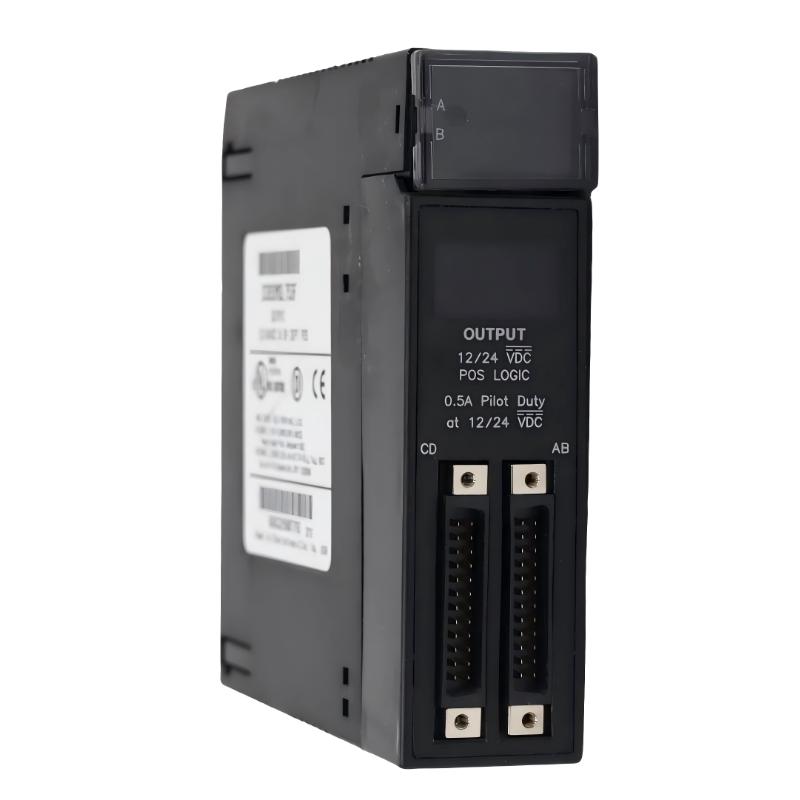

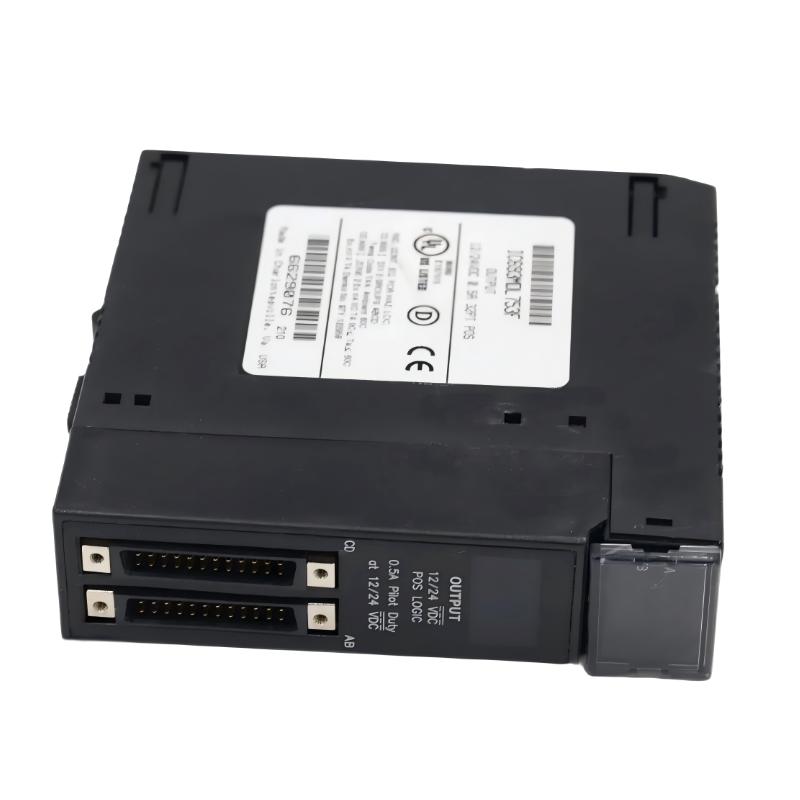

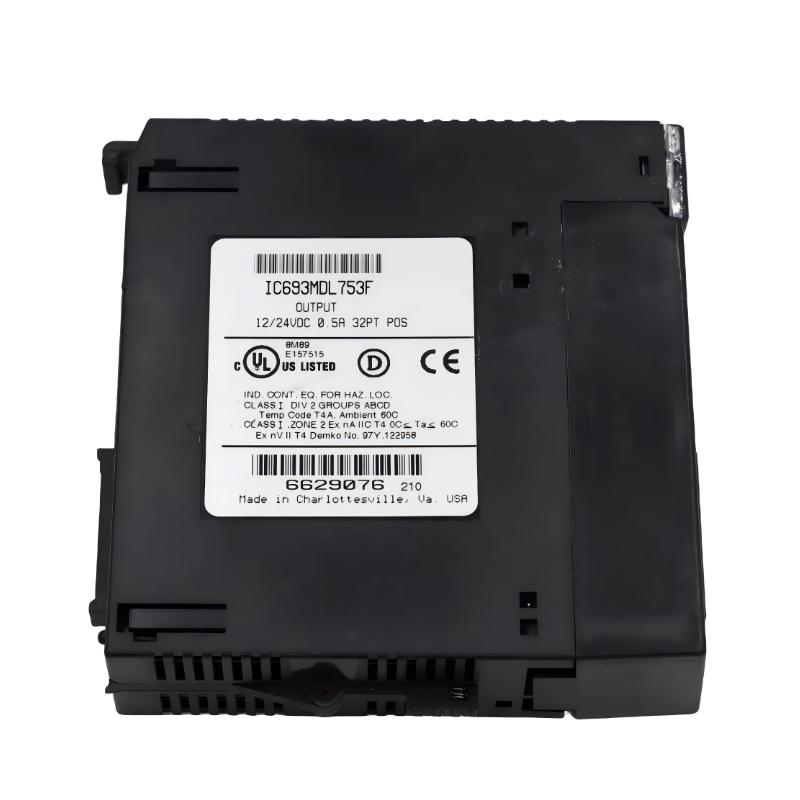

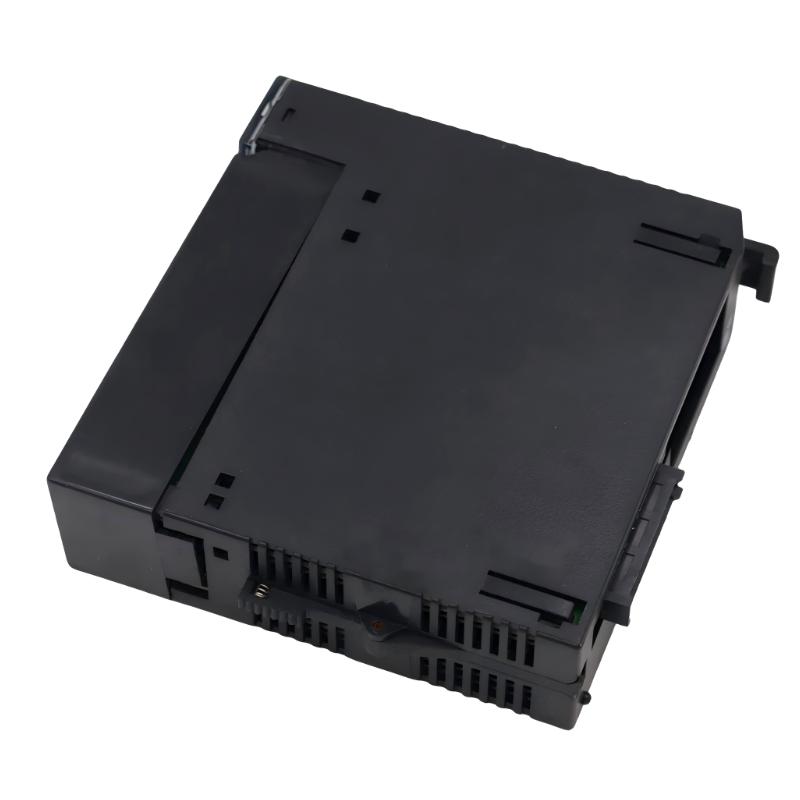

GE IC693MDL753F Positive/Negative Logic Output Module

Overview

The GE IC693MDL753F is a 32-point discrete output module designed for the GE Fanuc Series 90-30 PLC family. It provides transistor-based outputs for switching DC loads and is suitable for industrial automation, machine control, and general discrete output applications.

General Information

Part Number: IC693MDL753F

Manufacturer: GE Fanuc

Series: Series 90-30

Module Type: Positive/Negative Logic Output Module

Output Type: Transistor

Number of Output Points: 32

Output Configuration: Four groups of eight outputs

Mounting: Series 90-30 PLC baseplate

Brand: GE Fanuc

Country of Origin: United States

Power Specifications

Rated Voltage: 12/24 VDC

Operating Voltage Range: 10.2 to 28.8 VDC

Output Current: 0.5 A per point

Maximum Group Current: 4 A

Maximum Common Current: 3 A

On-State Voltage Drop: 0.3 VDC maximum

Off-State Leakage Current: 0.1 mA maximum

Backplane Power Consumption: 260 mA maximum at 5 VDC

Communication & Interface

I/O Points: 32 discrete outputs

Output Groups: Four isolated groups of eight outputs

Connection: Two 24-pin connectors

Output Logic: Positive or negative logic operation

Isolation: 1500 VAC between field and logic circuits

Group Isolation: 250 VAC between output groups

Status Indicators: Individual LEDs for output status

Response Time: 0.5 ms maximum

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5% to 95%, non-condensing

Installation Environment: Industrial control cabinet

Protection: Suitable for standard Series 90-30 PLC installation environments

Dimensions & Weight

Dimensions (L × W × H): 150 × 55 × 100 mm

Weight: 0.231 kg
