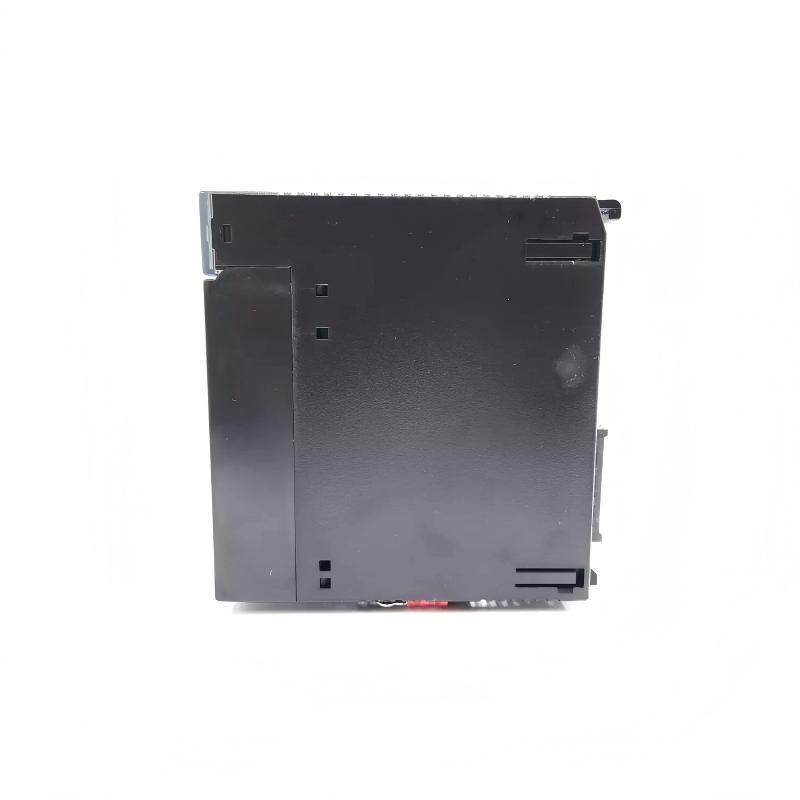

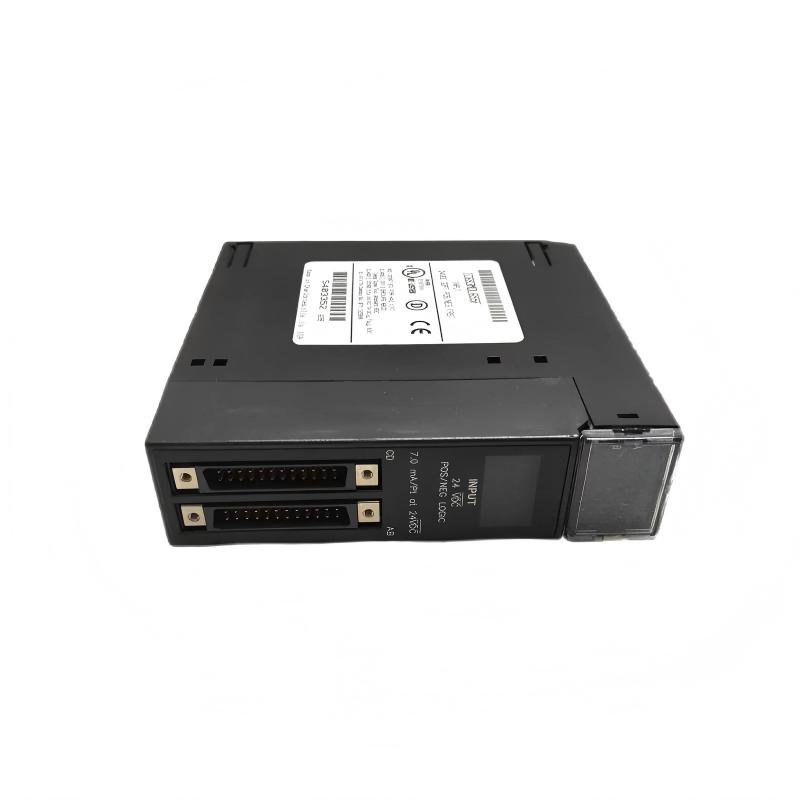

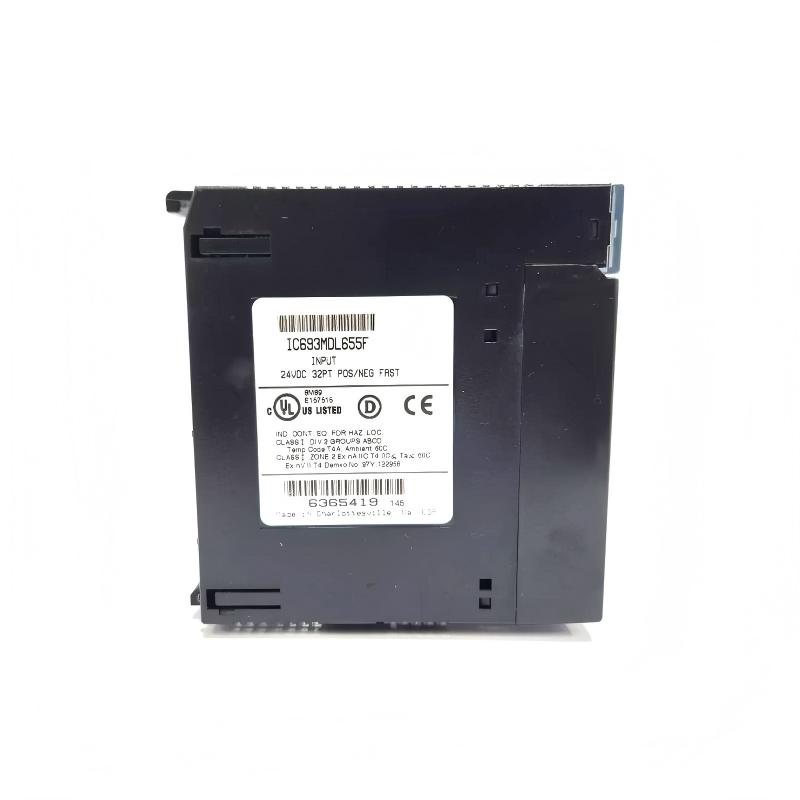

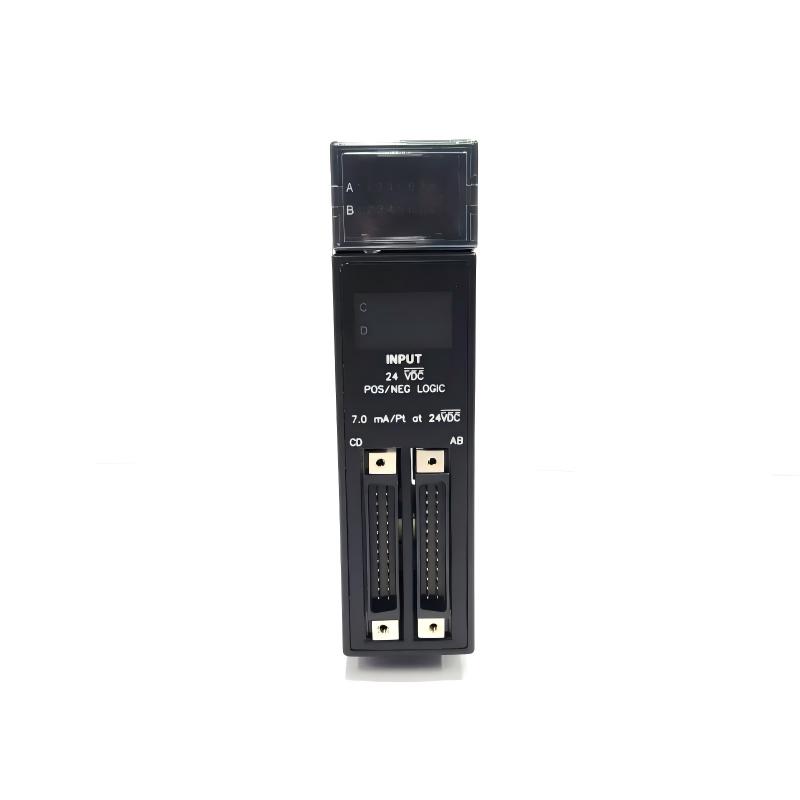

GE IC693MDL655F Positive/Negative Logic Input Module

Overview

The GE IC693MDL655F is a 32-point discrete input module designed for the GE Fanuc Series 90-30 PLC family. It supports positive and negative logic input signals and provides reliable monitoring of switches, sensors, and other field devices in industrial automation systems.

General Information

Part Number: IC693MDL655F

Manufacturer: GE Fanuc

Series: Series 90-30

Module Type: Positive/Negative Logic Input Module

Input Type: Discrete DC Input

Number of Input Points: 32

Input Configuration: Four groups of eight inputs

Mounting: Series 90-30 PLC baseplate

Brand: GE Fanuc

Country of Origin: United States

Power Specifications

Rated Input Voltage: 24 VDC

Input Voltage Range: 0 to 30 VDC

Typical Input Current: Approximately 7 mA per point

Input Threshold: Compatible with standard 24 VDC industrial control signals

Power Supply: Field-powered input circuits

Isolation: Group isolation between field input circuits and logic circuits

Communication & Interface

I/O Points: 32 discrete inputs

Input Groups: Four isolated groups of eight inputs

Connection: Field wiring through terminal connectors

Input Logic: Positive or negative logic operation

Signal Detection: Monitors ON/OFF states from external field devices

Status Indicators: Individual LEDs for input status

Isolation: Electrical isolation between field circuits and PLC logic

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5% to 95%, non-condensing

Installation Environment: Industrial control cabinet

Protection: Suitable for standard Series 90-30 PLC installation environments

Dimensions & Weight

Dimensions (L × W × H): 128 × 55 × 105 mm

Weight: 0.281 kg
