GE IC200ALG263D | Analog Input Module Unbelievable Prices

Overview

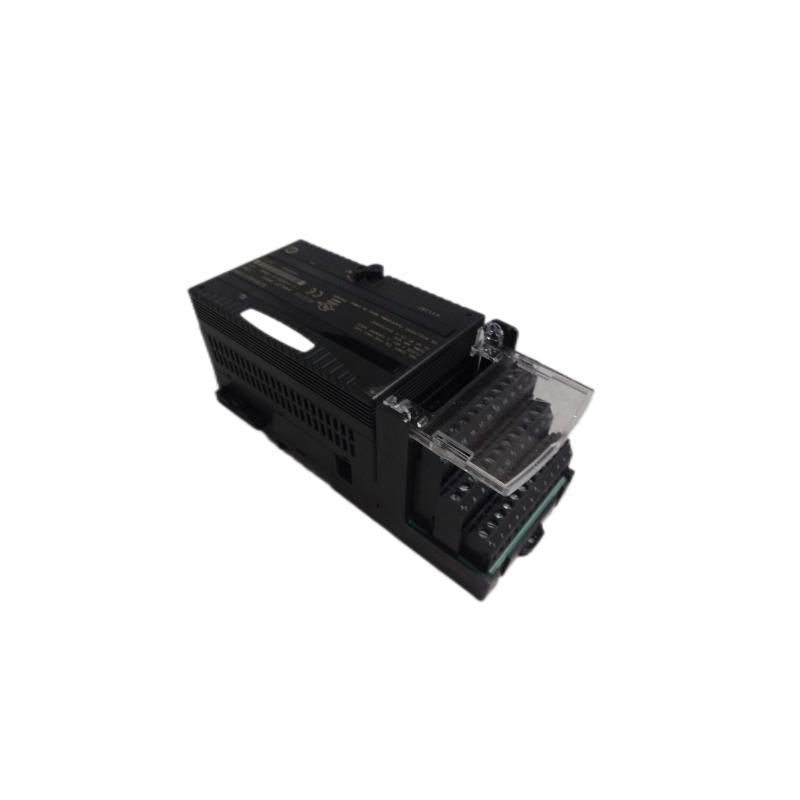

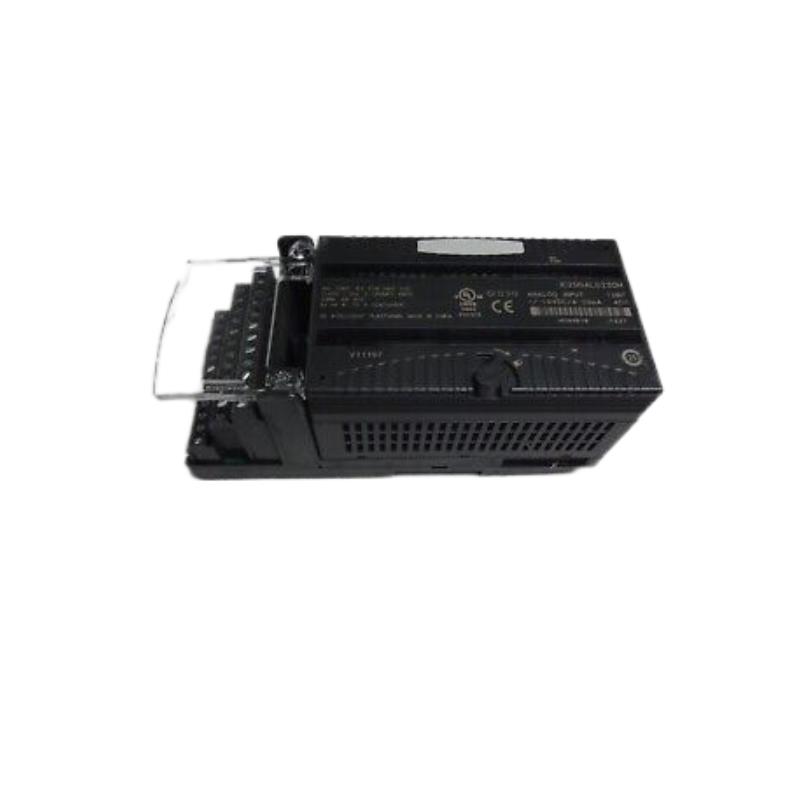

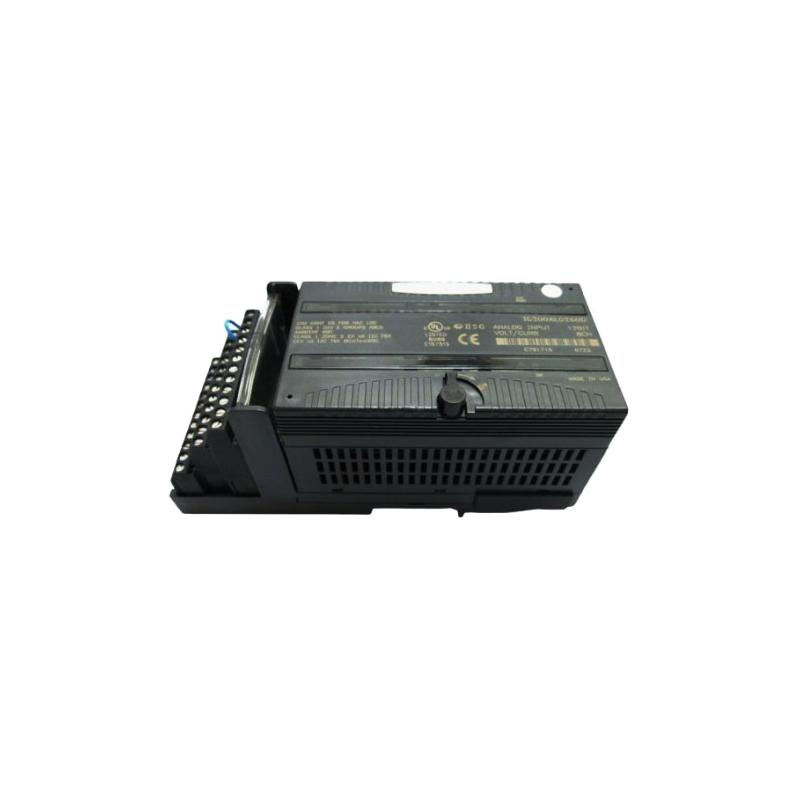

The GE IC200ALG263D is an analog input module designed for the VersaMax series PLC system. It provides 15 single‑ended channels for voltage inputs and incorporates high‑resolution conversion and hardware fault detection for reliable signal acquisition.

General Information
Brand: GE (General Electric)
Country of Origin: United States
Model Number: IC200ALG263D
Series: VersaMax I/O Modules
Product Type: Analog Input Module (Voltage Type)
Application: Industrial automation, process control, measurement of low‑level voltage signals

Power Specifications
Supply Voltage: +5 V DC from the backplane
Current Consumption: Up to approximately 200 mA
Input Voltage Range: –10 V to +10 V DC
Input Impedance: Minimum 100 kΩ
Resolution: 15‑bit conversion
Update Rate: 7.5 milliseconds per module

Communication & Interface
Channels: 15 single‑ended voltage input channels (one group)
Interface: Modules plug into VersaMax rack backplane and communicate via system bus
Diagnostics: Detects internal A/D conversion faults by self‑stimulus; on detection of fault module halts scanning and reports error

Environmental
Operating Temperature: 0 °C to +60 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Rack‑mounted in industrial control cabinet

Dimensions & Weight
Dimensions (L × W × H): Estimated ~ 120 × 30 × 110 mm
Weight: Approx. 0.45 kg

Authentic stock available, 24-hour response guaranteed.
