Overview

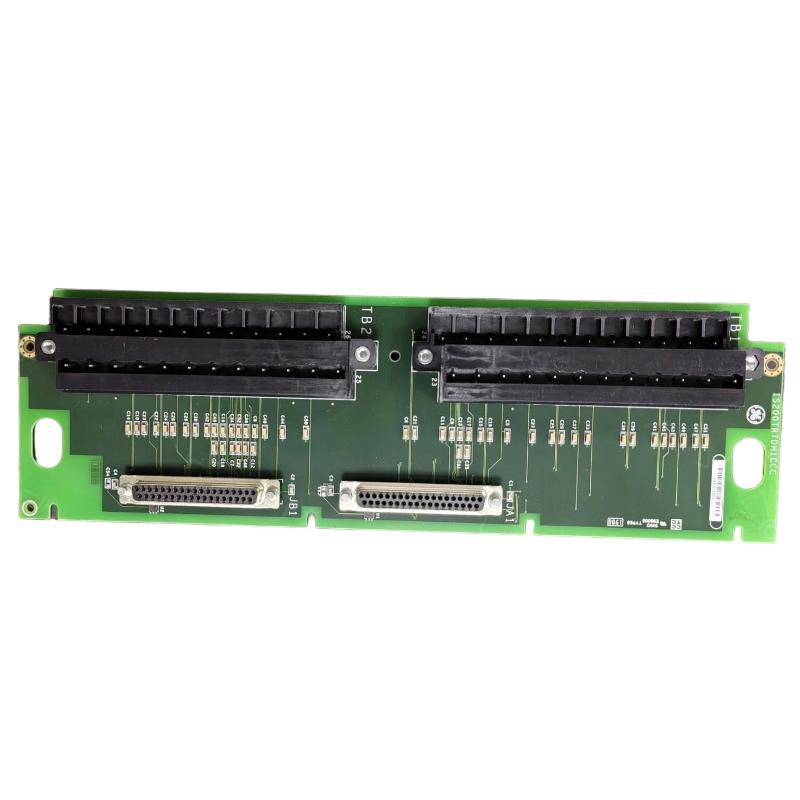

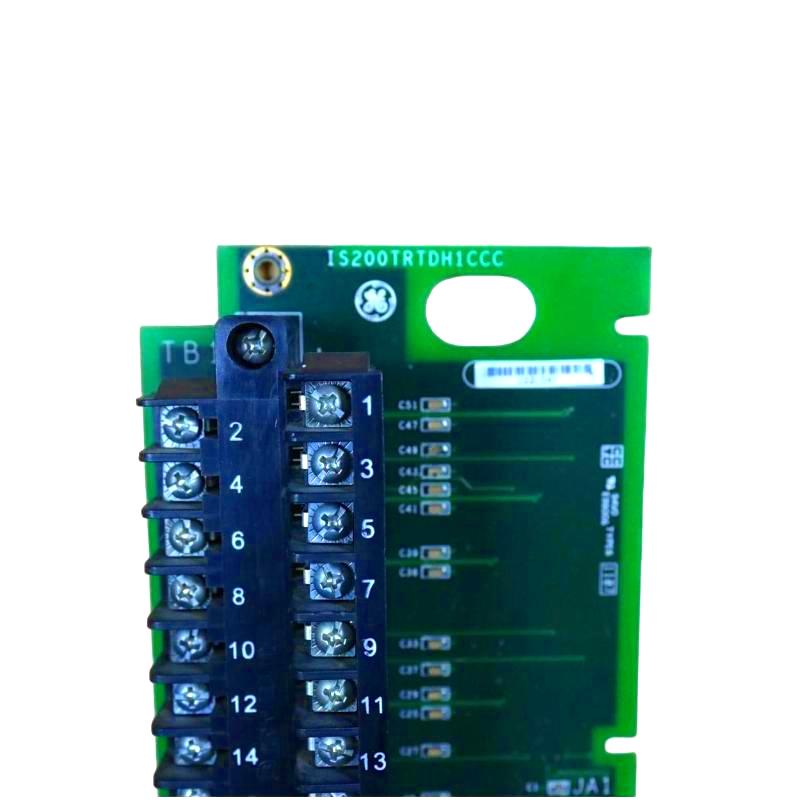

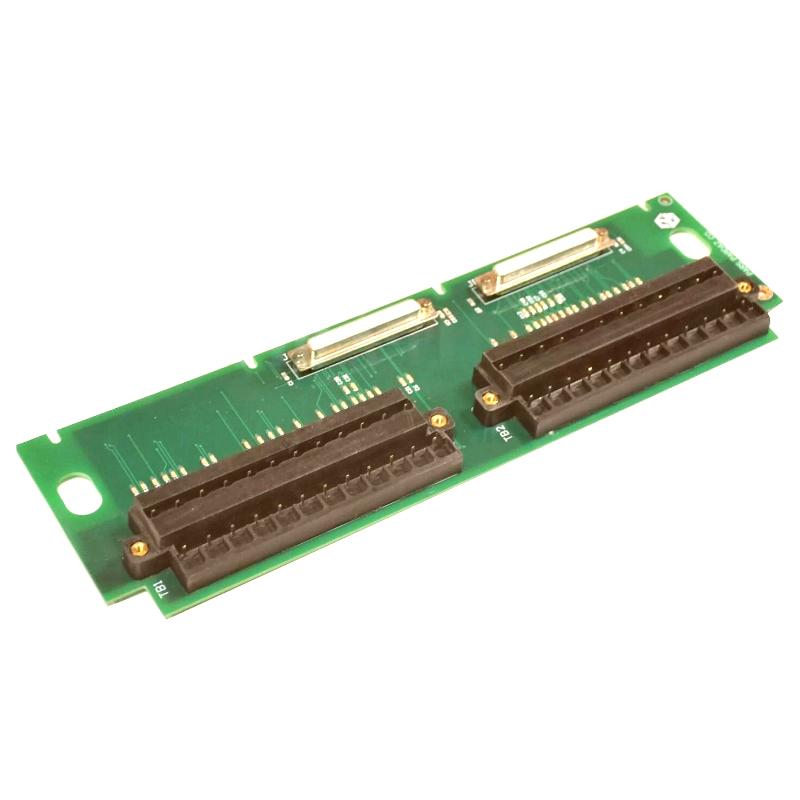

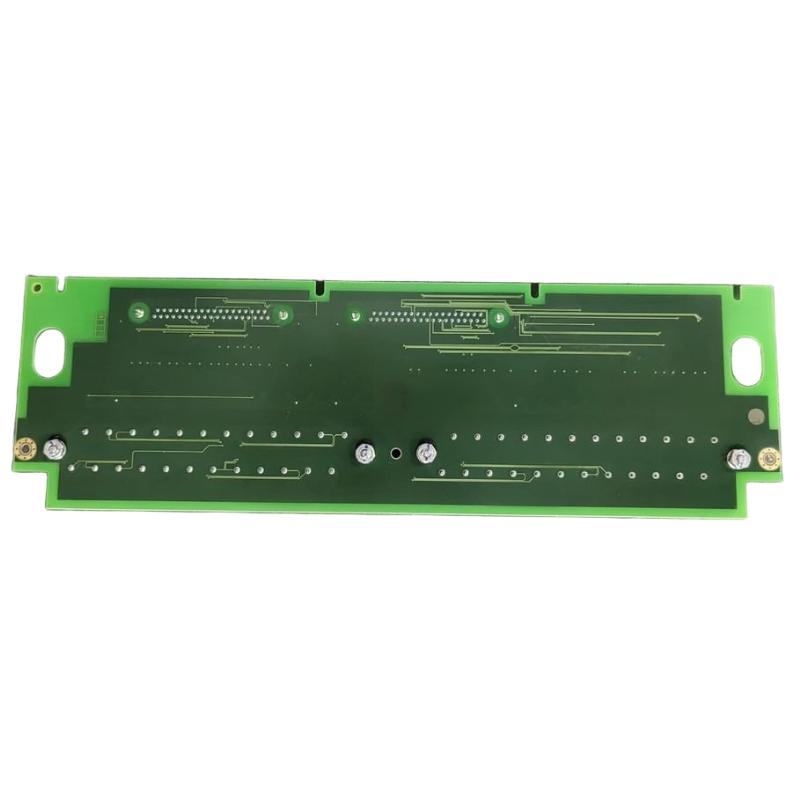

The GE IS200TRTDH1CCC is an RTD input terminal board designed to support precise temperature measurement in GE Mark VI and Mark VIe control systems. It provides reliable and accurate resistance temperature monitoring for industrial equipment and turbine applications.
General Information
Model: IS200TRTDH1CCC
Manufacturer: GE (General Electric)
Product Type: RTD Input Terminal Board
System Platform: Mark VI / Mark VIe Control System
Primary Use: Temperature sensing and monitoring in turbine and process control systems
Power Specifications
Power Source: Supplied via control rack/backplane
Input Type: Supports multiple 2-wire, 3-wire, and 4-wire RTD sensor configurations
Accuracy: High precision temperature detection with minimal signal loss
Isolation: Channel-to-channel isolation to reduce noise and interference
Communication & Interface
Interface Method: Ribbon cable connection to controller or processor
Input Channels: Up to 8 or more RTD sensor inputs
Signal Type: Resistance-based temperature signals
Configuration: Supports system-based calibration and diagnostics
Environmental
Operating Temperature: 0 to 60°C
Humidity: Up to 95% RH, non-condensing
Design: Industrial-grade PCB with conformal coating for harsh environments
Mounting: Rack or cabinet installation within control system chassis
Dimensions & Weight
Dimensions: 330 × 130 × 40 mm
Weight: Approx. 0.9 kg
