ICS Triplex T8831 Analogue Input FTA Troubleshooting Guide (Fault Diagnosis)
Time:2026-09-11 Browse: 0

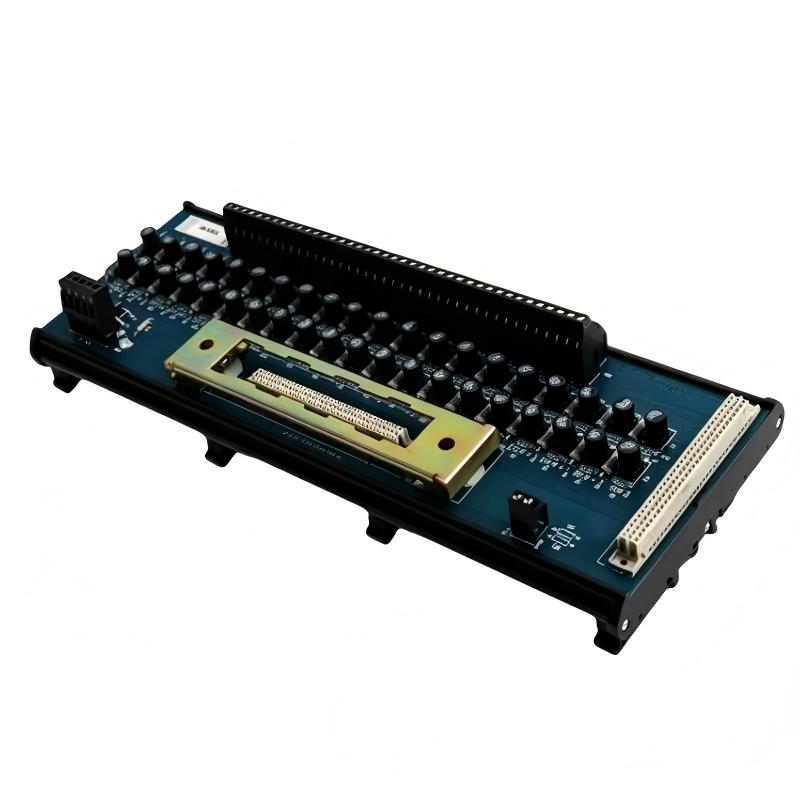

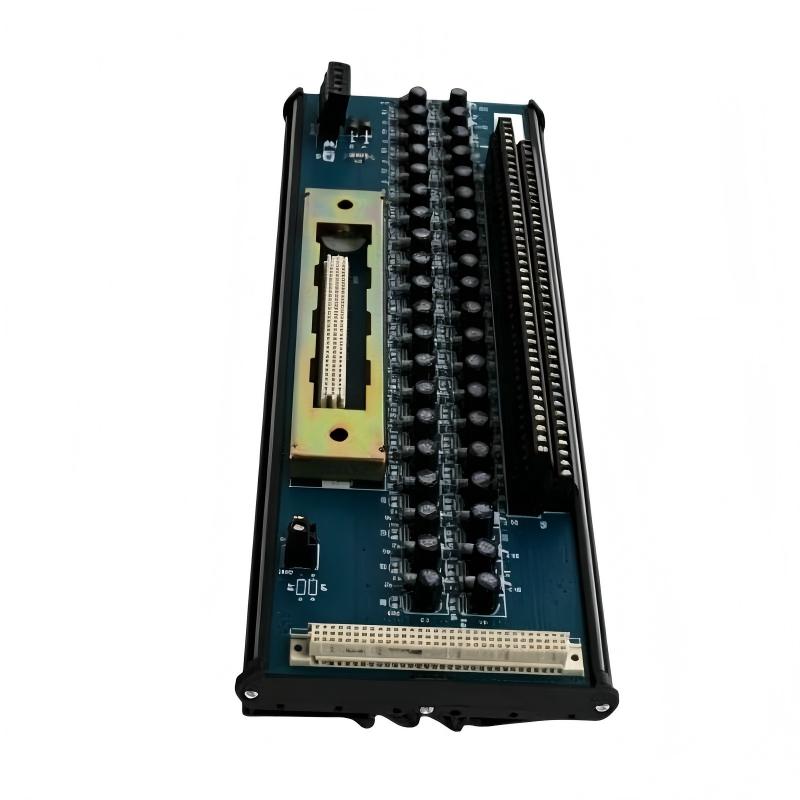

An ICS Triplex T8831 fault should not automatically be treated as an electronic module failure. The T8831 is a 40-channel non-incendive Analogue Input Field Termination Assembly, and many apparent analogue input faults are actually caused by field power, wiring, fuses, transmitter conditions, or the connection to the associated T8431 analogue input module.
ICS Triplex T8831 Analogue Signal Fault Symptoms
A typical T8831 Troubleshooting case begins with an analogue value that does not follow the process.
Common symptoms include:
One channel remains at a constant value.
Several channels become unavailable simultaneously.
The controller reports an abnormal analogue input.
A transmitter operates correctly when tested independently but fails through the system.
The T8831 field power indication is abnormal.
The measured field signal and controller value disagree.
The number of affected channels is an important diagnostic clue. One abnormal channel usually points toward the field instrument, individual wiring, terminal connection, or channel-specific protection. Multiple channels failing together should shift attention toward shared power, cabling, termination, or the associated I/O module.
ICS Triplex T8831 Fault Diagnosis: One Channel or Many?
The first question in a Fault Diagnosis should be:
How many channels are affected?
Suppose channel 17 reads incorrectly while channels 16 and 18 continue to operate normally. Replacing the complete T8831 at this stage would be poor engineering practice. The evidence suggests that the common infrastructure is probably healthy.
Start by measuring the field loop on channel 17.
If the transmitter produces 15.8 mA but the system reports a value equivalent to approximately 4 mA, the fault is somewhere after the transmitter. The investigation should then move through the T8831 terminal, associated cable, T8431 input, and System Configuration.
By contrast, if channels 1 through 10 simultaneously lose their expected signal, check the shared field supply before touching individual transmitters.
ICS Triplex T8831 Field Power Fault Diagnosis
The T8831 uses 24 VDC field power and provides field power indication. Its design includes current-limiting resistance for non-incendive field wiring.
A useful diagnostic measurement is the voltage at the FTA supply terminals.
For example, if the cabinet supply is expected to be 24 VDC but only 18 VDC is measured at the FTA under load, the correct response is not to replace the analogue input hardware immediately. Check the supply terminals, distribution wiring, upstream protection, and voltage drop under load.
The distinction between 24 VDC at the power source and 24 VDC at the FTA under operating load is important in field troubleshooting.
ICS Triplex T8831 Open-Loop Fault Investigation
An open field loop often produces a more convincing failure pattern than a completely dead module.
Consider a transmitter that normally operates around 12 mA. If the controller suddenly falls to an abnormal low value while the transmitter output is unavailable, check the physical loop first.
A practical test sequence is:
Transmitter output → field cable → T8831 terminal → interface cable → T8431 input
Check continuity with the circuit made safe according to the applicable site procedure. Inspect terminal screws and conductors for loose strands, damaged insulation, or incorrect landing.
Because the T8831 provides 40 field connections, an incorrectly landed conductor can also create a channel-mapping problem that resembles an analogue hardware fault.
ICS Triplex T8831 Abnormal Signal Fault
A particularly useful field pattern is a signal that is not completely lost but becomes consistently wrong.
For example, an engineer may measure 16.0 mA at the transmitter while the control system indicates a value corresponding to approximately 10 mA. That discrepancy should trigger signal-path analysis rather than immediate module replacement.
The T8831 signal interface contains resistive elements as part of its non-incendive design. The published training documentation identifies a 145 Ω resistor in the field supply path and a 250 Ω resistor associated with the analogue signal interface.
Therefore, an abnormal signal should be investigated against the expected electrical characteristics of the complete T8831/T8431 arrangement.
ICS Triplex T8831 Channel Fuse and Wiring Checks
Channel protection is another area worth checking when one input suddenly disappears.
The T8831 documentation identifies fused field power for each channel.
If a field device has experienced a wiring short, inspect the associated protection before assuming the transmitter has failed. A damaged fuse or interrupted field supply can leave the controller with an apparently dead analogue input even though the transmitter itself remains operational.
A good Troubleshooting record should identify:
Affected channel
Field device tag
Measured supply voltage
Measured loop current
Terminal condition
Fuse/protection condition
T8431 diagnostic status
Controller engineering value
This turns Fault Diagnosis into an evidence-based process rather than a sequence of component substitutions.
ICS Triplex T8831 Real Field Fault Pattern
In one representative commissioning fault pattern, an analogue channel remained at an abnormal low reading while adjacent channels continued to operate normally. The first assumption was a failed input module.
The engineer instead measured the transmitter output and found that the field device was producing a normal current signal. Continuity was then checked through the field wiring. The fault was eventually traced to the termination side of the affected channel rather than the electronic input hardware.
The important lesson was that the initial symptom identified the measurement path, not the failed component.
This is especially relevant with the T8831 because it is a Field Termination Assembly rather than the analogue conversion electronics itself. The T8431 performs the analogue input function associated with the Trusted system.
ICS Triplex T8831 Troubleshooting Logic for Multiple Faults
When several channels fail simultaneously, change the diagnostic strategy.
Instead of testing 40 transmitters individually, look for a common point:
Shared 24 VDC supply → FTA power distribution → common interface connection → T8431 module → system configuration
If every affected channel belongs to the same supply group, that correlation is strong evidence.
If channels are physically distributed but all disappear at the same time, investigate the interface between the FTA and the associated input module or the module's system status.
This type of fault correlation is generally faster than replacing hardware based solely on the first alarm observed.
ICS Triplex T8831 Repair and Recovery
T8831 Repair should begin only after the fault has been isolated sufficiently to justify hardware intervention.
Before replacing the FTA, record the existing terminal arrangement and verify the replacement part number. The T8831 is designed for DIN rail installation and includes dedicated field termination and interface connections.
After replacement, do not stop when the field-power indication returns to normal. Recheck representative analogue channels and compare measured field values against controller values.
For a 4–20 mA application, a useful validation set is approximately:
4 mA → low-scale response
12 mA → mid-scale response
20 mA → high-scale response
The exact engineering-unit conversion depends on the configured process range, so the controller value should always be checked against the approved System Configuration.
ICS Triplex T8831 Long-Tail Troubleshooting Keywords
Useful long-tail search terms for this fault class include ICS Triplex T8831 Troubleshooting Guide, T8831 Fault Diagnosis, T8831 analogue input fault, T8831 FTA wiring problem, T8831 field power fault, T8831 T8431 troubleshooting, T8831 40 channel analogue input FTA fault, and Trusted T8831 signal troubleshooting.
The most reliable T8831 Fault Diagnosis method is to prove each section of the signal path with measurements. A normal transmitter output does not prove the FTA is healthy, and an abnormal controller value does not by itself prove that the T8431 or T8831 has failed.
