ICS Triplex T8831 Analogue Input FTA Installation Guide (Wiring & Commissioning)
Time:2026-09-11 Browse: 0

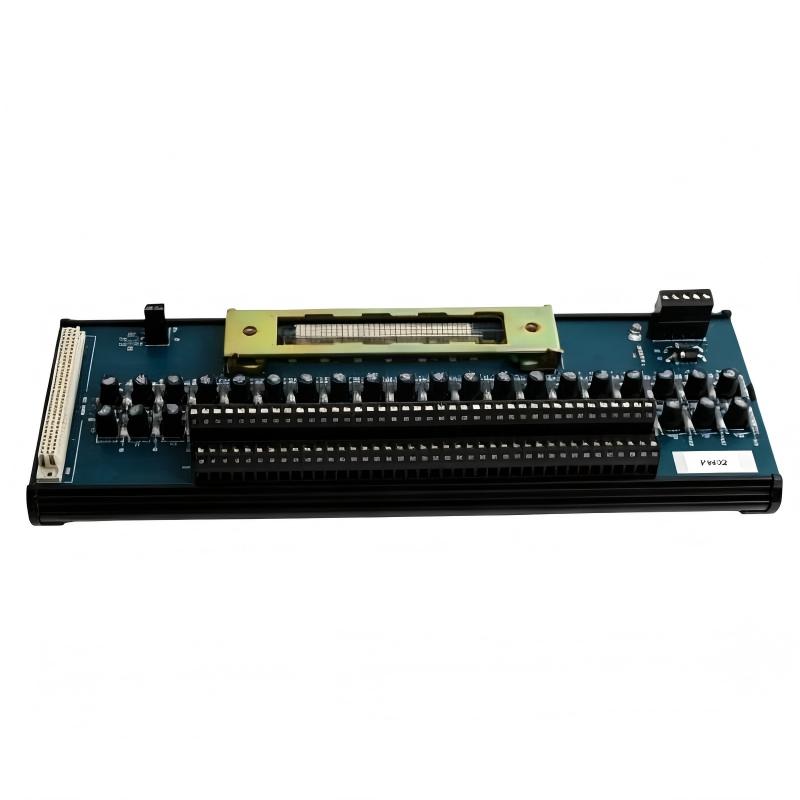

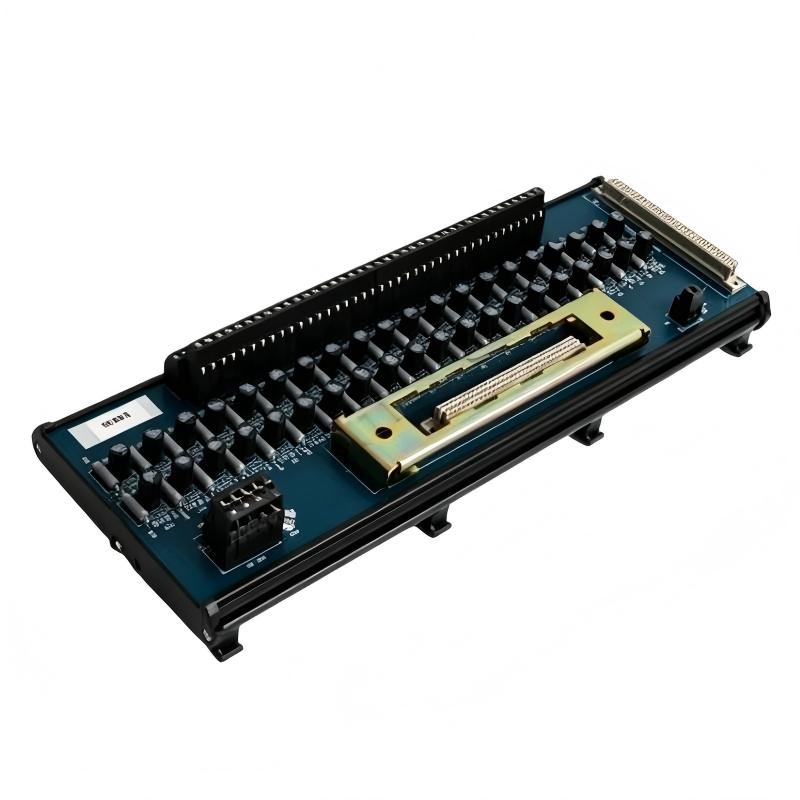

The ICS Triplex T8831 installation requires careful attention to field wiring, 24 VDC supply distribution, and the interface to the Trusted T8431 analogue input module. Although often described in the market as an analogue input module, the T8831 is technically a 40-channel Analogue Input Field Termination Assembly (FTA) used as the field interface for the Trusted TMR system.
ICS Triplex T8831 FTA Installation Role
The T8831 sits between field instruments and the Trusted analogue input module. Its main job is to terminate field wiring and provide the appropriate interface for non-incendive analogue signals. The assembly supports 40 input channels, uses standard two-wire field connections, and includes channel-level field power protection.
In a typical Trusted installation, the field device is wired to the T8831, while the T8831 connects through its interface cable to the associated T8431 analogue input module. This separation is important during commissioning because a signal problem may originate at the transmitter, field terminals, FTA wiring, or the electronic input module rather than at the T8831 itself.
ICS Triplex T8831 Installation Preparation
Before starting the T8831 Setup, verify the cabinet location, DIN rail arrangement, field cable identification, and associated Trusted I/O configuration.
The assembly is designed for standard DIN rail mounting and operates from a 24 VDC field supply arrangement. The field supply is distributed through the FTA, with an onboard LED providing an indication of field power integrity.
A practical pre-commissioning check should include:
Confirming the T8831 part number and hardware revision.
Checking that the FTA is mechanically secure on the DIN rail.
Inspecting terminal blocks for loose or damaged conductors.
Confirming the correct T8431 interface connection.
Verifying that field instrument polarity matches the approved wiring diagram.
Checking the 24 VDC field supply before connecting process instruments.
Do not assume that an illuminated power LED proves every analogue channel is correctly wired. It primarily confirms the relevant field power path; individual signal loops still require electrical verification.
ICS Triplex T8831 Wiring and Signal Interface
The T8831 provides 40 field input channels and is designed for non-incendive field wiring. Its circuitry incorporates current-limiting and dropping resistance intended to restrict field loop energy. Documentation for the assembly identifies a 145 Ω field supply resistor and a 250 Ω resistor associated with converting the incoming current signal into a voltage presented to the analogue input module.
This is one reason why the T8831 should not be treated as a simple passive terminal block.
For a typical current-loop installation, the engineer should verify the complete path:
Field transmitter → T8831 channel → interface cable → T8431 analogue input channel
If the transmitter is a 4–20 mA device, measure the actual loop current at the appropriate test point rather than relying only on the controller value. A normal controller reading with an unstable field current can indicate scaling, wiring, or signal-conditioning issues that may become visible only under process changes.
ICS Triplex T8831 System Configuration and Setup
The System Configuration should identify the relationship between each T8831 field channel and its corresponding T8431 input channel.
Channel numbering should be checked against the cabinet drawings before commissioning. A single channel-numbering error can produce a perfectly valid analogue value on the wrong process tag, which is often more difficult to detect than an open circuit.
During Setup, record at least:
T8831 terminal number
Field instrument tag
Associated T8431 channel
Signal type
Expected process range
Measured loop current
Controller engineering value
This record provides a useful baseline for later Troubleshooting.
ICS Triplex T8831 Commissioning Checks
The commissioning process should begin with the power path and then move toward the process signal.
First, confirm the available DC supply. The T8831 documentation specifies 24 VDC operation and dual field supply connections are used in the FTA arrangement.
Next, verify the field-side wiring channel by channel. If a transmitter is expected to produce 12 mA at a particular test condition, measure the actual current and compare it with the value displayed by the Trusted system.
For example, if a transmitter produces approximately 12.0 mA but the control system displays a value corresponding to a much lower input, the investigation should move toward the T8831/T8431 interface and System Configuration rather than immediately replacing the transmitter.
ICS Triplex T8831 Installation Validation
A useful field validation method is to test several representative channels rather than checking only the first channel.
In one commissioning-style test, an engineer can simulate low, mid-scale, and high input conditions and compare the field measurement with the controller value. A 4 mA test should represent the configured low point, while approximately 12 mA provides a convenient mid-range reference and 20 mA represents the upper end of the nominal loop.
The important result is not simply whether the channel changes. The engineer should confirm that the complete signal path changes proportionally and that the correct process tag responds.
ICS Triplex T8831 Installation Troubleshooting Notes
If the T8831 installation appears correct but an input remains fixed, do not immediately classify the FTA as defective.
A practical diagnostic sequence is:
Power → field loop → terminal continuity → interface cable → T8431 channel → configuration → controller value
This approach prevents unnecessary replacement of hardware that is functioning normally.
The T8831 has a relatively compact mechanical format of approximately 335 × 111 × 51 mm and a documented weight of about 0.9 kg. The published environmental specification includes an operating temperature range of -5°C to 60°C and 5–95% non-condensing humidity.
