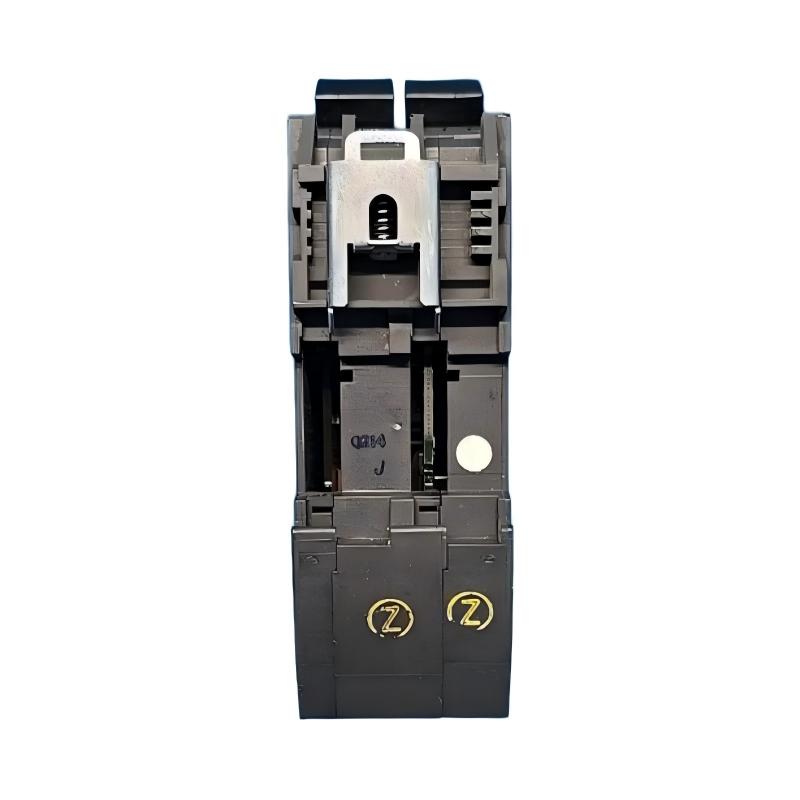

Emerson KJ1710X1-BA1 installation is primarily a matter of correct 24 VDC power wiring, fiber connection, grounding, and network verification. The KJ1710 is a single-port fiber switch used in DeltaV industrial communication networks, with four 10/100BaseTX twisted-pair ports and one 100BaseFX full-duplex fiber interface.
Emerson KJ1710X1-BA1 Fiber Switch Installation Preparation
Before starting the Installation Guide, confirm the switch model, power source, fiber type, network topology, and installation area.
The documented KJ1710 design accepts 19.2–28.8 VDC at approximately 250 mA. The switch is DIN-rail mountable and provides LED indications for network diagnostics. Its fiber interface is intended for industrial communication applications where electrical isolation and longer transmission distances are required.
For hazardous-area installations, the applicable Emerson installation instructions and local electrical regulations must be followed. The published certification information includes ATEX and FM hazardous-location requirements.
Emerson KJ1710X1-BA1 Wiring and Fiber Connection
Power wiring should be checked before any network cable is connected. Measure the supply voltage with a calibrated meter rather than relying only on the power-supply display.
A practical commissioning check is:
24 VDC nominal → verify polarity → verify approximately 19.2–28.8 VDC at the switch terminals → confirm stable voltage under load.
The copper network connections use 10/100BaseT RJ45 interfaces, while the fiber interface uses 100BaseFX full-duplex communication. The installation documentation specifies multimode fiber options including 62.5/125 and 50/125 micron fiber, with a nominal fiber distance of up to 2 km.
Before connecting the fiber, inspect the connector for contamination and make sure the transmit and receive paths are correctly matched. A clean connector can prevent a misleading communication fault during initial Setup.
Emerson KJ1710X1-BA1 System Configuration and Commissioning
The KJ1710X1-BA1 does not require a conventional PLC program download. Commissioning instead focuses on physical-layer integrity and network communication.

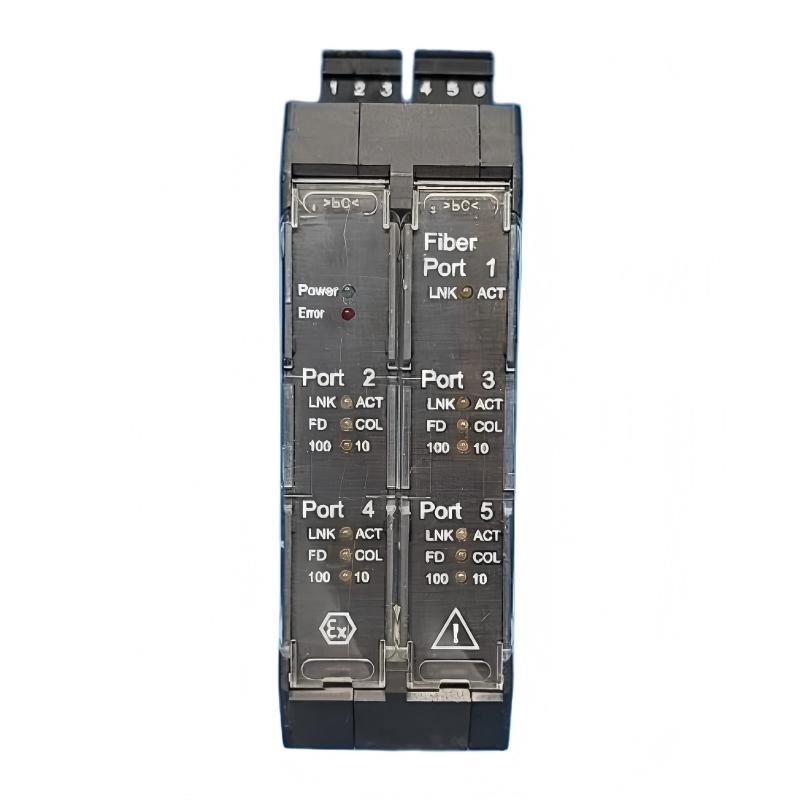

Start with the switch powered independently. Confirm the power indication, then connect the copper-side network devices. Once the local Ethernet link is stable, connect the fiber section and observe the corresponding link indication.
In one practical commissioning sequence, an engineer may initially see normal copper communication but no remote device response. Rather than replacing the switch immediately, check the fiber pair, connector condition, optical path, and remote-side equipment first.
A useful diagnostic rule is:
Local copper link present + remote fiber device unavailable = investigate the optical path before changing PLC configuration.
Emerson KJ1710X1-BA1 Installation Validation
After Setup, verify communication from both ends of the network. Check that the expected devices remain online during continuous operation rather than accepting a single successful ping or communication test as proof of stability.
For industrial systems, cable routing also matters. Keep communication wiring away from high-energy power conductors where practical, secure the fiber so that it is not sharply bent, and confirm that the DIN-rail installation is mechanically stable.
The published environmental specification allows operation from -40°C to 70°C, with 5–95% relative humidity without condensation. The unit is also specified for industrial shock and vibration conditions.
Long-Tail Keywords for Emerson KJ1710X1-BA1 Installation
Common search terms associated with this Installation Guide include Emerson KJ1710X1-BA1 installation, KJ1710X1-BA1 fiber switch wiring, Emerson KJ1710X1-BA1 Setup, KJ1710 single port fiber switch commissioning, KJ1710X1-BA1 communication setup, and Emerson DeltaV fiber switch installation.
For field engineers, the most useful approach is to treat the switch installation as a complete communication path rather than as an isolated hardware replacement.
Emerson KJ1710X1-BA1 Engineering Check
The final commissioning record should include measured DC supply voltage, fiber type, connected network ports, link status, ambient conditions, and the result of the communication test.
If communication is stable after these checks, the KJ1710X1-BA1 can be considered correctly integrated into the network segment.
