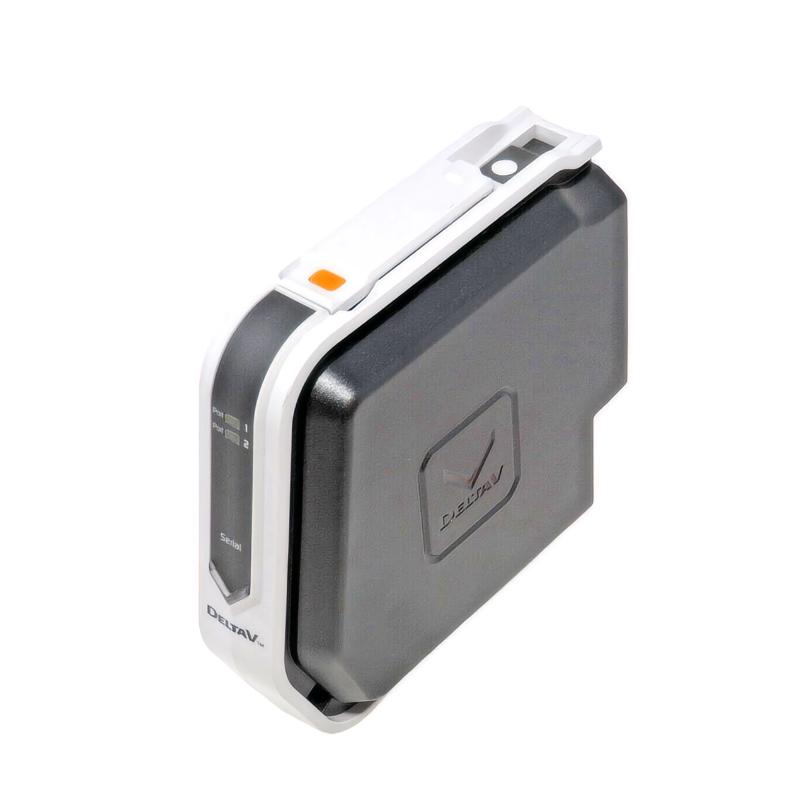

Emerson KJ2005X1-BA2 MX Controller Communication Fault Troubleshooting Guide
Time:2026-09-18 Browse: 0
Emerson KJ2005X1-BA2 MX Controller communication faults should be diagnosed by separating controller power, network connectivity, controller status, and DeltaV configuration. A red Error indication or an offline controller does not, by itself, prove that the MX Controller hardware has failed.
Emerson KJ2005X1-BA2 Communication Fault Symptoms
A typical communication fault may appear as an apparently healthy controller that does not communicate correctly with the DeltaV system.
Field observations can include:
Controller Power indication remains active
Controller appears unavailable in the engineering environment
One control-network path is not communicating
Red Error indication is present
Redundant communication behaves differently from the primary path
Control modules do not operate as expected
The first useful distinction is whether the problem affects one network path or the controller as a whole.
This distinction can dramatically reduce unnecessary module replacement.
Emerson KJ2005X1-BA2 Fault Diagnosis: Start With the Evidence
Suppose the KJ2005X1-BA2 has the following condition:
Power: ON
Primary network: abnormal
Secondary network: normal
The evidence does not immediately point to processor failure.
The controller has power, and at least one network path is functioning. The logical next target is therefore the affected primary communication path.
This is an important Fault Diagnosis principle for redundant control systems: compare the failed path with the healthy path before changing hardware.
Emerson KJ2005X1-BA2 MX Controller Network Analysis
The KJ2005X1-BA2 uses separate connections for primary and redundant control-network communication.
When troubleshooting a communication fault, inspect the physical path first:
Controller port
→ network cable
→ network-side connection
→ control network
→ DeltaV system status
A useful test is to compare the physical and software conditions at the same time.
If the DeltaV diagnostic reports loss of communication and the corresponding physical network indication is also abnormal, the two observations reinforce each other.
If DeltaV reports a controller problem while both network paths appear healthy, the investigation should move toward controller status and System Configuration.

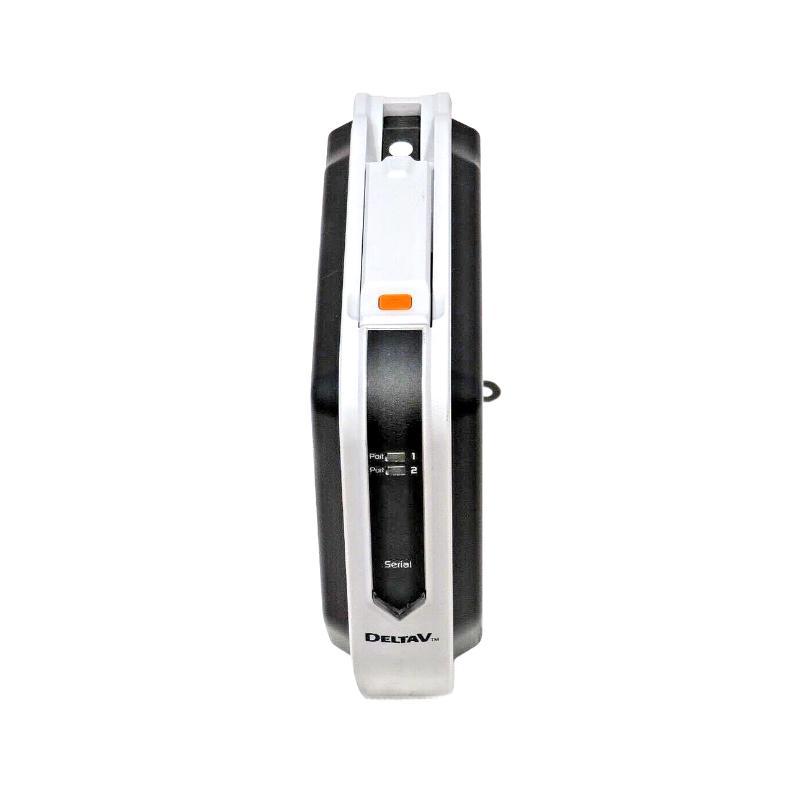

Emerson KJ2005X1-BA2 Error LED Fault Diagnosis
The Error LED is an important diagnostic indicator, but it should not be interpreted in isolation.
An engineer should record the complete LED pattern:
Power
Error
Active
Standby
Primary network
Secondary network
The combination is more informative than any single LED.
For example, an Error indication combined with healthy network communication suggests a different investigation path from an Error indication combined with loss of both network paths.
The timing of the indication also matters. Emerson documents LED behavior associated with controller identification and firmware upgrade activity. Therefore, an unusual flashing pattern immediately after an engineering operation should first be checked against the action that was performed.
Emerson KJ2005X1-BA2 MX Controller Troubleshooting Case
Consider a maintenance case in which a plant reports that a KJ2005X1-BA2 controller is "offline."
The maintenance engineer initially sees that the controller has power but the primary communication indication is abnormal.
Instead of removing the controller, the engineer compares the redundant path.
The secondary path remains available.
Next, the primary network cable is reseated and the network-side connection is inspected. After the physical connection is corrected, the primary communication indication returns and the controller status recovers.
The important part of this case is the diagnostic sequence.
The original symptom was:
Controller offline
The actual investigation became:
Power → network comparison → primary path isolation → physical connection check
The phrase "controller offline" therefore described the system symptom, not necessarily the failed component.
Emerson KJ2005X1-BA2 Controller Offline Fault Isolation
When both primary and redundant communication paths are abnormal, the investigation becomes broader.
At this point, check:
Carrier seating
Controller power
Controller LED status
Network hardware
Recent configuration changes
Controller identification
DeltaV diagnostic information
Recent firmware activity
If the controller remains completely unavailable after the physical network and carrier have been verified, replacing the controller may become a reasonable maintenance action.
However, replacement should ideally follow evidence rather than being the first diagnostic step.
Emerson KJ2005X1-BA2 System Configuration Troubleshooting
Not every controller communication problem is a hardware fault.
A controller can be physically healthy while the engineering configuration is incorrect or inconsistent with the installed hardware.
For this reason, compare:
Installed controller
with
Configured controller
and then compare both with:
Expected DeltaV architecture
Recent engineering changes are particularly important. If the fault appeared immediately after a configuration modification, the change history becomes useful diagnostic evidence.
Likewise, if the same controller worked normally before maintenance and failed immediately after a physical replacement, carrier seating and network reconnection deserve early attention.
Emerson KJ2005X1-BA2 Repair and Replacement Decision
The KJ2005X1-BA2 is not intended for user-level component repair. The practical field approach is fault isolation followed by module replacement when the evidence indicates a controller hardware problem.
Before replacing the module, record the existing condition.
A useful maintenance record includes:
Controller model: KJ2005X1-BA2
Power state: recorded
Error state: recorded
Active/Standby state: recorded
Primary network: recorded
Secondary network: recorded
DeltaV diagnostic: recorded
Recent changes: recorded
After installing the replacement, compare the new controller's behavior against the original record.
If the exact communication symptom remains unchanged, the removed controller was probably not the only variable involved. The investigation should return to the carrier, network, or System Configuration.
