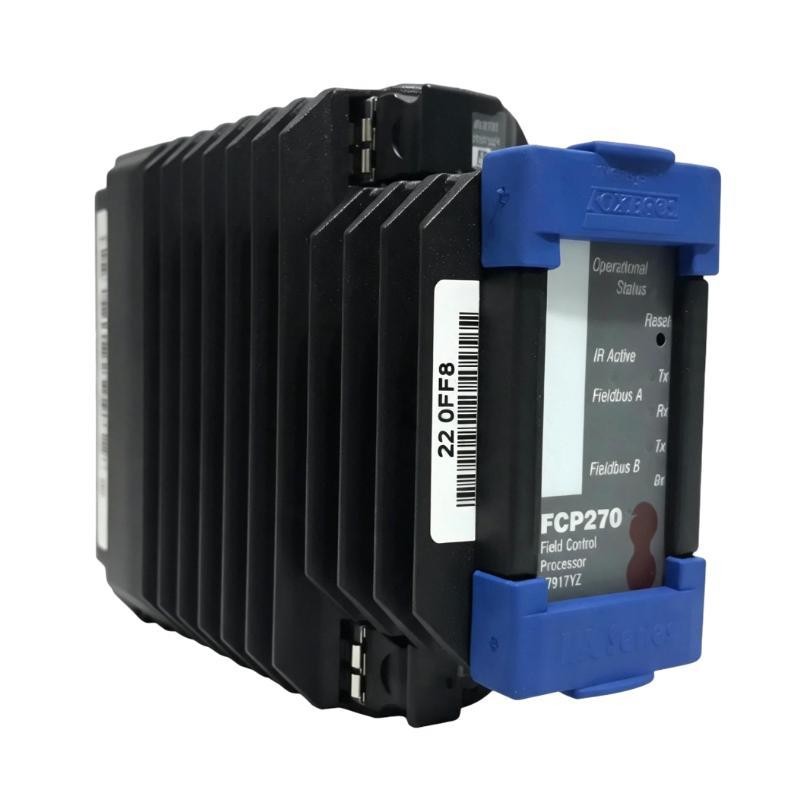

Foxboro FCP270 P0917YZ Field Control Processor Installation and Commissioning Guide
Time:2026-10-29 Browse: 2
Foxboro FCP270 P0917YZ Installation Requirements and System Preparation
The Foxboro FCP270 P0917YZ Field Control Processor should be installed with particular attention to mounting integrity, control-network connectivity, power stability, and compatibility with the existing distributed control system (DCS). A reliable installation depends on verifying the hardware configuration and communication paths before enabling process control. This installation guide covers practical preparation, setup, commissioning, and field validation for the FCP270 processor.
The FCP270 serves as a field control processor within a Foxboro control system. Its role in executing control functions and exchanging data with the wider system makes installation quality important for both control availability and diagnostic visibility.
Preparing the Foxboro FCP270 P0917YZ Control System
Before installation, review the system drawings, controller assignment, network topology, and approved configuration records. Confirm that the P0917YZ designation matches the replacement or installation requirement and that the hardware is supported by the installed system revision.
Pay particular attention to the following conditions:
Hardware compatibility: Verify the processor, mounting arrangement, associated modules, and system revision against the applicable Foxboro documentation.
Power availability: Confirm that the designated supply and distribution arrangement meet the system's documented requirements.
Network readiness: Identify the intended communication ports, cable routes, network addressing, and redundancy arrangements where applicable.
Process continuity: Determine whether the work affects a running controller, redundant pair, or critical control loop before disturbing any connections.
An engineer should also establish a baseline of controller status, active alarms, and communication health whenever the work involves an operating installation.
Foxboro FCP270 P0917YZ Processor Mounting and Wiring Checks

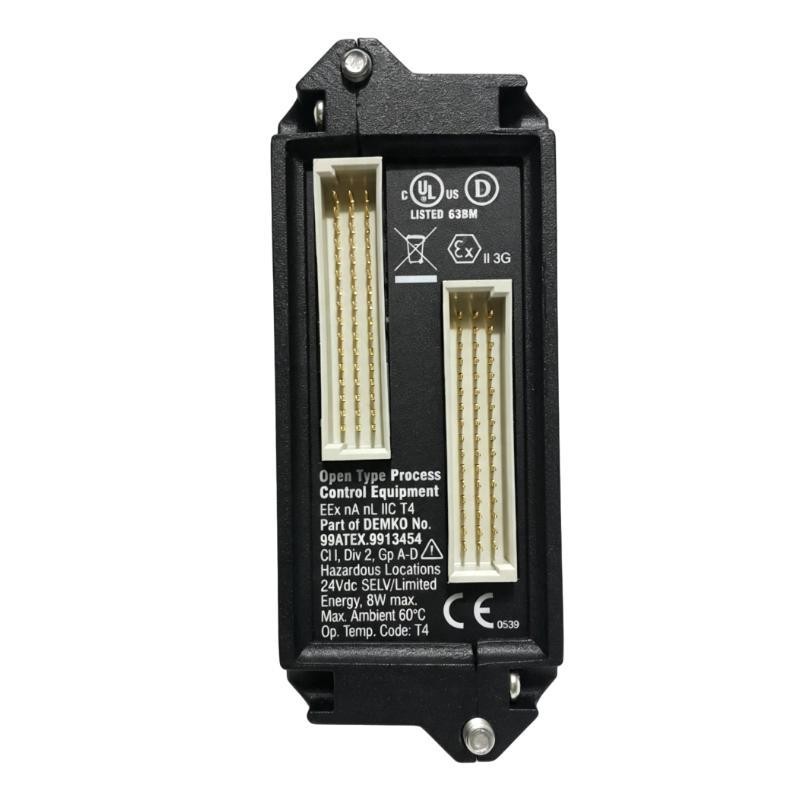

Install the processor in its specified mounting location, following the manufacturer's instructions for mechanical engagement, grounding, and connector handling. Inspect the mounting interface for damaged contacts, contamination, loose hardware, or signs of overheating.
Do not assume that a physically compatible connector proves electrical or functional compatibility. Confirm each interface against the approved system drawings before connecting cables.
Network wiring should be checked for correct port assignment, connector condition, cable identification, and routing away from sources of electrical interference where practical. If the control system uses redundant communication paths, verify each path independently rather than treating the presence of two cables as proof of redundancy.
All insertion, removal, and wiring work must follow the approved shutdown or hot-swap procedure for the specific system. Never interrupt a live control path unless the hardware documentation and site operating procedure explicitly permit it.
Foxboro FCP270 P0917YZ Setup and Commissioning Sequence
Commissioning should progress from hardware verification to communication checks and finally to control-system validation.
First, energize or restore the equipment in accordance with the approved startup procedure. Observe the processor's status indicators and compare them with the manufacturer's documented LED definitions. An illuminated indicator alone is not sufficient evidence that the processor is ready for service.
Next, verify that the configured controller appears correctly in the engineering workstation or system management interface. Check the reported hardware identity, communication state, diagnostic messages, and configuration consistency.
The following commissioning record provides a practical framework:
| Check | Acceptance evidence |
|---|---|
| Hardware recognition | Correct processor identity is reported |
| Controller status | State agrees with the approved startup procedure |
| Network communication | Required communication paths are healthy |
| System configuration | Downloaded or active configuration matches the approved revision |
| Control execution | Relevant blocks, loops, and controller diagnostics are normal |
| Alarm handling | Expected alarms and status changes are visible to operators |
Where the system uses redundant controllers, verify synchronization and failover readiness using the documented test procedure. Do not force a switchover on a live process without authorization and a defined recovery plan.
Foxboro FCP270 P0917YZ Commissioning Example and Engineering Validation
Consider a representative commissioning scenario in which an FCP270 replacement is recognized by the engineering workstation but does not immediately establish normal communication with the supervisory system.
The correct approach is to separate hardware recognition from network communication. Confirm the controller's local status first, then inspect the configured network path, port assignment, cable continuity, and relevant system diagnostics. If the local controller state is normal but the supervisory connection remains unavailable, replacing the processor immediately would be premature.
For measurable verification, record the communication status, diagnostic timestamps, and any available error counters before and after corrective work. Compare the results against the site's approved acceptance criteria rather than applying an assumed universal response-time or voltage limit.
This is an illustrative commissioning scenario, not a verified field report for a specific P0917YZ installation. Actual acceptance values and indicator interpretations must come from the applicable Foxboro manuals and site documentation.
Foxboro FCP270 P0917YZ Installation Guide: Long-Tail Search Topics
This guide addresses common installation-related search questions, including how to install a Foxboro FCP270 P0917YZ Field Control Processor, how to perform FCP270 setup and commissioning, how to verify controller communication, and how to check System Configuration after processor replacement.
The key engineering principle is to validate the complete control path, not just the processor itself. Correct mounting, verified network connections, configuration consistency, and documented functional checks provide a stronger basis for commissioning acceptance.
