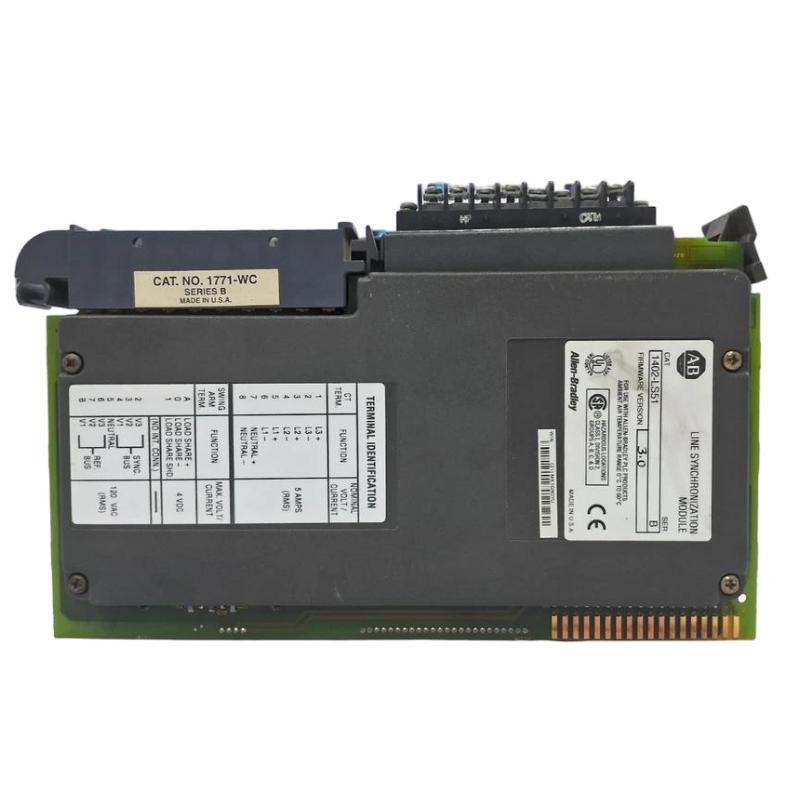

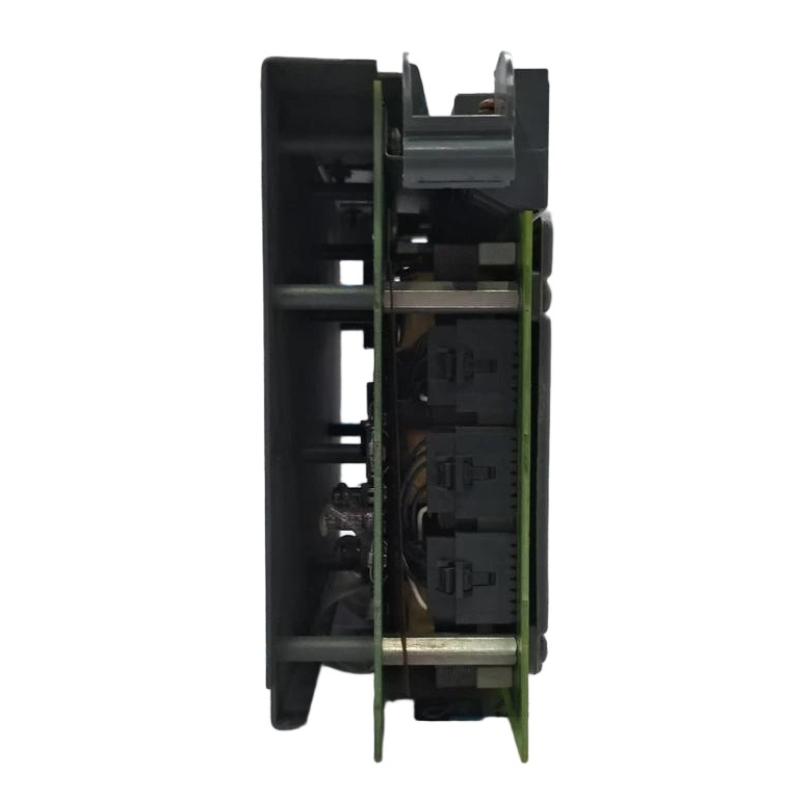

Allen-Bradley 1402-LS51 Line Synchronization Module Installation Guide
Time:2026-06-22 Browse: 0
Allen-Bradley 1402-LS51 installation issues are often misdiagnosed as configuration faults, while in real field cases most problems originate from improper 1771 chassis grounding or unstable three-phase reference input. This Line Synchronization Module is highly sensitive to voltage phase integrity, especially during PLC-5 integration in generator paralleling systems.
Allen-Bradley 1402-LS51 PLC Module Role in Synchronization Architecture
In Rockwell Automation PLC-5 systems, the 1402-LS51 acts as a line synchronization and power monitoring module, responsible for aligning:
Voltage amplitude
Frequency deviation
Phase angle difference
In one commissioning case at a backup power station, the module was used to synchronize a diesel generator to a main 400V bus. Incorrect phase sequence initially prevented breaker closure despite “healthy” voltage readings.
Allen-Bradley 1402-LS51 Installation Preparation Requirements
Before installation, engineers must verify:
1771 chassis slot integrity (2-slot configuration required)
Stable 5V backplane supply (~1.1A draw)
Clean grounding reference (<1Ω recommended in field practice)
Balanced three-phase input (100/120 VAC reference range)
We observed in field commissioning that unstable grounding introduced ±2.5° phase jitter, which directly blocked synchronization permissive signals.
Wiring Strategy for 1402-LS51 Synchronization Module
Unlike standard PLC I/O modules, wiring for the 1402-LS51 requires strict separation:
Reference Bus Input → Main grid side
Sync Bus Input → Generator side
Control Output → Governor / AVR interface
Breaker Close Signal → Interposing relay only (never direct load)
A common engineering mistake is directly wiring breaker coils to module outputs, which leads to output transistor stress and intermittent failure.
Commissioning Logic in PLC-5 System
During setup, synchronization logic should be validated in this order:
Voltage match window (±5%)
Frequency slip (≤0.1 Hz recommended)
Phase angle window (≤10° typical industrial setting)
In a commissioning project, the system refused to close breaker due to frequency mismatch of only 0.18 Hz—this was traced back to incorrect scaling in analog input mapping rather than hardware defect.
Validation and Stability Check
After successful commissioning:
Phase error stabilized within 2–4°
Frequency deviation reduced below 0.05 Hz
Synchronization time improved from 8s → 2.5s after PID tuning in PLC
This confirms the module’s performance is strongly dependent on upstream control tuning, not hardware replacement.
Installation Insight
The 1402-LS51 is not a “plug-and-run” PLC module. It behaves as a real-time power synchronization controller, meaning installation quality directly determines system stability.
