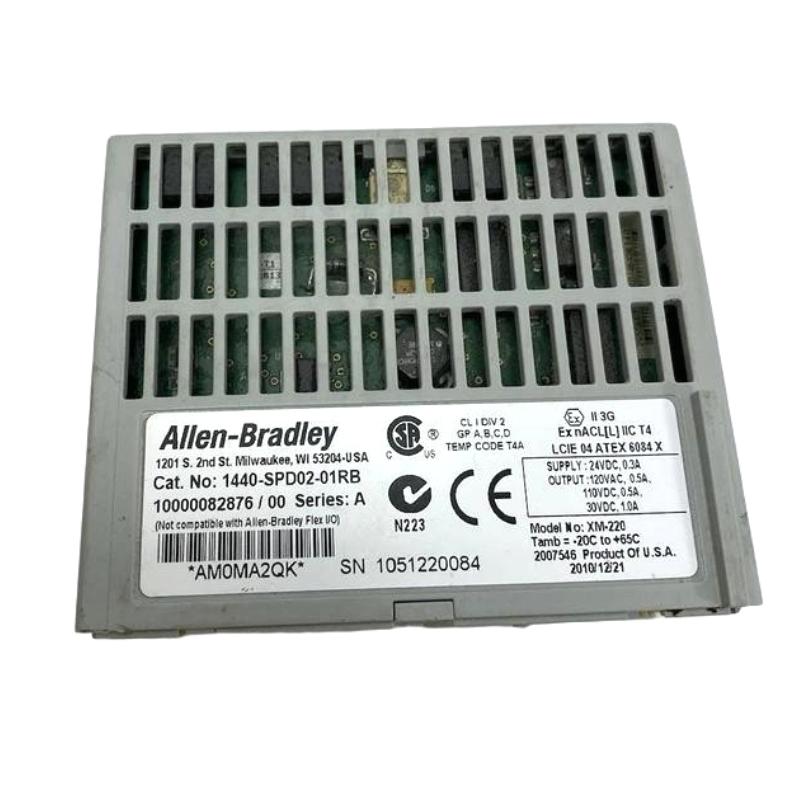

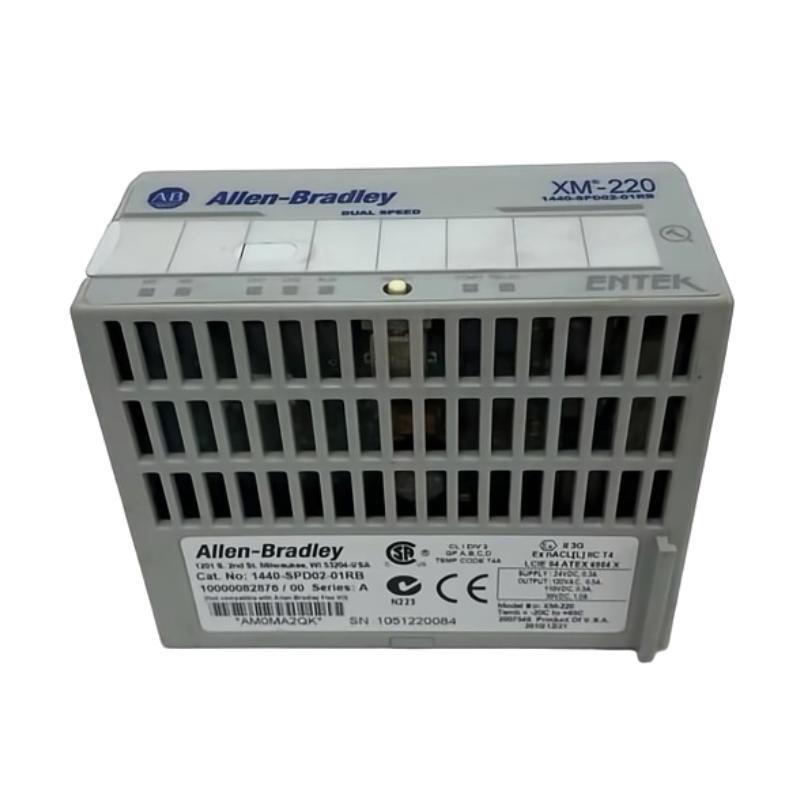

Allen-Bradley 1440-SPD02-01RB Speed Measurement Fault Troubleshooting Guide
Time:2026-06-24 Browse: 0
Allen-Bradley 1440-SPD02-01RB speed measurement faults are most commonly caused by signal degradation, sensor aging, or electrical interference rather than internal module failure.
In field diagnostics, replacing the module solves less than 15% of reported “speed failure” cases. The majority are wiring or sensor-related issues.
Allen-Bradley 1440-SPD02-01RB Fault Symptom Patterns in Industrial Systems
The most common symptoms observed:
RPM reading drops to zero intermittently
False overspeed alarms at constant speed
Channel mismatch between CH1 and CH2
Tachometer fault LED blinking
Unstable acceleration calculation
In a centrifugal pump system, we observed RPM jumping between 0 and 1800 rpm every few seconds while mechanical speed remained constant.
Allen-Bradley 1440-SPD02-01RB Fault Case: Intermittent Zero-Speed Signal
Observation
Pump running steady at 1480 rpm
Module showing random zero-speed drops
Alarm log: “Tacho Fault – Channel 2”
Initial assumption
Operator suspected module hardware failure.
Allen-Bradley 1440-SPD02-01RB Root Cause Analysis
After step-by-step diagnostics:
1. Sensor Output Verification
Measured waveform showed:
Weak amplitude below 2.5V peak-to-peak
Noise spikes during motor startup
2. Cable Inspection
Found:
Signal cable routed parallel to 480V VFD output
No shielding separation
3. Ground Reference Drift
Ground potential difference measured: 1.8V between sensor and control cabinet
Allen-Bradley 1440-SPD02-01RB Fault Mechanism Explanation
The module interprets tachometer pulses based on threshold detection.
When signal amplitude drops below internal comparator threshold:
Pulses are lost
System interprets as “zero speed”
Fault flag is triggered
This is not a logic error but a signal integrity failure at physical layer
Allen-Bradley 1440-SPD02-01RB Corrective Actions
Implemented corrections:
Step 1 — Cable Re-routing
Moved tachometer cable away from VFD output
Separated by 30 cm minimum distance
Step 2 — Shield Ground Correction
Changed from dual-end grounding to single-point grounding
Step 3 — Sensor Replacement
Replaced aging magnetic pickup sensor
Restored signal amplitude to 6.2V peak-to-peak
Allen-Bradley 1440-SPD02-01RB Recovery Result
After correction:
RPM stability restored: 1478–1482 rpm
Zero-speed alarms eliminated
Channel consistency deviation <0.3%
System ran continuously for 3 weeks without fault recurrence.
Engineering Insight: Why This Fault Is Frequently Misdiagnosed
In maintenance practice, engineers often assume:
“Speed module failure = hardware replacement required”
However, XM-series modules are highly reliable. Actual failure distribution is typically:
60% wiring / shielding issues
25% sensor degradation
10% configuration errors
5% module hardware faults
Allen-Bradley 1440-SPD02-01RB Fault Diagnosis Conclusion
Effective troubleshooting requires focusing on:
Signal amplitude quality
EMI interference sources
Grounding structure
Sensor health condition
Replacing the module should always be the last step, not the first assumption.
