Allen Bradley 1606-XL240EP Power Supply Installation Overview

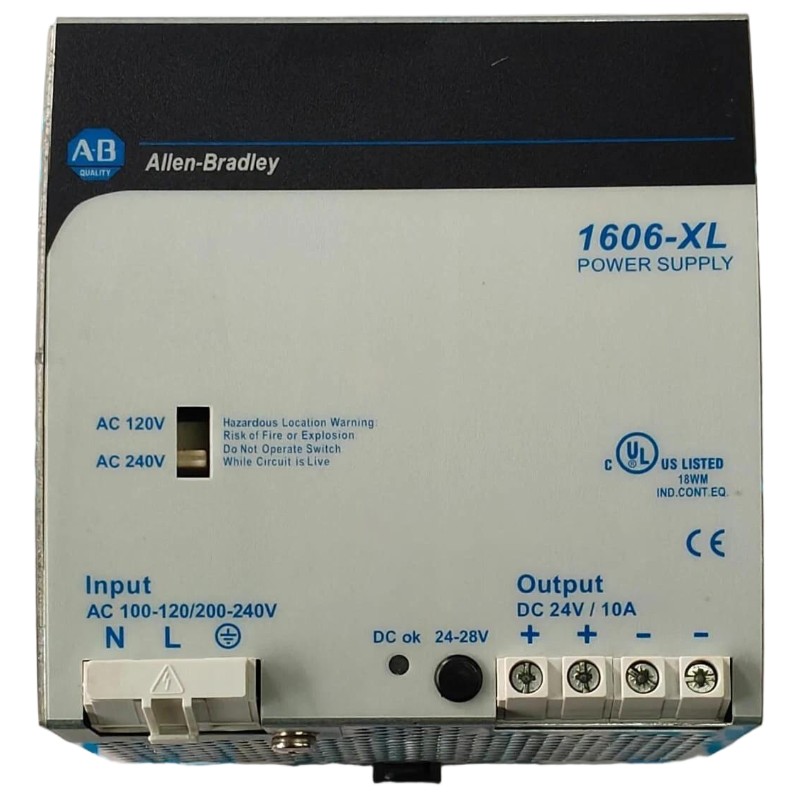

The Allen Bradley 1606-XL240EP Power Supply Installation Guide explains the correct method for mounting, wiring, and commissioning this industrial DC power unit in automation control cabinets. The 1606-XL240EP is an industrial Power Supply designed to provide stable 24V DC power for PLC Controller systems, I/O Module equipment, sensors, actuators, and control components.
In practical automation projects, successful installation depends on more than connecting input and output terminals. Engineers must consider load distribution, cabinet temperature, grounding quality, and the complete System Configuration to avoid unstable operation after startup.

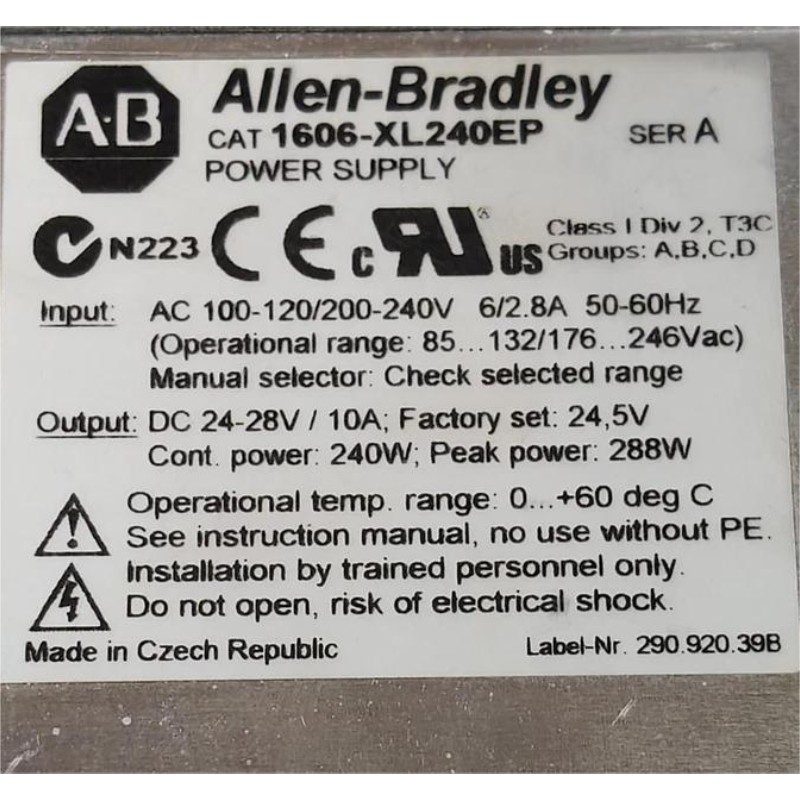

Brand: Allen Bradley
Product Type: Industrial Power Supply
Model: 1606-XL240EP
Country of Origin: Czech Republic
Allen Bradley 1606-XL240EP Power Supply Installation Preparation
Before starting the Allen Bradley 1606-XL240EP Setup process, technicians should review the electrical requirements of the entire control system.
The preparation stage normally includes:
Checking available AC input voltage
Calculating total 24V DC load consumption
Confirming PLC Controller and Module current requirements
Inspecting cabinet ventilation conditions
Preparing correct wire sizes and terminal accessories
A common mistake during field installation is selecting a Power Supply only according to PLC consumption. In many machines, the PLC is only one part of the DC network. Remote I/O Modules, safety devices, communication equipment, solenoid valves, and sensors can create additional current demand.
A complete System Configuration review helps prevent overload conditions during machine startup.
Allen Bradley 1606-XL240EP Power Supply Wiring Setup and Connection Method
Correct wiring is the foundation of reliable Allen Bradley 1606-XL240EP operation.
During the installation process, engineers should verify:
AC input terminals are correctly connected
Protective earth wiring is properly installed
24V DC positive and negative polarity are correct
Output cables are firmly secured
DC distribution is separated according to equipment groups
For PLC Controller applications, it is recommended to avoid placing high-current devices and sensitive control devices on the same DC branch.
A typical industrial arrangement:
Power Supply output
→ DC distribution terminal
→ PLC Controller branch
→ Communication Module branch
→ Sensor and actuator branch
This wiring strategy improves fault isolation and makes future Troubleshooting faster.
Allen Bradley 1606-XL240EP Commissioning Process and Voltage Verification
The Allen Bradley 1606-XL240EP Commissioning procedure should confirm stable electrical performance before machine operation.
During commissioning, technicians normally check:
Output voltage without load
Voltage stability during PLC startup
Voltage variation when field devices activate
PLC Controller communication status
Module operating condition
In one commissioning case, a machine builder experienced repeated controller resets during the first production test.
The engineering team measured:
Power Supply output without load: 24.3 V DC
Voltage during actuator activation: 21.9 V DC
PLC reset point: below 22 V DC
The initial suspicion was a defective Power Supply. However, further investigation showed that the DC cable between the cabinet and remote I/O station was too small for the actual distance and load.
After replacing the cable and improving the power distribution layout, the voltage remained stable at 24.0 V DC during peak operation.
This commissioning experience shows that power-related failures require complete system analysis instead of replacing components immediately.
Allen Bradley 1606-XL240EP Power Supply Installation Validation and Maintenance
After completing the Allen Bradley 1606-XL240EP Installation Guide procedure, engineers should perform final validation checks.
Recommended inspection points:
Terminal tightness
Cabinet airflow
DC voltage stability
Load current trend
PLC Controller startup sequence
Module communication reliability
A properly installed Power Supply should provide consistent DC power throughout the machine lifecycle.
The goal of professional Setup and Commissioning is not only to start the equipment but also to create a reliable foundation for long-term industrial operation.
